The Ultimate Guide to Milling Bits: A Deep Dive into CNC and End Mill Cutters

CNC machining is powered by milling bits, seamlessly integrating precision, maximization, and multifunctionality into manufacturing. As a CNC enthusiast, product designer, or professional machinist, having adequate knowledge of the different types of milling bits can drastically improve your final output. This guide is invaluable in understanding end mill cutters and milling bits. It simplifies factors regarding their selection and discusses the different types of bits and their applications. After reading this article, your skills will enable you to manipulate and prolong the functioning capability of your milling tools in ways you previously could not, taking your skills to unprecedented heights.

What Are the Different Types of Milling Bits?

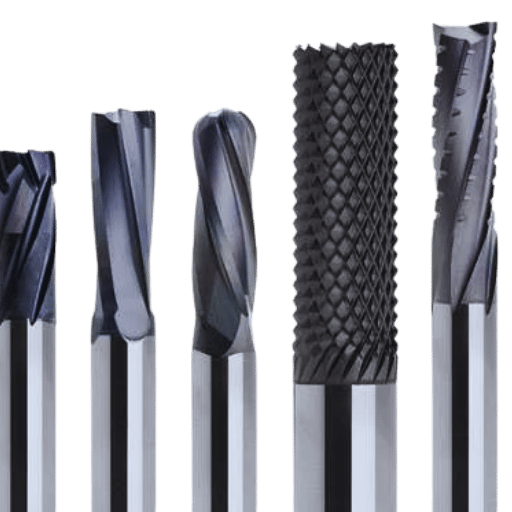

Milling bits, called End Mills, come in different kinds and types, each designed for specific purposes. The most common types include:

1. Flat End Mills: Used to achieve sharp edges and flat surfaces. They work well when slotting, side milling, and contouring.
2. Ball-Nose End Mills: These have a rounded tip and are appropriate for smooth 3D contouring and curves.
3. Corner Radius End Mills: Provide parallel functions offered by flat and ball-nose mills, giving higher edge strength and toughness alongside clicker edges.
4. Roughing End Mills: These bits have a serrated cutting edge that maximally and efficiently removes many materials. They are handy for heavy-duty applications.
5. Tapered End Mills: For these types of bits, machining of angled surfaces is typical, especially in mold and die work.

Choosing the right milling bit enables effective performance for every machining task.

Understanding Square End Mills and Their Applications

Square end mills are multifaceted cutting tools for creating sharp edges and flat surfaces because their bottoms are flat. These tools are helpful in general-purpose milling activities like slotting, profiling, and plunging. They are especially effective for machining metals, plastics, and composites needing precise and clean finishes. Moreover, they single-handedly perform multiple operations with tight tolerances, making them the go-to choice in CNC machining and other manufacturing processes. Performance and endurance for square-end mills with a specific material, coating optimized for a given workpiece, and operation greatly influence the selected material.

The Role of Ball End Mills in CNC Milling

Ball end mills are integral to CNC milling, especially with the more complex 3D contouring and profiling functions. CNC machining has dramatically benefited from using these tools with rounded tips as they greatly aid in finishing curved surfaces, enabling industries to create intricate components, dies, molds, etc. Ball end mills are perfect for minimizing tool marks and achieving precision in operations that need complex geometric shapes and blendable edges. Choosing appropriately sized ball end mills in the right materials corresponding with specific jobs increases performance and efficiency in accomplishing tasks efficiently.

Exploring Roughing End Mills for Efficient Material Removal

Roughing end mills are optimally created to achieve high material removal rates in machining operations. Their unique tooth design consisting of a serrated or scalloped edge reduces cutting forces, enhances the ejection of chips, and mitigates the feed per revolution. These tools are highly effective for roughing cuts in alloys such as steel, aluminum, and other metals, making them ideal for the primary machining stages. The type of material and the operational conditions must be considered to select specific roughing end mills economically.

How to Choose the Right Milling Cutter for Your Project?

Factors to Consider When Selecting an End Mill

1. Materials Compatibility: For optimum results and tool life, select an end mill that accurately corresponds to the material you are machining, such as steel, aluminum, or composite materials.
2. Coating Type: Choose tool types with coatings made of titanium nitride (TiN) or aluminum titanium nitride (AlTiN), as these will provide better resistance to wear and increase cutting efficacy.
3. Cutting Tool Geometry: To meet project requirements for more material extraction and finer finishes, pay attention to flute count, helix angle, and corner radius.
4. Machine Capabilities: Make sure the end mill is suited to the machine’s speed, power, and spindled capabilities to ensure these devices’ safe and effective use.
5. Application Requirements: Determine if the tool will be used for roughing, finishing, or other operative tasks and choose appropriately to achieve the required precision and efficiency in drilling and milling operations.

Comparing Carbide vs. High-Speed Steel Cutters

Knowing the distinctions between carbide and high-speed steel (HSS) tools, like cutting tools, saws, drills, and other tools, is critical for maximum productivity and performance. Carbide cutters are produced by transforming a ceramic and metal powder mixture into a cutter shape. Their hardness and resistance to heat are superior. These characteristics enable cutting tools made of carbide to cut at substantially greater rates and retain their edge considerably longer than other tools, which is ideal in mass production and machining unsatisfactory materials like stainless steel or titanium. While these tools last longer, their cost is significantly higher, translating to a higher initial cost.

At the same time, high-speed steel cutters are cheaper and easier to use, alongside being versatile and, thus, more affordable. HSS tools are appropriate for soft materials and less demanding applications such as aluminum and softer steels. These tools are handy and advantageous in highly intricate machining operations or in situations where breakage of the tool is most likely to occur. These tools work well for relatively low speeds and power-cutting operations.

In data benchmarking, carbide tools outperform HSS tools by achieving 3 to 5 times higher cutting speeds and sharper edges for significantly longer periods. Nonetheless, HSS continues to take precedence over carbide in applications where cost, versatility, or machine construction are rigidly defined. The deciding factors of choice shall be specific to the application, such as the type of material to be machined, required cutting speed, and, most importantly, cost in the context of the kinds of milling bits.

When to Use Diamond-Coated Bits

Traditional tooling options often fail when machining extremely hard or abrasive materials. However, diamond-coated bits excel in these contexts. The diamond coating’s exceptional hardness and wear resistance make these tools ideal for processing composites, ceramics, graphite, and reinforced plastics. Studies show that certain milling bits have surfaced for heavy-duty operations with abrasive materials, allowing diamond coatings to extend the tool’s life by up to 10 compared to carbide tools.

In addition to the exceptional strength of diamond, the material also possesses a lot of thermal conductivity, which helps reduce the heat buildup during high-speed machining processes. The combination of the tool and the workpiece remaining intact after being machined makes diamond-coated bits ideal for aerospace, automotive, and electronics manufacturing. These tools do best for non-ferrous materials; the coating tends to degrade when used to cut ferrous metals due to the high temperatures. While the bits do come at a higher upfront cost, the extended lifespan and performance in demanding tasks significantly improve the cost efficiency in the long run.

How Do CNC Machines Utilize Different Milling Bits?

The Integration of Router Bits in CNC Milling Operations

Effective CNC machining is achieved with a top-mounted spindle router that provides high-speed rotary motion controlled by sophisticated software. They aim to cut, shape, and polish wood, plastic, and soft metals. These tools allow for better control of complex shapes and accurate cutting of materials when integrated with CNC machines.

Some innovations in router bit design include new geometries and special coatings. For instance, the most popular types are carbide-tipped and solid carbide bits because they are very durable and resistant to high temperatures; thus, they are essential in all kinds of milling bits. The bits retain their sharpness and work efficiently with increased wear and tear, even with high-speed and repetitive motions. Statistics show that specially tailored router bits designed for particular materials outperform general bits by thirty percent, proving that specialized milling bits have a defined purpose.

In addition, many modern CNC systems now feature automated tool-changing devices that permit multiple combinations of router bits for an operation. Such devices enable more sophisticated manufacturing processes, like 3D contouring or multi-material tasks. Studies in manufacturing suggest that using specific router bits saves time and enhances the quality of surface finishes, which yields better results.

Another important consideration is the interface of router bits to CNC software. Programmable features such as feed rate and spindle speed are set based on the engineering parameters of specific bits. If properly calibrated, tool life is extended while performance is continuous, translating to savings for cost-sensitive industries dependent on high output.

Implementing these technological improvements and proper bit selection practices allows manufacturers to realize extraordinary accuracy with little material waste and process delay. This emphasizes the significant impact of router bits on the functions of modern-day CNC milling machines.

Why Face Mills are Ideal for Surface Finishing

Mills perform surface finishing perfectly; they give efficient, consistent, and supremely smooth finishing over broad, flat areas, similar to how mills are used for industrial machining. Their multi-point configuration guarantees that material is removed uniformly, significantly minimizing the probability of any toolmark or surface imperfections. Furthermore, face mills can be used with a wide array of cutting inserts, allowing manufacturers to select the most suitable insert geometry and material corresponding to the workpiece properties and intended surface finish. The flexibility and the capacity to operate at high feed rates make face mills the cutting tool of choice when the goal is accurate and clean surface finishes.

Adapting Thread Mills for Precise Threading

With incredible versatility, thread mills can create threads using helical interpolation, even allowing for precise profiling. For optimal performance, thread mills are adapted by considering thread size, workpiece material attributes, and machine operational parameters. Correct selection of the Thread mill’s diameter and pitch ensures compatibility with the thread design. Path programming, which includes accurate calculations of depth, pitch, and tool movement, increases the uniformity of the thread and overall quality. Furthermore, applying high-performance coatings and using optimal spindle speeds when machining threaded holes of different materials can enhance tool life and efficiency.

What Are the Benefits of Using Carbide End Mill Bits?

Increased Tool Life with Carbide End Mills

The prolonged tool life associated with carbide end mills is attributable to exceptional hardness and resistance wear. The carbide material can hold cutting edges for extended periods, even in high-speed machining scenarios and extreme conditions. Because of this durability, the need for tool replacement is reduced, which increases operational efficiency and minimizes downtime. In addition, carbide end mills help machine tough materials, as they maintain performance and precision over time. Such characteristics make these tools economical for demanding manufacturing environments, particularly when comparing the costs of various milling bits.

How Solid Carbide Offers Superior Performance

The remarkable qualities of solid carbide, such as hardness, strength, and heat resistance, bring its superb performance. These characteristics allow it to endure very high speeds and extreme machining conditions without damaging its cutter efficiency. Additionally, tools made of solid carbide maintain their ability to cut with sharp and precise edges, which allows them to perform consistently with better accuracy. These attributes of solid carbide make it an ideal choice for machining rigid materials and performing intricate manufacturing tasks, which enhances productivity and reduces tool damage.

What Makes Drill Mills Different from Regular Drill Bits?

The Dual Functions of Drill Mills in Milling and Drilling

Drill mills are multifunctional tools that can both mill and drill, further showing how mills are multifunctional. Unlike a standard drill bit, which only makes holes, drill mills have cutting edges on the tip and along the sides. This allows them to drill, chamfer, slot, and perform light milling operations. Their distinctive shape helps to avoid changing tools between operations, maximizing efficiency and reducing time wastage in manufacturing processes.

Advantages of Choosing Corner Radius End Mills

The corner radius end mills offer positive attributes in machining applications. The rounded edges minimize the likelihood of chipping, improving tool life and durability. This design contributes to the tool’s edge strength, allowing it to cut harder materials. Further, corner radius end mills reduced sharp transitions, which enhances surface finish, particularly in high-end components. These end mills are pretty versatile, which makes them very good at roughing and finishing in all types of milling bits, enhancing efficiency and productivity.

Frequently Asked Questions (FAQs)

Q: What are milling bits, and what purpose do they serve in a CNC milling machine?

A: A milling bit is a component of a CNC machine that functions as a cutting tool in removing surfaces of a workpiece. These bits serve specific milling jobs depending on the bit size and type. In addition to wood, they can cut selective shapes and shapes in stainless steel and aluminum.

Q: In what ways are end mills different from other milling bits?

A: End mills are a subset of milling bits with a cutting edge on the periphery and the end of the cutter. Even though bits and rotary drillers are often confused, intruders cut in only an axial way, while these end bits are circular or flat and can cut circumferentially and axially. They are vital tools for efficient and precise milling work.

Q: What are the significant classifications of milling bits for milling machines?

A: The categories of milling bits consist of flat-end mills, ball-end mills, slab mills, fly cutters, shell mills, and T-slot cutters. Each bit type serves different operations, such as contouring, slotting, and obtaining smooth finishes on a component.

Q: In what way is tungsten carbide suited for manufacturing milling bits?

A: Tungsten carbide is widely accepted in the manufacture of milling bits due to its exceptional hardness, wear, and heat resistance. This enables it to withstand high-speed cutting processes and provide durability and consistent performance across difficult milling conditions.

Q: What is the significance of cutting edges on a given cutting tool?

A: Cutting edges on the cutting tool is very important because the material to be cut is in direct contact with the edges. Sharp and well-designed cutting edges have reasonable removal rates and leave a machined surface with a good finish. Moreover, they also affect tool life and cutting speed.

Q: What distinguishes form cutters and gear cutters from other end mills?

A: Form and gear cutters are modified milling tools intended to define specific contours and teeth of gears, respectively. Unlike standard end mills used for general milling, form, and gear cutters are used for more sophisticated purposes where specific shapes and profiles are needed.

Q: What are the advantages of using high-speed and cobalt steel in milling bits?

A: Toughness and heat resistance category High-speed and cobalt steel are common materials used for milling bits. These materials enable bits to endure very high cutting speeds, decreasing tool wear and enhancing the cutting rate for heavy machining operations. This is very beneficial for different types of milling bits.

Q: Describe the difference between fly cutters and hollow mills in terms of their milling function.

A: Fly cutters are used with a single-point cutting tool for machining large flat surfaces. Hollow mills, unlike fly cutters, can function as internal and external profilers since they can cut cylindrical shapes and hollows within a workpiece, having multiple cutting edges.

Q: Discuss why T-slot cutters and shell mills are frequently used in many milling operations.

A: T-slot cutters are the only milling cutters that produce T-shaped slots that are usually needed in machine tables and fixtures. Shell mills are also frequently used because of their diameter, they are used in heavy stock removal or face milling, T-slot cutters are also used for bulk removal and provide finer finishes.

Q: How should I contact CNC Masters for further inquiries about their CNC end mills and cutting tools?

A: You can visit CNC Masters’ official website or contact their customer service for more information about CNC end mills and cutting tools. You can receive detailed instructions and specifications to help you select the tools that best fit your milling requirements.
