Aluminum 2024-T4; 2024-T351
Material Notes: Explore the advantages of Alcoa’s 2024 aluminum alloy. This exceptionally strong material is very easy to machine and have excellent surface finishes, making it ideal for structural applications. Moreover, 2024 alloy workability has improved so significantly that it has become a better choice than the older, and less advanced, 2017 alloy.
Uses: We manufacture precision components, including aircraft fittings, bolts and hydraulic valve bodies, gears, clocks and computers, shafts, fuse parts, missiles, munitions, pistons, nuts, couplings, rectifier and worm gears, and fastening devices. Moreover, we pay attention to the veterinary and orthopedic activities and supplies for which we produce specialized equipment and structures.
Specifications for Aluminum 2024-T4; 2024-T351
The table below summarizes the material’s properties and characteristics including, but not limited to, its physical, electrical, and mechanical attributes, as well as their processing and components.
| | ||||
|---|---|---|---|---|
| Category | Property | Metric | English | Comments |
| Physical Properties | Density | 2.78 g/cc | 0.100 lb/in³ | AA; Typical |
| Mechanical Properties | Hardness, Brinell | 120 | 120 | AA; Typical; 500 g load; 10 mm ball |
| Hardness, Knoop | 150 | 150 | Converted from Brinell Hardness Value | |
| Hardness, Rockwell A | 46.8 | 46.8 | Converted from Brinell Hardness Value | |
| Hardness, Rockwell B | 75 | 75 | Converted from Brinell Hardness Value | |
| Hardness, Vickers | 137 | 137 | Converted from Brinell Hardness Value | |
| Tensile Strength, Ultimate | >= 395 MPa to 579 MPa | >= 57300 psi to 84000 psi | Varies with form and temperature | |
| Tensile Strength, Yield | >= 260 MPa to 421 MPa | >= 37700 psi to 61100 psi | Varies with form and temperature | |
| Elongation at Break | 8.0 - 100 % | 8.0 - 100 % | Varies with form and temperature | |
| Modulus of Elasticity | 73.1 GPa | 10600 ksi | AA; Typical; Average of tension and compression | |
| Ultimate Bearing Strength | 814 MPa | 118000 psi | Edge distance/pin diameter = 2.0 | |
| Bearing Yield Strength | 441 MPa | 64000 psi | Edge distance/pin diameter = 2.0 | |
| Poisson's Ratio | 0.33 | 0.33 | ||
| Fatigue Strength | 138 MPa | 20000 psi | @# of Cycles 5.00e+8, completely reversed stress; RR Moore machine/specimen | |
| Fracture Toughness | 26.0 - 37.0 MPa-m½ | 23.7 - 33.7 ksi-in½ | Varies with direction | |
| Machinability | 70% | 70% | 0-100 Scale of Aluminum Alloys | |
| Shear Modulus | 28.0 GPa | 4060 ksi | ||
| Shear Strength | 283 MPa | 41000 psi | AA; Typical | |
| Electrical Properties | Electrical Resistivity | 0.00000582 ohm-cm | 0.00000582 ohm-cm | @Temperature 20.0 °C / 68.0 °F, AA; Typical |
| Thermal Properties | CTE, linear | 21.1 - 24.7 µm/m-°C | 11.7 - 13.7 µin/in-°F | Varies with temperature range |
| Specific Heat Capacity | 0.875 J/g-°C | 0.209 BTU/lb-°F | ||
| Thermal Conductivity | 121 W/m-K | 840 BTU-in/hr-ft²-°F | AA; Typical at 77°F | |
| Melting Point | 502 - 638 °C | 935 - 1180 °F | AA; Typical range based on typical composition | |
| Solidus | 502 °C | 935 °F | AA; Typical | |
| Liquidus | 638 °C | 1180 °F | AA; Typical | |
| Processing Properties | Annealing Temperature | 413 °C | 775 °F | |
| Solution Temperature | 493 °C | 919 °F | ||
| Component Elements | Aluminum, Al | 90.7 - 94.7 % | 90.7 - 94.7 % | As remainder |
| Chromium, Cr | <= 0.10 % | <= 0.10 % | ||
| Copper, Cu | 3.8 - 4.9 % | 3.8 - 4.9 % | ||
| Iron, Fe | <= 0.50 % | <= 0.50 % | ||
| Magnesium, Mg | 1.2 - 1.8 % | 1.2 - 1.8 % | ||
| Manganese, Mn | 0.30 - 0.90 % | 0.30 - 0.90 % | ||
| Other, each | <= 0.05 % | <= 0.05 % | ||
| Other, total | <= 0.15 % | <= 0.15 % | ||
| Silicon, Si | <= 0.50 % | <= 0.50 % | ||
| Titanium, Ti | <= 0.15 % | <= 0.15 % | ||
| Zinc, Zn | <= 0.25 % | <= 0.25 % |
View our latest news
The importance of plastic machining in industries that require precision-engineered components cannot be overemphasized; it is among the most versatile materials for such applications. Both plastics have similar features;...
The CNC milling machine is an advanced manufacturing method that offers unique accuracy, productivity, and flexibility in making complicated parts and elements. Nevertheless, what is a CNC mill? Furthermore,...
Modern manufacturing has been changed by CNC (Computer Numerical Control) machines that give unmatched efficiency, precision, and flexibility. Experts in the field or beginners in automated machining need to...
In the shaping and fabrication of metallic materials, there is a need to differentiate between metal cutting processes and machining processes for both industry professionals and amateurs. These two...

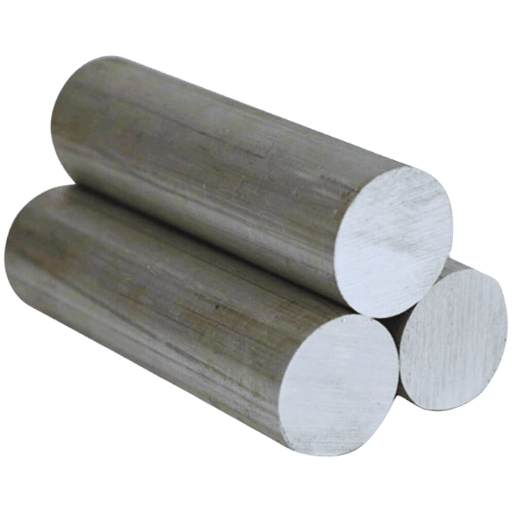

Get 2024 aluminum CNC machining parts from Hopeful
