CNC Machining Aluminum: Essential Guide to Minimum Wall Thickness

Expecting quality results from CNC machining aluminum parts requires understanding the different aspects of wall thickness limitations. Minimizing the wall thickness for a given structure will always lead to new challenges. CNC aluminum wall thinning is a process that, in this context, refers to processes where minimum wall thickness criteria are emphasized so as to attain efficiency… As simple as it seems, it raises other critical questions, such as the acceptable minimum wall and the acceptable level of warpage or distortion. The desire to push the design parameters calls for constant improvement. Having aluminum components machined for either aerospace, automobile, or other consumer products requires a proper grasp of why minimum wall thickness is critical during CNC aluminum machining. This article helps you balance ambition with reality without compromising your design or its intricacies.

What is the minimum wall thickness for CNC machining aluminum?

The factors determining the minimum wall thickness criteria for a CNC machining aluminum project are the specifics of the job and the alloy composition. A wall thickness of at least 0.8 mm or 0.03 inches is a requisite for most machining jobs not to compromise the part’s integrity. Conversely, walls 0.125 inches long and thinner are much harder to work with and must be treated cautiously. Other dimensions, such as 0.5 mm or 0.02 inches, are theoretically achievable but can result in unwanted output and reduced longevity. It is very important to adjust your needs with the design and application to determine the right thickness. Consulting your manufacturer is vital.

Understanding wall thickness in CNC machining

As with other processes within CNC machining, wall thickness is influenced by material properties, machining methods, and, most importantly, the design. Generally, softer materials, i.e., plastics or aluminum, permit thinner walls, while more complex materials, i.e., steel, require thicker walls to minimize the risk of deformation or failure. Furthermore, using precision machining tools with slower cutting speeds increases the feasibility of accomplishing diminutive walls, i.e., those with a diameter of 0.5mm. All of these factors must be well coordinated to ensure the component is functional and structurally sound. Consult with your machining provider to ensure the wall thickness is appropriate for the intended application.

Factors affecting minimum wall thickness for aluminum

The strength of the material itself dictates the minimum wall thickness for aluminum components, the process of fabrication, and the use for which it is meant. As compared to materials such as steel, aluminum is not as strong, and thus, a thicker walI configuration is necessary to ensure the machine’s stability during operations involving thin-walled components. The method of manufacture selected, whether it be casting, extrusion, or machining, is also very important, for each technology has its degree of wall thickness that is achievable. Lastly, the application for which the parts are designed, including the loads and conditions to be withstood, sets the minimum required thickness for proper service and endurance.

The general rule of thumb for aluminum wall thickness

When establishing the wall thickness in aluminum parts, several elements and established processes are considered. A common rule of thumb is that wall thickness should normally be between 0.04 inches (1 mm) and 0.09 inches (2.3 mm) for lightweight components that do not constitute highly stressed structures. However, in the case of structural or load-bearing components, a minimum of 0.1 inches (2.5 mm) thickness is typically required to ensure sufficient strength and deformation resistance for the design applications.

Contemporary approaches to manufacturing and pieces of design software now support accurately determining the minimum reasonable wall thickness based on material, grade, the use of the component, and the operating environment. For example, ultra-thin wall pipes in high-grade aluminum alloys for aerospace or automotive components are not as easily produced as the components themselves; therefore, some limits to the wall thickness may need to be set. Moreover, improvements in extrusion technology allow less restrictive minimum wall thickness for some profiles, often as low as 0.02 inches (0.5 mm), if the alloy and the application justify such accuracy. Optimizing material, performance, and safety requirements involves thoroughly investigating the abovementioned factors.

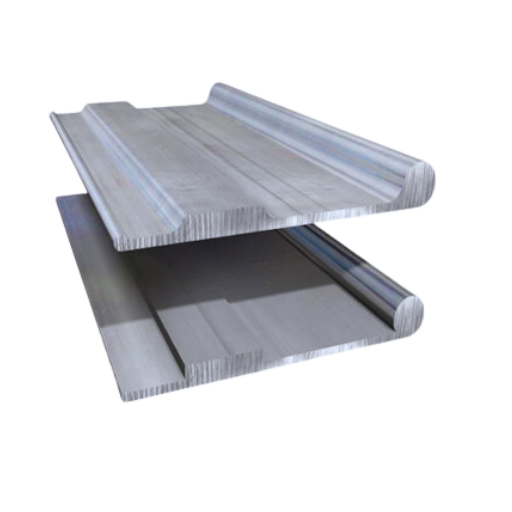

How does wall thickness impact the design of aluminum parts?

Balancing strength and weight in aluminum part design

Developing an aluminum component whose strength and weight are in equilibrium is a process that requires an in-depth knowledge of material properties and operational requirements, which can become quite complex for thin materials. The preponderance of aluminum alloys in aerospace, automotive, and construction industries stems from their high strength-to-weight ratio, which is indispensable for effective performance and productivity. It has been reported that adding some aspects like magnesium, silicon, or copper to aluminum alloys significantly increases their tensile strength whilst still keeping them lightweight.

Recent research shows that ultra-high-strength aluminum alloys tend to have tensile strengths above 700 MPa, making them suitable for various applications subjected to harsh operating environments. At the same time, advanced extrusion techniques allow for the thinning of wall structures even further, to 0.02 inches, without sacrificing their strength. With finite element analysis (FEA) simulations, engineers have also been able to accurately forecast stress concentration areas and optimize designs so that material waste is lessened and load-bearing structures are reinforced.

Aluminum parts designed with these more advanced processes achieve significant milestones, as seen in electric vehicles (EVs). Reduced weight means improved energy efficiency and increased range, which is critical for vehicles. A 10% weight reduction translates to a 6%-8% fuel economy improvement. These are just some of the areas where the advancement of aluminum part designs has great economic and ecological payoffs.

Finally, modern aluminum design fuses material domain, new fabrication technologies, and computer-aided design to achieve the maximum strength-to-weight ratio. This method guarantees that such designs comply with industry restrictions and simultaneously achieve performance and efficiency.

Designing parts for CNC machining with thin walls

Developing components with thin walls suitable for CNC machining entails detailed planning about stability, precision, and engineering processes. These thin walls are vulnerable to bending, shimmying, and even changing shape while being operated on. This presents obstacles that must be solved through design refinement and improvement in manufacturing processes.

Minimum Wall Thickness

In terms of consequences on the effectiveness of the machine, the wall thickness for metals should be above 0.5mm and for plastics 0.8mm. However, it is often advantageous for metals to be over 1mm to be structurally sound. More sophisticated CNC machines and better cutting parameters settings might permit these walls to be thinner, but it hinges on the material yield strength and rigidity.

Material Selection

Thin-walled aerospace components are often made from materials with high strength-to-weight ratios, such as aluminum or titanium alloys. These materials provide the required strength while minimizing the issue of deflection during machining.

Tooling Optimization

Low cutting speed must be used, and the tool’s vibration must be diminished through solid mounting to decrease the deflection of the tool and increase precision when machining thin-walled components. Furthermore, the life of the tools, as well as the surface finish, can be improved through the use of TiAlN or DLC coatings.

Machining Strategies

For engineers, climb milling is more desirable than conventional milling as it is less forceful. It is important to control the feed rate and spindle speed so that no further thermal distortion occurs on the thin walls that have been fabricated. In critical parts, incremental cuts should be able to address material removal while minimizing the concern for structural integrity.

Support Structures

Implementing temporary support features or fixtures during machined thin-walled sections will help stabilize them to prevent deflection and vibration. Placing sufficient tabs or adding some sacrificial layers will give more support.

Thermal and Residual Stress

When machining thin materials, it is crucial to manage stress optimally. Cooling a workpiece and tools with water and properly dimensioning the composed parts enable the prevention of the thermal warping effect. Post processes like annealing will also be used to relieve the changes in stress caused after the workpiece has been machined.

Data-Driven Design Insights

Industry benchmarks suggest that cutting speed and feed rates were adjusted, and walls of eight millimeters thick were machined with nonstandard parameters, enabling more than thirty percent less machined-induced distortion. In other cases, when the wall thickness was cut from 1.5mm to 0.8mm in aluminum structural parts, lightweight advantages improved ~15%. Material was wasted, but efficiency during functional processes was achieved through reasonable measures.

Employing advanced simulation technologies, exact mechanical processing, and material-based approaches, engineers can address issues with thin-wall CNC machining while obtaining superior parts that conform to or exceed critical performance metrics.

Ensuring manufacturability with proper wall thickness

To increase manufacturability during CNC machining, the correct wall thickness is important. Problems such as excessive vibration, deformation, and tolerancing can occur when walls are too thin, and walls that are too thick will waste material and increase machining time. As a rough rule, a wall thickness of 0.02 inches (0.5mm) is required for metals and 0.04 for plastics (1mm), but these values can change according to the material and design. Following the guidelines is prudent as it lessens the risk of structural anomalies and improves efficiency.

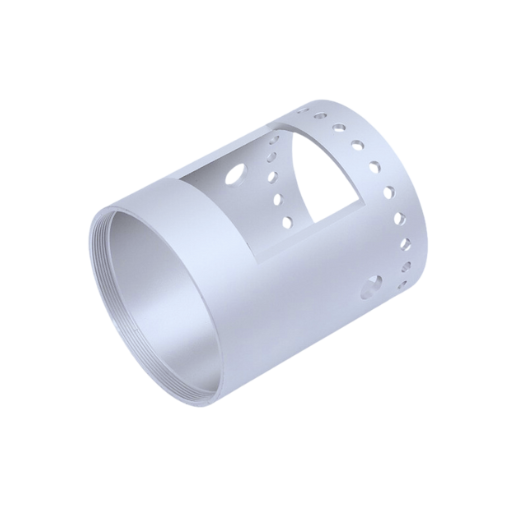

What are the design guidelines for CNC machining thin aluminum walls?

Minimum width and thickness recommendations

Avoidance of deformation is significant to ensure the structural integrity of thin aluminum walls during the process of CNC machining. While undertaking the procedure, following width and thickness specifications is extremely important. Just like avoiding walls thinner than 0.8 mm (0.03 inches) is a general guideline for standard aluminum alloys, other practices can be dealt with for maintaining minimum wall thickness. Some of them include how alloy type and wall height have an impact on the machining method utilized. It is suggested that wall heights thicker than 1.5 mm (0.06 inches) are employed to minimize vibration and maintain stability.

Another feature that has to be kept in check is the minimum web width or feature spacing. Thin walls with spacing thinner than 1.5 mm withstanding wall thickness are proposed to be avoided. If the features are narrower than the minimum spacing is employed, then stress concentrations will exceed and damage the structure beyond use. These measurements guarantee the employment of processes like drilling or milling without excessive deflection or warping to the structure. These thin features can be achieved by using high-speed machining techniques and proper fixturing. Enhanced methods of machining these features can assist in maintaiing accuracy and surface quality.

Considering aspect ratios for thin walls

In designing structures with thin walls, one has to determine the height-to-thickness ratio of the wall, also called the aspect ratio, and what the structure is capable of. The manufacturability of the design also weighs highly on this aspect ratio. A ratio higher than 20:1 can prove difficult for machines without the risk of deformation, chatter, and deflection. Advanced methods like EDM (Electrical Discharge Machining) or precision grinding can be helpful, as a lower than 10:1 ratio is often recommended.

Simulations with finite element analysis (FEA) state that the walls with a high aspect ratio become weaker in the case of dynamic loading or machining, which can lead to deformation. Designers can work around this issue by placing ribs or fillets on the structure’s walls. The structure’s ability to withstand deformation can be enhanced with the careful choice of titanium or other engineering alloys as high-strength materials. Still, it must coincide with the necessities of the chosen application.

Thermal stresses become a challenge when incorporating post-processing for structures made with additive manufacturing. Maintaining a uniform wall thickness will enhance the overall structure and make it more effective for thermal or cyclic loading.

Design tips for improving thin wall machinability

Material Selection

The choice of material has the greatest effect on selecting a suitable production method for thin walls. Different metals like aluminum and some grades of stainless steel are usually selected due to their strength and machinability characteristics. Studies show that materials with lower hardness and thermal conductivity have an advantage as they allow for better control over machining forces while minimizing the chances of cutting distortion.

Tooling and machining parameters

Picking the right tools and optimizing machining parameters are crucial when designing thin-walled components. In most cases, higher spindle speeds and lower feed rates lead to higher part dimension accuracy while decreasing deflection risks. Additionally, tools with sharper geometries and suitable coatings like TiN (Titanium Nitride) usually result in minimized cutting forces.

Support structures and work-holding

Support during machining is very important for maintaining the shape of the part since the material is usually thin. Custom fixtures or support structures may also be used in order to secure the workpiece against such vibrational forces. Moreover, vacuum fixtures or soft jaws are increasingly used to hold thin-walled parts while preventing them from inducing extra stress to the work.

Gradual Deeping of the Cut

Tolerance should be considered while setting the depth of a cut for machining, such as milling or turning, as deep cuts can result in the deepening of walls. Specialized studies have shown that cutting deeper than twenty percent results in deflection, which cuts can undergo to ensure smooth finishing.

Planned Toolpath Development

Excessive care should be taken while designing toolpaths because a poorly developed plan can result in high stress on wall vertices and reduce wall value. Stress on walls can also result from rapid heating in that area, making it essential to distribute the appliance area evenly.

Use of Coolants

Unpressurized coolants can easily regulate overheating during machining by preventing the expansion of thin walls. The most useful type of coolant is mist, which effectively lowers temperature while increasing the tool’s life.

Engineering Simulations and Testing

Coolant exothermic combustion-aided Coolant Engineering Simulation, when combined with CAAD modeling, can lower potential deflection stress points effectively. To be certain of the design argued a computer aided center lathe can deploy modeling. Creating simulations during the setup phase can be misleading as the setup phase can be reduced by over thirty percent.

Employing the strategies mentioned earlier in an integrated manner allows the manufacturers to effectively deal with the major problems linked to thin wall machinings, such as distortion, vibration, and tool wear so that the components produced are accurate and of superior quality.

How does the choice of aluminum alloy affect minimum wall thickness?

Comparing wall thickness requirements for different aluminum alloys

While machining, the minimal wall thickness that a structure can obtain is significantly defined by the aluminum alloy in use. Each alloy type breaks down into separate material properties, such as tensile strength, machinability, and thermal conductivity, which influence how they respond to cutting forces and thermal loads.

Take for example, Aluminum 6061, which is perhaps the most used aluminum alloy for its good machinability, strength, and corrosion resistance. With adequate precautions taken, this alloy usually permits for walls of smaller thickness in comparison to other alloys. Walls as thin as 0.020 inches (0.5 mm) are possible. In some cases, it is dependent upon the part geometry and the machine tools employed, like a CNC lathe. In contrast, Aluminum 2024, which withstands fatigue and is a high-strength material, tends to need thicker walls – generally above 0.030 inches (0.76 mm) – because of its low corrosion resistance and high Ionic reactivity while cutting.

Estimates indicate that for high-performance alloys as Aluminum 7075, which is as strong as some steels, the minimal achievable wall thickness must range between 0.025 inches (0.63 mm) to 0.040 inches (1.0 mm). Such limited thickness is due to the stiffness of the alloys and their tendency to undergo minor deformation under stress, which requires specific and controlled parameters during machining to reduce distortion, particularly in thin wall sections.

Other critical factors like tempering and heat treatment affect the maximum wall-building thickness. For instance, 6061 T6 tempered is better suited than annealed for applications with thin-walled structures because of its increased stability. In the same way, optimal parameters of cutting and tooling techniques, such as speeds and feeds, are equally important in lowering the chances of tool movement or tool chatter, which allows for thinner walls to be achieved regardless of the alloy.

Knowing the particular characteristics and machining behavior of every aluminum alloy allows manufacturers to strategize design and production to ensure adequate structural performance and maintain design regulations.

Selecting the right alloy for thin-walled parts

In selecting alloys for thin-walled parts, I consider the material’s mechanical properties and machinability. Alloys such as 6061 and 7075 are preferred because of their structural integrity, low density, and reliable machinability. I can also analyze the extent of material deformation in a CNC lathe, which is needed to maintain tolerances in thin-walled structures. My assessment goes beyond material selection by considering the application itself; for example, the alloy could be usable but would fail under load or environmental conditions like corrosion.

What are the manufacturing challenges with thin-walled aluminum parts?

Tool selection and cutting parameters for thin walls

Choosing the correct tools and perfecting the parameters while machining thin-walled aluminum components is critical to minimizing part distortion and maintaining dimensional accuracy. The geometry of the tools is very important, as tools featuring sharp cutting edges and high rake angles are always preferred due to lower cutting forces, which reduces stress on the thin walls. Also, high-performance carbide tools, often with added coatings like TiN or TiAlN, provide better wear resistance and thermal stability, which are crucial for prolonged operations.

Moreover, chatter and vibrations must be controlled while cutting to limit their impact on the part quality. These effects are usually minimized with low cutting speeds and high feed rates. Studies seem to suggest that cutting speeds of 150 – 600 m/min and feed rates of 0.1 – 0.3 mm/rev are suitable for machining performance of aluminum alloys without compromising surface integrity.

Also, some advanced cooling and lubrication technologies, like minimum quantity lubrication (MQL) or high—pressure coolant, help with thermal assistance and chip evacuation. Incorporating these systems prevents thermal distortion while providing well-rounded and clean cuts. By addressing those issues, a manufacturer can cope with the sophistication of machining thin-walled aluminum parts.

Dealing with vibration and deflection during machining

Vibration and deflection are pertaining to precision engineering concerns, especially while responding to fine walls and lengthy components. To respond to these things properly, a combination of new rotary strategies and specialized tools must be employed. The use of specifically geometry-optimized tools ranks among the most effective approaches, wherein the rake angles and the flute designs are made in a way that decreases the vibration. At the same time, cutting forces are also significantly suppressed. Furthermore, dynamic dampers and vibration isolators can also be mounted on the machine tools in an attempt to decrease the effects of resonance.

Improper cutting parameters, such as low cutting speed coupled with high feed rates, are notorious for causing excessive deflection. There is learning indicating that diminishing the depth of cut while maximizing workpiece support can significantly lessen part distortion when dealing with thin materials. The same goes for submerging the workbench into a swimming pool filled with hyper-cooled liquid nitrogen, which greatly reduces distortion without the worries of tool breakages. The Finite Element Analysis (FEA) has also proven to be incredibly useful for estimating and accurately determining the deflection of elements when proper FEA models are employed.

With the invention of new centers of machining, which are devoid of weak Linkages subject to real-time monitoring, and are only powered by computers, improvements have significantly cut down the vibrations. For example, adaptive control systems can constantly adjust the cutting conditions based on feedback from vibration signals during operation. Reducing vibration by up to 30% during machining significantly improves the surface quality and dimensional accuracy of thin materials.

In addition, specialized clamps, such as vacuum or soft jaws and magnetic tables, improve the fixture’s uniqueness while reducing its deflection. This, in combination with multi-axis machining, which orients cuts favorably, aids in uniform force application. This combination of features guarantees greater quality and less variance, which is necessary for high-precision bearings.

Achieving the desired surface finish on thin walls

Effective surface integrity control requires you to reduce the blunting of thin-walled sections by cutting tools. Employ cutting tools with very low edges, sharp corners, and adequate shapes specially made for finishing processes. Use very low feed and cut rates while maintaining control of the surface damage parameter. Using homogeneous materials ensures uniform tool wear, and applying process lubricants will reduce tool friction while improving the tool’s ability to cut the material. Incorporate enhanced methods such as high-speed cutting or finishing passes to improve the final surface cut quality. These processes combine to deliver a turned part with the desired surface finish.

How can I optimize my design for CNC machining thin aluminum walls?

Incorporating support structures and ribs

Increasing the stiffness of thin-walled aluminum depends on the well-developed underlying support structures, ribs, and other design details. Ribs are used as reinforcements, reducing wall deflection while enhancing strength. It is good practice in the industry to increase stiffness with more excellent ribs that do not increase material consumption needs by more than 10-fold. It is also recommended that ribs be mounted horizontally in relation to critical loads to distribute the stress properly.

Rib thickness must be set at 40-60 % of the thickness of the wall to mitigate sink marks or warping of the part during production. In addition to that, rib height is generally less than three wall thickness to ensure stability and machining viability. Ribs with rounded edges at the bases ranging from 0.25 to 0.5 times the wall thickness will minimize stress concentration at the edges. When included in a CAD system, these features facilitate productive CNC machining and increase the product’s reliability.

In the support spatial configuration, traditionally, thin wall sections have been internally ribbed through the use of brackets or gussets. Such elements are useful in applications with critical strength-to-weight parameters, such as aerospace or automotive industries. It is also useful to construct the geometry of the supports so that they are friendly regarding CNC processes. Improvement of these parameters not only keeps the structural element intact but also makes sure that the processes are quite consistent in terms of the output.

Utilizing 3D CAD software for design optimization

Modern 3D CAD software has a huge toolbox for design optimization and overall project productivity. Designers can use the parametric modeling technique, for example, to generate components that may be quickly and easily altered, thus making them more flexible and adaptive. While studies show that static models often incur a 30 percent increase in development time, the flexibility of parametric designs greatly reduces it.

Moreover, the vast range of simulation and validation tools available in many CAD systems aids engineers in assessing stress, thermal, and fluid dynamics within the design s environment. Advanced tools, such as finite element analysis (FEA), are extremely useful for identifying potential failure points, allowing the engineer to mitigate risks. Products that implemented iterative testing during the design stage have shown a 25–45 percent decrease in production defects.

Another critical aspect is generative design, whereby the software provides design proposals through algorithms based on constraints like weight, material, or fabrication method. For instance, generative design applications have been reported to provide a material saving of around 20%, which is crucial for aerospace where weight is a concern. Such algorithm-driven techniques incorporate manufacturability within the design, considering CNC, additive, or even hybrid methods at the conceptual level.

With even more integration with project management tools, users can connect to third-party tools for more productive teamwork and share files and workflows without problems. According to cloud-based CAD systems, efficiency within the design collaboration area improves by 40%, consolidating a more effective and cohesive development process throughout departments or even countries.

With sophisticated 3D CAD software, organizations can significantly improve product performance, cost, and time to market, highlighting the importance of advanced design tools in engineering.

Prototyping and iterative design for thin-walled parts

Creating and developing thin-walled components is inherently difficult owing to their structural sensitivity and tendency to deform. The prototyping of such parts involves complex techniques such as finite element analysis (FEA), material testing, and advanced manufacturing methods. Certain computational tools enable design engineers to, with utmost accuracy, model the performance of the actual product under operating circumstances by estimating parameters such as stress distribution, thermal expansion, etc.

Additive manufacturing processes, especially those using aluminum or some high-performance polymers, are highly effective for the casting of thin-walled features. This process is useful for prototyping as it facilitates the construction of geometrically complex shapes with minimal material. It is estimated that 3D modeling aids in cutting down the lead time for developing prototypes by around sixty percent compared to more traditional means of using subtractive techniques.

The iteration of designs is further enhanced by the concept of digital twin technology, which involves a continuous virtual render of the part that gets updated in real time based on tests and performances of the physical component. This feedback helps guide designs so that potential problems, such as buckling, warping, wall thickness inconsistencies, etc., are resolved. The available data regarding the improvement of topology optimization software indicates that there is 15 to 20% better material efficiency for other high-end aerospace components.

After all, it is the targeted averting of existing gaps with respect to thin-walled parts that are crucial to the success of industries like aerospace, automotive, and consumer electronics that require precision and reliability. The computing models, advanced prototyping technologies, and repeated refinement workflows together ensure that critical engineering restrictions are not compromised while still staying within the limits of production.

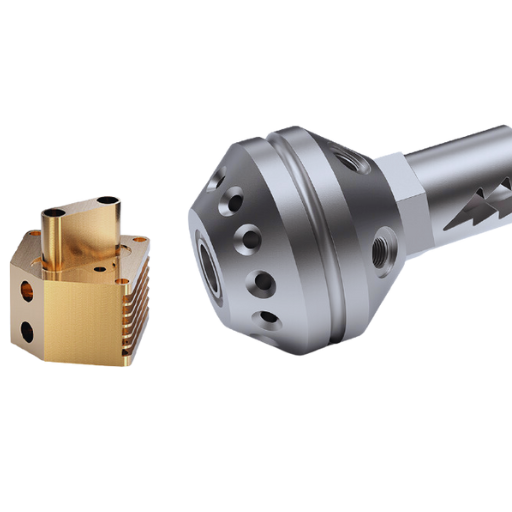

What are the tolerance considerations for thin-walled aluminum parts?

Achieving tight tolerances on thin walls

To achieve high precision on thin-walled advanced aluminum structures, optimized controls of material characteristics and the fabrication technology must be in place. This includes:

1. Uniformity of Material Composition: Using higher-grade Aluminium alloys with the required properties leads to consistent mechanical machining or forming performance.
2. Managed Processes of Fabrication: Processes like CNC machining or precision die casting make it possible to create thin-walled features with little or no amplified stresses.
3. Optimizing Existing Tools: Adequate sharpening of cutting tools and adjusting the parameters of machining processes permit more accurate workpieces.
4. Controlling temperature: These processes must be properly monitored and controlled to avoid excessive heat, which can contribute to unwanted dimensional change.

Addressing these issues enables manufacturers to attain specified thin-walled aluminum parts with appropriate strength and accuracy.

Compensating for material deformation in thin sections

To accommodate the deformation of materials in thin sections, it is important to take the following steps:

1. Pre-Stress Analysis: In advance of the manufacturing process, undertake some form of predictive modeling or simulations to establish regions experiencing high stress or deformation.
2. Fixturing Techniques: Rigid, well-designed fixtures hold components in place while processing, maintaining alignment, and reducing distortion.
3. Incremental Machining: Use controlled, small increments of material removal to limit internal stresses and deformation within the material.
4. Material Selection: Select alloys which have high stability and are mechanical and thermally resistant to most forms of warping, deformation, and distortion.
5. Post-Processing Adjustments: Use the techniques of annealing or stress relief to acquire dimensional accuracy after deformation.

Manufacturers can improve accuracy and control tolerances in producing thin sections by utilizing these techniques to combat deformation.

Frequently Asked Questions (FAQs)

Q: What is the minimum wall thickness for CNC-machining aluminum walls?

A: The lower limit for the wall thickness of machined aluminum pieces is around 0.5mm (0.020”) to 1mm (0.040”). This depends on the aluminum alloy, the design of the parts, and the machining process used. For example, 6061 aluminum is commonly used for walls as thin as 0.5mm. Softer alloys machined with a CNC lathe may require thicker walls for successful manufacturing.

Q: What effects will the manufacturing process have on the lower limit wall thickness achievable with CNC machining of aluminum?

A: In CNC machining aluminum, the minimum wall thickness achievable depends on the manufacturing processes at hand. Increasing or restricting certain factors, such as the type of CNC machine (mill, lathe, or router), cutting tools, spindle speed, feed rate, and coolant use, can help or hinder the process. For example, a CNC router tends to cut walls ‘thicker’ than a CNC mill with a high-speed spindle and adequate coolant. Also, it is possible that various roughing and finishing strategies have to be implemented to maintain the thin wall that is untwisted.

Q: What constraints are planted in machining thin-walled aluminum components?

A: Several constraints are presented in the machining; these include: 1. Vibration: If a machinist sets the spindle speed incorrectly and the workpiece has a high rate of wall thickness to height ratio, this can result in the start of wall vibration, which triggers chatter. Chatter becomes permanent, leading to poor surface finish or the entire wall failing. 2. Heat: Workpieces with low wall thickness melted due to the blade sawing action. Apart from the empty cavity chatters and wall vibrations, it severely hampers the stability symposium cut. 3. Tool run out: Most tools have a maximum limit for how far they become out of tolerance, leading to potential huge discrepancies in the cut. 4. Substantial gapping: During a machine cycle, the workpiece has the potential to smash into things like top jigs and cross beams, causing crushing deformation such as a wall folding inwards or collapsing. 5. Worked geometry: Maintaining the seal with the workpiece max hinders the effective feed rate, making it difficult to maintain thin wall features to 0.2mm. The selection of correct tooling, cutting parameters, and fixture designs, combined with the right techniques, will mitigate all the constraints.

Q: How does the part configuration of a piece affect the minimum wall section for aluminum cnc machining

A: It is evident that the part configuration of a piece dictates the minimum wall section in aluminum CNC machining. This can include: 1. Part size and corresponding 3D shape 2. Support features support 3. Height to wall thickness aspect ratio 4. Other features of these thin walls, such as a stub shaft and tolerance, had to be placed. Required tolerances and surface finish With proper wall support and correct part positioning, careful planning and designing of thin walls result in a lack of breakage during machining.

Q: Is machine aluminum walls thinner than the given minimum recommendation possible?

A: Theoretically, one can machine the walls of aluminum parts to be thinner than the minimum recommended, but this is discouraged. Thinner walls (less than 0.5mm (0.020″) tend to distort, break, and produce a poor surface finish. These walls might be achievable when working with a CNC mill or lathe, but one may have to resort to special measures like custom fixtures or even take incremental steps to machine the walls. Before going ahead, it is best to speak with your machine shop and see if there is a concern about having very thin walls for the particular component.

Q: How Does Aluminum Minimum Wall Thickness Compare To Other Materials Such As Plastic Or Brass?

A: Practically, the minimum wall thickness feasible regarding aluminum is less than that of plastic but is more than that achievable with brass. For example: – Aluminum: 0.5mm to 1mm (0.020″ to 0.040″) – Plastic: 0.762mm to 1.27mm (0.030″ to 0.050″) – Brass: 0.254mm to 0.508mm (0.010″ to 0.020″) These values can vary depending on the grade of material and the cutting operations performed. On the other hand, much thicker walls are required when machining stainless steel than aluminum because stainless steel is stronger and works harder.

Q: Which strategies would you accept to practice for unblemished machining of lightweight, thin-walled aluminum components?

A: For successful CNC machining of thin aluminum walls, I recommend: 1. Always use the best available quality cutting tools with razor-sharp edges; carbide is preferred instead of HSS. 2. Select optimal cutting parameters, which include spindle speed, feed rate, and depth of cut. 3. Employ sufficient coolant to manage excess heat effectively. 4. Employ backing material or custom-made fixturing to support the thin walls. 5. Climb milling should be used for finishing cuts for thin walls, as this lowers cutting forces during machining operations. 6. Adopt a proper machining technique. For example, trochoidal milling should be used for slots and grooves. 7. Adjust both axial and radial cutting depths carefully. 8. Internal sharp corners should be avoided; small radius corners should be used if possible. Following the above tips should sufficiently increase the chances of successfully machining thin wall fusion components to meet your specifications.
