OCC vs OFC Copper: Unveiling the Differences in Oxygen-Free Cable Conductors

Regarding high-grade cable conductors, the materials utilized are important for efficiency, reliability, and excellent signal transmission. A few of the most discussed copper variants include Ohno Continuous Cast or OCC copper and Oxygen Free Copper, an industry favorite in audio and telecommunications engineering. So, what divides these two from each other, and how do their traits affect performance? This text seeks to differentiate ohno continuous cast and oxygen-free copper in a way that enables a sound judgment on the best conductor choice for your needs. From the production methods to the gains that come with using them, we will look at the factors that characterize each type and their application in practice.

What is OFC (Oxygen-Free Copper)?

Oxygen-free copper (OFC) is a specialized grade of copper wire drawn from copper rods with an oxygen content that does not exceed 0.005%. Oxygen-Free Copper (OFC) is refined so that its oxygen ppm is kept to a minimum. With a low oxygen content, OFC has a copper level of 99.95%, good electrical conductivity, and thermal conductivity. This allows it to be used in sensitive applications where high performance and dependability are necessary, such as in medical devices. Besides the copper content, the low resistance leads to inferring lower impure elements within the metal. It has superior conductivity, aiding minimum signal loss, and is popular in audio systems, power transmission, and other fine industries.

Definition and properties of OFC

Oxygen-free copper (OFC) is a specialized refined copper material with higher conductivity and strength, making it a must-have for most industrial and household uses. Its copper purity exceeds 99.95%, giving the material unparalleled electrical conductivity of over 100% IACS (International Annealed Copper Standard). Such purity and conductivity ensure low resistance in electrical pathways, making signal degradation a rare occurrence while increasing transmission efficiency.

One of the significant fields where OFC is used is audio engineering. Its low levels of impurities reduce noise and distortion in sound transmission. As a result, it is the default material used in high-grade speaker cables, instrument cables, and audio interconnects. Moreover, with its exceptional thermal conductivity of approximately 390 W/mK, OFC has found its use in areas where fast heat removal is required, such as in heat exchangers and other thermal parts of electronics.

Further, one of the other significant advantages of OFC over standard copper is its mechanical properties, which make copper speaker cables much stronger. OFC is also much more malleable and ductile, making it easier to fabricate thin wires and many shapes without breaking apart. In addition, due to its lesser residual oxygen content, it has much lower corrosion resistance, which makes it preferable for places where it will be rough-treated, such as marine or outdoor installations.

Because of its reliability and performance, OFC is now used in photovoltaic power generation units. It is also used in MRI machines, which reveals its importance in precision-reliant industries. The physical, chemical, and electrical properties of OFC are exceptional, which is why it is the preferred material even in sophisticated engineering and professional works.

The manufacturing process of OFC

The processes involved in making Oxygen-Free Copper (OFC) are exact and guarantee the highest levels of purity and conductivity. This process begins by choosing high-quality copper cathodes with at least 99.99% copper content. These cathodes are then melted in a controlled, oxygen-free environment, typically an inert gas atmosphere or vacuum furnaces. An oxygen-free condition is essential for avoiding copper oxides, which can negatively impact conductivity and durability.

Post-casting, the copper is poured into molds, and a continuous casting process begins, solidifying the copper into billets or wires. During this phase, stringent quality control checks are carried out to ensure the chemical composition of the material is not altered. The oxygen content of the material is usually maintained at under 10 parts per million to enhance purity and remove micro-impurities, and electrolytic refinement can be used for advanced refining.

At the final stage, OFC is transformed into cables of maximized sound quality through hot splitting and cold rolling or extrusion. The processed copper is a grade above all others because it is ‘tuned,’ and ” no one can compete with OFC’s output.” Their attention to detail makes any copper cable exceed the demands of aviation telecommunications and leading-edge electronics. Annealing, which improves ductility and mechanical performance, helps maintain a high-grade conductivity 101 per the International Annealed Copper Standard.

Advantages of OFC in audio applications

Reasonable Value Conductivity

Oxygen-free copper (OFC) typically has more than 101% IACS electrical conductivity. This makes it very effective in signal transmission with minimal resistance, essential for audio quality and signal loss in high-fidelity systems.

Better Quality Signals

The high purity OFC has around 99.99% or higher, it lowers the distortion and interference due to fingers and grain boundaries. This makes it possible to reproduce audio signals clearly and accurately, which is essential to audiophiles and audio engineers.

Improved Durability Crossover speaker cables benefit from this feature as it guarantees that sound quality will be maintained with the rigorous use of speaker cables. And Longevity

Oxygen-free Copper (OFC) has a more excellent resistance to degradation and corrosion, which makes it unlikely to undergo oxidation with time. This ensures consistent audio performance and sound quality even in moist or fluctuating temperatures.

Excellent thermal conductivity allows OFC to gradually eliminate heat built up during intensive audio operations, making it great for high-power applications. These properties lower the chances of overheating louder speaker coils and amplifier wires, increasing the system’s reliability.

Flexibility and ductility are handy features for copper speaker cables. It enables easy installation and management of audio systems.

OFC’s impressive malleability, created by the annealing process, allows it to be crafted into thin wires and complicated cable designs while still maintaining its performance. This, in turn, makes it perfect for complex audio arrangements or small electronic devices.

Reduced Skin Effect

The OFC’s unique crystal composition and acceptable surface finish guarantee that the skin effect for higher frequencies is minimized. This means better performance for high-frequency ex-signal transmission, which is pivotal in high-end audio-grade applications.

Compatibility with High-End Systems

The advanced characteristics of OFC fulfill the stringent demands of high-end audio systems, even in professional studio and audiophile setups. Its способность to’]//translate: the ability to maintain synchronization between different audio units guarantees signal integrity.

Due to these benefits, OFC is preferred in augmentative audio applications, such as speaker cables, interconnects, and high-performance audio amplifiers where precision and reliability are required.

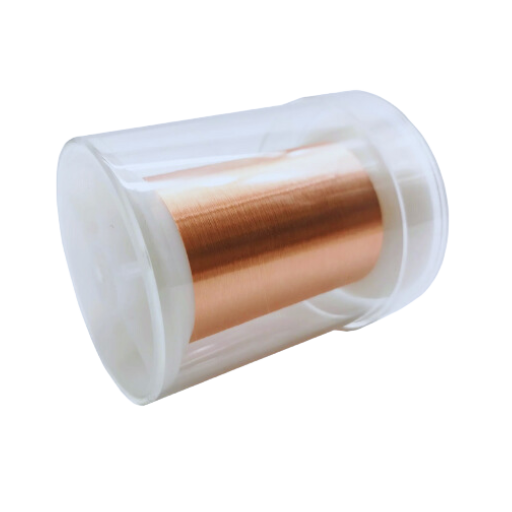

What is OCC (Ohno Continuous Cast) Copper?

Understanding the OCC process

OCC (Ohno Continuous Cast) is a sophisticated method of refining copper that makes ultra-pure and high-quality copper with an almost perfect crystal structure. The process considers heating the copper and letting it gradually cool down, leading to few grain boundaries. The minimal grain boundaries lead to enhanced conductivity and reduced signal distortion, which makes OCC copper perfect for critical applications with high requirements like electrical and audio performance, even in audiophile use cases. Its production methods are so precise that OCC copper is consistent and reliable, which is why it is used in high-range audio cables and electronics.

Unique characteristics of OCC copper

1. High Purity: OCC coppers are oftentimes noted to have unbelievably high purity levels, surpassing 99.999%, which explains their superlative conductivity.
2. Enhanced Conductivity: Since no grain boundaries are present, there is virtually no resistance or signal loss, permitting the effective transmission of electrical and audio signals.
3. Superior Signal Performance: The distinctive structure of OCC copper diminishes signal distortion, and because of this, it is ideally suited for delicate uses like in audio devices and communication systems.
4. Consistent Quality: The rigorous manufacturing processes guarantees the symmetry of the copper’s structure, hence, their reliable performance in high-end applications is beyond doubt.

Benefits of OCC in audio cables

• Better Sound Quality: The negative distortion and signal conflict when using OCC copper is considerably lower, resulting in a vastly superior sound reproduction.
• Enhanced Signal Transfer: OCC copper possesses a higher level of purity, which guarantees increased conductivity while, at the same time, energy loss is significantly lowered.
• Reliability: The long-term utilization of audio cables is made more reliable due to the structure of OCC copper, which increases the durability of audio cables.
• Minimized Interference: The advanced production processes of OCC copper decrease noise and signal interference in audio signals.

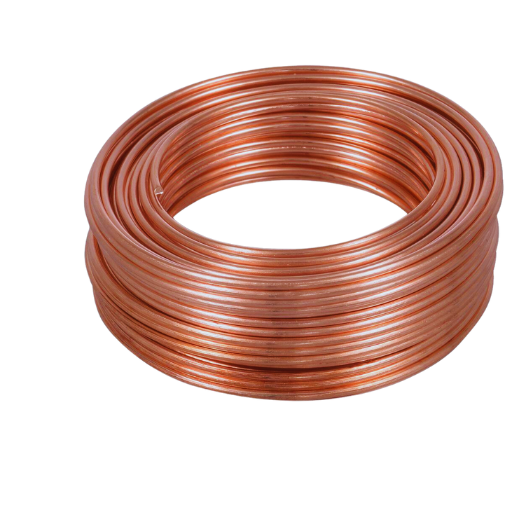

How do OFC and OCC Copper Differ in Conductivity?

Comparing electrical properties

When evaluating the electrical characteristics of OFC (Oxygen Free Copper) and OCC (Ohno Continuous Cast) copper, the gaps in conductivity are mainly due to their fabrication techniques and the resultant level of structural purity.

• Conductivity of OFC: OFC is distinguished for ensuring excellent purification, that is, copper of 99.95% content or more significant. Its electrical conductivity is measured at 101% IACS (International Annealed Copper Standards). Although acceptable for almost all electrical and audio purposes, OFC exhibits some resistance and signal loss at distances due to its microscopic crystal boundaries.
• Conductivity of OCC Copper: OCC copper tends to exhibit even higher purity levels greater than 99.997%. This ultra-high purity results from the unique casting method employed in making SCC copper. In this casting method, wider crystal structures of copper are formed, often several meters long, which reduce grain boundaries and the electrical resistive force. Under optimal conditions, the conductivity of OCC copper approaches or exceeds 102 % IACS.
• Impact on Signal Transmission: Due to the superior structural integrity of OCC copper, the level of resistive losses and efficiency in signal transmission is better than OFC. This makes OCC copper especially suitable for use in high-precision and stable electrical performance-needed devices such as high-fidelity audio systems and advanced electronic circuitry.
• OFC and OCC copper both conduct electricity well, exceeding the temperature requirements of everyday use, but because of lower imperfections in OCC copper, signal degradation at extreme temperatures and environmental stresses are minimized further.

These factors highlight OCC copper’s benefits in specific, focused applications, while OFC stays more affordable and dependable in terms of general usage.

Impact on audio signal transmission

Selecting the appropriate copper type impacts the quality of audio signal transmission. Oxygen-free copper (OFC) is often used in audio applications due to its reasonably low electrical resistance, which allows for efficient and effective conductivity. Nevertheless, Ohno Continuous Cast (OCC) copper has certain benefits that cannot be overlooked due to how it is manufactured. Since it has a smaller grain structure, OCC copper can minimize internal signal distortion, making audio reproduction more accurate and clearer.

OCC copper exhibits low signal resistance and low impedance, which areas of focus in studies demonstrate allow for the retention of high frequencies, which are easily lost. From a technical perspective, comparison suggests that OCC copper cables outperform conventional ones;, for every 100 meters, the signal attenuation is 0.1-0.15 dB lower. This is especially true for frequencies above 50 kHz. For this reason, we can use OCC for highly sought-after audio devices without losing clarity and precision.

Equally important is that OCC copper features outstanding oxidational degradation, which is imminent in other copper types. These attributes allow OCC copper to serve in professional audio systems, functional studios, and even expensive home theater systems without any challenges. These qualities highlight the clear benefits of OCC copper over other types of copper, especially OFC, in areas where audio performance and superlative-grade audiophile equipment are needed.

Conductivity differences in home audio systems

When regarding conductivity differences in domestic audio systems, I observe that the OCC copper type has advantages over OFC because of its higher purity and fewer grain boundaries. This reduces resistance and signal distortion, improving the audio’s quality and clarity. Therefore, I recommend changing the focus to the OCC copper type for anyone looking for top performance in advanced audio systems.

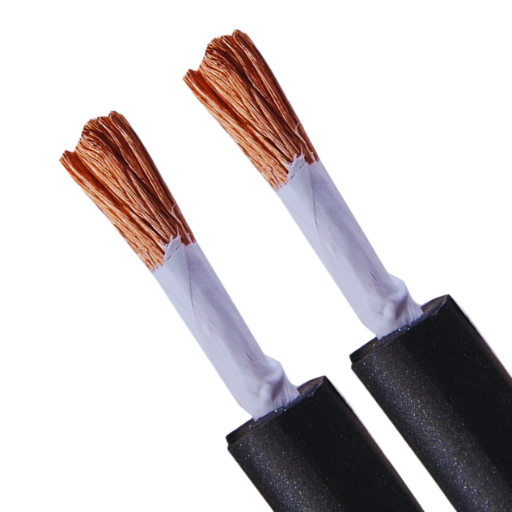

Which is Better for Speaker Cables: OFC or OCC?

Sound quality comparison

OCC cobre offers superior quality to OFC copper in terms of sound transmission. Such a difference in output can be attributed to the absence of impurities and grain boundaries in OCC cobre—minimization of signal loss and distortion. OCC cobre is the most accepted choice for more critical setups. However, the difference is nonperceptive for casual listening, so OFC cobre can adequately perform the job.

Durability and longevity factors

OCC and OFC copper are compared vis-a-vis durability and lifespan – two significant pivots. OCC copper is subject to less corrosion and fatigue due to its superior structural integrity and lower grain boundaries, making it much more durable. This is advantageous for harsh environments or applications with medium and high-reliability parameters. Occupying the middle ground is OFC copper, which, even with its lesser strength, can deliver sufficient performance for most occasional tasks. With the necessary care and protective measures, either material can be used for an extended period while maintaining excellent performance.

Price considerations for audiophiles

When choosing between OCC (Ohno Continuous Cast) and OFC (Oxygen-Free Copper) cables, it is essential to analyze the cost-benefit aspect of the decision. The manufacturing process used to produce these cables accounts for the difference in pricing. For instance, the ultra-pure high-conductivity copper used in OCC cables ensures minimal signal loss, so these cables usually cost more. Depending on the brand and length, these cables can cost anywhere between $50 to several hundred dollars, which is cost-effective when considering the needs of audio enthusiasts.

At the same time, OFC cables are cheaper, starting at $10 and going above $100 for high-end OFC cables. These cables are great for individuals using mid-range audio systems because they perform at a reasonable level during regular use, and consideration of the price is a bonus. Audiophiles should ask themselves whether the cost of OCC cables makes sense when paired with their setup and equipment or if they could make good use of OFC cables while considering the budget.

Are There Any Drawbacks to Using OCC or OFC Copper?

Potential limitations of OFC

Though OFC (oxygen-free copper) cables are quite popular due to their cost-effective pricing and decent performance, they have certain downsides. One of the major disadvantages is a bit of elevated electrical resistance in comparison to OCC (Ohno Continuous Cast) copper, which has the potential of slightly diminishing the signal over long distances. In addition, an OFC cable is more prone to impurities in the copper, which could impact its conductivity and the clarity of the audio output. Most standard audiophiles would not notice these issues, but professionals and audiophiles who want the best for their high-end setups will likely see this as a disadvantage.

Possible disadvantages of OCC

Although OCC (Ohno Continuous Cast) copper offers exceptional conductivity and promises minimal signal loss, it has some drawbacks. One of the most critical concerns is its relatively higher production cost. Due to the particular casting technique used to form lengthy, homogenous copper grains, OCC cables are pricier than OFC wires, which may make them less appealing to price-sensitive customers.

Moreover, although the conductivity of OCC copper is remarkable, the advantages may outstrip the requirements of most basic audio applications, making the investment unjustifiable. Moreover, since OCC copper lacks impurities, it is softer and more malleable than other kinds of copper, which causes it to be subjected to physical deformation during installation or routine use. This may adversely influence the lifespan of the material. Lastly, some studies suggest that the performance gap between OCC and high-purity OFC may not be as significant in systems where other elements like connectors and amplifiers are insufficient, so investing in OCC cables is unreasonable for specific setups.

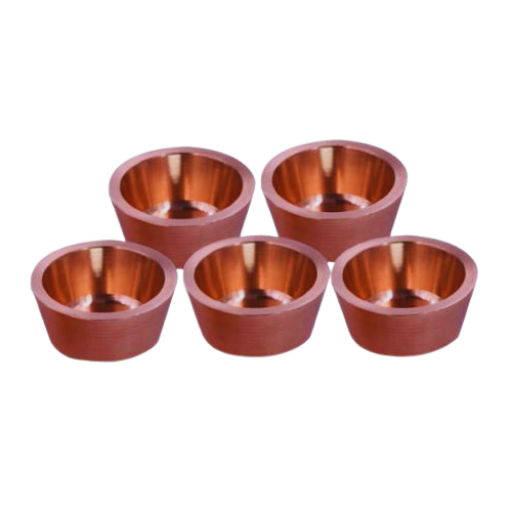

How Does High Purity Copper Affect Audio Performance?

Impact of copper purity on sound

The greater the purity of copper used in audio cables, the greater the quality range it operates in, as well as the less resistance and electrical noise it will pick up while transmitting a signal. Higher purity copper types like Oxygen-Free Copper (OFC) and Ohno Continuous Cast (OCC) are preferable due to their ability to relay electrical signals, thus enhancing their audio individuality and further reducing distortion. The purity level of OCC copper ranges is usually above 99.99%, which means that the copper has fewer grain boundaries, resulting in more signal loss or attenuation.

The conductivity of a wire is measured using remnants of an electrical signal. Lab tests confirm that higher-grade copper, like OFC, has lower resistance, which some research gives as a performance measurement for pure copper: 58 MS/m. That lower resistance allows passive signals to be relayed in slightly better quality on high-frequency sounds when COMBINEd with extensive usage. Furthermore, under controlled conditions, OFC is reported to be relayed with less Total Harmonic Distortion (THD), providing a more precise signal path, especially in complex high-fidelity systems.

While what a typical listener will notice varies depending on the entire audio set, including amplifiers and speakers, the signal integrity that high-grade OFC copper maintains without use is very beneficial for professional audio systems. Further evidence indicates that materials with lower resistance can be advantageous in transmitting high-current signals over great distances by lessening signal losses and assuring high and stable audio in strenuous conditions.

OCC vs OFC in terms of purity levels

It is common for OCC (Ohno Continuous Casting) copper to reach a higher level of purity, often above 99.99%, due to the production method that fabricates uninterrupted long crystals. This results in fewer grain boundaries, which facilitates better signal transmission. OFC (Oxygen Free Copper) is similarly high in purity but typically within the 99.95% to 99.99% range. The conductivity of both materials is superb, but OCC exhibits much more excellent uniformity and reduces signal distortion, making it far better for applications requiring high fidelity and professional audio performance.

Can You Mix OFC and OCC Cables in an Audio System?

Compatibility considerations

Incorporating OFC and OCC cables into an audio system is typically delicate and does not automatically pose any risks to damage or performance. However, the difference in purity and crystal structure between the above cables can result in minor signal differences. For critical audio applications, keeping the types of cabling throughout the different areas is recommended, as it will ensure the same performance and avoid issues with sound quality. For average general-use systems, the mix of these cables will have little to no observable consequences.

Potential effects on overall sound quality

Due to the electrical characteristics of oxygen-free copper, combining OFC and OCC cables in an audio system may affect the overall sound quality. The material properties of OCC cables make signal loss and distortion more prominent in high-frequency transmission because they exhibit a higher purity level, unidirectional crystal structure, and more effective transmission. On the other hand, OFC cables, though highly efficient, have more complex crystal structures that may result in more significant internal resistance and reflection of the signal.

Data on the conductivity of the signal indicates that the resistivity of the signal using an OCC cable is closer to the ideal minimum value of the resistivity of copper, leading to improved efficiency in transmission. For example, OCC copper is documented to have more than 1-2% less potential signal attenuation than standard OFC cables, which is especially useful for long wires. This difference may translate to cleaner high frequencies, improved imaging, and better details in audio reproduction with the use of OCC cables on critical paths of the audio system.

However, in real-world scenarios with shorter cable lengths, the difference between OFC and OCC cabling systems is often inaudible to most listeners. The professional or audiophile-grade systems are where the significant benefits of OCC cables become noticeable faster, as they are all about accuracy and repeatability. When evaluating the issue of mixing these cable types, users must consider both the details of their setup and the needs they have to satisfy.

Frequently Asked Questions (FAQs)

Q: What distinguishes OFC copper from OCC copper?

A: OFC (Oxygen-Free Copper) and OCC (Ohno Continuous Casting) differ in how they are manufactured and their crystal formations. OFC is refined to the extent of having 99.99% oxygen-free content. Oxygen, an obstacle to conductivity, makes OFC superior to regular copper. In contrast, OCC employs an innovative casting technique that builds longer crystal structures. This reduces OFC’s grain boundaries and forms superior conductivity to oxygen-free copper.

Q: Can you explain oxygen-free copper and its significance?

A: Oxygen-free copper is refined copper, meaning the oxygen and other impurities have been obliterated. This results in more conductive copper while also improving the performance of audio and video systems or devices. Lower oxygen content prevents wires from degrading and significantly enhances sound and image quality. For this reason, it is very popular among people who use audiophile-grade cables and interconnects.

Q: What are the distinctions between OCC copper and conventional copper wire?

A: OCC (Ohno Continuous Casting) copper differs from regular copper wire in its crystal structure. Compared to conventional copper, OCC copper has longer and uniform crystals with fewer grain boundaries. This improves the material’s conductivity and reduces signal loss. On the other hand, regular copper wire has more impurities and a less organized crystal structure, which may lead to lower performance in high-fidelity audio applications.

Q: Is using OCC copper cables justifiable, given that they cost more than the OFC-type cables?

A: Whether the value of OCC copper cables is justifiable depends on the particular individual in question. Compared to OCC cables, OFC cables might not have the supreme performance because they do not have the same unique crystal structure that yields higher conductivity. The difference in sound quality may be minute, but it is indeed there. Hence, OCC copper cables are worth the cost for audiophiles who wish to embrace the finest performance works. Cables of good quality OFC can still render great results at an economical price.

Q: Can OCC or OFC copper cables boost the audio quality of any given audio system?

A: Better signal transmission with minimized interference is one of the many factors that may improve the overall sound quality of your audio system using both OCC and OFC copper cables. Lower resistance and capacitance on these power and audio high-purity copper cables may result in higher sound quality reproduced with finer details. Nonetheless, the improvement in the amount of gain should be proportional to the type of cables already in use and other system components.

Q: What is the difference between OCC and OFC copper and silver-plated copper when used in audio cables?

A: Silver-plated copper offers the best of both worlds. Silver is more conductive than copper, which can help improve performance at high frequencies. However, silver is also costly, so silver-plated copper is a good compromise. Silver-plated copper might have a brighter sound signature, while OCC and OFC copper cables might have more, even in their performance across all frequencies.

Q: What is the main use for OCC and OFC copper cables?

A: OCC and OFC copper cables have a broad range of uses because they have a high conductivity level and low signal loss. These applications include, but are not limited to, high-end audio systems, speaker wires, interconnects, and video cables. Furthermore, they are used in professional audio recording equipment, high-end computers, and telecommunication infrastructures that require much attention to signal integrity.

Q: Is there a concrete distinction between OFC and OCC for speaker wires?

A: The distinctions between OFC and OCC regarding speaker wire applications can be subtle and relative to the user’s discrimination and the quality of their sound reproduction system. The superior crystal structure on the long axis, in conjunction with the rough surface of the OCC copper, conducts better. This improves transmission signal fidelity, resulting in better-transmitted sounds. However, the differences are often minor since high-quality OFC speaker wires also give perfect results, and the difference is often insignificant in many installations.

Reference Sources

1. The Impact of the Oxygen Concentration on the Mechanical and Electrical Conductivity of Copper Rods Manufacture Using Contirod and Up-Cast Continuous Casting Processes

• Authors: I. Kinas, E. Tan, H. Can.
• Published: 2018.
• Journal: International Journal of Scientific and Technological Research.
• Citation: (Kinas et al., 2018, pp. 384–391).

Summary

• In this article, the authors analyzed the mechanical and electrical conductivity features of rods made of copper, focusing on the oxygen-bearing copper (ETP) and oxygen-free copper (OFC) produced using the Up-Cast method.

Key findings

• The study has shown that the oxygen contained in the raw materials can most significantly impact the mechanical properties and quality of the copper rods. OFC-produced copper rods are more conductive than ETP rods.
• The investigation revealed that the production technique (whether it is the Contirod or Up-Cast method) also determines the characteristics of copper rods.

Methodology

• The authors used several different copper rods produced as specimens in tensile and conductivity tests and performed microstructural analysis to verify the impact of oxygen concentration.

Pulsed-Electric-Current Bonding of Oxygen-Free Copper and Austenitic Stainless Steel

• Authors: Hayato Nakao, A. Nishimoto
• Publication Date: March 1, 2021
• Journal: MATERIALS TRANSACTIONS
• Citation: (Nakao & Nishimoto, 2021)

Summary:

• This paper investigates the bonding characteristics of oxygen-free copper and austenitic stainless steel, emphasizing the problems that arise from the differences in their thermal properties.

Key Findings:

• The study proved that bonding with pulsed electric current can achieve solid-state, high-tensile strength bonding, which suggests that joining OFC in applications with high conductivity and strength requirements is feasible.

Methodology:

• The authors tested the bonding characteristics at different bonding temperatures and pressures and measured the tensile strength of the joints formed.

3. Microstructure and Mechanical Properties of Ultrafine Grained Complex Copper Alloy Fabricated by Accumulative Roll-Bonding Process made easier

• Authors: Seong-Hee Lee, C. Lim
• Date Published: 2014
• Journal: Journal of Nanoscience and Nanotechnology
• Citation: (Lee & Lim, 2014, pp. 8014–8018)

Overview

• This study analyzes in detail the mechanical attributes of a complex copper alloy containing OFC and low-phosphate copper, paying particular attention to the effects of processing on the alloy’s microstructure and properties.

Core Result

• It was determined that the number of cycles of the alloy’s accumulative roll bonding directly impacts its mechanical properties and that the processes employed influence the properties of the copper alloys.

Procedure

• Mechanical tests and microstructural analysis were performed on the copper alloy to determine the effects of the processing methodology on its characteristics.
