Understanding the Machinability of 110 Copper: A Comprehensive Guide

Copper 110 occupies the attention of miners and manufacturers alike, as it is one of the most popular alloys in the world due to its superb conductivity, corrosion resistance, and ductility. Yet, as is the case with any material, one has to comprehend its machinability in order to take advantage of it. The purpose of this guide is to examine the technical details of the machining process of 110 copper and provide its readers with the basic comprehendible information needed for working with the material and doing so in a productive manner. This paper will provide readers and professionals with the fundamentals necessary for the proper usage of copper, thus enhancing performance and productivity. Read further to understand the challenges posed and the solutions available for copper 110 machining.

What are the Properties of C110 Copper?

Electrolytic tough pitch (ETP) copper, or C110 copper, is known to perform extremely well in thermal and electrical conductivity, arguably the highest of any solution or metal. It contains 99.9% copper as well as low oxygen content, which ensures high conductivity, with little to no oxidation. C110 copper has good malleability, ductility, and corrosion resistance, which makes it good for machining and forming. C110 copper also possesses a high level of thermal conductivity, which is vital for heat transfer mechanisms. It has a relatively high level of softness in comparison to other metals, which can be detrimental to machining. Such a combination of conductivity and formability makes C110 copper valuable in the electrical and automotive industries, as well as in construction.

Exploring the Mechanical Properties of C110 Copper

Electrolytic tough pitch copper, referred to as C110 copper, has different mechanical strength properties that ranges from 210-400 MPa which is useful for various purposes. The strengths have a tensile toughness which can extend from 15 to 50%, ensuring ductility which is achievable by forming and shape without fracture dealing.

The material’s hardness Vickers scale enables a measurement between 40 and 110, which varies with treatment, further enhancing softness. He possesses elasticity ranging from 110 to 130 GPa, which in return provides intermediate stiffness strong enough to support structural and conductive purposes. Moreover, C110 copper has high fatigue strength, allowing it to be useful in cases of cyclic loading conditions, which is mostly used in automotive and electrical systems.

C110 copper is known for its leading settlement of toughness, ductility, and conductivity. Things like cold working or annealing are done to make the mechanical property better suited to its intended purpose.

Understanding Electrical and Thermal Conductivity

Engrained in engineering and industrial activities are the material’s properties of electrical and thermal conductivities. The ability of a material to conduct electricity is called electrical conductivity. This is usually expressed in terms of Siemens per meter (S/m). C110 copper, for example, is highly sought after in the wiring and power distribution industries due to its range of remarkable features, especially in electrical conductivity.

On the other spectrum, materials with high thermal conductivity, such as C110 copper, are commonly used within heat exchangers, radiators, and other devices that require heaters to be efficiently dissipated. Thermal conductivity, in contrast, defines the ability of a material to transfer energy through the means of heat and is commonly expressed in watts per meter-kelvin (W/m·K). These characteristics are atomically preset to the materials, which enable them to operate in highly demanding situations seamlessly.

The Corrosion Resistance of 110 Copper

110 Copper is known as an electrolytic tough pitch (ETP) copper and is widely used in industrial practice because of its good mix of electrical and thermal conductivity as well as corrosion resistance. The material shows good performance in resisting specific kinds of corrosion, especially indoors and in controlled environments. Nevertheless, it is critical to determine the precise environmental conditions in which the factors of resistance may differ.

The atmospheric exposure of copper creates a protective oxide layer (patina) which provides protection against further oxidation and degradation. This quality enables it to be effective in oxidation and high moisture environments. For instance, copper 110 is appropriate for plumbing and electrical fitting because it does not corrode in freshwater applications and neutral pH regions. In fact, its corrosion rate in freshwater is around 0.02 to 0.2 millimeters per annum, and this rate is subject to the water’s chemical composition.

On the contrary, 110 copper is exposed to corrosive agents like ammonia and chlorides. These can lead to increased pitting and stress corrosion cracking when subjected to salty waters for long periods or industrial water for short durations. To achieve higher resistance, protective coverings or alloying with elements like tin and nickel are suggested.

It is important to mention that copper alloy 110 raw material meets the ASTM B152 specification, which guarantees uniformity and trustworthiness of its chemical and mechanical characteristics. Thus, it can be confidently used in various commonplace and specific situations as long as the conditions of use are properly anticipated and controlled.

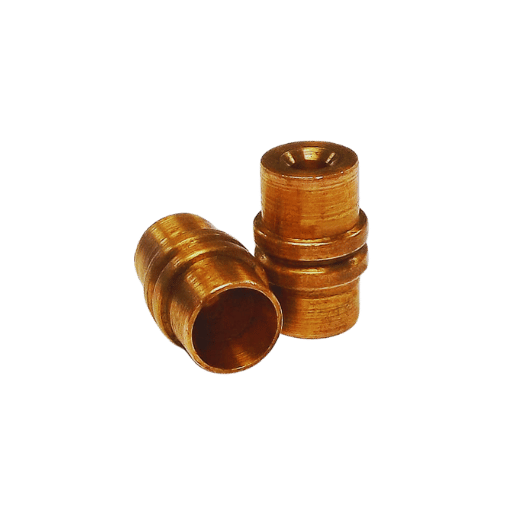

How Does Machinability of C110 Copper Compare to Other Grades?

Similarities and Differences: Copper C110 vs ETP

Due to their high purity, Copper C110 and Electrolytic Tough Pitch (ETP) copper possess several similarities. Both of them demonstrate great conductivity of both electricity as well as thermal energy, hence, both have a wide scope in electrical and industrial usages. In addition, they also show good ductility and resistance to corrosion.

The most important difference is in the amount of oxygen they contain. ETP copper has trace amount of oxygen while C110 is known to be oxygen free copper. This makes C110 advantageous in applications wher oxygen inclusion could result in defects, particularly during welding or high vacuum environments. In other situations where these factors are not fully considered, however, ETP copper is preferred due to its relatively lower price.

Factors Affecting the Machinability of 110 Copper

The machinability of 110 copper, also called electrolytic tough pitch (ETP), is determined by several important factors. These are the physical and chemical characteristics, the tooling, the cutting parameters, and the machining environment. These factors are given additional inspection in the section below:

Material Hardness And Purity

• The purity of 110 copper gives it a remarkable electrical and thermal conductivity but affects it machinability. In addition, having an approximate Brinell hardness of 45-60 HB makes it a rather soft material and can increase issues like tool wear because of copper adhesion on the cutting surfaces.

Tooling Material and Geometry

• The design of the tooling has a considerable impact on the effectiveness of machining processes. Using high-speed steel (HSS) or carbide tools is largely recommended for copper because these materials are wear resistant and hold sharp cutting edges. Also, some angles of the cutting tool, such as the clearance angles, should be modified to enhance material flow from the cutting zone and to decrease stagnation.

Cutting Speed and Feed Rate

• Selected cutting parameters are the most important when machining copper 110. Cutting speeds between 100 to 300 surface feet per minute (SFM) decrease material adhesion and soft or lower feed rates increase surface roughness. On the other hand, excessive speeds can cause overheating and damage the tools.

Lubrication and Cooling

• The use of proper cutting fluids or lubricants greatly improve the machinability of 110 copper. These fluids help eliminate heat build up, reduce tool to workpiece friction, and aid in preventing material build up on cutting edges. Light oils and water based emulsions are some of the commonly used fluids.

Workpiece Preparation

• Pre-machining such as annealing will have a tremendous difference on the results. Annealing decreases the internal stresses on the copper and serves to soften the metal for lower cutting forces at the cost of increasing smearing potential, requiring more stringent control on machining parameters.

Environmental Factors

• Finally, there are environmental factors such and temperature or humidity that also need to be considered. The copper may undergo oxidation if the temperature level is elevated. Humidity increases the corrosion of tools which is detrimental to performance and ratcheted precision.

To balance all of these factors and focus on high precision, efficiency and increase the capability of working with 110 copper, modern machining technologies such as CNC programming are utilized.

How to Improve Machining Efficiency with C110 Copper

1. Apply the Correct Tooling: C110 copper soft requires specific tools during machining, which lessens wear and allows for maximum precision in cutting.
2. Refine Cutting Parameters: Speed, feed, and depth must be tailored to the materials’ capabilities, but reasonable cutting speeds should be maintained to avoid overheating and deformation.
3. Lubricate: Good quality cutting fluids should be utilized to lubricate the components, as this reduces friction and heat which enhances the tools’ service life.
4. Cutting Tools Work: To preserve the quality of the cutting tools, immediate sharpening or replacement should be done to ensure clean cuts throughout and to prevent damaging the workpieces.
5. Incorporate CNC Programming: use Computer Numerical Control or CNC technology for enhanced consistency in accuracy and repeatability of the work during complex machining procedures.

As a result, any manufacturer that handles C110 copper in its operations can maintain high quality while reducing waste and improving efficiency.

What Are the Best Practices for Machining C110 Copper?

Optimizing Cutting Speeds and Feeds

It is immensely important to adjust cutting speeds and feeds while machining C110 copper to improve precision, increase efficiency in material removal, and decrease tool wear rates. In addition, specific ranges must be guided with it as these parameters are critical due to high thermal and electrical conductivity of C110 copper.

1. Recommended Speeds for Cutting Tools: The game plan with cutting these is to use a carbide tool as C110 copper cover the span of 200-400 surface feet per minute. Although, when dealing with “High Speed Steel”, the cutting speed is usually between 100-250 SFM due to the materials capability of increasing tool wear rate.
2. Guidelines on Feed Rates: The kind of machining operation itself, along with the tool being used determines the feed rates. With that said, common practices with turning operations incorporate a feed rate ranging from 0.003 – 0.010 inches per revolution. While on the other hand, IPT has it set for milling operation with a range between 0.002 and 006 inches per teeth for material removal rate without compromising surface finish.
3. Control of Chips: C110 copper tends to cut in a way that creates long continuous chips which makes it suitable for adjusting feeds and speeds so that chip control can be improved upon. In addition, these changes will help prevent clogging around the edges of cutting tools.
4. Coating Tools and Material Considerations: The use of coated cutting tools like titanium nitride (TiN) or carbon-like diamond (DLC) reduces wear and friction. Coupling ideal feeds and speeds with these coated tools enables exceptional productivity during extended machining cycles.
5. Adjustments In Process Parameters: Don’t forget to consider the flexibility of the machine tooling system, tool projection, and the configuration of the workpiece. Minor changes of the speed and feed during machining can improve tool life and quality of parts significantly.

Following these customized guidelines for cutting speeds and feeds helps manufacturers achieve the desired results when machining C110 copper and minimizes operating difficulties.

Maintaining High-Quality Surface Finish

It needs to be remembered that when machining with C110 copper, surface finish quality can be maintained by tool selection processing parameters as well as lubrication. Use cutting tools made for soft, ductile materials and ensure that they are sharp to prevent tearing or smearing of the copper surface. Use low cutting velocity as well as low surface feed rates, so as to prevent surface defects. Furthermore, the proper type of cutting fluid or lubricant should be utilized so as to reduce heat generation and friction that would otherwise adversely affect surface quality. Quality assurance activities such as inspecting tools and workpieces should be carried out frequently throughout the entire machining process to ensure that quality standards are being met.

Avoiding Common Machining Challenges with C110 Copper

When working with C110 Copper, it’s essential for one to keep in mind its specific features, which are high conductivity, relative softness, and thermal and electrical ductility. Tool wear, which results from the rapid breakdown of a tool across this material, is one challenge. Tools made of tungsten carbide are generally used as they provide durability and wear resistance. The use of polycrystalline diamond (PCD) tool inserts is also beneficial as they extends tool life a lot while increasing accuracy during machining.

Another challenge that might come forth is burr formation along the workpiece edges, which can lead to a loss in surface finish or dimensional accuracy. This can be solved with the use of sharp-cutting tools that have been machined with high rake angles. The application of effective coolant systems actually contributes to better temperature control, which aids in limiting thermal expansion and, therefore, helps in retaining tight tolerances during machining.

When working with electrical contacts, surface finish is critical and must be taken into consideration when working with C110 Copper. Advanced polishing techniques combined with micro-milling is sensitive enough to leave behind a surface roughness of atleast 16 µin which is the standard threshold.

Finally, due to the material’s softness and ductility, deformation and chatter during machining processes can be rather unforgiving. Adjusting the tighter setting with decreased manual power, as well as decreased spindle speed and feed rate shift, leads to stabilized operations. As a result, vibration, which reduces the productivity of the C110 Copper, is decreased.

Using this rational approach, along with the new solutions in cutting technologies, these problems and many others can be resolved to achieve maximum efficiency when working with C110 Copper.

Why Choose 110 Copper for CNC Machining?

The Role of High Conductivity in CNC Applications

CNC machining companies love using C110 Copper, considering its unparalleled electrical and thermal conductivity. This property makes it an ideal choice for thermal management components like electrical systems and heat sinks. Its proficient energy transfer lowers system energy loss and enhances performance. As an additional benefit, Copper’s high conductivity aids precision machining in which the workpiece is subjected to varying temperatures, providing stable materials during the process. This advancement ensures efficient and consistent results of the manufacturing processes.

Applications That Highlight the Machinability of 110 Copper

Electrical Connectors and Components

• Due to outstanding conductivity, over 101% IACS, C110 Copper finds popularity in making electrical connectors, terminals, and conductors. Such property guarantees optimal energy delivery with minimal losses, and is vital for high-efficiency electric systems.

Heat Sinks and Thermal Management Systems

• C110 Copper has gained overwhelming acceptance in the manufacturing of heat sinks and cooling systems because of its superb thermal conductivity. It assists in the heat removal from electronic components to maintenance for proper functioning and prevents overheating on critical systems.

Busbars for Electrical Distribution Systems

• In electrical distribution circuits, C110 Copper Busbars are good conductors for high-current loads. This attribute, combined with the material’s low resistivity, increases energy efficiency, thereby enhancing the effectiveness of industrial and commercial power networks.

Transformers and Inductor Windings

• Due to the excellent conductivity, ductility, and strength, C110 Copper is used as winding material for transformers and inductors. Under all these circumstances, the windings should be able to withstand heavy current, and perform with high reliability during service.

Automotive Parts

• The design of modern automobiles incorporates the workability and the exceptional conducting ability of C110 Copper in batters terminals, electrical connection points, and sensors. This material addresses the ever increasing need for electric vehicles as it enhances dependable performance of thermal and electrical systems.

Plumbing and Fluid Handling Systems

• Due to the corrosion resistance and workability of C110 Copper, it is widely used for the manufacture of machine fittings used in plumbing lines and fluid transfer lines. This ensures a durable and supple seal free performance in different environments.

Precision Aerospace Components

• The strength and conductivity with workability of the material is essential for aerospace applications. C110 Copper is extensively used in parts which have demanding applications particularly in sensors, connectors, and other special thermal parts such as C110 Copper where dependability and performance are important.

High-End Consumer Electronics

• The high machining and thermal management qualities of C110 Copper makes it a core component of high end consumer devices like smartphones, laptops, and other small electronics which require efficient heat dissipation.

With its diverse engineering applications, C110 copper continues to provide innovative and durable solutions. Consistent data supports the inclusion of copper in projects that involve conductive and thermal properties, proving its value for demanding technical requirements.

The Importance of Ductility in Copper Parts Manufacturing

Ductility refers to the ability of a material to deform under tensile stress without breaking. This property is important in the manufacture of parts made of copper since it is useful in the processes of stamping, drawing, or extruding where the material is reshaped significantly without losing its integrity. C110 Copper has high levels of ductility, which means manufacturers can produce geometries of great complexity without sacrificing performance dependability.

Recent achievements in material science portray that ductile copper alloys drastically reduce risks of cracking or unfavorable outcomes during operations of high stress. Reports have shown that pure copper such as C110 Copper has elongation percentages more than 30%. This makes it one of the best choices where precision parts are required, like in automobiles, aerospace, or electronics. Its very high elongation ensures that components can be repeatedly formed without loss of mechanical properties.

Furthermore, ductile copper improves the efficiency of manufacturing timelines by minimizing material waste and decreasing the tool wear which occurs during shaping. This leads to improved cost effectivity as well as meeting current sustainability objectives. C110 Copper still stands out as a material in industries that require high performance and reliability due to its excellent electrical and thermal conductivity, combined with remarkable ductility.

What Industries Benefit from Machining C110 Copper?

The Use of C110 Copper in Automotive Industry

With exceptional conductivity and corrosion resistance, C110 Copper is a crucial material in the automotive industry. Reliable performance in wiring, connectors, and electrical contacts is critical, making C110 Copper an excellent choice. Moreover, its high thermal conductivity enables its use in heat exchangers and radiators. The material’s ductility facilitates manufacturing, which ensures the ease of intricate parts production needed in modern automotive applications. These properties are what make C110 an important material in enhancing vehicle safety, efficiency, and functionality.

Leveraging 110 Copper for Electrical Components

Owing to its remarkable conductivity, which is around 101 percent of the International Annealed Copper Standard (IACS), C110 copper is extremely important in the manufacture of electrical hardware. Such conductivity is advantageous for power transmission, intricate distribution systems, and advanced electronic systems because it reduces the energy lost within the transmission systems. The long-term protection that copper inherently affords, especially in harsh environments where corrosion is prevalent, is sine qua non and adds to its stability credentials.

In addition, the flexibility and tensile strength of C110 copper make it ideal for the fabrication of electrical devices such as bust bars, terminals, and conductive strips. It is also used deeply in printed circuit boards (PCBs) due to the low resistance, which improves signal quality. Industry data suggests that the use of high-purity components has the potential to raise the overall energy efficiency of the systems by as much as twenty percent, aiding in energy-saving strategies.

With the addition of strength, reliability, and cost transparency, C110 continues to pose an attractive prospect for the manufacturers that want to innovate and improve competitiveness in the electrical business. Coupled with adaptability to state-of-the-art manufacturing processes, this strengthens C110’s energy: electronic and power systems around the world need constant boosting.

The Role of C110 Copper in Heat Exchangers

Because of its superb thermal conductivity and resistance to corrosion, C110 Copper is extensively used in heat exchangers. It is very effective at moving heat in HVAC, powering plants, and other industrial processes. Its robustness allows it to function for long stretches of time in extreme conditions, which in turn lowers maintenance and replacement costs. All of these properties increase the performance and dependability of C110 Copper, which makes it a crucial material in thermal management systems.

Frequently Asked Questions (FAQs)

Q: What is C11000 copper, and why is it popular for machining?

A: C11000, also called Copper 110, is a 99.9% pure copper alloy. It popular for machining because it possesses exceptional machinability, adequate electrical conductivity, implements very well in multiple industries, such as electronics and power transmission, and most importantly its features allow it to be CNC machined into copper parts in large quantities and with accuracy.

Q: How does the machinability of Copper 110 compare to other copper grades?

A: Out of many copper grades, Copper 110 (C11000) exhibits great machinability for most applications. It’s manageable physics and chemistry allows copper to be cut and machined in an effective way, resulting in better finishes, improved tool life, and better unit economics. For this reason, Copper 110 is used widely in CNC turning and similar processes that are practical implements enduring complex or tightly toleranced designed workpieces.

Q: Which factors are critical in the machining of C11000 copper?

A: Some of the aspects that affect the process of machining C11000 copper are tool geometry, feed and cutting rates, as well as cutting liquid application. Because of the large amount of thermal energy dissipated, it is important to use effective thermal management techniques when machining Copper 110. C110 copper is easy to machine, and using the right tools and techniques enables a company to produce high-quality parts.

Q: Where are the Copper 110 machined parts used?

A: Machined Copper 110 components are used in many industries. Typical applications are as electrical connections, buss bars in power transmitting systems, as well as sinks and other parts for the electronics industry. Copper alloy 110 is well suited for processes that need its superior electrical and thermal conductivity, as well as corrosion resistance and reasonable machinability.

Q: How is the fabrication process of Copper C11000 different from those of other metals?

A: The fabrication process of Copper C11000 has its distinct features owing to its attributes. For instance, it functions well with machines, but due to its high ductility, there are chances of burrs forming during the cutting process. Furthermore, the material has high thermal conductivity, which means cooling techniques must be used correctly during the machining process. Often, CNC machining copper material such as C11000 comes with specialized tools and more conservative cutting parameters to get the best outcomes.

Q: What benefits are there in making Copper 110 parts by CNC machining?

A: Several benefits can be obtained from using CNC machining to make 110 copper parts. The processes enable high dimensioning precision and these can be repeated many times. This is extremely important in many applications of this Copper grade. The high machinability of the material makes the CNC processes suitable for that type of work, so the metal can be made into parts with complex shapes and rigid dimensional tolerances. This technology also allows easy fabrication of prototype parts and mass production of copper C11000 components for cost-effective manufacturing.

Q: How much does the electrical conductivity of Copper 110 aid its machining properties?

A: Copper 110 is an alloy with one of highest conductivity levels which helps improve its machining properties. This attribute affects how heat is treated during gaige which calls for specific cooling methods. Such high conductivity enables it to harden and increase work tool which can cause some negative effects on the tool wear. In fact, such fundamental properties need to be understood as highly important while machining C110 copper so that the desired results can be achieved because it is not very easy to work with.

Reference Sources

1. Title: Performance Issues towards Over Electrode Cryogenic Electro Discharge Machine with Copper Tool as an Electrode

• Authors: Savaş Apak, Mustafa Ay
• Publication Date: 2024-08-07
• Citation Token: (Apak & Ay, 2024)
• Summary: In this paper, the performance of cryogenically treated copper electrodes in electro-discharge machining is assessed. During the research, some controllable machine factors, such as peak current, active pulse duration, pulse gap duration or even gap voltage, were measured. The analysis included the effects of such parameters on recast layer thickness, material removal rate, electrode wear rate, taper angle, and others. The outcomes show that particular combinations of parameters form with optimal machining quality and support the thesis that cryogenic treatment improves the performance of copper electrodes in EDM applications.

2. Title: Generation Mechanism and Dual Dynamic Simulations of Surface Patterns in Single-Point Diamond Turning of Single-Crystal Copper

• Authors: Jie Xiong et al.
• Publication Date: 2021-05-07
• Citation Token: (Xiong et al., 2021)
• Summary: This single-point diamond turning(SPDT) technology uses a single diamond tool. The paper examines the micro/macro surface patterns formed on the single crystal copper and its (110) plane. Including SPDT, the authors perform patterning analysis using Other/All surface methodologies, Simulations, and molecular dynamics. They were also able to come to a conclusion on how the arrangement of atoms was supposed to interplay with the quality of the surface that was cut. Above all, the result supports the claim that, unlike certain materials that were previously studied, the 110 plane is quite unique on the surface of the diamond mechanism.

3. Title: Fabrication of copper substrates for surface enhancement in Raman scattering using the micro scratching method

• Authors: Jingran Zhang et al.
• Publication Date: 2018-05-01
• Citation Token: (Zhang et al. l, 2018, 1310-1315)
• Summary: This work describes the use of a micro-scratching technique at the surface of single-crystal copper (110) and (111) after forming the micro/nanostructure on those planes. These scientists examined the SERS results of the structured scrap surfaces of copper alloys and observed that micro/nanostructures on the (110) plane, in contrast to the (111) plane scratch, the resultant plane showed higher SERS-enhancing effects.
