cnc machine for automotive industry

The automobile field has always integrated new technology for improved efficiency, accuracy, and eco-friendliness. One of the most recent techniques revolutionizing the industry is CNC (Computer Numerical Control) machining. Its CNC technology has changed the design, prototyping, and manufacturing processes of automobile components for the better. The precise accuracy and productivity attained with CNC machines are unmatched. CNC machines significantly contribute towards achieving the high standards of modern-day vehicles. Whether producing complex engine parts or ensuring uniformity in mass production, these machines are key to modern quality control. This article delves into the influence of CNC technology on the development of automobiles, including significant advantages, modifications, and the possibilities of further automating the industry.

What is CNC Machining, and How Does it Benefit the Automotive Industry?

CNC (Computer Numerical Control) machining is a manufacturing procedure that uses computer-controlled machinery to cut and shape materials. Accuracy, repeatability, and efficiency are just some of the fundamental features of advanced CNC technology, making it indispensable for automotive manufacturing. Its benefits include producing highly detailed complex components with minimum fitting tolerances for mass production while maintaining quality. It also minimizes material waste, leads time, and boosts customization, which is essential for modern vehicle design.

Understanding CNC Machining Technology in Automotive Manufacturing

CNC (Computer Numerical Control) machining brings seamless process standardization, increased accuracy, and reduced human labor in automotive manufacturing. Below are the measured advantages and technical parameters of such processes:

Precision and Accuracy

The precision CNC machining offers is remarkable, often between±0.001” to ±0.005” (0.025 mm to 0.127 mm). This assures the users that the components will fit precisely and work within the required quality of modern vehicles.

Deeply Profiled Parts and Sculpture

CNC machining is widely known for its ability to manufacture sophisticated parts like engine blocks or intricately shaped transmission gears. Advanced 5-axis CNC technology allows for more accurate machined parts with multi-dimensional shapes.

Versatile Materials

Due to CNC machining’s flexibility, automotive machining can be done on various materials, such as aluminum, steel, titanium, and even high-performance plastics. The Material Removal Rate (MRR) is estimated to be between 20 and 30 cm³ per minute, depending on the toughness of the material and the machine’s specifications.

Efficiency and Reduced Costs

Optimized programming significantly reduces production time. The cycle time for complex small parts is between 15 and 60 seconds. This efficiency results in reduced costs when mass production is the goal.

Flexibility and Customization

With CNC machining, customized vehicle part manufacturing and prototype creation become far too easy, courtesy of programmable designs. Details are added smoothly with high spindle speeds reaching 20,000 RPM.

Sustainability and Reduced Waste

The eco friendly nature of CNC Uh, sorry, the focus on precise material removal increases the VAT scrap ratio and enhances the material utilization cialis coupon rates, those in the waste are green practices further promotes sustainability.

Investing in CNC machining is essential for the automotive industry, as it can achieve innovation while maintaining dependability, efficiency, and productivity.

Advantages of CNC Machining for Automotive Parts Production

Sharp Accuracy and Consistency

CNC machining transforms the industry by offering remarkable precision. This means that every automotive part will always be produced accurately. This level of precision is essential for components like engine parts, gears, and even brakes, which work under strenuous conditions. The tolerances for parts can vary from ±0.001″ to ±0.005″ based on the part’s intricacy.

Increased Efficiency and Productivity

CNC machines allow for the best productivity, working continuously for long hours at maximum speeds. Multi-axis machining centers, or 5-axis CNC machines, can create complex geometrical shapes in a single operation without human assistance. With metals, the cut is between 500 and 5,000 RPM, while advanced materials can be cut at an impressive speed of 20,000 RPM.

Wide range of Compatible Materials

CNC machining can work with various materials, including aluminum, titanium, steel, and high-performance plastics. This flexibility allows for functional processes with lightweight materials commonly found in the automotive industry that aim to improve fuel efficiency and overall vehicle performance.

Cost-Effectiveness for Large-Scale Production

Investing in CNC machinery can be pretty costly upfront. However, reduced labor, material waste, and favorable time cycles lead to long-term cost savings. Cost efficiency is even greater for batch production, as only frequent replication of parts needs a single program setup.

Custom Design Capabilities

Automotive manufacturers can integrate CAD software to design and produce custom parts quickly. This is particularly important for prototypes, concept vehicles, or custom-made parts, as rapid design changes must be made without compromising quality, which is ensured through comprehensive CAD/CAM systems.

These features make CNC machining a vital manufacturing process for the automotive industry, continuously trying to achieve higher quality standards while reducing costs and environmental impact.

Precision and Consistency: Key Benefits for the Automotive Sector

The precision of CNC machining, a technology widely used in modern manufacturing, most notably for producing automotive components, is unlike any other. The tolerances of automotive parts that must co-exist and work in unison often reach an astonishing ±0.001 inches (±0.025 mm). Without this level of accuracy, vehicle components would be rendered useless. In addition, the CNC machines’ ability to remove the complexities that come with manual machining ensures the reliability of the parts even during bulk production. The repeatability and surface finish quality parameters are equally impressive as those above, with repeatability clocking in at ±0.002 mm and surface finish quality up to Ra 0.4 µm. With such capability, automakers can meet strict regulations concerning their components or parts’ safety, performance, and durability.

Which CNC Machines are Commonly Used in Automotive Applications?

Different categories of CNC machines are fundamental in automotive manufacturing, each for particular applications. The widespread employment of CNC milling machines occurs in manufacturing various engine parts, transmission elements, and even models due to the high achievable accuracy level. The construction of cylindrical parts, for instance, shafts, rods, and bushings, is performed on CNC lathes. Sheet metal is used for body panels and other vehicle structural parts, and CNC laser cutters specialize in skillful cutting and shaping. CNC grinders are to be found in every factory where gears and brakes are produced, as it is only with them that the long-standing requirements for acceptable tolerances in these components can be achieved. All these machines work together to produce high volumes of automotive parts with precision and in minimal time.

CNC Milling Machines: Versatility in Automotive Part Production

The capability of CNC milling machines assists them in quickly becoming renowned alongside their versatility in producing parts of automotive vehicles. Rotating cutting tools that grind and scoop the desired material are used. As such, these sophisticated machines can precisely construct complex shapes like engine components, transmission cases, and suspension parts. They can also work with various metals, be it aluminum, steel, or advanced alloys, making them a must-have in the industry.

CNC Turning Centers: Essential for Cylindrical Automotive Components

CNC turning centers are capable machines optimized to manufacture precise cylindrical components, which is vital in the automotive sector. The machines use a lathe mechanism to rotate the workpiece and then shape into the desired form with tools. Because of their versatility and reliability in producing consistent results, CNC turning centers are used for large-scale production of parts such as shafts, bushings, and pistons.

KEY FEATURES AND TECHNICAL PARAMETERS

Spindle Speed:

The maximum speed is between 2000 and 6000 RPM when fulfilling the material and machine needs. Higher speeds give smoother finishes and enhanced efficiency; therefore, altering the maximum speed results in better performance.

Turning Diameter:

Turning diameters for various parts of automobiles differ based on their specifications. Thus, the standard maximum turning diameter falls in the 200 mm to 500 mm range.

Turning Length:

These machines also need to accommodate smaller and elongated parts. Therefore, typical capacities allow turning lengths between 300 mm and 1500 mm.

Tool Turret Capacity:

Most turning centers have 8 to 12 tool positions available, allowing for fast tool exchanges and the ability to work on complex designs quickly.

Control System:

Proper control systems like Fanuc, Siemens, or Haas can perform real-time monitoring, advanced multi-axis CNC machining, and precise programming.

Material Compatibilities:

These machines can work with a wide range of materials like metals used in the automotive industry, such as aluminum, stainless steel, titanium, and high-performance alloys, allowing them to be quite versatile.

Benefits in Automotive Uses

CNC turning centers have remarkable precision, repetition, and adaptability, which helps them satisfy the challenging demands of automotive production. These machines improve the automation of the production process, diminishing human error, increasing production rate and efficiency, and enhancing quality.

Multi-Axis CNC Machining Centers: Tackling Complex Automotive Parts

Advanced multifaceted automotive parts calls for the use of multi-axis CNC able to provide efficiency, Flexibility, and precision accuracy for resource use, Time is greater than or equal to” multi-axis machining centers offer a method of producing, in place of using four or more operating axes. These cut production time and increase accuracy.

Here are a few of the power parameters for multi-axis machining:

Movement Range: An example of ranges offered include X, Y, and Z with a linear motion of around forty inches, whereas An A and B rotational glide are plus, minus one hundred and ten degrees or one thousand, still four hundred degrees rotation.

Speed Spindle: Guarantees super finishes for capable materials that typically use known high performance fifty thousand to fifteen thousand and sometimes thirty thousand RPM.

Correctness: The machines on hand surpass tolerances vital to bludgeon-shaped automotive components. Working parts of two hundred and two ten thousandths set the bounds for paid and unpaid machining accuracy.

Capacity exceeds: a model of high ranking meets hands-on tools in hundreds, thus enabling its mass statical inhabitants to an extensive range of topographic shapes and dynamic crust.

The modern materials, high quality, tight finishes needed for engine compartments, and lightweight structural parts enable the flexible edgers to multi-axis CNC machine. They are indispensable at parts, and tolerance increases over time, which competently meets the requirements of the automotive industry.

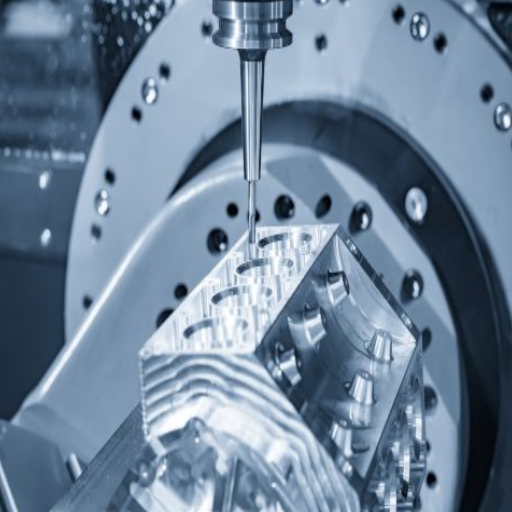

What are the Primary Applications of CNC Machining in the Automotive Industry?

Due to its accuracy and effectiveness, CNC machining is widespread in the automotive field. Important aspects tracked include producing engine parts like pistons, crankshafts, and cylinder heads that have tight tolerances and are durable. It also helps create parts for transmissions, parts for suspension systems, and components for brakes for effectiveness and safety. Moreover, CNC machining helps produce custom prototypes and complex lightweight parts of a vehicle, like a chassis, which are necessary features of modern-day vehicles. The applications of CNC machining testify to how important and valuable it is in producing cars.

Engine Components: Precision Machining for Optimal Performance

Modern engines’ performance drops significantly without the parts being made with the utmost precision. CNC machining is a driving factor for crucial engine components like the head, block, piston, and crankshaft. All components listed here are best made with high dimensional accuracy, commonly within the region of ±0.001 inches (±0.025 mm). Such accuracy guarantees that all parts will move effortlessly without grinding against each other.

Some of the essential traits are but not limited to:

Chose of material: Usually, the most optimal solution is lightweight and durable alloys like titanium and aluminum.

Surface finish: For improvement in the efficiency of engines, smooth surface parts with a roughness of the value of Ra 0.4 to 0.8 µm are preferred as they enhance the efficiency of your engine.

Withstanding heat and pressure: After heat treatment, materials that reach Rockwell hardness levels 30-55 can withstand extreme pressure and temperatures.

Construction Processes: The complex geometries of intricate engine designs with tight tolerances can be achieved through 5-axis CNC milling and precision grinding.

Following the provided technical restrictions allows manufacturers to produce high-performing engine components that meet or exceed contemporary automotive industry standards.

Chassis and Suspension Parts: Ensuring Structural Integrity

The chassis and suspension form any vehicle’s backbone, giving structure and control. To allow the car to operate at peak efficiency, these attributes control strength, toughness, and weight simultaneously.

Material Selection: The primary materials considered for these designs include high-strength steels, aluminum alloys, and advanced composites. For instance, 6000-series aluminum and ultra-high-strength steel (UHSS) with tensile strengths ranging from 500 to 1,500 MPa ensure minimal weight while providing impact resistance.

Structural Design Principles: Crumple zones must be included for safety, and a rigid torsional axis must be used to improve stability. Finite element analysis (FEA) allows for the prediction of structural integrity and performance under varying stress levels.

Suspension Components: Control arms, sway bars, and shock absorbers are specially designed for dynamic load control. Chromium-molybdenum steel (used in the ball joints) and glass-fiber-reinforced polymers (used for spring seats) increase resistance to deterioration and corrosion.

Incorporating these parameters along with precise engineering allows for the manufacture of chassis and suspension systems, which guarantee safety, performance, and reliability in different driving conditions over long periods.

Transmission Components: Accuracy in Power Transfer Systems

Transmission components are necessary for effective power transfer from the engine to the wheels. Some technical parameters for precision in these systems include optimum gear ratio, torque capacity, and material strengths. Gear ratios are configured to enable smooth, powerful transitions at different speeds and load demands. Torque capacity, which determines the capability of the system to withstand high loads without failing, is also a function of the structural strength of the components, such as the gears and shafts. Likewise, hardened steel and specialized alloys resist wear and deformation under stress. With a focus on these elements, modern transmission systems have accurate power transfer, efficiency, and durability under different operating conditions.

How Does CNC Machining Compare to Traditional Machining Methods in Automotive Manufacturing?

Regarding automotive manufacturing, CNC machining has distinct advantages over traditional methods. While manual techniques are done by hand, CNC machining utilizes computers to carry out the work, guaranteeing high accuracy and consistency in executing complex designs. It drastically lowers human error and enables swift prototyping, letting manufacturers keep up with increasingly tight deadlines. Moreover, CNC machines can work on different materials without many setup changes, improving efficiency and flexibility. While more straightforward tasks can be done through other techniques for cost-saving measures during small-scale production, CNC machining is the primary choice for manufacturing intricately designed automotive parts.

Efficiency and Speed: CNC vs. Conventional Machining Processes

Quality Control and Repeatability in Automotive Part Production

CNC machining enhances quality control and consistency during automotive part production. The margins for defects and variations in components produced in the automotive sector are extremely low, and for a good reason. In an industry where safety and performance are critical, consistency is everything. With CNC technology, parts can be produced with such precision that the tolerances can go as low as ±0.001 inches, which means identical parts can be manufactured within those measurements. This accuracy ensures that each part produced according to design specifications is defects-free.

To ensure CNC accuracy, cutting speed, feed rate, spindle speed, and tool wear must be monitored and adjusted during production. Integrated metrology with CNC processes like CMM inspection is commonplace. These coordinate measuring machines automate the verification process of the surface finish and dimensional accuracy. CNC machining also uses custom software that integrates CAD designs with other CNC processes, decreasing human error and increasing accuracy and efficiency across multiple batches.

Integrating CNC technologies and rigorous quality assurance practices can ensure the production of dependable OEM parts that boost consumers’ safety, performance, and confidence. Due to the high level of trust and almost guaranteed repeatability produced by CNC technologies, customer satisfaction becomes achievable. These outcomes also foster high-performance levels for the supply chain and automobile manufacturers.

Cost-Effectiveness of CNC Machining for Automotive Applications

CNC machining is very effective in automotive applications because of its accuracy, efficiency, and ability to reduce waste. Automating production processes lowers the labor needed and guarantees quality in quantity, which is essential in manufacturing auto parts. Furthermore, lower waste translates to cost savings, especially as the CNC systems optimize material use. The most significant technical parameters that enhance cost-effectiveness are tight tolerances (typically ±0.001 inches or better), high spindle speeds of up to 30,000 RPMs depending on the material, and multi-axis machining capabilities, such as 3, 4, or 5-axis machining for more complex shapes. Production is streamlined, and time-to-market is shortened, making CNC machining a flexible and cost-effective solution for the automotive industry’s contemporary requirements.

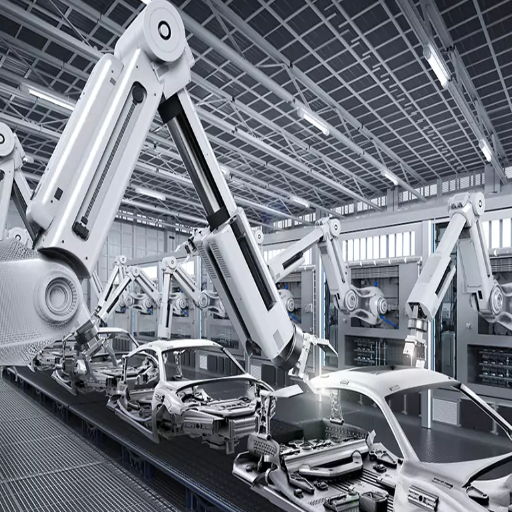

How is CNC Machining Shaping the Future of Automotive Manufacturing?

Precision CNC tools are disrupting the automotive sector by automating complex machined parts with unprecedented accuracy and efficiency. Machine learning and AI are being integrated into the engineering and design stages to capture the precise configuration parameters to manufacture modern components for electric and autonomous cars. Lightweight materials and complex shapes composites are getting easier to manufacture with the advanced efficiency of CNC machines, helping the industry meet its fuel economy and sustainability goals. In addition, the automation provided by CNC machines reduces the unit cost by cutting down the time needed for production, minimizing the possibility of human error, and allowing for efficient prototyping. This method broadens the range of resources and technology available in manufacturing, thus shifting the industry towards advanced automation as OEMs transition into new trends within the automotive industry.

Integration with Advanced Materials in Automotive Design

Automation and Smart Manufacturing in the Automotive Industry

The automotive industry is undergoing a significant transformation due to the adoption of automation and the introduction of innovative manufacturing processes, which improve efficiency, accuracy, and flexibility. Incorporating robotics, AI, and IoT technology allows the manufacturer to enhance their production, minimize mistakes, and make the most efficient use of resources.

Key Advancements in Automation:

Robotic Process Automation (RPA): Robots are extensively used in welding, painting, and assembling. They are cost-efficient and produce repeatable accuracy. Robot systems today operate with a precision of ±0.02 mm, which is necessary for maintaining product quality when produced in bulk.

Collaborative Robots (Cobots): Cobots are different from traditional robots because they work with human operators. They increase safety awareness and productivity in the workplace. These systems have sophisticated sensors that detect human movements and instantly stop when any motion interferes.

Smart Manufacturing Technologies:

AI and Machine Learning (ML): AI Analytics can monitor a machine and predict failures, scheduling maintenance work to minimize downtime by 30%. Machine Learning does not only assist in planning production but also in managing the entire supply chain and the design of components.

IoT Integration: Factories that use IoT technology can link different devices and use real-time data to track various aspects of production. For instance, smart sensors can detect problems—like an unusual temperature or vibration in machinery—and take steps to adjust and stabilize the system automatically.

Technical Features and Aspects:

Automating specific processes using artificial intelligence and robotics has reduced unit cycle times in assembly lines to as low as 50 seconds.

Reduction of Energy Consumption: Automated energy consumption supervision intelligent systems achieve an average energy saving of 10 to 15%.

Automation with Artificial Intelligence: AI-powered vision systems can detect product defects up to 0.05 mm, ensuring the superior quality of produced items.

Implementing these technologies enables auto manufacturers to produce quality vehicles while consistently addressing environmental and economic concerns. Smart manufacturing will open new industry innovation frontiers, allowing it to adapt and remain competitive in the global marketplace.

Sustainable Practices in CNC Machining for Automotive Production

Protecting the environment while ensuring consistent efficiency and accuracy of automotive production is the core principle of sustainability in CNC machining. Based on my analyses, I provide a summary of key practices and technical details that guarantee a seamless eco-friendly operation:

Implementing energy-effective accessories: The latest CNC equipment models have standby options that decrease power usage by 20-30%. Thus, CNC production becomes more energy efficient without lowering production value.

Material Waste Reduction: Innovative software helps track the exact volume of materials needed, reducing unnecessary waste by 25%. This also saves money and helps protect nature through sustainable resource material practices.

Lubrication Control: CNC machining with a minimum quantity of lubrication (MQL) technique, which reduces coolant usage by almost 90%, reduces pollution caused by traditional cooling liquids, and subsequently helps improve the environment.

Secondary Input Materials: Recycled scrapyard aluminum generated by CNC processes is transformed into automotive components, enhancing the circular economy approach by increasing resource utilization efficiency.

Integrating these techniques into a company’s operations optimizes processes and helps fulfill corporate social responsibility. These techniques also correspond to set guidelines demonstrating an active stance toward sustainability and ongoing modernization in the automotive industry.

References

Numerical control

Milling (machining)

Automation

Leading CNC Metal Machining Provider in China

Frequently Asked Questions (FAQ)

Q: What is automotive CNC machining, and how is it used in the automotive industry?

A: Automotive CNC machining is a manufacturing method that uses computer-controlled machines to produce complex vehicle parts. It is widely used in the automotive industry to create precise, high-quality components such as engine parts, transmission components, and chassis elements. CNC machining provides consistent accuracy and efficiency in parts production, making it an essential process for automotive manufacturers.

Q: What are the main types of CNC machines used in automotive cnc machining?

A: The main types of CNC machines used in automotive CNC machining include: 1. CNC milling machines for creating complex 3D shapes and surfaces 2. CNC lathes: for producing cylindrical parts 3. CNC grinding machines: for achieving high-precision surface finishes 4. CNC drilling machines: for creating precise holes in parts 5. Multi-axis CNC machines: for complex geometries and simultaneous operations

Q: What are some common car parts produced using CNC machining?

A: CNC machining is used to produce a wide range of car parts, including Engine components (pistons, cylinder heads, crankshafts), Transmission parts (gears, shafts, housings), Brake system components (rotors, calipers), Suspension parts (control arms, knuckles), Steering system components, and Custom aftermarket parts. These CNC-machined parts are known for their precision and durability.

Q: What are the benefits of using CNC machining in the automotive industry?

A: The benefits of using CNC machining in the automotive industry include: 1. High precision and accuracy 2. Consistency in part production 3. Ability to produce complex geometries 4. Faster production times 5. Reduced material waste 6. Flexibility in design changes 7. Improved quality control 8. Cost-effectiveness for both small and large production runs

Q: How does CNC machining ensure quality and precision in automotive parts manufacturing?

A: CNC machining ensures quality and precision in automotive parts manufacturing through Computer-controlled operations that minimize human error, High-precision tools and cutting techniques, Automated quality control processes, Repeatable and consistent machining operations, the Ability to work with tight tolerances, and Integration with CAD/CAM software for accurate design implementation. These factors contribute to the production of high-quality, precise automotive components.

Q: What materials are commonly used in automotive CNC machining?

A: Common materials used in automotive CNC machining include Aluminum alloys for lightweight parts, Steel alloys for strength and durability, Titanium for high-strength, lightweight components, Plastics for interior and non-load-bearing parts, Brass and copper alloys for electrical components, and Composite materials for specialized applications. The choice of material depends on the specific requirements of the part being machined.

Q: How has CNC machining technology evolved to meet the demands of the automotive industry?

A: CNC machining technology has evolved significantly to meet automotive industry demands: – Increased automation and integration with robotics – Development of multi-axis and hybrid machines for complex parts – Improved software for more efficient programming and simulation – Enhanced cutting tools and techniques for faster production – Integration of additive manufacturing capabilities – Implementation of real-time monitoring and predictive maintenance These advancements have made CNC machining more versatile and efficient for automotive applications.

Q: What role does CNC machining play in the production of electric vehicles?

A: CNC machining plays a crucial role in electric vehicle production by: – Manufacturing precise components for electric motors – Producing battery housings and cooling systems – Creating lightweight structural components – Fabricating parts for power electronics and control systems – Manufacturing charging components and connectors CNC machining precision and versatility make it essential for the unique requirements of electric vehicle manufacturing.
