Mastering Metal Laser Cutting: Your Ultimate Guide to Precision

With unparalleled efficiency, precision, and versatility, the laser cutting technique effectively changes the face of the Metal Fabrication industry. Each professional or novice must grasp the details encompassing the complex world of metal laser cutting to achieve maximum efficiency. This guide seeks to teach the processes and techniques in detail so that knowledgeable steps can be taken to achieve the highest efficiency and lowest errors. Understanding the basic concepts of laser technologies and offering tips to enhance precision, this article aims to provide the information required to tackle metalworking projects of any size. This state-of-the-art technology will be analyzed, explained, and simplified so anyone can learn the modern innovations of metal laser cutting.

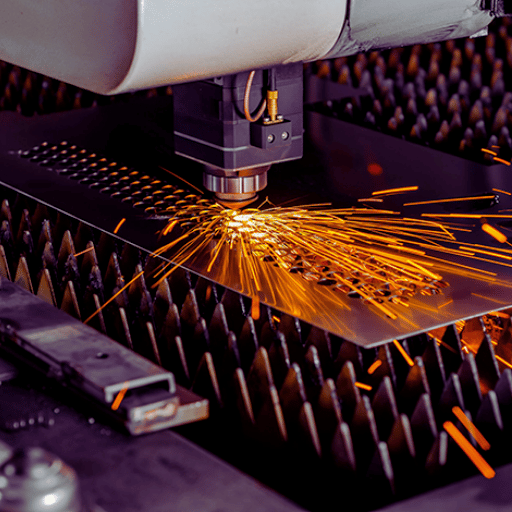

What is Metal Laser Cutting, and How Does it Work?

Metal laser cutting is a precise manufacturing process that uses an equipped laser to burn fine patterns on particular metallic materials. With a high level of accuracy, the heat from the laser melts and vaporizes the material. This blends in remarkably well with how efficient this process is. Molten metal is vaporized and blasted away with high-pressurized gas, making it simple to operate. Other complex designs that have strict guidelines are well-processed through this method. Fundamental elements such as the type of fiber or CO2 laser mark the quality and speed of the output, which are affected by the material’s properties.

Understanding the Laser Cutting Process

Laser cutting requires three essential components: a laser source, a motion system, and assistive gases. The laser source generates light, which is concentrated into a focused beam and aimed at the material to perform some cutting. The motion system, often operated by computer-controlled numerical (CNC) control, moves the material or the laser to the required position, and the shape is achieved. The surface is also cooled, and oxygen/nitrogen gasses are used to clear away the molten material, making gasses improve the efficiency of the cut. All elements work together to simultaneously produce a high degree of accuracy and repeatability on different types of materials and thicknesses.

Key Components: Laser Beam and Metal Fabrication

The laser beam is the principal part of the laser cutting systems as it exerts the concentrated energy required to cut or engrave materials with extreme precision and accuracy. Usually, it is produced in a laser resonator and later directed by a series of mirrors or fiber optics to focus on the target. Concerning the intended target, the concentrated energy is transformed into heat and subsequently melts or vaporizes the material to be cut. As a result, a clean and precise cut is achieved.

The fabrication process depends on the laser beam’s accuracy and efficiency if it works across a wide range of metals such as steel, aluminum, and copper. It enables the production of materials of the utmost quality, complex designs, and with less material wastage, which has proven beneficial in modern manufacturing and industrial applications.

How Laser Technology is Used for Cutting Metals

Metals can be separated using the laser technique by focusing a beam of light on the material’s surface. It is the focused energy that melts or evaporates the metal at the surface, causing contacts that are clean and precise. Such applications are commonly used for steel, aluminum, and copper because they intricately cut out the patterns and minimize material wastage. It is controlled by computer systems which constantly guarantee productive results. Implementing this method saves both time and resources, which is why it is so relevant in the construction, automotive, and aerospace industries.

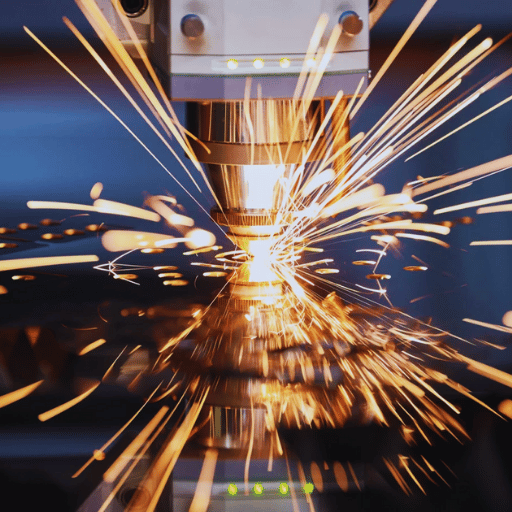

What Types of Laser Cutters Are Used for Metal?

Exploring Different Types of Laser Cutters

The three principal categories of laser cutters employed in metalworking include CO2, fiber, and crystal lasers.

1. CO2 Lasers: This type of laser is best suited for cutting, engraving, and drilling metals of medium thickness. It is practical and inexpensive, making it a popular laser-cutting technology.
2. Fiber Lasers: These let you slice through thin metals with great speed and precision. They are the most durable and require the least upkeep compared to other options.
3. Crystal Lasers: These lasers are powerful and can cut thicker metals. Even though they are robust, the operational life and maintenance costs are high.

Depending on the application, thickness of the material, and production needs, each type offers different advantages.

Choosing the Right Laser Cutter for Metal

Remember the specifics of material thickness, precision level, and estimated cost operational costs when selecting a laser cutter for metal. If you intend to work with thin sheet metals, fiber lasers are very effective and economical due to their long life and low maintenance costs. For thicker sheet metals, crystal lasers are much more powerful; however, they are often more challenging to maintain and have shorter lifespans. Evaluate budget limits alongside production expectations to determine which option optimally balances value, performance, and future return on investment.

Comparing Fiber Laser and Solid-State Laser

The differences between fiber lasers and solid-state lasers are found in their efficiency, accuracy, and application areas. Fusion cutting, welding, and marking of thin materials are best achieved with fiber lasers, which are more accurate than solid-state lasers. They have lower running costs over time and are virtually maintenance-free. For thicker materials, solid-state lasers are more effective due to their higher power output, though maintenance and lifespan issues greater than those found in fiber lasers do exist. Ultimately, all decisions come down to specific requirements, whether material thickness, budget, or production scope.

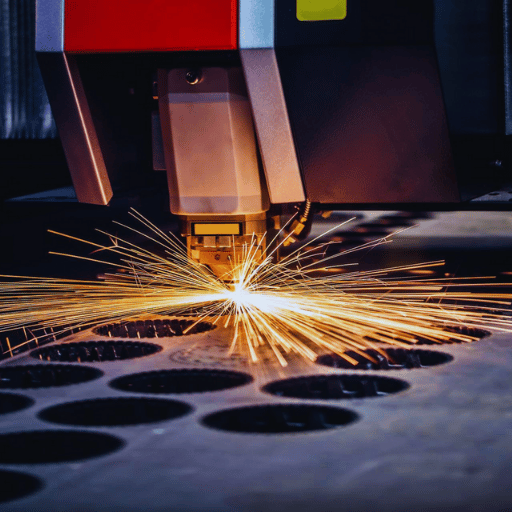

How Can Metal Be Cut with a Laser?

Key Cutting Parameters for Precision

To cut with a laser, several parameters must be monitored and controlled. For one, cutting power must be adjusted according to the material’s thickness and type. The thicker the material, the more power is required to cut through cleanly, and vice versa. Cutting speed needs to be modulated as well. Slower cutting speeds help to guarantee cleaner edges on thicker materials, whereas faster speeds are more efficient for thinner materials. The mechanics of the machine need to be aligned strategically as well. Focus position, for instance, needs to be set to the surface of the metal to achieve the best result. Alongside those, other parameters like type and flow rate of assist gas, for example, nitrogen or oxygen, assist in removing the eroded material while simultaneously providing a clean cut. An appropriate balance of all of these factors guarantees effective laser cutting.

Adjusting Laser Power for Various Metals

While dealing with metal, the laser power needs to be changed by the material’s thickness, reflectivity, and melting point. For example, cutting aluminum or copper requires maximum power settings due to deeper reflectivity and thermal conductivity. In stark contrast, mild steel usually requires lower power settings as it efficiently absorbs the laser energy. Depending upon the composition and thickness, stainless steel is generally in between. Power settings must be tailored to each specific metal to guarantee clean cuts while avoiding damage to the material, making calibration extremely important.

Achieving Precision Cuts with Lasers

A range of factors, such as the quality of the beam, selection of the assist gas, and position of the focus, among others, affect the precision achieved with laser cutting. Focusing, in particular, has a beam quality that is determined with M² (this measures how much the beam deviates from an ideal Gaussian). This parameter significantly affects the cutting accuracy because lower values of M² mean greater beam focus and energy density. Oxygen, nitrogen, and even compressed air can serve as assist gas, while oxygen, contrary to some beliefs, serves better with faster cutting speeds while working on thick materials. Though there is oxidation that can happen while using oxygen, cutting with nitrogen does not face oxidation but can help to increase the clarity of the edge.

Focal Point is equally critical since the improper position of a focus can lead to either burning of the material or not enough penetration. Research shows that for higher precision features, smaller steps on the Z-axis, in the order of sub-millimeter, are of great significance in determining the quality of the cut. Laser devices today come with self-focusing and focus detection options, meaning these features can be changed on the go to boost efficiency and consistency. By incorporating these into each cutting cycle as a minimum, it is possible to achieve maximum quality with minimum material wastage and lowered production time.

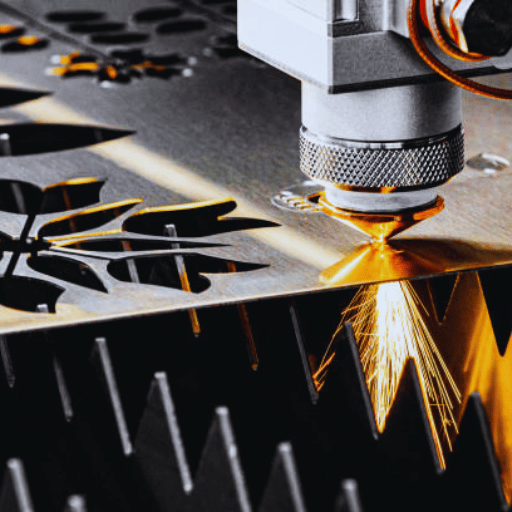

What are the factors to consider when cutting laser metal?

Ensuring Safety in the Laser Cutting Process

When it comes to operating laser cutters, guarding the health of the employee, the equipment, and the environment is fundamental. One of the primary safety measures is using protective enclosures that contain the laser beam and prevent possible accidental exposure. Safety with high-powered lasers is paramount since even momentary contact may lead to serious eye injury or severe burns. For open beam arrangements, mandatory PPE, such as laser protection goggles for the in-use wavelength, must be worn.

With metal fume extraction, you can minimize health risks caused by cutting metal. The laser cutting of materials such as stainless steel creates hazardous particulate matter and toxic gases like hexavalent chromium. OSHA filtration system standards must be followed. Air quality must also be continuously monitored indoors in compliance with OSHA standards.

Interlocks, as previously stated, are critical to the safety of laser cutting systems. These systems limit the laser activation during setup or maintenance, improving safety. Other advanced safety features automatically stop operations when sensors detect overheating or misalignment, preventing accidents.

Operational safety is also improved by conducting regular training and safety audits. Employees should receive detailed training concerning the use of machinery, possible dangers, and the steps to take in crises. Research shows that workplaces that consistently train their employees for safety have up to 70% fewer reported annual incidents of errors associated with lasers. Implementing these practices, along with compliance with international standards, such as IEC 60825-1, improves safety and efficiency in environments of laser cutting.

Technical Specifications for Metal Laser Cutter

• Laser Power: Depending on the material thickness and required cutting speed, it can range from 500 watts to over 10 kilowatts.
• Cutting Speed: This varies with the type and thickness of the material. For instance, when cutting mild steel, one can reach 120 inches per minute at optimal settings.
• Cutting Thickness: This exceeds one inch and can also cut thin sheets of 0.02 inches or more, depending on the power used on the laser.
• Precision: Tight tolerances of ±0.001 inches are offered for more fine-cutting applications.
• Supported Materials: These include stainless steel, aluminum, carbon steel, and others.
• Beam Quality: Ensures clean cuts of high precision by maintaining consistent beam quality (< 1.2 for fiber lasers) during the cutting process.
• Working Area: There are different standard models that have different cutting bed sizes, from 4×4 feet and 6×12 feet.
• Cooling System: These have been integrated to allow water to cool systems and continue to enable work without overheating.
• Control System: These provide an automated recess in laser cutting technology, which makes them easier to operate.

Operate within the relevant safety standard guidelines, especially when using these systems, such as following IEC 60825-1.

Evaluating Laser Cutting Services

The following are core principles to pay attention to when considering a laser cutting service:

1. Material Compatibility: Check if the service can effectively work with the materials on hand, including stainless steel, aluminum, or carbon steel, evidence to achieve the desired results.
2. Precision and Tolerance: Check the rough tolerance which is often not worse than ±0.001 inches for fine applications, and how precise the cutting is.
3. Equipment Quality: Ensure the strong brand machines that have good beam profile quality and good cooling systems are used because these are crucial for trust and high output.
4. Turnaround Time: For quality assurance, analyze how badly deadlines impact the provider’s working method, especially with time-sensitive projects.
5. Cost Effectiveness: Inquire for quotes and compare prices, factored with the service trustworthiness, quality, and offer for service level.
6. Safety Protocols: Check if the selected provider follows safety measures like IEC 60825-1 for laser usage.

Addressing these points improves the chance of selecting a laser cutting service appropriate for the client project and assures good results.

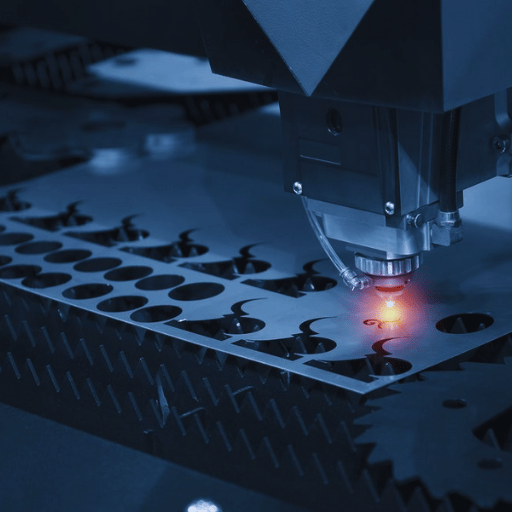

How Does Laser Cutting Work for Sheet Metal?

Applications of Sheet Metal Laser Technology

The adoption of laser cutting technology has greatly enhanced the efficiency of manufacturing and fabrication sectors by automating the most precise and versatile methods, especially with respects to sheet metal cutting. Applications of sheet metal laser technology include:

1. Automotive Industry: Body panels, exhaust systems, and brackets are some of the complex components made from sheet metal laser cutting. It is prominent in automotive engineering because of the tolerance levels precise with which it can be done. A report states that the global automotive laser cutting market is predicted to rise considerably alongside increases in the adoption of laser technologies within electric vehicles.
2. Aerospace and Defense: The aerospace sector makes use of laser cutting to create lighter yet stronger parts. Clean and precise cuts normally done by lasers for materials used in aircraft structure parts like titanium and aluminum alloys improve performance and safety. Additionally, defense applications involve the fabrication of armored structures and complex portions of military hardware.
3. Architectural and Interior Design: Designers make use of laser technology to manufacture custom-made decorative patterns and details embedded in sheet metal facades, railings, and panels. The artistic concepts are so complex that the settings involve the use of impressive designs and sturdiness of materials made use of, thus using the sculptural cutting capabilities enabled through laser cutting.
4. Electronics Industry: The inclusion of lasers for enclosures, chassis, and parts enclosures is irreplaceable in electronics. Micro-cutting with lasers is most efficiently executed on thin sheet metals and meets the standards of modern electronics.
5. Renewable Energy Systems: Components for solar panels, wind turbines, and renewable energy systems are made using laser cutting technology. Because laser cutting optimizes many processes, the productivity and efficiency of green energy systems are improved.
6. Medical Equipment Manufacturing: The increase in the need for healthcare devices has resulted in laser cutting of prosthetics, surgical instruments, and other specialized equipment. This process is best done with high reproducibility as well as safety and hygiene compliance.

These case studies demonstrate the great range of applications of sheet metal laser cutting. The increased versatility, precision, speed, and cost-effectiveness of the process drive its adoption in a growing gamut of fields. Recent data suggests the global laser cutting industry is set to grow at an approximate rate of 8.4% CAGR from 2023 to 2030, indicating its future relevance in manufacturing.

Efficiency and Speed in Cutting Sheet Metal

The speed and efficiency of laser cutting make it one of the most preferred methods of cutting sheet metal in modern manufacturing. It also incorporates laser beams that are exceptionally focused, allowing for rapid and precise cutting, subsequently drastically cutting the production time. With less post-processing and material waste, laser cutting is more efficient at cleanly and accurately cutting through various materials than traditional methods. Furthermore, automated systems for laser cutting allow for continuous operation, which increases productivity even further and meets greater demand. These reasons, combined with the precision offered during laser cutting, are the main reasons for this method’s outstanding reputation for its cost-effective nature and streamlined manufacturing processes.

The Role of Sheet Metal Fabrication in Manufacturing

Manufacturing hugely relies on sheet metal fabrication because it manufactures tough and well-designed parts. In my opinion, anything from automotive components to complex machined parts can be produced as a consequence of this method because it offers high customization, strength and low cost. Because of its versatility and capability to aid mass production, it is essential in so many industries.

Frequently Asked Questions (FAQs)

Q: What does the metal laser cutting process entail?

A: This process involves using a focused laser to cut through the metal and vaporize it. It is more efficient and provides a cutting edge that needs minimal cleaning compared to other methods.

Q: Why is metal laser cutting beneficial?

A: The benefits of laser cutting include enhanced speed, minimal waste of materials, intricate shapes and designs, and high accuracy. Compared to mechanical cutting, it is more efficient and faster.

Q: Which laser cutters are the most popular when it comes to metal cutting?

A: The two other most popular methods of laser metal cutting include CO2 lasers and fiber lasers. Each type can be more advantageous than the others depending on the type and thickness of the metal.

Q: What is important to remember when cutting metals using a laser?

A: The most important factors include the type and thickness of the metal, the amount of time it would take to cut, the amount of power needed during cutting, and design or application details.

Q: What metals can be cut using a laser?

A: Laser cutting works well for stainless steel, carbon steel, aluminum, and titanium. It all depends on the laser cutting machine and its aforementioned capabilities.

Q: How does laser cutting compare to plasma cutting?

A: In addition to being more cost-effective, plasma cutting has its advantages when cutting thicker metal sheets that do not require great detail; laser cutting, on the other hand, offers a much more precise cut edge and doesn’t require as much post-processing compared to plasma cutting.

Q: Is laser cutting suitable for sheet metal parts?

A: Laser cutting is adept at fabricating components in various manufacturing processes because it allows the user to cut sheet metal parts while achieving precision and smooth edges.

Q: Why is fiber laser cutting popular in metal cutting?

A: For cutting thin metal sheets, fiber laser cutting has gained popularity because it fuels fast cutting speeds, excellent precision, and low maintenance costs. It is also better in terms of energy consumption than other lasers, which makes it the preferred choice.

Q: For what functions is a laser cutting machine employed in metal fabrication?

A: Laser machines are used for cutting materials in fabrication processes such as automotive, electronics, aerospace, and other industries that require accurate parts premade in parts and assemblies that are prototyped and manufactured using sophisticated machines.

Reference Sources

1. “Automated Quality Evaluation for Cutting Lithium Metal Foils In The Production Of Lithium Metal Batteries’ Using Instance Segmentation Convolutional Neural Network”

• Authors: J. Kriegler et al.
• Publication Date: 2023-11-01
• Key Findings: This research proposes a deep neural network model to assess the quality of laser-cut lithium metal foils and achieve more than 95 percent classification accuracy. The approach enables automated quality control measures during battery production, which is essential for manufacturing all-solid-state batteries.
• Methodology: The authors applied a Mask R-CNN convolutional neural network to classify image pixels in trained confocal laser scanning microscopy images of lithium metal foil edges. The research analyzed the impact of the size of the training dataset on accuracy and presented results for assessing quality (Kriegler et al., 2023).

2. “Ultrathin Metal Foil Laser Cutting for Battery Cell Production at High Speed”

• Authors: A. Ascari et al.
• Publication Date: 2023-11-01
• Key Findings: This study analyzes the possibility of cutting 12 µm aluminum and 6 µm copper foils, focusing on the difficulties presented by low thickness and reflective materials. The research sheds further understanding on cutting quality and the maximum speeds achievable with particular laser sources.
• Methodology: The authors conducted their experimental work using a galvo scanner combined with two fiber laser sources. They analyzed the edges using optical and SEM microscopy (Ascari et al., 2023).

3. “Characterization of Particles Emitted During the Laser Cutting of Different Metal Sheets and an Exposure Evaluation for the Laser Operators”

• Authors: Stine Eriksen Hammer et al.
• Published on: 01 Aug 2022
• Key Findings: This research details the emissions from laser cutting in particulate form and the operators’ exposure evaluation. The dominant component was found to be iron, and the particles’ magnitude produced was mostly under 300nm.
• Methodology: The study examined the particulates by weighing them and estimating their exposure level using scanning electron microscopy and inductively coupled plasma mass spectrometry (Hammer et al., 2022).
