Unlocking the Potential of Urethane Molding: A Comprehensive Guide

Urethane molding is a relatively new and flexible manufacturing process that has found use in many fields from automobiles to consumer goods. It is especially suited for prototyping, low-to-mid-volume production, and specialized purposes due to its lightweight, precise, high-quality, and durable components. This guide aims to discuss the primary benefits of urethane molding and why it has become a staple for many engineers, designers, and manufacturers. If your goal is to improve production efficiency, minimize costs, or optimize product performance, this overview will serve as a guide on the capabilities of urethane molding for your projects.

What is Urethane Molding and How Does It Work?

Urethane molding refers to a manufacturing process that creates highly precise and durable parts by pouring liquid polyurethane into a mold. Advanced along with the steps of mold making, urethane molding begins at the master pattern stage from which a mold, typically silicone, is formed. After preparing the mold, liquid urethane is poured and left to cure into a rigid shape. This method accommodates many complex geometrical shapes and ranges of hardness, making it useful for prototypes, custom components, and low-volume production. Urethane molding is praised for its ability to create detailed, high-quality parts quickly and cost-effectively.

Understanding the Urethane Casting Process

1. Master Pattern Creation: The master pattern serves as the primary reference for the final part, therefore this step starts by creating a master pattern, usually through 3D printing or CNC machining.
2. Mold Preparation: Detailed and flexible silicone molds are formed by encapsulating a master pattern in liquid silicone which then cures.
3. Material Mixing: Liquid urethane is created by combining resin and hardener in a predetermined ratio to ensure proper curing and performance.
4. Casting: The silicone mold is filled with the prepared urethane mixture which is often placed under vacuum for air bubble removal.
5. Curing: The cast is then left to solidify within the mold, during this stage, room temperature curing or heat escalation is often employed.
6. Part Removal and Finishing: Surface treatment such as trimming is sometimes needed before carefully extracting the hardened part for final finishing.

This procedure allows for the creation of detailed and accurate components that can be utilized for prototypes or low-volume production.

Exploring Silicone Mold Usage in Urethane

Molds made from silicone are very popular in urethane casting due to their flexibility and accuracy. One of the key advantages is their reproduction of intricate details and textures with high accuracy making them helpful in prototypes, custom parts, and small quantity productions. Silicone is also not reactive to urethane which guarantees noncontamination during chemical curing because it is stable.

The lifespan of silicone molds depends on factors like the mold design, properties of the urethane materials, and how the mold will be used. Usually, silicone molds are from 20 to 50 castings on average before they wear out. However, this number can be extended with better manufacturing processes and materials. Another advantage to silicone’s low surface energy is that it makes mold release easier, therefore reducing defects when removing parts from the mold.

A recent development features specialized silicone that has a higher tolerance to hot temperatures and lesser shrinkage, making it easier to incorporate advanced urethane systems. Many industries like automotive, consumer goods, and medical devices have been using silicone molds for urethane castings because it allows for precise geometry and functional prototypes making it easier to redesign and mass produce.

Differentiating Urethane Molding from Other Techniques

Urethane molding is preferable over other methods like injection molding, 3D printing, and CNC machining due to its specific advantages. Its primary benefit is extended to the ease of use with lower to medium volume production making it very cost-effective. Urethane Molding silicone molds are made at a fraction of the cost and time of injection molding metal tools, making it an ideal process for prototyping, as well as, for small batch manufacturing.

Urethane molding is also superior for the properties of the materials achieved for the product. Urethane, for instance, is durable, flexible, and resistant to abrasion all in one, which is very hard to achieve with other processes. This is precisely why a high tear-resistant, urethane, is suitable for automotive and industrial applications unlike standard thermoplastics used for injection molding.

Urethane molding is also preferred when compared to 3D printing for better surface finish and lesser need for post-processing especially while using urethane casting molds. Also, 3D printing is often constrained by slower production speeds and a lack of mechanical strength, while urethane molding provides parts with consistent mechanical performance and faster turnarounds for batch production.

Although CNC machining can create parts with impressive precision, it tends to waste a lot of materials and takes a long time to complete complex designs. Urethane molding uses reusable silicone molds to minimize material waste and effectively reproduce intricate geometries. In general, urethane molding acts as a middle ground between traditional fabrication and modern rapid prototyping by providing a reasonable blend of economical, efficient, and material-effective solutions.

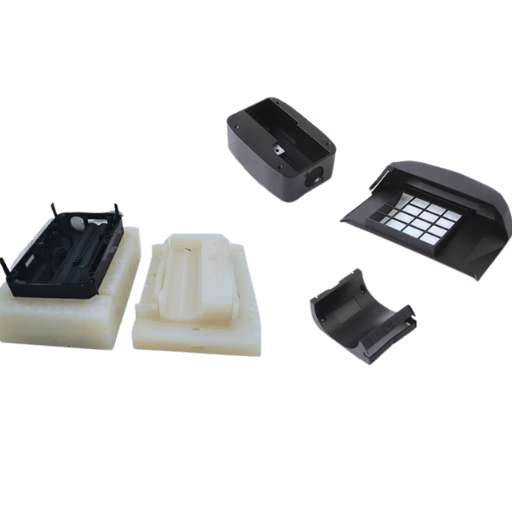

What Materials Are Used in Urethane Casting?

The Role of Silicone in Molding

Molds made from silicone are very popular in urethane casting due to their flexibility and accuracy. One of the key advantages is their reproduction of intricate details and textures with high accuracy making them helpful in prototypes, custom parts, and small quantity productions. Silicone is also not reactive to urethane which guarantees noncontamination during chemical curing because it is stable.

The lifespan of silicone molds depends on factors like the mold design, properties of the urethane materials, and how the mold will be used. Usually, silicone molds are from 20 to 50 castings on average before they wear out. However, this number can be extended with better manufacturing processes and materials. Another advantage to silicone’s low surface energy is that it makes mold release easier, therefore reducing defects when removing parts from the mold.

A recent development features specialized silicone that has a higher tolerance to hot temperatures and lesser shrinkage, making it easier to incorporate advanced urethane systems. Many industries like automotive, consumer goods, and medical devices have been using silicone molds for urethane castings because it allows for precise geometry and functional prototypes making it easier to redesign and mass produce.

Types of Polyurethane Resin Used

To accommodate different uses, polyurethane resin is a versatile material that can be customized with different formulations. A few important types of polyurethane resin used in casting and manufacturing include rigid and flexible polyurethane resins as well as high-performance ones.

Rigid Polyurethane Resin

With its high strength and structural durability, rigid polyurethane resin is ideal for use in applications where structural integrity is of utmost importance. This resin is widely utilized in the automotive and construction industries. It is highly resistant to impacts, abrasions, and temperature changes. For instance, rigid polyurethane foams possess compressive strengths of 20 psi to 120 psi per square inch, depending on the foam’s density. This allows these materials to be used as insulation panels and structural cores.

Flexible Polyurethane Resin is a critical material in the context of urethane casting and injection molding.

Flexible polyurethane resins aid in elongation and tend to be resilient, making these resins useful in several applications such as cushion materials, seals, or wearable prototypes, especially when silicone molds used in urethane are employed. These types of resins are considered low tensile strength compared to rigid ones; However, their elongation properties are greatly appreciated, which often exceed two hundred percent at breaks. Soft-touch components as well as ergonomic products that are designed are popular in consumer goods, thus, these resins are widely used in their production.

Ultra Polyurethane Formulations That Perform At The Top Most Level

Ultra-grade polyurethane resins are specifically crafted for use in extremely rigorous applications. These materials are capable of withstanding severe conditions like high mechanical forces and harsh chemicals. For example, some formulations can retain their properties under pressure up to 250ºF. These materials are often used for electrical encapsulation, industrial tooling, and heavy-duty coatings.

Knowing the different characteristics possessed by each resin type enables manufacturers to make choices toward achieving an identifying formulation in which product performance is maximized, while simultaneously achieving efficient and sustainable manufacturing processes.

Key Urethane Materials and Their Properties of urethane casting and injection molding are crucial for understanding material performance.

Urethane, or polyurethane, is a polymer of low molecular weight that serves a broad number of industries because of its customizable characteristics. Here are some of the major urethane materials, with their characteristics and applications.

Polyether-based Polyurethane

• Characteristics: Its primary feature is a high level of elastic force and hydrolysis resistance, together with microbial degradation of tissues of good elasticity and low-temperature flexibility. As a result, it is beneficial for use in moist environments.
• Applications: It is often found in automotive seating, conveyor belts, and components of medical devices because it can withstand prolonged exposure to damp or humid conditions without suffering damage.

Polyester-Based Polyurethane

• Characteristics: Resistive to abrasion with a high tensile strength and good load-bearing properties. The only downside to polyester-based variants is that they are less resistant to hydrolysis compared to polyether-based variants.
• Applications: Used in gaskets, industrial wheels, and protective coatings, especially in dry operating conditions that need heavy-duty performance.

Thermoplastic Polyurethane (TPU)

• Characteristics: Most versatile as it combines elasticity, durability, and chemical resistive qualities. Excellent impact resistance is another feature, as well as a large palette of hardness classified by the Shore A and D scales. Ranging from 60A to 95A, TPU hardness can be classified as flexible (60A) to rigid (95A).
• Applications: Having a simple laxity extension and ease of processing, it is widely adopted in smartphone cases, flexible hoses, and soles of footwear.

Polyurethane elastomers can be molded quickly and easily.

• Properties: Exceptional capacity to bear loads, superior resistance to abrasions, and fair dampening of vibrations. Depending on the formulation, these elastomers may also exhibit thermal stability.
• Applications: Used in patching, rollers, and industrial seals in the mining, oil, and gas industries, where extreme mechanical stress and environmental conditions exist.

Aliphatic urethane.

• Properties: Protecting the coat or building structure where silicone molds used in urethane are applied is definitively essential and so is UV and weather protection. Aliphatic variants are ideal for non-yellowing, aesthetic-focused applications.
• Applications: Frequently used in clear coatings, outdoor signs, and automotive coatings where UV stability is important.

The Performance Metrics evaluation for the urethane casting is excellent with regards to materials and processes effectiveness.

Material science has recently changed how urethane materials can be manipulated. For instance:

• Tensile strength: Urethane materials can usually have tensile strengths between 5 MPa and 50 MPa based on their composition.
• Elongation at break: A common range is from 100% to over 600%. This indicates that these can be very flexible in some applications.
• Impact Resistance: TPU offers impact resistance greater than many rigid plastics in silicone products which is especially useful in safety-critical applications.

With these specific formulations, manufacturers can derive urethane materials appropriate to their operational needs without compromising on durability or performance efficiency.

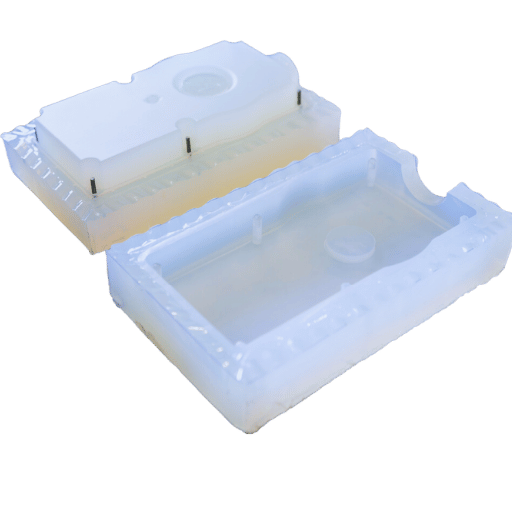

How to Design for Urethane Casting?

Best Practices for Creating a Prototype

While developing a prototype for urethane casting, it is necessary to take into account some of the best practices provided below:

• Choice of Materials: Select a urethane type that is appropriate for the intended characteristics of the final part, for example, if it is flexible, strong, or likely to be impacted.
• Design of the Mold: Molds should be accurate and strong. Also, they should be closed properly so that they can be able to withstand the pressure during casting.
• Accuracy: While curing the material, one may consider the shrinkage of the material and the accuracy of the prototype even in the range of designed parameters.
• Surface Finish: Mold surfaces should be polished so that there are no harmful traces that can negatively impact the quality of the prototype.
• Testing: Check the model under the expected working conditions for the prototype to find out what changes need to be made to the design.

By doing this, one can create a reasonable and operative prototype that can be depended on for a particular purpose, especially in the rubber molding area.

Considerations for Surface Finish

Specific objectives are achieved when all surfaces are adequately improved for both functional and cosmetic purposes. These objectives include the following listed points:

• Raw Material Choice: Choose materials that inherently offer sufficient surface roughness and strength.
• Tooling Accuracy: Tools must be set precisely to avoid variability during operations.
• Finishing Processes: Surface finishing techniques like sanding, polishing, coating or others should be applied where necessary.
• Contamination Control: Production areas need to be cleaned properly to remove the possibility of rough scratches or blemishes on the surface.

Following these points will ensure that the primary goals are met, and therefore a consistent surface finish is essential in urethane casting is the step where maximum surface quality is achieved.

Designing Low-Volume Production Parts

When designing parts with low production volumes, material selection is paramount. Selecting multipurpose materials, such as aluminum, ABS, and nylon, typically provide the best combination of strength, economical pricing, and manufacturability, particularly for the injection molding tool. For instance, aluminum alloys are used extensively for lightweight, corrosion-resistant materials, making them optimal for prototypes and functional components. A recent industry benchmark indicates aluminum 6061-T6 has a tensile strength of roughly 42,000 psi, which is useful in many structural applications.

Manufacturing Methods

For low-volume production, CNC machining, 3D printing, and vacuum casting are the most prevalent methods owing to lower tooling expenses and faster cycle times. CNC machining is unrivaled in accuracy, achieving tolerances of ±0.005 inches, which is crucial for highly precise components. In the meantime, the adoption of 3D printing is growing due to its potential to produce geometrically challenging designs without large investment in tools. Typical materials include PA12 in selective laser sintering (SLS) or SLA resins used in fine-detail resolvers, both of which have an accuracy of ±0.1mm.

Parts with production-quality surfaces can be created in small quantities with flexible silicone molds using vacuum casting. This method is quite effective. In addition, urethane materials that are vacuum cast are easily modified to have ABS or rubber-like qualities, making it a flexible option.

Design Considerations

In low-volume production, components must be designed having wall fillets, draft angle, and even wall thickness as primary considerations. To make vacuum casting easier, draft angles of 3° or more are preferred. In addition, maintaining walls uniformly helps reduce warping in 3D printing or machining, for example having walls of 2-3mm thickness. Stress concentration as well as part strength can be improved through fillets that have a radius of 0.5mm or more.

Cost-Effectiveness Measures These measures are quick to implement in urethane casting due to material selection having the biggest impact on price versus quality ratio.

To keep costs low, combining parts to reduce assembly work saves time and money. Consolidating multiple parts into one standard material also reduces purchasing waste. Furthermore, the use of digital simulations during design phases minimizes costs from costly changes in later stages.

The combination of material knowledge, new advanced manufacturing processes, and well-considered design enables flexible low-cost solutions for prototypes and custom parts in low-volume production.

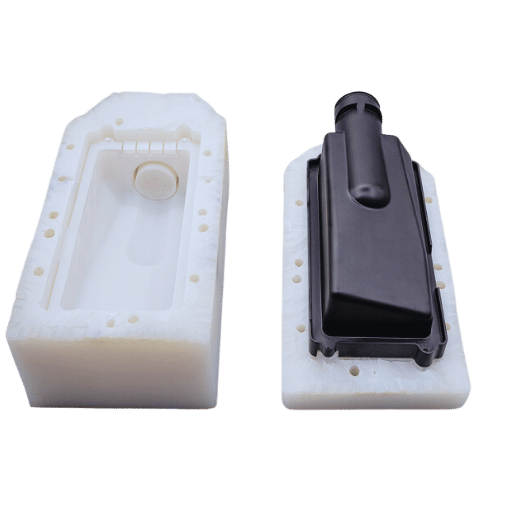

What Are the Advantages of Urethane Casting?

Benefits of injection Molding

Many industries have a preference for injection molding due to its many advantages. One such benefit is the capability to produce high quantities of intricate and detailed components with remarkable accuracy. This process employs unique molds that can achieve astonishingly intricate designs, tight tolerances, and accurate dimensional measurements resulting in high-quality production consistency across batches.

Another major advantage in the use of injection molding is efficiency in production speed and material usage. Parts in great quantities can be cycled automated with speed thus reducing labor spending and wastage. In addition, newer materials like thermoplastics, thermosets, and elastomers have enabled an increase in the range of applications by providing the desired strength, flexibility, and thermal resistance for specific project needs. Polypropylene and ABS thermoplastics, for instance, are widely used owing to their ease of molding and great durability.

In the long run, injection molding becomes cost-efficient, especially for large-scale manufacturing. The initial tooling costs are offset by the long-term ability to produce thousands or even millions of parts at low unit costs. Furthermore, modern innovative methods of moldmaking like automated CNC machining can provide much quicker lead times to mold production.

Like many other parts of modern engineering, sustainability is an emerging benefit because many injection molding processes make use of recycled materials or biodegradable resins. This supports environmentally responsible manufacturing practices without compromising on the quality of the products. As found in other domains, injection molding is also a competitive process for production due to its flexibility, scalability, and integration with automation and precision.

Understanding Abrasion Resistance

Abrasion resistance is the capacity of a given material to resist surface damage from friction or other mechanical forces. It is vital for several sectors like construction, automotive, textiles, and manufacturing, where a material undergoes severe abrasion which may affect its operational or visual appeal.

Durable materials with high abrasion resistance are widely examined and employed in hardened metals, certain polymers, and advanced ceramics. Polyurethanes, for example, have known abrasion resistance that is five times better than natural rubber, making them useful in industrial applications like hydraulic seals and conveyor belts. Likewise, high-strength steels used in construction and mining equipment are designed to resist very high abrasive forces.

Standardized procedures like the Taber Abrasion Test or the ASTM D4060 method of testing abrasion resistance usually yield a data point like abrasion loss in milligrams so that a manufacturer can easily gauge wear resistance and compare the performance of materials. For instance, in recent research, some high-performance coatings were found to have abrasion loss of less than 10 mg after 1,000 test cycles which demonstrates their exceptional efficacy in tough environments.

The ongoing growth in material science is improving abrasion resistance. Coatings and composites are being developed with lightweight and highly durable properties made possible through innovations in nanotechnology. Moreover, engineers are concentrating more on the optimization of material combinations and surface treatments to prolong the operational life and decrease the replacement costs of products, which is a win-win for industries that need both sustainability and performance.

Why Choose Urethane Casting for Prototypes?

With urethane casting, you can make high-quality prototypes and lower-volume parts in cost efficient and effortless manner. This advanced technique is more efficient than conventional manufacturing techniques. This is great for the industry which requires exceptional durability, material flexibility, and precision.

High detail accuracy can be achieved due to the mold-based processes, which is one of the most important advantages. Urethane materials are customizable and can be designed to imitate the properties of production-grade acrylonitrile butadiene styrene (ABS) plastics, polypropylene, or even rubber elastomers. This helps to ensure that the final production parts will closely match the prototypes.

The time it takes to make urethane cast parts is way less than injection molding, where urethane parts can be produced in one to two weeks at most. This technique…. Also has low setup costs since silicone molds are used, as opposed to expensive metal tooling. Because of this, design changes can be made easily, making urethane casting great for production runs and reviews of interactive design.

Urethane cast parts are durable and strong. Urethane prototypes endure tearing with remarkable wear, impact, and chemical resistance. This assures that the prototypes can withstand severe testing while lowering development risks.

Lastly, urethane casting is eco-friendly. Many urethane components and molds are recyclable, thereby minimizing material waste. This corresponds with the rising environmental issues in manufacturing, which is favorable to industries aiming for cleaner processes. Urethane casting is easy, quick, and economical and allows the production of accurate and efficient prototypes that function well, making it the best option in competitive and fast-paced markets.

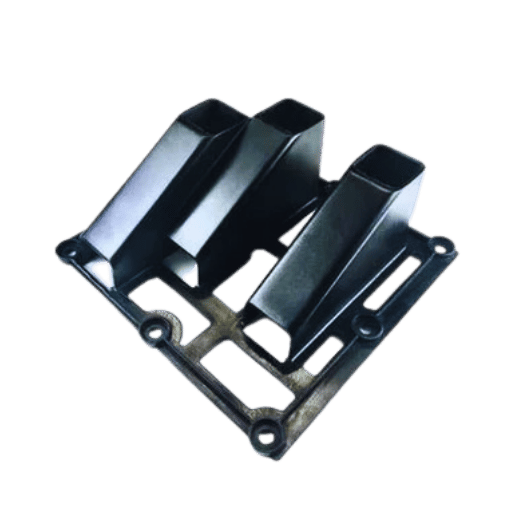

What Are the Disadvantages of Urethane Casting?

Limitations in Production Volume

Urethane casting is very effective for low-to-medium-volume production, but its drawbacks become clear with mass production. Based on my experience, it fails to measure up to high-volume processes such as injection molding due to greater production times and cost considerations per unit as volume increases. This greatly reduces the practicality for projects needing thousands of pieces.

Challenges with Cure Times

The curing stage of urethane casting is perhaps the most prominent limitation. The cure time is the duration of time in which the system is expected to harden and reach its optimal proprieties. Most urethane materials tend to take several hours to a full workday to cure, depending upon the formulation used and environmental factors like temperature and humidity. These factors can also facilitate the flow of urethane. This creates bottlenecks in production where the cycle time is low and turnaround time is crucial. Furthermore, these factors can also lower economic yield.

Moisture or poor curing conditions are notorious for lowering the quality of the final product or lengthening unnecessary elongation of the process. Moreover, when compared to injection molding, where parts are ready, the cumulative time spent in casting, curing, and post-processing delays the completion of the part, resulting in poor scalability of the project. These delays in case output are especially problematic for businesses focused on lead time scarcity. Solving the curing issue, most likely, by improving curing accelerants or by providing a more controlled environment, becomes a necessity. Moreover, efficient workflow management and robust quality control make it possible to minimize such delays while ensuring that the parts produced are of good quality.

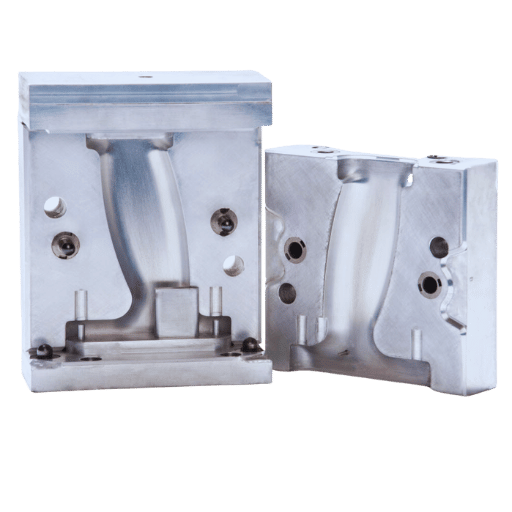

How to Choose the Right Urethane Molding Supplier?

Factors to Consider in Supplier Selection

As with any supplier, certain parameters need to be thoroughly assessed when picking a urethane molding supplier to get the desired results. The primary facts and insights that should be evaluated are given below.

Technical Capability and Past Work

Most efficient and effective suppliers of urethane casting have been noted to have superior process control and machining accuracy. Ensure the suppliers you consider have some degree of specialization in various urethane applications. Research indicates that suppliers with more than ten years of industrial experience typically have reported defects at a “defective rate” of approximately 3%. This is markedly better than less experienced suppliers, who can have rates of 7–10% defects.

Material Quality and Selection

The diversity and quality of urethane materials supplied can be a critical factor for product outcome. It is advisable to select a supplier that can provide high-grade raw materials as well as various levels of hardness, flexural strength, tensile strength, and flexural stiffness. For instance, thermoset urethanes with Shore hardness of 30A to 80A and used where durability and elasticity are required would have to be part of the supplied materials if the materials meet your project demands.

Production Capacity and Lead Times

Assess the supplier’s production capacity to ensure that parts can be delivered on time. Suppliers with sophisticated automation in their casting processes usually have quicker lead times, which average from 7 to 10 days for small batches. In comparison, traditional approaches can result in longer lead times of 15-20 days, which may hinder project timelines.

Quality Assurance Protocols

A dependable supplier should have effective quality control such as periodic dimensional checks and material samples. This includes asking whether they follow international requirements like ISO 9001. Suppliers with strict QA procedures frequently report higher customer satisfaction, which in some industries exceeds 90%.

Environmental and Safety Compliance

Confirm that the supplier meets environmental and safety criteria. This might include compliance with material safety regulations such as REACH and RoHS or LEED certifications for green building practices. Meeting these requirements places a company in a better position to support sustainable manufacturing initiatives.

Modification and Support Services

It is necessary to manage custom designs and provide support. Those suppliers who assist with the design stage, such as making pre-production prototypes, can lower their clients’ costs by up to 20% according to some studies done in manufacturing. Also, the provision of support after production ensures that defects and problems are attended to quickly.

Cost Efficiency and Clarity

Having a competitive price is beneficial, but not at the expense of compromising other factors. Look at the entire pricing scope, from the tooling cost, choice of materials, and other provided amenities. Trust and better decisions will come from suppliers with cost transparency and itemized pricing as their offering fosters.

With this information, businesses can choose a urethane molding supplier that best meets their technical, operational, and budgetary reasons considering reports carefully and these factors collectively.

Evaluating Molding Companies

Experience and Expertise

Select a company that has consistently delivered well-made molded products. Look for industry certifications, years in the business, and client testimonials to tell you what their level of expertise is.

Material Selection

Check that the company has a broad spectrum of materials available and can suggest the most suitable to your product’s needs.

Production Capabilities

Make sure they can accommodate production runs of varying scales and consistently meet deadlines.

Quality Assurance

Make sure there are adequate processes for inspection and testing to guarantee that quality standards are met.

Customer Support

Check if there are responsive pre- and post-production customer services to provide help with design or manufacturing issues.

Taking all the points above, evaluative businesses can choose a molding company that meets their standards on performance and quality.

Comparing Silicone Rubber Options

When analyzing different options for silicone rubber, please take in mind the following key factors:

Resistance to High and Low Temperatures

Silicone rubber has a wide range of Industrial uses for different parts as it can endure extreme heat and cold, typically from -60°F to 500°F.

Durability

This material has very good weathering, UV, and Aging resistance which ensures its longevity when used in outdoor and industrial applications.

Flexibility and Elasticity

Over a wide range of temperatures, silicone rubber remains flexible, which is important for mechanical devices that are put under strain.

Chemical Resistance

Silicone rubber is resistant to several acids and alkalis, thus it can be used in harsh chemical environments or for medical-grade purposes.

By looking into these factors, businesses can choose the performer-grade silicone rubber best suited to their specific environmental needs.

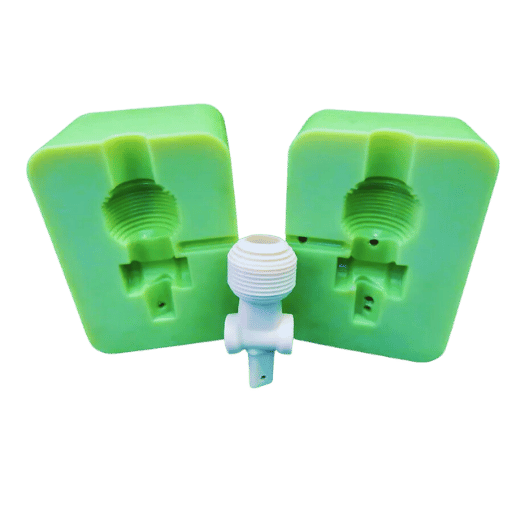

Frequently Asked Questions (FAQs)

Q: What is cast urethane and how does it differ from other plastic molding processes?

A: Cast urethane is a method of making complex parts from polymeric plastic materials by pouring liquid urethane resin into molds at room temperature. Whereas injection molding depends on forcing molten plastic into a mold, urethane can be poured which may be easier for some to consider. This method is beneficial for medium production runs of an item. In some ways this method resembles injection molding, but it is more adaptable and cheaper for low quantities of item fabrication as compared to other methods.

Q: What are the main applications of urethane casting?

A: Urethane casting is useful in many industries. Some examples are the creation and fabrication of prototypes, low to medium-production runs, customized components, intricate geometric parts, industrial wheels, automobile components, medical instruments, consumer goods, and many more. Urethane materials being versatile can make parts with different grades of flexibility, toughness, and lifetime under chemicals.

Q: What steps are involved in the urethane molding process?

A: The urethane molding process typically involves the following steps: 1) A master pattern is built, usually using 3D printing or CNC machining. 2) A silicone mold is made from the master pattern. 3) Liquid urethane components are mixed. 4) The silicone mold is filled with the urethane mixture. 5) The urethane is allowed to cure and solidify. 6) The molded part is de-molded. This process is repeatable so multiple cast urethane parts can be produced from a single mold. Alongside the liquid urethane available for purchase, other urethane materials can be used in conjunction with a casting mold that results in a set product. Concurrently with urethane material liquefiers, low hardener, and hardener are accessible for purchase that can augment the curing-drying rate of these molds which invariably brings forth gradual results.

Q: What are the advantages and disadvantages of urethane casting compared to injection molding?

A: Advantages of urethane casting include that small production runs due to lower tooling costs and those with speedy set turnaround times. The cast is suited for items with intricate cut undersides. Its disadvantages impose stiff costs on large production volumes per part, a long time in the cycle, and the quality of the surface finish imposed in comparison to molded parts. It is typical to see urethane casting for prototypes and low production volume to medium, and injection molding takes the win for greater savings in high production volume periods.

Q: What is the proper way to choose urethane material for a specific project?

A: Choosing urethane materials is based on many variables such as the required physical characteristics, chemical resistance, and even the environment the part will be subjected to. Determine if you require flexible, semi-rigid, or rigid urethane. Other aspects include: hardness, tensile strength, elongation, tear, and impact resistance. Talk to a top urethane products manufacturer or a materials expert to determine the best material for your case.

Q: How does the cost of urethane casting compare with other plastic molding methods?

A: Cost comparison for urethane casting is usually only favorable for low and medium-volume production runs with lower part complexities. For low production volume, such as up to a few thousand pieces, urethane casting is more economical compared to injection molding because of the lower tooling expenses. However, once production volume increases, injection molding becomes the cheaper option. The lower initial cost of investment is commensurate with the level of funding requisite to accomplish prototypes and small runs, further underscoring the appeal of urethane casting.

Q: Is vacuum casting applicable while molding with urethane?

A: Yes, vacuum casting is very often utilized for urethane molding to enhance the quality of cast parts. The process isolates the mold within a vacuum chamber during the liquid urethane phase so that air bubbles within the urethane mixture are eliminated. The result is a significantly minimal amount of defects as well as a superior finished product. Vacuum casting is especially supportive in the production of complex parts where fine details are mandatory, or high surface quality is a must.

Q: What types of molds are used in urethane casting?

A: The most widely used molds in urethane casting are silicone molds. Their flexibility, durability, and ability to capture fine details make them ideal for casting complex parts. The silicone molds are typically produced from a master pattern and may be used to generate several cast urethane parts. For some applications, higher production volumes or tighter tolerances may be achieved with rigid molds from aluminum or epoxy, so these materials are used as well.

Q: In what aspect does polyurethane casting stand out from the rest of the casting materials?

A: Polyurethane casting is more commonly known as urethane casting and has several benefits when compared to other casting materials. Polyurethane casting, like silicone or epoxy, has great properties. It is also softer and more flexible than other materials, which is crucial for certain products. Its impact resistance is rather favorable as well. Polyurethane is also castable and provides better wear resistance and durability than many other casting materials. Nevertheless, it all comes down to the project’s scope. For this reason, other criteria like mechanical properties, chemical resistance, and even the cost become necessary.

Q: Is it possible for a 3D-printed part to serve as a master for urethane casting?

A: 3D printed parts serve as master patterns for urethane casting’s silicone molds. The integration of 3D printing with urethane casting enables cost-effective prototyping and production. The 3D-printed master is fabricated and molded with silicone for casting urethane parts. The method is advantageous for repeating design cycles or manufacturing small volumes of intricate pieces that would otherwise be difficult and costly to produce with alternative methods.
