Unlock the World of Swiss Precision Machining: CNC Expertise and High-Quality Solutions

As one of the most accurate, efficient, and reliable machining methods, Swiss precision machining sets the standard for the entire industry. It uses CNC machining, which was made possible by modern technology, to operate on the intricate details and higher-order quality of components in the aerospace, medical, and automotive engineering sectors. This paper will analyze the different types of Swiss precision machining, discuss its primary benefits and applications, and explain the innovative CNC technologies that achieve outstanding component quality. It does not matter if you are keen on improving industrial processes or are interested in the recent shifts in production that are influenced by technology; this article aims to help you gain an advantage in the marketplace and stay competitive.

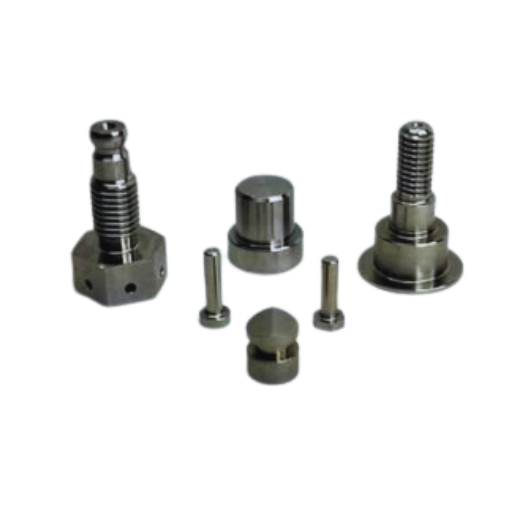

What is Swiss Precision Machining?

Swiss precision machining is an intricate manufacturing process dealing with the fabrication of components with exceedingly high precision and tight tolerances. Originating from Switzerland, this technique can make very accurate intricate parts that are often required in the medical, aerospace, and electronics industries. It uses CNC Swiss machines for the process, which permit multitasking operations on several axes at the same time, thus highly enhancing productivity and precision. This technique is useful for small intricate components where high detail and consistency are required.

Understanding Swiss Precision Machining

The process of Swiss precision machining is best suited for the production of tight tolerance and intricate parts due to the use of a specialized CNC system. The key feature of this technique is a guide bushing that supports the material close to the cutting tool so that the tool deflection can be minimized. This makes it exceptionally equipped to adapt to small and detailed parts such as medical implants, aerospace connectors, and electronic components. It also works concurrently on more than two axes making it easily able to produce parts with complex geometries. Many industries rely on the precision and accuracy Swiss machines offer due to their close tolerances.

The Role of CNC Technology in Swiss Machining

The CNC (Computer Numerical Control) technology greatly improves capabilities and efficiency in Swiss machining. CNC systems use highly accurate equipment to control the movements of the tools and the material being machined. Precise control tools ensure both the movement and the machining process are done with utmost accuracy. This is highly necessary in medical, aerospace, and telecommunication industries where components with tolerances that can go as low as ±0.0001 inches are crafted with utmost precision.

With Advanced CNC capabilities, Swiss machines can operate on multi-axis systems where they can work on 12+ axes at the same time. These multi-axes enable the machine to make complex three-dimensional geometrical shapes and intricate designs in one setup rather than multiple setups. This coupled with other efficient machining processes leads to a reduction in the secondary operations and efforts required. An example is the implants and miniature electronic components processed with micrometer precision by CNC-driven Swiss machines.

To further optimize the CNC-driven machines, features such as smart programming interfaces, automatic tool wear detection, and real-time monitoring are being integrated much to the delight of the users. Innovation in this sector ensures that not only is the quality of the product superb, but the accuracy of the operation is improved, thus lessening downtime and waste material. Production workflows are further enhanced by automation, data analysis, and connectivity provided by Industry 4.0 principles incorporated in many machines.

Research corroborates that firms using CNC Swiss machining have greater productivity figures, with some studies stating that it is 30-40% more efficient than traditional lathes for small parts production. These numbers highlight the value CNC technology brings to Swiss machining, validating why Swiss precision manufacturing is the best in the world.

Applications in Various Industries, Including Medical

The unmatched accuracy and effectiveness of CNC Swiss machining make it a crucial technology in many sectors. Its applications and essential metrics are outlined below.

Medical Industry

In CNC Swiss machining, precise medical parts like surgical tools, orthopedic implants, and dental equipment are fabricated with great detail and accuracy. Their precision guarantees adherence to strict medical requirements. Studies suggest that more than half of orthopedic screws and custom implants are made in this manner, which can save up to 40% of time relative to traditional machining methods.

Aerospace Industry

Swiss machining is required for the production of fuel injector nozzles and electrical connectors, as well as other aircraft instrumentation components that exhibit complex geometrical shapes. With an industry need for tolerances within microns, CNC Swiss machines are optimal. Additionally, they can withstand superheated titanium and superalloys.

Automotive Industry

Parts such as fuel system components, gears, and other safety-critical fasteners and instruments are produced by the automotive industry with great precision through CNC Swiss machining. Goods are made in bulk, so consistent quality is guaranteed, where reports suggest a material waste drop of 25-30% from optimized processes.

CNC Swiss Machining for Electronics

In the electronics sector, the gap between devices is closing, and CNC Swiss machining is coming in handy for making such small and intricate items like connectors, shielding parts, and sensor housings. These machines enable production in bulk due to the industry’s need for extreme precision and accurate repeatability.

CNC Swiss Machining for Defense

CNC Swiss Machining is used for the manufacture of critical equipment parts in the defense industry. Some of the parts include precision firing pins, sight mounts, and several sophisticated ammunition components. Machines that have guaranteed performance and rigidly predetermined tolerances are essential for manufacturing processes with a degree of precision overload.

CNC Swiss Machining in Watchmaking and Jewelry

CNC Swiss machining helps manufacture decorative parts and gear mechanisms of luxury watches and also aids in making complex jewelry, assisting in achieving exquisite intricate designs associated with watches and jewelry. The tolerances reached are at times single-digit microns which further pushes the limits of CNC Swiss machining.

With its capacity to machine specific biocompatible materials for medical use, or highly qualified alloys for aerospace use, CNC Swiss machining proves to be the backbone technology for the modern manufacturing industry. Its versatility makes it crucial for industries that need super-high precision and efficiency.

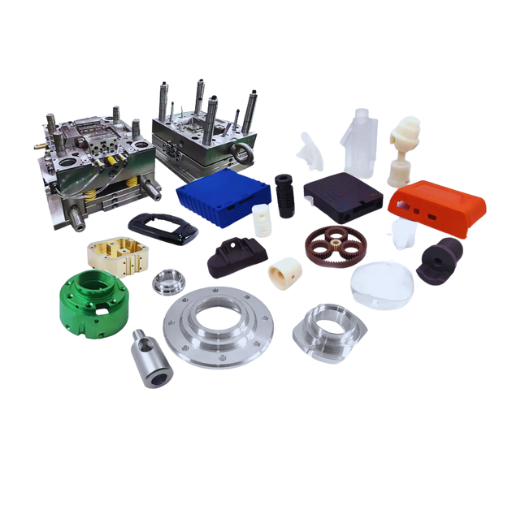

How Does CNC Swiss Precision Machining Work?

The Process Explained: From Design to Finished Parts

CNC Swiss leverages a systematic approach to its workflow, ensuring that precision and accuracy in the accuracy and complexity of the components produced are of the highest standard. The process is initiated with the engineer creating a Computer-Aided Design (CAD) model. CAD software is used to design parts and outline their dimensions, tolerances and materials. This blueprint is uploaded to Computer-Aided Manufacturing (CAM) software that creates the necessary commands or G-code for the machine.

From this stage, the remaining steps greatly depend on the choice of material for the component. In this case, stainless steel, titanium, and advanced polymers are preferable due to their structural efficiency and other unique features. Usually, these materials are received in the form of long cylindrical bars and fed into the CNC Swiss machine.

The actual machining process consists of multi-axis movements that happen simultaneously. With the workpiece being rotated, the cutting tools perform the required tasks of turning, milling, drilling, and even threading. The difference here, compared to traditional lathes, is that Swiss turning machines position the device’s material closer to the support of the cutting tool. This allows for lower levels of material deflections to occur which means tighter tolerances can be achieved, often ±0.001 inches (±25 microns).

Swiss CNC technology forgoes accuracy in favor of power efficiency with the addition of coolant systems to tools and also live tooling features. This is more important in mass production mechanical processes in which the efficiency is paramount. The capability of modern machines to perform both primary and secondary operations without the workpiece moving to another machine not only saves time but also increases overall production efficiency.

Quality control communication is very important in controlling every process sequence. Modern specification measuring instruments like CMMs and laser micrometers are implemented. They often work in tandem with SPC tools that collect performance consistency data throughout the production process.

Parts are manufactured as fully assembled intricate structures and are designed for the aerospace and medical fields as well as the automotive and electronics industries. These simple steps of CNC Swiss precision machining demonstrate their strength in the rapid production of fine parts.

Key Components: Swiss Machines and CNC Systems

Swiss machines and CNC devices are the essences of contemporary precision machine work that produces high-scope and fine-detail components. Swiss lathes were originally developed for the production of small components of watches, but now they can be used on a variety of materials with complex shapes and features. Their key distinctive feature is the guide bushing which supports the workpiece while it is being machined, thus reducing deflection and enabling fine detail work.

CNC systems interface with Swiss machines for optimal accuracy. These depend on software to interpret detailed designed specifications to the machining system which has operational tolerances of ±0.0001 inches. This level of accuracy is what makes CNC Swiss machining perfect for industries whose standards are unparalleled like aerospace and medical devices manufacturing.

The CNC systems Swiss have recently upgraded to accommodate the changing technology landscape. The new live tooling feature improves efficiency by allowing secondary operations, such as milling or drilling, to be completed without additional setups. Multi-axis configurations help perform complex machining simultaneously, which greatly reduces manufacturing time. As per some reports, the global CNC machine industry is expected to expand at a compounded annual rate of 6% to 8% between 2023 and 2030, which indicates a growing dependence on precision machining technology.

These components also illustrate total innovation in manufacturing, primarily because of the combined Swiss machines along with CNC systems which provide ultra-modern levels of efficiency, speed, and flexibility.

Ensuring High-Precision and Tight Tolerances

In the aerospace, medical device, automotive, and electronics industries, even the slightest deviation can have significant impacts, therefore tight tolerances and high precision need to be achieved. Modern CNC machining technologies function at micron levels and some advanced systems achieve tolerances of ±0.001 mm. The integration of high-accuracy systems like ball screws and linear encoders with other advanced systems like software that compensates for thermal expansion and system vibration allows for these tolerances.

Real-time monitoring and feedback systems further aid corrections during a machining procedure which instantly improves precision. Non-contact sensors and laser measurement tools are a few that have become common for detecting qualitative output discrepancies. Ultra-precision machining has rapidly increased in demand alongside other component production like microelectronics, intricate implants, and aerospace parts, a phenomenon noted in a 2023 report by the manufacturing sector.

The accomplishments of high-speed machining and electrical discharge machining (EDM) exemplify the ever-evolving fabrication of material removal procedures and their importance in attaining these precise tolerances. With high-speed machining and EDM, manufacturers can now work with challenging materials such as titanium, ceramics, and composites with minimal loss of dimensional accuracy. The trend towards Industry 4.0 has also brought about the adoption of AI-driven machining, predictive maintenance, and the use of digital twins for process optimization and error reduction, all of which facilitate the meeting of today’s rigorous manufacturing standards.

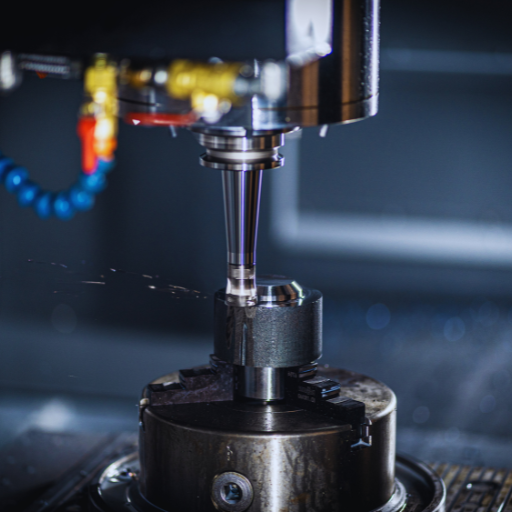

What Are the Benefits of Swiss CNC Machining?

High-Quality and Unmatched Precision

Swiss CNC machining is renowned for its enhancement of precision and the ability to sustain sharp tolerance levels of as high as ±0.0001 inches. For industries like aerospace, electronics, and medicine, this level of precision is exceedingly important as specific regulations are to be followed. The sliding headstock together with a guide bushing ensures that the machined workpiece is rigidly held, minimizing deflection and enabling precise cuts on slender and elongated features.

Using multi-axis features, Swiss CNC machines can efficiently handle complex shapes in one single setup, saving time and ensuring consistency. For instance, the parts used for injectors in aerospace and fuel nozzles as well as instruments in surgery that are minimally invasive are crafted using these methods due to the intricate details and functional soundness they need. Furthermore, exceptional surface finishes and structural integrity are routinely achieved when processing materials such as stainless steel titanium, and even PEEK, bolstering the exemplary Swiss CNC machining claim.

Swiss CNC machining is used more often than not in mass Excel production scenarios of critical components, mainly due to the enhanced cost efficiency, speedy material throughput, and reduced material wastage, which are the claims made in various sector studies.

Complex Parts and Intricate Geometries

Swiss CNC machining excels in the production of complex parts and sophisticated geometries, common in the aerospace, electronics, and medical sectors. Swiss lathes possess intricate design capabilities that permit their precise application to small diameters. Operations with precise diameters of 0.01 inches or less can therefore be produced. Surgical instruments, electrical plugs, and aerospace sensors are examples of components needing such precision, often within a very tight tolerance of ± 0.0002 inches in the medical and aerospace industries.

Moreover, advanced Swiss CNC machines with multi-axis capabilities can simultaneously perform turning, milling, and drilling operations. This integration improves setup times while providing consistency in quality for complex components. For instance, sophisticated machines provide up to 13 axes which enables manufacturers to meet complex designs with shorter lead times. Production with these levels of accuracy and flexibility not only improves operational efficiency but also reduces the need for secondary processes resulting in an estimated 20-30% reduction in production costs.

The use of Swiss CNC machining is not limited to easier-to-work alloys such as titanium and nitinol, since these highly durable materials have also proven machinability. Remaining accurate while cutting these materials further showcases the incredible value that Swiss machining helps facilitate in high-value, high-precision components. This progress further fuels the role of Swiss machining in the realization of complex, costly, and precision components across industries for engineering marvels.

Flexibility in Machining Services for Custom CNC Needs

The exceptional scalability that Swiss CNC machining provides makes it a trusted partner across all industries and sectors. In my case, I depend on its flexibility to use simple and complex designs accurately with any material regardless of its intricacy. Also, prototypes or full-scale production runs; this adaptability guarantees that every need is met efficiently and with precision.

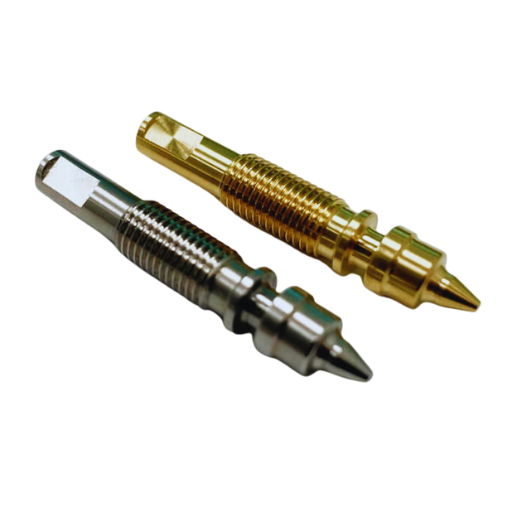

Who Needs Swiss Precision Machining Services?

Industries Benefiting from Precision Machining Capabilities

In my capacity as a specialist in precision manufacturing, I notice various industries dependent on Swiss precision machining. Aerospace firms source highly specialized components with exacting tolerances, while the medical field requires accuracy for implants, surgical instruments, and other devices. The automotive and electronics industries also greatly appreciate the capacity to produce intricate and dependable components vital to their industries.

Meeting the Demands of Aerospace and Medical Devices

Swiss precision machining excels in meeting the requirements of the aerospace and medical fields by ensuring unmatched accuracy and dependability in component manufacturing. In these industries, the surgical precision of aerospace-grade Swiss machining is needed to produce parts that can endure extreme levels of stress, temperature, and safety compliance. Likewise, in the medical sector precision machining is required for the creation of implants, tools, and devices with rigid dimensional and tolerable coterminous boundaries. Such industries require impossibly tight tolerances, enhanced material properties, and unmatched quality which Swiss precision machining offers.

Contact Us for Your Precision Machining Needs

Our team prides itself on providing precision machining to clients from the aerospace and medical industries. From complex part manufacturing to production-grade components, we guarantee accuracy, repeatability, and punctuality. Reach out to us today for an initial consultation to learn about our services or for us to better understand your specific project requirements. We are ready to offer the exact solutions that you need.

How to Choose a Swiss CNC Machining Supplier?

Evaluating Machining Expertise and Capabilities

When looking for a supplier for Swiss CNC machining, it is vital to evaluate their knowledge and capabilities to make sure that they are able to support your needs. Begin by checking their background in your field. For example, aerospace and medical fields require stringent quality control measures, advanced material handling, and tolerance levels which are often ±0.0001 inches. If a supplier has one or more clients from these industries, they should be able to deliver to such high standards.

Assess the breadth of their equipment and technological capabilities. The newest Swiss CNC machines feature multi-axis integration and automated systems that enable the accurate and efficient fabrication of complex shapes. Modern facilities often use automation to monitor production processes to ensure that processes are executed consistently throughout the manufacturing cycle. Ensure willingness by looking for machining centers that cut stainless steel, titanium, and even advanced polymers.

Certifications are just as important. Relevant certifications such as ISO 9001, AS9100 (for aerospace), and ISO 13485 (for medical devices) show the supplier’s dedication to quality and adherence to global standards. Remember to check that their processes integrate strong quality assurance methods such as 100% inspection of parts or Statistical Process Control (SPC) to ensure that defective products will be minimized, and reliable production results are achieved.

Finally, think about their design aid and collaboration opportunities. Those who provide engineering services or conduct design for manufacturability (DFM) analyses add value by supporting your components in being manufactured in a way that maximizes efficiency and minimizes costs. As machining tolerances are more and more stringent, the ability to offer complex machining problem-solving is a characteristic of a competent Swiss CNC machining contractor.

Importance of High-Quality Machined Parts and Components

Well-fabricated parts and components are essential in guaranteeing the efficiency, dependability, and durability of products in machinery and component manufacturing, as well as for the medical and aerospace industries. The accuracy of precision machining minimizes the chance of defects, which can cause product failures, expensive idle time, and safety problems. Meeting tight tolerances and using top-grade materials permit these parts to function and fit within assemblies to prosthesis-optimized functionality. In addition, dependable components help to sustain industry compliance, fulfill customer satisfaction, and lower overall production expenses due to reduced repairs or replacements, thus helping manufacturers become more profitable.

Considerations for Strategic Partnerships and Acquisitions

In assessing partnerships and acquisitions, strategic alignment, value creation, and risk management should be prioritized. Start by ensuring that both sides possess the requisite value systems and operational capabilities to fulfill the strategic goals over the long term. Undertake adequate due diligence to understand the financial position, market standing, and the level of value-driving potential synergies such as cost and revenue value-added synergies. Set out the conditions that govern the roles, responsibilities, and expectations to minimize any post-agreement disputes. Plan for all possible risks such as integration issues, cultural differences, and market fluctuations, and devise ways to mitigate them. Last but not least, check that all the necessary compliance boxes have been ticked and consult legal and financial professionals to limit exposure to unanticipated risks.

Frequently Asked Questions (FAQs)

Q: Explain CNC Swiss machining and explain how it differs from other traditional methods of machining.

A: CNC Swiss machining is a being used precision style of machining employing a specialized lathe to manufacture complex parts to very tight tolerances. Its difference stems from the traditional machining approach by incorporating a guide bushing with the workpiece, which permits greater accuracy and precision to be achieved. This efficiency of Swiss machining technology makes it ideal for producing small, precision parts that require high precision and accuracy, such as those used in medical components and surgical instruments.

Q: In what ways are Swiss screw machines more advantageous than other machines used in precision turning?

A: Swiss screw machines have proven to be exceptional in Swiss precision machining and offer distinct advantages in precision turning. They have a unique capability of achieving the highest levels of accuracy with very tight tolerances when machining small, intricate parts. These machines allow for simultaneous operations, reducing cycle times and increasing efficiency. Swiss turning is especially useful for machining long thin parts that would otherwise bend using traditional methods of machining. The precision CNC swiss machining process also results in excellent surface finishes, making it ideal for industries that require high-quality, precision parts.

Q: What are some benefits CNC Swiss machining brings to the medical technology industry?

A: CNC Swiss machining services are prominent in the medical technology industry, especially in the fabrication of surgical instruments and other medical components which makes them a reliable partner. Swiss machining methods greatly aid in the achievement of precision and accuracy, allowing medical devices to have intricate parts with tight tolerances. Vintage Medical, for example, uses this technology to machine highly complex components that are durable and of exceptional quality, and which further meet the demanding and stringent standards of the industry, guaranteeing the patient’s safety and the device’s functionality.

Q: What different types of materials can one use CNC Swiss machining on?

A: CNC Swiss machining is versatile and can work with a broader range of materials. Some of these include stainless steel, titanium, aluminum, and brass, all of which are common. Machining plastics and exotic alloys are also possible. This makes Swiss machining ideal for more precision-based parts in a wider range of industries such as medicine, aerospace, and electronics.

Q: In what ways does CNC Swiss Inc. contribute to the world of precision machining?

A: Swiss Machining offers high-level CNC Swiss machining services to industries that specialize in sophisticated parts that need to be manufactured with immeasurable attention to detail. This company is regarded to be one of the best CNC Swiss machining experts in the industry. Their efficiency in producing precision parts makes them a valuable partner in industries that require ultra-precision components.

Q: How does Swiss precision turning impact the manufacturing of medical parts?

A: It is of no doubt how vital precision Swiss turning is in the manufacturing of medical components. It allows the manufacturing of intricate components that are imperative in medical devices and surgical instruments. The precision CNC Swiss machining process guarantees that such components will meet the stringent and tolerable limits of acceptable quality for patient safety and device efficacy. Medical technology companies often depend on Swiss turning to manufacture intricate parts which is why they for sure perform outstanding precision Swiss turning.

Q: In what ways has Vantedge Medical’s recent acquisition changed the landscape of the CNC Swiss machining industry?

A: This acquisition has resulted in a significant change within the CNC Swiss machining industry, specifically in the medical technology segment. Their capabilities in precision CNC Swiss machining services may have also widened, allowing them to provide components servicing. With the acquisition, there are further prospects of advancement in the machining technology and techniques used. This also suggests that Swiss machining is gaining relevance for the fabrication of sophisticated, high-precision medical components.

Q: Where can professionals in CNC Swiss machining search for work?

A: There are wider options available out there for those looking to search for jobs in CNC Swiss machining. There are quite many precision machining firms and those that do Swiss turning, who almost always advertise and update their jobs on industry sites and social media. Other general job boards and industry forums are great options too. Moreover, participating in trade fairs and networking with associations of this profession can provide valuable contacts and even provide job offers for this very niche area of work.
