Mastering the Art of Long Drill Bits: A Comprehensive Guide

With precision drilling, the tools used can determine the outcome of the job. This is particularly important for deep, challenging, and hard-to-reach drilling jobs. Long drill bits are advanced tools designed to fulfill these requirements by providing high reach and advanced drilling capabilities on multiple types of materials. However, effective utilization of these tools goes beyond basic proficiency; it requires an understanding of the tool’s design, functionality, and recommended practices. This guide covers long drill bits comprehensively, including their advantages, proper techniques for usage, safety, efficiency measures, and much more. Regardless of whether you are a professional or a casual DIY handyman, this article will help you undertake any drilling project effectively.

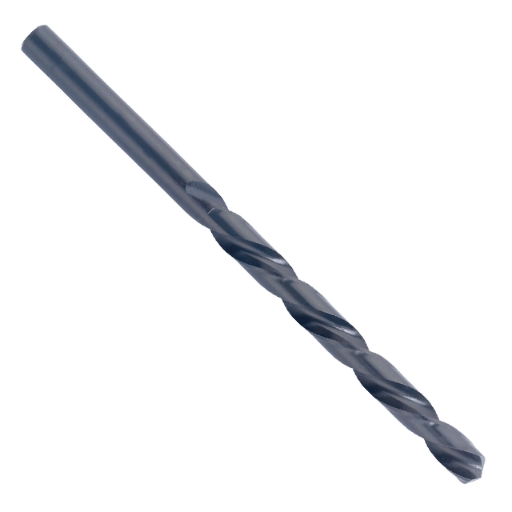

What are Long Drill Bits, and Why Are They Used?

Long drill bits serve as specialized instruments for creating deep holes or drilling through thick materials that standard drill bits are incapable of penetrating. They find common applications in construction, woodworking, metalworking, and any other fields requiring long reach. These drill bits enable precise, efficient, and deep drilling where other standard tools fail to do so. Their use is ideal for wiring installations, cabinetry, or crafting components where standard tools would be incapable.

Understanding the Drill and Its Uses

A drill’s main function focuses on drilling holes and screwing in fasteners to a variety of materials, such as wood, metal, and concrete. Because of the type and kind of work users plan to do, they can select between cordless, corded, or hammer drills. Each of these has its unique features and applications. For instance, a cordless drill is much more portable and easy to use, whereas a hammer drill works well in heavy-duty tasks like drilling through masonry. The appropriate drill and drill bit chosen not only guarantees accuracy but efficiency as well. Regardless of these choices, the must-have components of each drill consist of a motor, a control trigger, and a chuck to hold the drill bit while working.

Applications Where Extra Length is Required

For some projects, extra-long drill bits are necessary to complete work properly. These tasks usually include drilling through thick materials, working in limited access areas, or any situation where standard-length bits do not suffice. Below, I provide the relevant applications and details concerning the issue:

Deep Drilling in Construction Materials

• When working with timber beams, concrete slabs, or metal plates, it is frequently needed to have elongated drill bits. Electricians, for example, may need extended bits when creating holes for wiring in the thick walls or industrial equipment while ousting electrical systems.

Plumbing Assemblies

• For plumbing works, prolonged drill bits are used to perforate through layers of drywall and studs to accommodate pipes and fixtures without the need for dismantling the structure.

Aerospace and Automobile Manufacturing

• Extensive accuracy and reach where certain components meet, or within large assemblies having intricate configuration, require precise drilling. These bits enable technicians to work accurately on complex machinery and components.

Ship Building and Marine Engineering

• Extended drill bits are crucial when penetrating thick ship hulls or working on the internal structures and compartments of the vessels.

Home Improvements and Construction

• For amateurs, extra-long drill bits are useful for hanging large pieces of art, building furniture, or for other repairs where the space is deep or tight.

Although operational efficiency is improved with longer drill bits, it is imperative that the drill bits are supported and matched with the material to prevent them from bending or breaking. Research suggests that high-speed steel (HSS) bits or carbide-tipped extended bits offer better endurance and effectiveness when cutting through hard materials.

Common Industries Using Long Drill Bits

Construction and Carpentry

• In construction and carpentry, long drill bits are heavily used for drilling into thick beams, studs, or floors. They are also required for pulling wires and plumbing works where reach is needed. For example, more than 60% of the tools used for rough-in electrical and plumbing installations are power drills with long bits.

Aerospace Industry

• The aerospace industry requires highly accurate work with titanium, aluminium alloys and composite structures. Long drill bits are often used indiscriminately for deep drilling structural components of aircraft from multilayered thick materials which are composites of cobalt or carbide alloys. These drill bits preserve and maintain the dimensional accuracy and critical tolerances which are vital in the aircraft industry.

Automotive Manufacturing

• Automotive manufacturers need long drill bits for the construction of vehicle frames, along with other operations like boring out individual engine blocks, chassis components, and suspension systems. Smooth and differential metal working drill bits for design creation processes in these areas of industry ensure the quick and rough working of alloys and metals. The introduction of coolant-through long drill bits boosted machining productivity by 25% on average due to their ability to reduce overheating during high-speed drilling, making them highly desirable.

Oil and Gas Industry

• Oil and gas operations often involve drilling in the harshest conditions. In drilling and workover operations, long drill bits are used to maintain deep pipelines and service exploration rig equipment. Materials such as tungsten carbide are selected due to their resistance to high temperatures and abrasive environments.

Manufacturing and Metalworking

• Manufacturing companies utilize long drill bits for the effective and efficient drilling of metals and composite materials in the manufacture of large machinery and tools. Such drill bits facilitate production cycles by increasing the depth of cut that can be achieved in a single pass. It has been noted that long-lasting coated drill bits like those made with titanium nitride (TiN) increase production rates in some metalworking shops by 10-15%.

DIY and Home Improvement

• In addition to industries, long drill bits are being increasingly adopted for DIY and home improvement projects. Drilling through thick walls to install utilities or creating passageways for wires in renovating homes are some examples where these tools are required, which led to increased availability of these tools in consumer markets.

These sectors emphasize the broad and critical uses of long drill bits. Their advancement in contemporary materials and coatings continues to improve their performance, thus ensuring these tools remain indispensable across industries.

How to Choose the Right Extra Long Drill Bit?

Factors to Consider: Diameter and Length

Hole Diameter

• The diameter of the drill bit governs the size of the hole it can create. Selecting the appropriate diameter is necessary to ensure that the drilled hole matches the requirements of your project.
• Standard Sizes: Usually, the drill bits’ diameters begin at 1/16 of an inch and surpass an inch in diameter; this is true for most industrial or commercial uses.
• Material Specificity: For softer woods or delicate plastics, a smaller diameter may be beneficial to prevent splitting. On heavy duty materials such as steel or concrete, a larger diameter is much more efficient and serves a better purpose.

Length

• The drilled holes depth is governed by the depth of the drill bit. Extra long drills are particularly helpful in situations where normal length bits are incapable.
• Standard Lengths: Long drill bits are available in lengths more than 24 inches and 6 inches, depending on the application.
• Application Depth: A shorter bit is sufficient for simple tasks such as drilling through thin boards. On the other hand, extended-length bits ensure precision on deeper or multi-layered projects.
• Structural Integrity: Such flexibility causes longer drill bits to bend with inaccuracy. This is why well-made materials and proper handling of such risks are important.

Selecting the ideal diameter and length combination is crucial to maintain efficiency, accuracy, and results with drilling operations. Always check for compatibility with the requirements of the material and the project before making a choice.

Material Types: Wood, Plastic, and Aluminum

Wood

Various sorts of items are made from wood, which is one of the most used materials. This means that drill bits need to be stipulated for softwood to ensure clean cuts and clean finishes. For carpentry work, brad point bits or standard twist drill bits are often used. Wood cutting is considered to be on the slower end, with cutting speeds varying with the type of wood, ranging from 3000 to 6000 RPM. To prevent burn marks or wood splitting, softwoods such as cedar or pine are preferable as they allow for higher speeds, while hardwoods like oak or maple are slower. To prevent damage to the wood, having the proper bit size and sharpness is critical. As such, having sharp bits in the right sizes is crucial.

Plastic

Careful measures need to be taken when working with devices made from softer materials, such as plastics, as there is the possibility of melting deformation or even cracking. Using acrylics, PVC, or polycarbonates needs specialized drill bits that have low cutting angles for those that are plastics. The type and thickness determine the speed, but the plastic allows for a wider range from 500 to 1200 RPM. Overworking material can put stress on them and cause further issues, so considering break pauses and cooling agents may help.

Aluminum

Aluminum is a metal used in construction, automotive, and aerospace industries. It is lightweight and durable. Drilling in aluminum requires drill bits made from high-speed steel (HSS) or cobalt, usually titanium or other materials coated to improve working life. Aluminum can be drilled at speeds between 2,000 and 3,000 RPM, depending on the material’s thickness and grade. Applying cutting fluid reduces friction and transfers heat away from the bit, lowering the amount of wear on the bit. Managing chips is important in machining aluminum because chips can potentially fill the hole; this can be solved with frequent purging during the process.

Choosing Between High-Speed Steel and HSS Extra Long

High-Speed Steel (HSS) and HSS Extra Long drill bits are made to order for particular applications, and their selection rests solely on the requirements of a specific task. Standard HSS drill bits are extremely flexible, being able to perform well for general drilling works of aluminum, steel, wood, and even plastics. They are impressive in terms of strength, durability against heat, and economic value, permitting use in countless operations of a broad range in both industrial and do-it-yourself activities.

Conversely, HSS Extra Long drill bits are specially designed tools for performing operations that require deeper holes or thicker materials to be drilled. These bits are usually produced in the form of long and rigid so that they do not bend or wobble during the process of being operated. They are commonplace in some industries where construction and working with metal and the need to drill precisely deep holes is an everyday routine.

How to Use Extra-Long Drill Bits Effectively?

Techniques for Deep Holes and Precise Drilling

Employ Pilot Holes

• The first step is to carefully drill a pilot hole, which will serve as a guide for drilling further with the drill bit. This is done to improve alignment and mitigate chances of misalignment during the drilling procedure.

Secure the Drill Bit

• Clamp the object that is to be drilled and maintain a steady downward force on the drill. Too much power can be detrimental because the bit can bend or snap.

Periodically Remove Debris

• Take frequent breaks to remove accumulated chips or other debris from the hole. Debris can cause build-ups to occur which results in unnecessary damage being inflicted on the drill bit.

Lubricate the Drill Bit

• Cutting fluid or oil should be applied sparsely as it is used to lower friction and wear down surfaces. It should be noted that this is important when precision drilling metal and denser materials.

Proper RPM Selection

• Choose the right speed for the material being drilled which is advisable to be low for deeply drilled holes for better control and overheating deterrance.

Using these techniques should prevent tool damage alongside achieving precise and clean holes.

Maintaining Stability with Straight Shank Extra Length Drills

When using straight shank extra length drills, their stability is of the utmost importance, especially for deep or precision drilling jobs. The drill must be properly positioned if deflection, which reduces accuracy and causes premature tool wear, needs to be avoided. One possible approach is the use of drill bushings or guide sleeves which help support the drill tool and eliminate unwanted tilt while the tool is operating.

The material of the drill is also of great importance. Durability and maintenance of sharp edges at high temperatures classify high-speed steel (HSS) and cobalt alloys as the most common materials used for these drills. Friction and tool life may be improved with the use of drill coatings like titanium nitride (TiN) and titanium aluminum nitride (TiAlN), which serve to increase performance.

Calculated engineering practices advocate for the appropriate calibration of the speed and feed rates. For example, HSS drills have a recommended feed rate of between 0.004 and 0.012 inches per revolution (IPR) depending on the work material, while the RPM settings for extra-length drills with mild steel, aluminum, or stainless steel range from 100 to 600. Moreover, efficient coolant flow is necessary to preserve thermal stability in processes deeper than 6 to 10 times the diameter of the drill.

Minimizing vibration and tool deviation ensures accurate and dependable performance with straight shank extra length drills. Responsive maintenance and operational discipline enhances efficiency and increases tool life.

Safety Tips for Working with Extra Long Drill Bit

Select the Correct Type of Drill Bit For the Material

• If you are working on something specific, select an extra-long drill bit tailored for the particular material. A drill bit that doesn’t match the material can break, overheat, or create low-quality holes. For instance, high-speed steel (HSS) is suitable for softer materials, but tungsten carbide tips work best on hardened steel.

Check Drill Bits and Equipment Prior to Usage

• Routine inspections of the drill bits for wear, cracks, and appearance of broken are essential. If worn or damaged, drill bits can increase the risk of material failure or accident. Furthermore, check that the drilling machine is afunctional along with its parts‘ chucks and collets.

Keep Speeds and Feed Rates at Desired Levels

• When using an extra long drill bit, speed and feed rates must be controlled precisely. If the speed is too quick, overheating is a risk, leading to failure. On the other hand, insufficient feed rates can cause issue with chip removal and tool wearing. As an example, performance can improve when speed is lowered with deeper holes.

Use Cutting Fluids, Coolants, And Lubricants for Drills Effectively

• Cutting fluids or coolants must be effective in application to reduce heat and frictional damage. In some cases, using an appropriate coolant can extend tool life by 35%, which is significant in prolonged drill operations.

Avoiding Drills With Excessive Axial Pressure

• When drilling using an extra long drill bit, too much-applied force can lead to drill distortion, damage, and material. Use machine-defined feeding control for better performance. Allow the drill tip to guide itself.

Check For Tool Vibration Or Movement

• Abnormal sound patterns combined with irregular vibration patterns should be noted while drilling, and these indicate poor alignment, negative clamping, or movement which threatens safety and precision. If vibration is ignored, studies show that tool life can decrease by 20%.

Appropriate Personal Protective Equipment (PPE) Must be Worn

• Make sure that you have eye protection (safety goggles), gloves, and ear protection on before starting any PPE-related activities to avoid flying chips, loud noise, and exposure to excessive heat during the drilling activities.

Manufacturers’ Directions Must be Followed Precisely

• Obey with unwavering authority the operational speeds and feed rates, as well as the materials the machine will be working with. Using the equipment without its clearly defined scope increases the chances of the tools malfunctioning or accidents happening.

These comprehensive instructions will provided when followed will augments performance, minimizes risks, and ensures more effective use of extra-long drill bits.

What are the Different Types of Long Drill Bits for Wood and Metal?

Exploring Twist Drill and Brad Point Drill Bits

Twist Drill Bits

Drilling instruments for wood or metalwork usually come with twist drill bits, which are quite versatile. They possess a helical form of flute specially designed for removing the chips to make the process of drilling smooth and effective. These bits can be used in different industrial applications with confidence because of their strong reliability and uncomplicated, straightforward design.

Brad Point Drill Bits

Brad point drill bits are specialty tools and their purpose is drilling specifically into wooden machines. A distinguishing characteristic of this bit is a sharp center point which effectively minimizes any drift by ensuring proper positioning. These bits also feature outer spurs and are most suitable for softwood and hardwood.

Understanding Shank Drill Bit Options

Shank drill bits are categorized according to their shank configurations, which determines their compatibility with drill chucks, and subsequently affects their efficiency. The most popular varieties are straight drills, hex drills, and reduced drills. Each type is specially designed to serve a certain drilling function to optimize efficiency.

Straight Shank Drill Bits

These are the most widely used drill bits and have a shank and cutting portion whose diameters are the same. They are easy to use in general type of drilling tasks as they work with standard drill chucks. Because of the need for accurate positioning, these types of shanks are best used with handheld drills and drill presses.

Hex Shank Drill Bits

Hex shank drill bits have a six-sided hexagonal shape which allows easy gripping in chuckless or quick-change systems. This shape does not allow slipping with high-torque applications therefore, they are ideal with impact drivers, as well as drilling metals and some hardwoods. These hex shanks are often used in places where there is need for regular changes of bits, hence productivity is increased.

Reduced Shank Drill Bits

Reduced shank drill bits are utilized to drill larger holes with a drill that has a smaller chuck size. These bits can only be used with lighter-duty machines because their shank diameter is smaller than the machine’s cutting diameter. They are useful in professional and industrial areas where large-diameter holes can be drilled without the need to upgrade the drilling machinery.

Each type of shank has distinct advantages which offers efficient and optimal solutions for various drilling problems, whether it’s for DIY purposes or large scale industrial work. It is important for users to consider the material, drill, and task at hand to achieve the desired results.

Differentiating Between Masonry Drill Bits and Others

Masonry drill bits are used for drilling operations on tough materials like concrete, brick, or stone. Unlike standard drill bits which are made of steel completely, they have additional hardness and strength because they feature a tungsten carbide tip. Their design also includes flutes for the efficient removal of dust and debris from the hole being drilled. Bits designed for wood and metal do not possess the required hardness and tip reinforcement needed to effectively cut into masonry materials. It is fundamental to choose a masonry drill bit for projects with tough surfaces to achieve clean results without damaging the tool.

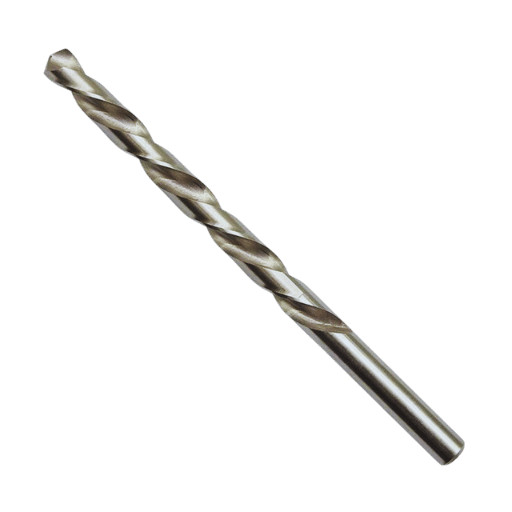

How to Care for and Maintain Your Long Drill Bits?

Tips for Longevity: Cleaning and Storage

If you maintain your drill bits correctly, they will perform optimally and last longer. Check out these effective storage and cleaning practices:

Use the Bits Only Once Cleaned

• Dirt, junk, and traces should be removed from the piece. Metal drill bits require the use of wire brushes to thoroughly scrub all residues. Sticky materials or resin adhesives require the drill bit to be wiped down using a cloth soaked in mild solvent.

Inspect for Damage

• Chipped edges, worn surfaces, and cracks are all characteristics that show imdsurance. Using drill bits that show these signs can cause them to become more useless overtime due to becoming dull and low performing.

Lubricate to Prevent Rust

• Rust is troublesome, especially if one plans to place the bit into humidity. Using a spray or machine oil and coating the drill bit with a thin layer ensures no chances of rust forming.

Use a Drill Bit Case

• When it comes to the organization of drills, let us first address the tool itself. The safest way is to store the drills in the same case which came with them or in a custom designed drill bit container. This ensures to avoid contact with other tools, thus preventing their dulling or bending. Finally, ensure the case is stored in a cool, dry place so that it doesn’t get wet.

Sharpen When Necessary

• Jewel bits, when left unattended, result in lower precision and the effort exerted to put them in use increases the wear. Maintaining drills regularly ensures that they continue to perform efficiently and for that purpose, you can use a drill bit sharpening tool or take them to a specialist that will do the sharpening for you.

Avoid Overheating During Use

• Make sure to not crystalize overuse too fast because it can continuously weaken the material the drill bits are made from. Use a cooling component, like cutting fluid or water when drilling metal or another dense material and when doing so, make use of the appropriate drilling speeds.

Label for Easy Access

• In regards to an easy approach, organizing and labeling drill bits makes certain that the possibility of unwanted handling is low. Not only does this guarantee access, it lessens the chances of grabbing the wrong drill bit for the task at hand.

In following the maintenance practices outlined in this guide, there can be changes in how well long drill bits are trusted for the task, making them cost-efficient and improving productivity for a variety of drilling applications.

Troubleshooting Common Drill Bit Issues

Drill bits are widely used in multiple sectors, but they come with their performance challenges. A comprehensive guide on the common malfunctions of drill bits and their corrective measures is given as follows:

Drill Bit Breakage

• Cause: Breakage is often caused by over-drilling, using the wrong type of drill bit, or misalignment.
• Solution: Realign and equalize the pressure applied to the drill bits. Use cobalt bits with hardened steel and adjust peripherals to fit the application. Studies suggest that breakages can be avoided by up to 30% when proper bits are used.

Premature Dulling

• Cause: Dulling can be due to overzealous sharpening or used on hardened material without sufficient cooling.
• Solution: Apply fluids while drilling into metals for better heat dispersion and study shows that cutting lubricants aids the longevity of the bits. Furthermore, consistent sharpening maintains the effectiveness of the drills.

Wobbling During Use

• Cause: Wobbling occurs because of weariness at the drill bits shank, a loose chuck, or poorly fitted bits.
• Solution: Regularly check for wear at the shank while setting a tighter chuck. Bits that are damaged should be replaced for accuracy’s sake, especially in instances where precision is crucial to the project.

Overheating

• Cause: Excessive speed, prolonged drilling without cooling, or use of dense materials leads to overheating. This weakens the bit’s structure.
• Solution: Adjust the speed relative to the material type and take breaks when necessary. Studies show that controlling speed and cooling reduces the occurrence of heat damage by 40%.

Material Specific Challenges

• Cause: Drilling dense materials like stainless steel or concrete without specialized bits can prove to be inefficient and lead to undue wear and tear.
• Solution: Use carbide or diamond-tipped bits for hard materials. Data indicates that these specialized bits outperform standard bits in demanding applications and are able to perform efficiently for double the duration.

Addressing these issues increases the general accuracy of drilling, ensures one has better control over tool life, and promotes efficiency across multiple projects.

When to Replace Your Drill Bit Set

Reassessing your drill bit set is an important task to consider when the following indicators are present:

• Apparent Deterioration: Look for signs of fractures, breaks, or distortion on the bit’s edge.
• Worsening Performance: Difficulty drilling, slower progression, or greater effort all require a more forceful approach to tackle the problem are all indicators of decreased efficiency.
• During Use Overheating: During use, excessive heat production, irrespective of the rotation speed and cooling action, indicates the need for bit replacement.

Consistent evaluation followed by prompt replacement of damaged bits will enhance overall efficiency, safety, and project outcomes.

Frequently Asked Questions (FAQs)

Q: Utilizing long-length drill bits comes with advantages; what are they?

A: Drill bits with long shanks and those manufactured by Drill America are no longer exceptions for having long-reach capabilities. They enable reach to drilling at deep or inconveniently located spots, making them appropriate for general-purpose drilling in applications that require extra length for reach. The designs of these drills are specifically intended to help achieve situations that cannot be reached using standard jobber length drills, ensuring a more complete and effective set of drilling capabilities.

Q: What materials are long drill bits typically made from?

A: Long drill bits are mostly made out of high speed steel because of its strength and resistance to heat. Some of the elite options include cobalt drill bits, which have greater hardness and heat resistance and can withstand tough applications. A variety of long drill bits also contain black oxide which improves lubricity as well as reduces corrosion, therefore having the coating as a beneficial feature.

Q: How does the length of the drill bit differ between x 8 and x 12?

A: The terms “x 8” and “x 12” describe the relationship of the drill bit’s length to its diameter. So, an x 8 drill bit, for instance, is 8 times longer than its diameter, whereas an x 12 bit is 12 times longer. For instance, a a drill bit with a diameter of one-quarter inch and a length of 12 inches would be 3 inches long. While deeper drilling can be done with an x 12 bit, x 8 bits are also capable of providing significant reach.

Q: What are straight shank drill bits, and why are they employed for long drill bits?

A: Straight shank bits are those that have reduced shank bits, unlike a straight drill bit. In long drill bits, straight shanks are commonly used because they provide better stability and rigidity, which is crucial when dealing with extended lengths. Straight shank extra length drills are ideal for use in hand drills and drill presses and, therefore, can be used perpendicular to the axis of the bit.

Q: What does a set of extra-long drill bits include, and what is the set used for?

A: An extra long drill bit set is described as a set made of drill bits of longer than ordinary length, suitable for deep drilling or other hard-to-reach applications. Generally, these sets comprise a standard assortment of 5-8 pieces or different sizes, such as 2-5 mm. For example, an extra-long steel drill set for general-purpose drilling could contain 150mm to 200mm drill bits. These boring tools would be 150mm, 175mm, and 200mm in length.

Q: How do product specifications for long drill bits differ from standard drill bits?

A: When it comes to long drill bits, product specifications have a tendency to highlight their length as well as some specific features of their use. Some significant specifications would state their overall length, say, 12 inches or 160mm, type of shank, usually Straight Shank, material composition, High high-speed steel, Cobalt, etc, as well as Coating, black oxide, and so forth. Besides, long drill bits can have other flute shapes and point angles designed for greater length. While comparing specifications, do not ignore Length Diameter ratios (x8, x12, etc.) and recommendations about usage with hand drills or drill presses.

Q: How can one use extra long bits effectively?

A: Here are some recommendations to use drill bits that are extra long in length and try to maximize the accuracy and the workmanship. 1) For better accuracy and stability, utilize a drill press for as much as possible. 2) For a hand drill, begin with a less-long pilot hole to assist the extended bit. 3) Slow down the speed of drilling in order to avoid wandering or deflection of the bit. 4) Use constant and slow pressure along with cutting fluid or lubricant in order to minimize heat and friction. 5) Extend the chip extracting movement periodically in order to avoid the bit binding and too much friction productivity. 6) For extremely long bits, a more complex hoop or bushing might be required to drill through.

Reference Sources

1. Research on the Characteristic Distribution of the Temperature Field of Bottomhole PDC Bits during the Efficient Development of Unconventional Oil and Gas in Long Horizontal Wells

• Authors: Li Fu and Others
• Date of Publication: June 19, 2024
• Journal: Processes
• Citation Token:  (Fu et al., 2024)
• Abstract: This research analyzes the temperature increase occurring in the cutting tooth of bottom polycrystalline diamond compact (PDC) bits during the process of breaking rock in horizontal long sections. The research also seeks to confirm that overheating may result in the breakdown of downhole drilling tools.
• Method: The authors created evaluation devices to measure temperature field distribution under different experimental conditions, such as drilling fluid flow rate, bit rotation speed, and weight on bit (WOB).
• Main Results: The evidence gathered clearly shows that these factors control the bottomhole temperature which directly impacts drilling parameter optimization and temperature management system design.

2. Selection and Optimization Design of PDC Bits Based on FEM Analysis for Drilling Long Horizontal Sections of Shale Formations

• Authors: Lulin Kong and Others
• Published on: September 21, 2023
• Journal: Processes
• Citation Token: (Kong et al., 2023)
• Summary: This document discusses the optimization of the breaking efficiency and stability of PDC bits used in ultra-long sections for shale gas development.
• Methodology: The authors performed confined compressive strength tests for rock mechanical parameters, and they developed a finite element model (FEM) to determine the breaking mechanism of different PDC bits.
• Key Findings: The analysis recommends certain PDC bits for drilling long horizontal sections. It was proved that the mechanical characteristics of some configurations of PDC bits can be beneficial for drilling performance in prolonged horizontal sections.

3. Simulative Study of the Fatigue Life of Large Straight Impact Reverse Circulation Drill Bits

• Author: Huanhuan Li
• Published on: October 1, 2022
• Journal: International Conference on Artificial Intelligence and Advanced Manufacturing
• Citation Token: (Li, 2022, pp. 432-436)
• Summary: This study investigates the fatigue life of percussive reverse circulation drill bits of large diameters which are frequently utilized in vast construction works.
• Methodology: The analysis was conducted using the ANSYS nCode DesignLife fatigue analysis software to evaluate the drill bit’s fatigue life under normal and eccentric loading conditions.
• Key Findings: The data offers insight into the structural optimization of drill bits to improve their service life while tackling structural fractures that occur due to cyclic loading.
