Mastering Cutting Tool Steel: A Comprehensive Guide to Tool Performance

The importance of cleaving tool steel in its manufacturing cannot be understated. The tools must be efficient, precise, and as durable as possible. Properly selecting the tool steel and a comprehensive understanding of its properties will affect the tool’s performance, life expectancy, and production. Understand the composition and primary features of the cleaving tool steel to get the right tool for the job. This guide is written for those involved in production engineering – decision-makers, machinists, or even engineers. Thus, you will now understand how to make the right decisions while utilizing the tools. Stay with us as we provide crucial information to make your tools durable.

What is Tool Steel and How is it Used?

Like other carbon and alloy steels, tool steels are mainly used for casting and manufacturing, which involve cutting, shaping, and molding materials. Tool steel is best known for its excellent hardness, resistance to abrasive wear, and sharp edges retained under high temperatures. It often produces wear-resistant machine parts and cutting tools, dies, and molds. These distinctive characteristics make it ideal for activities requiring great precision and durability.

Understanding Different Types of Steel for Cutting Tools

Different kinds of steel are used in the manufacturing of cutting tools due to their unique characteristics suited for a particular purpose:

1. High-Speed Steel (HSS): HSS is popular for drills, taps, and milling cutters owing to its remarkable toughness and hardness retention at elevated temperatures.
2. Tool Steel: This includes grades like D2 and A2, which are well-known for their stability and resistance to wear. Tool steel is commonly used for dies, punches, and cutting blades.
3. Carbide Steel: Usually used in inserts, carbide steel is preferred because of its high hardness and resistance to abrasions. These qualities are essential for precision work at elevated speeds.
4. Stainless Steel: This is the least common; however, certain classes of stainless steel are abrasive. Tools with this feature are needed in manufacturing surgical instruments where corrosion resistance is essential.

Each is chosen based on wear resistance, toughness, and operational environment so that the performance will be satisfactory for its intended purpose.

How Tool Steel is Used in Mold Making

Regarding mold making, tool steel is considered an essential tool because of its durability, resistance to heat, and ability to retain shape even under high pressure. It is routinely employed to produce molds for injection molding and die-casting processes, which require reliability and consistency. The accuracy and dimensional precision in parts production are critically dependent on the ability of the tool steel mold to endure repetitive cycles without suffering deformation or wear, which is ensured by the tool steel’s hardness and resistance to wear. Regarding production, cold-work and hot-work steels are identified as key types due to the thermal and mechanical stress factors.

Applications of Tool Steel in the Machine Industry

Machine industries utilize tool steel because of its strength, durability, and adaptability. Tool steels are extensively used to produce cutting tools like drills, saws, and blades, which are essential in precision machining. It’s also used extensively in creating molds and dies for casting, stamping, and forming, allowing for consistent quality over long production runs. Tool steel is further employed in making industrial-strength gears and machine parts subjected to high rates of wear and tear and stress. These applications showcase the industry’s effective use of tool steel and its economic importance.

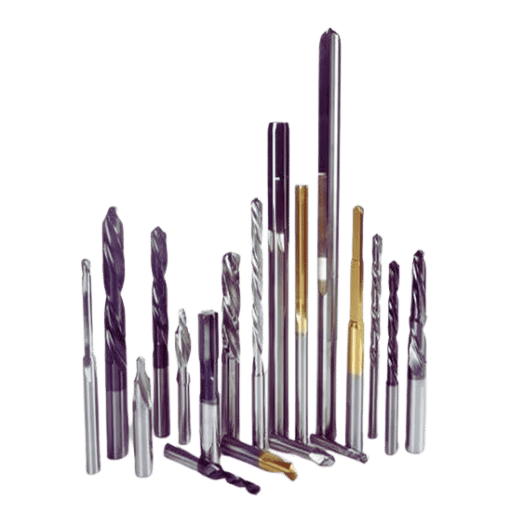

What Characteristics Make Tool Steel Ideal for Cutting?

The Role of Hardness and Wear Resistance

Tool steel’s primary elements, hardness, and wear resistance, make it ideal for cutting applications. Its hardness allows it to withstand significant pressure and heat while retaining a sharp edge, unlike most materials, which do fine when cut but face difficulty in high-speed cutting environments. This provides accuracy, and the deformation is virtually zero, even when rigid materials like hardened alloys and composites are cut through.

Durability in wear resistance also complements the hardness by prolonging the tool’s lifespan. This trait can be achieved with alloying elements like chromium, molybdenum, and vanadium, which enhance the steel’s resistance to surface degradation. For example, elements like these are often found in high-speed steels (HSS), such as M2, which have been specially designed for resistive wear during prolonged use while cutting.

Although high-performance tool steels are expensive, they offer up to three times the durability of standard carbon steels and little edge dulling under similar conditions, making them cost-efficient. After the steel meets the stringent manufacturing process requirements, advanced heat treatments like quenching and tempering are used to optimize these properties further.

The Importance of Toughness and Heat Treatment

Toughness is an essential aspect of materials engineering, especially in tool steels, because it relates to the ability of a material to sustain stress without fracturing while also being able to absorb impact energy. This property ensures that tools can withstand operational demands over extended periods without catastrophic failure. As industry information suggests, toughness is improved by some precise heat treatment processes like tempering, which balances hardness and ductility, and cryogenic treatment, which relieves microstructural internal stresses through refinement.

However, heat treatment is still necessary for tailored performance and involves adjusting mechanical properties by controlled heating and cooling cycles. An example is quenching, followed by tempering, which can produce steel with a hardness greater than 60 HRC and sufficient toughness for industrial tooling. The recent development of computer-controlled furnaces that guarantee uniform temperature distribution has improved manufacturing processes by ensuring reduced defect occurrence. Using these methods and alloying with chromium and vanadium, manufacturers provide materials with optimal mechanical properties where high wear resistance, durability, and toughness are required. Such materials are often used in aerospace, automotive, and heavy-duty machining industries, hence why they are called high-performance materials.

How Alloy Elements Enhance Performance

Alloy components improve value by increasing the characteristics of a given material, which is important in fulfilling demanding tasks. Chromium increases the toughness and resistance to corrosion, ensuring long-term use within extreme surrounding conditions. Vanadium refines grain structure, contributes to strength and toughness, and improves wear resistance, enhancing toughness. Manganese increases ductility and impact resistance, while nickel enhances the toughness and resistance of these temperature expansions. By combining these elements, manufacturers can fine-tune materials for specific industry performance targets.

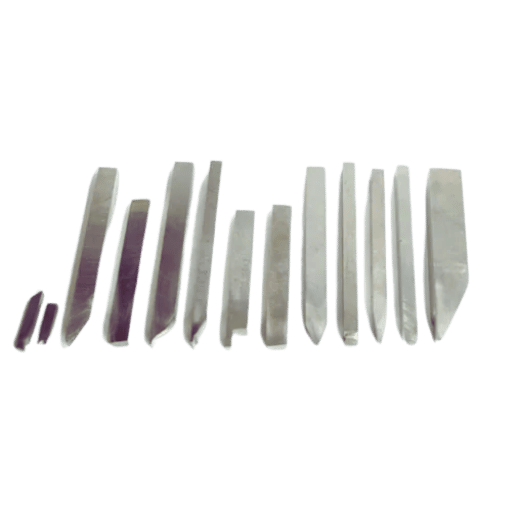

How Does D2 Tool Steel Compare to Other Steel Types?

Properties and Benefits of D2 Tool Steel

D2 tool steel has outstanding hardness, wear resistance, and dimensional stability, which are highly valued characteristics. It is categorized as a high-carbon, high-chromium steel due to its high carbon and chromium composition, and it delivers better edge retention and corrosion resistance than most tool steels. Its resistance to abrasion and heavy usage enables it to perform efficiently in tough applications like cutting, stamping, and forming tools. Furthermore, D2 tool steel is heat-treatable without changing shape, which is useful for accurate tooling and engineering needs.

Comparing D2 with Other Tool Steels

D2 tool steel has certain benefits compared to other tool steels, such as remarkable durability against wear and abrasion, which makes it worthwhile in high-performance settings. While D2 steel dominates in tough environments, O1 steel is much easier to machine but provides low durability against abrasion. D2 also shows superior toughness compared to M2 high-speed steel but does not excel at higher temperatures. In addition, A2 tool steel provides more excellent impact resistance, but D2 has higher chromium content, outperforming edge retention and corrosion resistance. All these traits make D2 steel preferable in settings that require long tool life under harsh conditions.

Why D2 Tool Steel is Popular in Machining

D2 tool steel is highly recommended in engineering and machining due to its hardness, wear resistance, and edge retention. The high chromium content improves corrosion resistance, thus making it useful in extreme conditions. Also, D2 has good dimensional stability during heat treatment, which makes it easy to machine accurately. It is, therefore, widely used in making tools, dies, and other parts required to serve longer periods and perform.

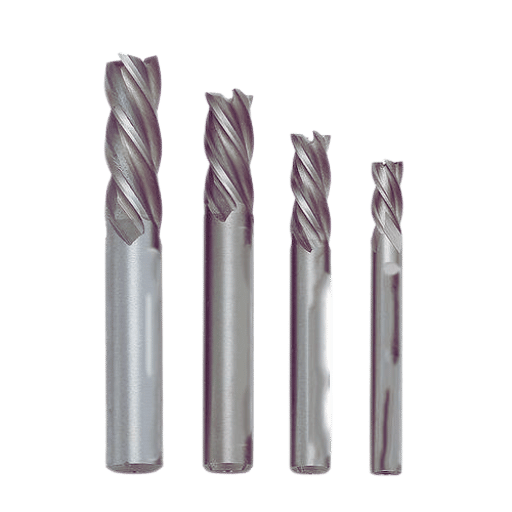

What are the advantages of high-speed steel (HSS) in tools?

Understanding High-Speed Steel Characteristics

High-Speed Steel (HSS) is an alloy best known for its application in machining and toolmaking owing to its unique properties. HSS is famous for its hardness retention, even under very high temperatures. It is best suited for cutting operations, generating great amounts of heat and friction. The major constituents of HSS usually include tungsten, molybdenum, chromium, vanadium, and cobalt alloys, which increase its hardness, toughness, and resistance to abrasion.

HSS has distinct benefits compared to other materials, such as carbon steel, such as greater cutting speeds and longer tool lifespan under harsh working conditions. For example, during cutting, HSS can retain its edge even at 600 degrees centigrade (1112 degrees Fahrenheit). This allows for greater cutting velocities. Also, HSS grades M2 and M42 are well known for their superior abrasion resistance due to high carbide content. Such properties make HSS an ideal candidate for precision tools such as drills, taps, and end mills, where tool life and performance are critically important.

The enhanced thermal resistance and cutting efficiency of titanium nitride (TiN) or titanium carbonitride (TiCN) can increase the versatility of different coatings. Because of these characteristics, HSS remains fundamental in the aerospace, automotive, and general manufacturing industries, which are highly performance and efficiency-driven.

How HSS Enhances Tool Life and Efficiency

The lifespan and effectiveness of tools made from high-speed steel (HSS) are improved significantly due to their durability, heat resistance, and frictional resistance. The toughness of HSS allows it to withstand operations under high stress without breaking or deforming while losing its hardness at higher temperatures. Furthermore, HSS tools can be enhanced with titanium nitride (TiN) coatings that help reduce friction and thermal resistance, leading to faster and smoother cutting. These features make HSS a credible material that meets industries’ ever-changing precision and durability demands.

Applications of HSS in Cutting Edge Technologies

High-speed steel (HSS) is a resourceful material employed in advanced manufacturing and machining processes because of its strength, heat resistance, and durability. HSS is commonly used to construct drills, end mills, taps, and saw blades. It is extensively used in aerospace, automotive, and medical device manufacturing industries that require high-precision cutting. In addition, it serves an indispensable function in additive manufacturing and CNC machining through HSS’s intricate roughing capabilities with tight toleranced features. Due to its adaptability and reliability, high-speed steel is essential in any technology demanding precision, strength, efficiency, and sturdiness.

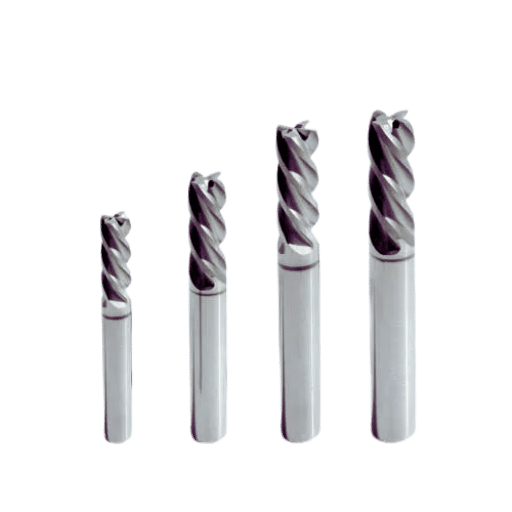

How to Select the Right Tool Steel for Your Machine?

Choosing Tool Steel Based on Application Needs

Choosing the right tool steel requires taking the application’s particulars into account. Consider the needed hardness, as well as wear and impact resistance. Heat-resistant and durable high-speed steel (HSS) is the best option for cutting works of high precision. For exceedingly hard applications with high abrasion resistance, tungsten carbide or high carbon and chromium tool steels may be suitable. Also, the working conditions, such as exposure to heat or cold and corrosive factors, must be considered to ensure the material can endure such conditions. Always match material features with operational conditions to achieve maximum efficiency and durability.

Considering Alloy and Hardness Requirements

Choosing the correct alloy and the appropriate hardness for tool steel requires a negotiable trade-off between performance requirements and practical use. Due to their volumetric proportions, chromic, vanadic, and tungstenic alloys increase wear resistance, toughness, or heat resistance. The hardness of the steel should relate to the intended application; greater hardness is better for cutting or abrasion work, while softer hardness is favorable for impact work that needs more toughness. Confirm compatibility and optimal performance using industry standards like Rockwell hardness ratings. Utilize steels known for their reliability concerning the application and environment.

The Importance of Quench and Heat Treatment Processes

Quenching and heat treatment are two processes that significantly affect the final properties of tool steel, such as its hardness, toughness, and resistance to wear. Quenching is the cooling phase after heating steel to a specific temperature. Heat treatment is conducted sequentially to help modify an internal microstructure and latent thermal tension. Timing and manual control of temperature, cooling rates, and duration are essential, and following industry standards guarantees the material’s reliability and stability.

Frequently Asked Questions (FAQs)

Q: What is tool steel, and what makes it essential for cutting operations?

A: Tool steel is an alloy steel used for cutting metal. Its hardness and abrasion resistance make it worthwhile for cutting because it can endure high temperatures during forging and metal fabrication operations.

Q: What are the main types of tool steel for cutting tools?

A: The most common types of tool steel used for cutting tools include high-speed steel, carbon steel, air-hardening steel, and oil-hardening steel. Selection is made depending on their hardness, toughness, and resistance to wear and corrosion, considering the different tool steel grades.

Q: What is the effect of high carbon content on tool steel?

A: Tool steel’s high carbon content makes it ideal for applications requiring high hardness and strength. Its abrasion and deformation resistance also make it more beddable.

Q: Why is carbide often used in cutting tools?

A: Carbide is used in cutting tools because its high hardness, combined with relatively low wear and heat resistance, makes it suitable for high-speed machining and cutting of tough materials such as steel and most metal’ alloys, while most undoubtedly high carbon steel.

Q: What role does chromium play in tool steel?

A: Chromium is an important alloying addition to steel because it gives tool steel additional corrosion resistance, hardness, and wear resistance by forming solid solutions with other constituents. It is also an essential element of stainless steels and is added to tool steels to enable them to withstand harsh conditions, such as high-carbon steels.

Q: How does hardening tool steel change its performance?

A: Tool steel is hardened by heating it to extreme temperatures and quenching it. This action improves the tool’s cutting capability and durability by prolonging its resistance to wear and distortion.

Q: What is the importance of air hardening in tool steel?

A: Air hardening is a heat treatment operation for tool steel characterized by relatively low cooling rates compared to the typical environment. It frees the steel from any external request, reducing distortion and cracking. This preserves tool geometry, making it suitable for high-precision work.

Q: Can you explain the use of vanadium in tool steels?

A: Vanadium can improve the wear and abrasion resistance of tool steels. It helps refine the steel’s grain structure, making it more challenging and durable during cutting operations.

Q: What is the benefit of using tungsten in tool steel for mills and saw blades?

A: Tungsten improves heat resistance and tool steels’ hardness at elevated temperatures. Thus, it is instrumental in making mills and saw blades that work under strenuous conditions.

Q: Why is nickel included in some tool steels?

A: Nickel can enhance the toughness and corrosion resistance of tool steels. This is essential for tools that operate in areas with moisture and corrosive materials, prolonging their working life while improving their effectiveness further.

Reference Sources

1. The Use of Machine Learning Algorithms to Determine Tool Wear in the Precision Milling of Hardened Tool Steel: A Case Study

• Authors: P. Twardowski et al.
• Publication Date: December 2, 2024
• Summary: In this document, the authors propose a particular method of condition monitoring based on vibration acceleration spectroscopy to determine the wear of milling tools. The research aims at and describes the diagnostic evaluation of some cutting speeds by applying various machine-learning techniques to classify tool conditions.
• Key Findings: This classifier showed tool wear monitoring accuracy of 0.999, which is noteworthy evidence that the proposed approach works under real industrial conditions.
• Methodology: The research was performed on a machining center. The tool was worn out, and the vibration acceleration signals were registered. The tool condition was classified using different machine learning techniques into operational and non-operational states.

2. Impact of deep cryogenic processing cycles on surface roughness, dimensional stability, and microstructure of high carbon high chromium tool steel supremacy for cutting tool and dies applications

• Authors: S. Lomte et al.
• Publication Date: April 1, 2023
• Summary: This research analyzes the microstructural changes of surface roughness, hardness, and stability of AISI D2 tool steel that underwent deep cryogenic treatment (DCT), focusing on the tool and die industry.
• Key Findings: Compared to the DCT-II cycle, AISI D2 tool steel with the DCT-I cycle achieved higher surface finish, hardness, and dimensional stability due to finer carbide precipitation.
• Methodology: The methodology consisted of micro- and macro-etching the cryogenically quenched sample, measuring dimensional stability using standard Navy C-ring tests, and assessing roughness alongside microstructural evaluation via optical and scanning electron microscopy.

3. Effect of Cryo Treatment on End Milling of Custom 450 Stainless Steel Cutting Tool

• Authors: C. Devi et al.
• Publication Date: 30th June, 2023
• Summary: This study analyzes the effectiveness of cryo-treated carbide cutting tools in the end milling of Custom 450 stainless steel and different machining parameters.
• Key Findings: Feed force and surface roughness for treated inserts were superior to those of untreated inserts, indicating extended tool life and performance enhancement.
• Methodology: The end milling tests utilized TiAlN-coated tungsten carbide inserts. They included force measurement, surface roughness assessment, and tool wear comparison for varying machining conditions.
