PTFE vs PEEK: Learning the Difference Between Polymers of Greater Performance

Advanced engineering and industrial processes sit atop the shoulders of paramount polymers, the most notable being PTFE (Polytetrafluoroethylene) and PEEK (PolyetherEtherKetone), whose exceptional durability, chemical resistance, and thermal stability make them stand out from the rest. The primary focus of this article is to delineate the major differences between these two polymers, outline their key features, benefits, and assess the scope of their impact. Polymers perform exceptionally well in intricate configurations, however, understanding their true potential requires a more hands-on approach towards the application.

What are the Properties of PTFE?

Polytetrafluoroethylene PTFE possesses a broad range of properties such as being a fluoropolymer with unparalleled tarnishing resistance, diminutive friction, and thermal stability. Because of its broad operational temperature range as well as terrific tare strength it is commonly defined as non-reactive. PTFE also possesses extreme electrical insulation properties as well as hydrophobic non-stick capabilities along with great weatherability which enables it to withstand harsh conditions;. but these gainful characteristics do not transferover well into construction as the mechanical strength and wear resistance it has is far below more common range of polymers poured into other rehabilitative applications.

Understanding PTFE’s Temperature Resistance

One of PTFE’s defining characteristics is its remarkable coefficient and exceptionally high temperature endurance. Its ability to maintain structural integrity and functional attributes is heightened from -200 to 260 degrees Celsius. As such this characteristic allows PTFE to remain flexible and non-brittle during cryogenic applications. Furthermore, at higher degrees of 260 thermal degradation has the potential for great increase, but PTFE thermal resistance ensures it maintains broad range of stability up to that degree.

Take, for example, in some industries, PTFE gaskets are often abused thermally, but do not suffer physical deformation or a decline in sealing performance. In addition to that, the materials’ melting point also demonstrates its capability to endure short term thermal abuse. Testing has indicated that unreformed PTFE retains at least 90% of tensile strength after prolonged exposure to stress temperatures nearing 260°C. Therefore, it can be relied upon in thermal abusive environments.

Investigation of the Nylon 6,12 Incompetence With Some Solvents

PTFE or, as it is more commonly known, Teflon does have chemicals which do degrade it, but the number is very limited. This is mainly due to the strong carbon-fluorine bonds, which makes it chemically very inert. PTFE works for highly hostile environments where highly reactive or corrosive materials exist. For this reason, it can be used in chemical processing, pharmaceuticals, and many other industrial uses. Moreover, it is inactive to almost all materials and substances, which is further supported by its low surface energy that reduces contaminants or particles attachment to its surface. These features rank PTFE as the first choice in applications where robust chemical resistance and reliability over time are required.

Friction Coefficient of PTFE

Treflon is well known for having a very low coefficient of friction which is between 0.05 and 0.1, and measured against polished steel under standard testing conditions. This is quite low when placed against most bulk materials for example nylon will achieve friction coefficient as high as 0.2 and polyethylene as high as 0.3. This makes Treflon highly prized for applications in which smooth low-friction items are necessary.

Factors like temperature or surrounding conditions do not have much impact on its frictional character as it operates over a wide temperature interval of -200 °C to 260 °C. This makes it appropriate for use in the demanding aerospace, automotive, industrial, and construction settings where energy loss resultant from friction is needed to be minimized. PTFE wear resistance combined with low friction means longer life and less maintenance for mechanical system components.

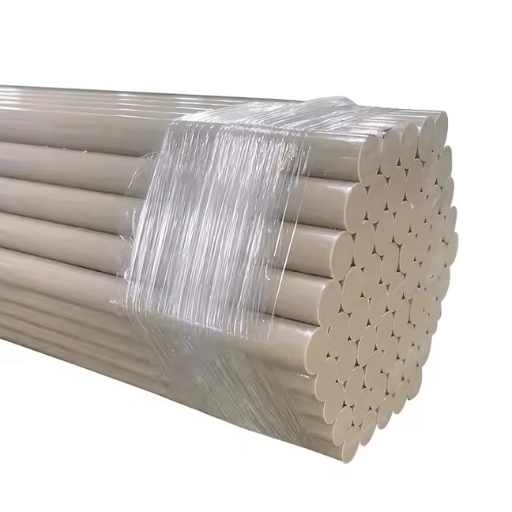

What are the Properties of PEEK?

Mechanical Properties of PEEK and Its Strength

PEEK is a European high performance plastic that exhibits very high mechanical strength and thermal stability. Its tensile strength ranges from 90 to 100 MPa and displays great deformation resistance under high loads. PEEK is characterized with a huge melting point, approximately 343°C, which makes it useful in industries where extreme temperatures are of particular concern. PEEK is also known for its high resistance to wear, chemical effects, low friction coefficiency, and these features make it more beneficial in difficult working conditions. These advantages give PEEK an extensive application in aerospace, medical, automotive, electronics and other industries, where components are expected to be durable and reliable.

Thermal And PEEK’s Properties and Temperature Range

PEEK shows remarkable thermal stability by maintaining its mechanical properties over a wide temperature range. It has a continuous service temperature of up to 260°C which means PEEK can withstand high temperatures over prolonged duration without any damage. In addition, PEEK exhibits elastic deformation of around 47 x10^-6/°C which guarantees dimensional stability in varying temperature environments.

PEEK is tested for its thermal conductivity and exhibits values from 0.25 to 0.30 W/m·K, depending on the particular grade and formulation of the material. This property in conjunction with PEEK’s inherent insulation property makes it applicable for heat resistive applications where limited thermal conductivity is required. In addition, PEEK possesses a glass transition temperature of 143°C and a melting temperature of 343°C, which means the material retains its strength and stiffness even at elevated temperatures.

These characteristics further add towards PEEK’s credibility in dealing with extreme thermal conditions, which helps its positioning as a vital material within advanced engineering applications.

Understanding PEEK’s Chemical Resistance

When dealing with PEEK, the material displays an exceptional degree of chemical resistance. It is able to withstand harsh chemicals making it useful in severe environments. PEEK’s strength, in addition to aiding with the organic solvents, bases, and even acids, enables the material to endure against an entire array of troublesome substances. This ensures the performance in addition to the long lasting ability of PEEK when facing the rigorous demands of industrial and chemical aplications.

How Does PTFE vs PEEK Compare in Harsh Environments?

PTFE’s Performance in Harsh Environments

In addition to showing chemical resistance, PTFE can function in diverse tough conditions. It is non-stick, displays excellent thermal stability, and has a low coefficient of friction compared to other engineering substances. This non-stick polymer is able to withstand mineral acids and, aggressive bases, while exhibiting optimal performance at a temperature of 260 degrees celsius. Due to its low mechanical strength compared to PEEK, it’s impossible to use PTFE in high mechanical stress conditions or harsh wear circumstances, making it unsuitable for many applications.

PEEK’s Performance in Harsh Environments

PEEK (Polyetheretherketone) is known to unlock new applications and deal successfully with the toughest environments due to its extreme combination of properties. One of the core advantages PEEK has is in thermal applications, functioning up to 250 degrees celsius without issue. In addition, PEEK is able to withstand many types of corrosive organic and inorganic compounds without showing signs of degradation. These compounds consist of strong acids, bases, hydrocarbons, and even some intercontinental.

About these mechanical properties, the PEEK material possesses a tensile strength of about 90-100 MPa and flexural modulus of 3.6 GPa. This permits the material to preserve its shape while undergoing heavy mechanical loads. Furthermore its coefficient of thermal expansion is low, about 47 µm/m·K, and, therefore, enhances its shape retention abilities at changing temperatures. Its wear resistance can also be enhanced with the use of fillers or composites such as carbon and glass fibers for tribological uses including bearings, seals, and gears.

In terms of long-term durability performance, PEEK has great fatigue resistance properties, particularly in hostile environmental conditions with exposure to high pressure steam or radiation. These properties of PEEK support selection of material where there are concerns about high environmental loads in aerospace, automotive, and medical devices industries.

Comparative mechanical and chemical Resistance

Here follows a less summarized view of PEEK’s advantages over its alternatives in terms of mechanical and chemical resistance considering a couple of parameters of concern.

• Tensile Strength: 110 MPa providing great protects from forces directed towards the material in use
• Flexural Modulus: 4.1 GPa providing enough resistance for the material to be stiff under strain
• Compressive Strength: Over 120 MPa providing restrain in the same direction as the load is applied.
• Fatigue Resistance: Great with cyclic loading of materials in extremes.
• Impact Strength: Resistance to impact energy is higher, results in no sudden collapse of the structure.

Corrosion Resistance:

Exhibits some stability to acids, bases and salts making it suitable to work in aggressive chemical mediums.

Hydrolytic Stability:

Withstands hot water and steam for a long period of time, maintaining the structure without degradation.

UV Resistance:

Moderate, although prolonged outdoor usage may require better grades of UV stabilizers.

Solvent Resistance:

Resistant to destruction by organic and inorganic solvents such as hydrocarbons and ketones.

Radiation Resistance:

Exceptional protection from gamma radiation enables post sterilization or nuclear application performance.

With this mix of mechanical strength and chemical stability, PEEK is capable of performing reliably in highly demanding applications throughout different sectors.

What are the Applications of PTFE and PEEK?

Common Uses of PTFE In Industry

The unique properties of PEEK facilitate its widespread utilization. Below is a set of sectors within which this material with outstanding properties is used and supporting evidences:

PEEK of aerospace grade is used in parts like brackets, bushings, seals and cable insulation. Aircraft grade PEEK is lightweight yet strong, thus helps in reducing the aircraft weight and improving the fuel efficiency.

Supporting Evidence: The parts made from PEEK are lighter by 50% or more compared to aluminum parts, and thus help save fuel. Moat importantly, it can take temperatures of 260 °C (500 °F) and still stringent fire, smoke and toxicity (FST) regulations.

Applications: PEEK due to biocompatiblity is found in techno surgical implants like spinal fusion cages, joint replacement and dental devices. It is applied in tools of surgery due to its mainly ability to withstand many cycles of sterilization.

Supporting Evidence: Studies have confirmed a bone-like modulus of elasticity for PEEK of ~3.6 GPa that reduces stress shielding in implants, unlike metals such as titanium with ~110 GPa.

Support Data: According to the analyses, PEEK has superior mechanical performance with hydrolysis resistance and maintained its integrity after exposure to 200 degrees celsius.

Application: PEEK is used for valve seals, backup rings, compressor plates, and is used in extreme conditions with issuer of hydrolisis and chemical damage.

Application: It can be used in different types of cables such as within, insulations, connectors, and even in semiconductors. PEEK polymers are useful in these applications due to their electrical insulating abilities and resistance to wear.

Supporting Data: tests revealed that PEEK has an approximate dielectric strength of twenty-two kilowatts per millimeters, making them reliable insulation materials for the compact electronic systems.

Application: PEKE is also utilized in gears, bearings, and other parts under the hood of a vehicle to add strength without a significant impact on weight, which helps improve the efficieny of the vehicle.

Supporting Data: the use of PEEK type materials for the engine parts can result in 70% weight reduction compared to the used conventional steel parts and result in improve fuel economy.

The information given above depicts the suitability of PEEK with these industries while meeting the modern engineering specific challenges.

Novel Uses for PEEK Plastic

The latest innovations of the PEEK industry center on enhancing its processability and extending its use to different industries. Especially noteworthy is the incorporation of additive manufacturing in the form of 3D printing, which allows the economical production of intricately shaped and lightweight PEEK parts. This technology minimizes material use, lowers production costs and makes PEEK more viable for advanced prototypes and custom elements. Additionally, PEEK’s performance metrics like polymer thermal stability and impact resistance are enhanced through PEEK blending and compounding techniques. Industrial innovations such as these are the reasons for the use of PEEK in highly specialized fields including aerospace, healthcare, and renewable energy.

Challenges Facing the Use of PTFE and PEEK

Both PEEK (Polyetheretherketone) and PTFE (Polytetrafluoroethylene) are seen as major contributors to the material science field thanks to their unique properties. Below is a petailed breakdown of key properties for each material:

Properties of PTF:

• PTFE is highly resistant to corrosion and chemical degradation. This is as a result of it’s virtual inactivity to all chemicals and solvents.
• Organic bases, acids, and solvents remain unaffected by it.
• Has one of the lowest friction coefficients within solids.
• Prevents any attachment to other surfaces.
• Ideal for coatings in non-stick kitchen utensils and some industrial parts.
• Endures temperatures between -200 degree Celsius to +260 degree Celsius without deteriorating.
• Used in environments with extreme temperatures.
• High dielectric strength guarantees very low self-conductivity.
• Used in application where electricity needs to be insulated.
• Very little thermal expansion guarantees consistency with changing temperatures.

Working Attributes of PEEK:

• Works at continuously at approximately +260 Degree Celsius.
• Keeps its shape in high temperature surrounding.
• Exhibits good tensile strength and impacts resistance.
• Provides support for heavy workloads.
• Active against a large group of chemicals, such as hydrocarbons, acids, and bases.
• Used in aggressive chemical processing conditions.
• Guarantees a long working life even with high friction.
• Used in gears, bearings, and seals.
• Perfectly replaces metals due to high strenuosity combined with light weight.
• Used in aerospace and automotive.
• Implants for medical use and devices PEEK is non toxic.
• Commonly applied in the health sector for implants and parts of surgeries.

What these materials such as PTFE and PEEK give is the advantage of using them in modern engineering since they can be specifically designed to fulfill certain criteria that require high performance and bring reliability and efficiency to critical applications.

What are the Disadvantages of PTFE and PEEK?

PTFE Processing Constraints

Due to a combination of its elevated melting temperature and the altered non-melt processable form of PTFE, PTFE processing is complicated. Unlike common thermoplastics, PTFE cannot be fabricated via traditional injection molding, owing to the fact that it breaks down before attaining an adequate melt flow. Instead, it entails more advanced techniques such as compression molding, which subsequently require sintering, an inefficient fabrication sequence that is also very expensive. Furthermore, adhesion issues with PTFE are prevalent, rendering it infeasible to attach with materials even with surface modifications. These constraints may limit its use in applications that require competitive and large scale manufacturing processes.

PEEK Limitations in Specific Chemical Environments

Despite the broad range of chemical substances that PEEK can tolerate, PEEK has a number of limitations in particular environments like highly concentrated acids. For instance, concentrated sulfuric acid is capable of affecting PEEK to a not insignificant extent, impacting adversely on its tensile strength. Research reveals reports that PEEK’s tensile strength can reduce by more than fifty percentage points after a protracted and concentrated temperature of these strong chemicals. This indicates drawback limits its use in industry where severe chemical conditions exist and constant exposure is inevitable, such as in some of the petrochemical processes or high-performance chemical reactors.

Additionally, even though PEEK has good hydrolysis durability, continuous contact with superheated steam for long durations might have some effect on its mechanical properties. To deal with these problems, in most cases, a surface coating or some form of chemical alteration is employed when the PEEK components are placed in challenging settings. Notwithstanding these restrictions, PEEK is still regarded as a dependable material for most intense industrial processes because of its remarkable general strength and sustained performance features.

Cost Considerations for PTFE and PEEK

In consideration of the price of PTFE (Polytetrafluoroethylene) and PEEK (Polyetheretherketone), it is important to balance the current material cost against the potential advantages during application. PEEK is always much more costly compared to PTFE and the rate per kilogram of PEEK is usually between $50 to $100. On the other hand, the cost of PTFE ranges from $10 to $20 per kilogram. This difference in price is mainly because of PEEK’s increased machining that results in better mechanical and thermal properties.

Nonetheless, these expenses must be compared with the life cycle and performance of that asset. To illustrate, the strong current PEEK position on the market is a result of the fact that applications which involve using PEEK engineering plastic’s high reliability and durability usually justify its elevated price. Research indicates that in structures subject to significant loads and high temperatures, PEEK components can last up to three times longer when compared to PTFE, particularly when mechanical wear and thermal degradation are key concerns.

Moreover, other costs associated with servicing and replacement should be taken into account. While PTFE may be lower in price, its replacement may be more frequent as it is less resistant to wear, has low mechanical strength, and is unsuitable for repetitive loading. In contrast, the mechanical performance of PEEK may lead to less frequent breakdowns and maintenance, thus encouraging expenditure reduction across all sectors that rely on permanent equipment operation, such as aerospace, medicine, and oil and gas industries.

In hard and soft decision making, a review of the advantages and disadvantages associated with the choice of either PTFE or PEEK must be preceded by an analysis of the particular situation so that the material cost will be inclusive of the cost of installation and maintenance as well as the benefits of efficient operation.

Frequently Asked Questions (FAQs)

Q: Explain the basic differences PEEK has against PTFE?

A: When comparing these two materials, it is clear that the main difference can be found in the mechanical strength, chemical resistance, and thermal properties between PEEK and PTFE. In basic terms, PEEK is a high performance semi-crystalline thermoplastics engineered for strength and exceptional chemical resistance. In contrast, PTFE, which is Teflon, has great mechanical strength but PEEK always wins out because PTFE is notorious for lack of strength and covertly high temperatures during combustion.

Q: What is the difference in melting temperature of PEEK when compared to PTFE?

A: PEEK certainly has better thermal properties than PTFE. Take its melting point, for example: it is above 400 degrees Celsius. PEEK can easily be incorporated into high temperature applications. On the other hand, PTFE has a melting point of 260 degrees Celcius so it can be used for traditional methods like processing by melting but PEEK’s lackluster strength makes it unsuitable for anything aside from surface compositing. In comparison to those with PEEK, PEEK really excels in strength and thermal stability for these harsh environments.

Q: Can you briefly elaborate on how PTFE and PEEK are different in the processing techniques used?

A: Since PTFE is a solid plastic that cannot be melted, it undergoes cold extrusion. On the other hand, PEEK is a thermoplastic that can be processed with a wide range of manufacturing techniques, such as injection molding and extrusion, or even machining, which makes it more adaptable for the production of intricate parts. These differences in the methods of processing both PTFE and PEEK are essential in determining their applications and functions.

Q: To what extent are PTFE and PEEK materials chemically resistant?

A: While both PEEK and PTFE display remarkable resistance to chemicals, they do differ. PEEK is readily attacked by sulfuric acid and halogens when in room temperature; however, PTFE is far more favorable in chemical conditions. Because of this, there are some places where PTFE is more useful than PEEK: in harsh chemical conditions where PTFE’s chemical stability can be best used.

Q: What are the strength under load differences between PEEK and PTFE?

A: PEEK is considerably more powerful and has a high flexural and tensile strength compared to PTFE. For this reason mechanical and structural applications of PEEK are ideal where PEEK needs to function under load. So, in application where moderate mechanical strength is needed together with the flexibility and chemical resistance, PTFE is the right material, albeit chemically resistant to some degree.

Q: What makes it a better choice compared to other materials in high-performance systems?

A: In modern high performance applications, PEEK is preferred because it can retain mechanical strength at elevated temperature together with excellent chemical resistance and thermal properties. In addition, it possesses a very high PV (Pressure-velocity) limit which makes it a choice for aerospace components, medical implants, and industrial machines.

Q: What can you say about PTFE in the industrial advantages?

A: The advantages PTFE can contribute in industrial settings includes, lack of reactivity, chemical inertness and strength at elevated temperatures. It becomes ideal for lining of pipes, gaskets and seals in the chemical processing industries where there are corrosive substances.

Q: How do the properties of PTFE and PEEK influence their applications?

A: The characteristics of PTFE and PEEK have a significant impact on how they are applied. The exceptional mechanical and thermal properties of PEEK make it favorable for structural and other load bearing applications, and the remarkable chemical inertness of PTFE makes it suitable for both industrial applications and lab use where aggressive chemicals are handled. However, the selection of any of these polymers will depend on application needs.

Reference Sources

1. A Study on the Effect and Suppression of Hydrogen Permeation Behavior on the Friction Characteristics of PEEK/PTFE Composites via Molecular Dynamics Simulation

• Authors: Henan Tang et al.
• Journal: Polymers
• Publication Date: April 1, 2024
• Key Findings:
  • The study utilized molecular dynamics simulations to analyze the friction characteristics of PEEK/PTFE composites in the presence of hydrogen.
  • It was found that low levels of hydrogen permeation positively affected the wear rate of the composites, while excessive hydrogen led to increased wear and friction.
  • The introduction of graphene was proposed as a method to mitigate the negative effects of hydrogen permeation, enhancing the friction performance of the composites.
• Methodology:
  • Molecular dynamics (MD) and giant canonical Monte Carlo (GCMC) methods were employed to simulate the diffusion and permeability of hydrogen in the composites(Tang et al., 2024).

2. A Study on Tribological Performances of PEEK and PTFE Based Composites with MoS2 Reinforcements

• Authors: S. Guru et al.
• Journal: Polymer Composites
• Publication Date: February 28, 2024
• Key Findings:
  • The research investigated the tribological and mechanical properties of PEEK and PTFE composites reinforced with molybdenum disulfide (MoS2).
  • It was found that adding 3 wt% of MoS2 significantly reduced both volumetric wear and friction compared to other material combinations.
  • The study highlighted the importance of MoS2 concentration in enhancing the tribological functionality of the composites.
• Methodology:
  • The tribological characteristics were assessed using a pin-on-disk arrangement under dry conditions, and mechanical properties were evaluated through micro-scratch testing(Guru et al., 2024).

3. Optimization and Tribological Performance of PEEK Based Composite Coatings Reinforced with PTFE for Friction Pairs of Aviation Hydraulic Pumps

• Authors: Yufu Xu et al.
• Journal: Tribology International
• Publication Date: April 1, 2024
• Key Findings:
  • This study focused on optimizing PEEK-based composite coatings reinforced with PTFE for use in aviation hydraulic pumps.
  • The results indicated that the addition of PTFE improved the tribological performance, particularly in reducing friction and wear rates under operational conditions.
• Methodology:
  • The study involved experimental testing of the coatings under simulated operational conditions to evaluate their performance(Xu et al., 2024).
