Master the Art of Metal Cutting with a Laser Cutter: Everything You Need to Know!

For many years, precision and efficiency in cutting metal has been a challenge in numerous sectors, but with the introduction of laser cutting technology, this issue has been addressed. Now, it does not matter if you are a professional manufacturer, an artist, or even a hobbyist, learning laser cutter techniques can increase the value of your projects significantly. This blog post aims to provide you with a broad understanding on how to master the art of metal cutting with a laser cutter. The blogs span from explaining the principles of a laser cutter to the tricks which can guarantee perfect results. Be prepared to discover how this new technology can profoundly improve your skills in metalworking.

How Does a Laser Cutter Work?

Understanding Laser Technology

Similar to other laser applications, laser cutting as well as laser engraving are based on particular principles of focused illumination and thermal energy. In the more sophisticated laser cutters, materials are cut by directing a focused and powerful beam of light to the path of cutting so that the light will melt, vaporize, or thermally break the material to be cut. Focusing optics, mirrors or fiber-optics convey the laser beam to a lens. The lens reduces the beam to an exceptionally precise point and focuses it on the surface of the metal. This considerably high energy concentration allows the laser to cut, engrave or drill the surface using the laser light. The process is assisted by gas, which is often nitrogen or oxygen. The gas removes molten material while cutting and clean edges are produced.

Use of Laser Beams in Cutting Materials

Traditional methods of cutting materials lack the efficiency that laser cutting has today. The concentrated beam can create intricate designs with unparalleled precision for more complex applications. The process is also non-contact, making it ideal for intricate components without the risk of distorting the material or wearing out the tool. This type of cutting also allows for extremely small heat affected regions ensuring, smooth and clean edges, while also minimizing the need for further processing. All these advantages clearly show why laser cutting is the best choice for critical and design sensitive tasks.

The Optical Fiber Technology Cuts Like A Laser Approach

Fiber laser cutting machines work on a complex procedure that utilizes optical fiber technology to produce and focus on a high powered laser beam. Optical power is transformed into a high power laser beam with aid of a laser resonator which is located at the center of the machine. This beam passes through optical fibers which further improves the effectiveness of energy being lost during transmission. This is then placed onto the cutting head, where the laser is then placed into a computer numerical control CNC system, allowing for unprecedented precision and repeatability.

The procedure of cutting requires heating the material to the melting point with intense focus laser energy, simultaneously, assist gas (usually nitrogen or oxygen) is applied to remove molten material from the cutting position. This method makes it possible to achieve minimum waste of material while achieving a very high level of precision in edge trimming.

The development of fiber and CO2 lasers technology has resulted in these machines being much more productive because they can achieve cutting speeds three times greater than equivalent CO2 lasers on some applications. In addition, the compact body and the lower required maintenance increases cost-effectiveness, which is why these lasers are widely used across the aerospace and automotive industries.

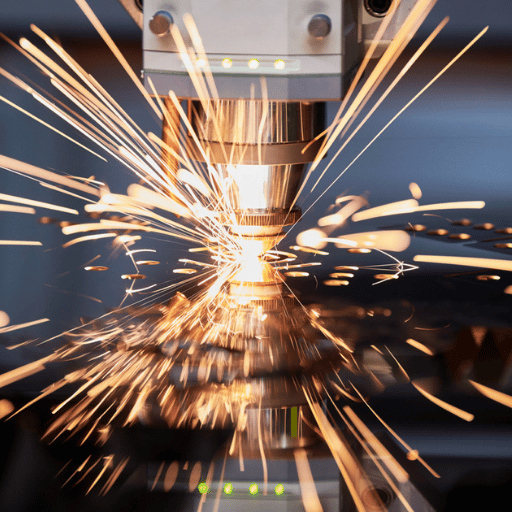

What Sorts of Metals Can Be Laser-Cut?

Cutting Stainless Steel with a Laser

Laser Cutting of stainless steel is a highly regarded process because of the efficiency of precision it brings. Focusing a laser beam can cut multiple thicknesses of stainless steel and obtain edges that are clean, free of burrs, and have low heat affected zones. This process is common among industries that have high quality component needs, including the manufacturing of medical devices and kitchen equipment. Laser cutting also permits for the computerized mielling of intricate cuts and engravings, providing accentuated accuracy in places where it is needed the most.

Dealing with Precious Titanium and Other Alloys

Because of their amazing strength to weight ratio, metal alloy titanium and its alloys are broadly used in multiple industries. Moreover, their corrosive resistance and biocompatibility makes them even more useful. These metals are typical in the aerospace, medical, and automotive fields where performance is essential and is tested in the toughest environments. Working with titanium require highly accurate machining and cutting to minimize distortion or excessive wear on the tool, as titanium is high strength low thermal conductivity metal.

Processing titanium and its alloys can be effectively done with advanced manufacturing techniques such as laser and water jet cutting. Reduced need for secondary finishing processes is possible with laser cutting owing to the accurate and clean edges it provides. Strength properties of the material are also preserved because the heat affected zone is minimized. Moreover, the use of coolant fluids and the optimized parameters of cutting tools in machining provide effective material removal while increasing tool life. Furthermore, the development of new methods in additive manufacturing made it possible to fabricate complex titanium components which further aids in the production of parts with complex shapes. All of these developments contribute to the increased versatility and applications of titanium and other high-performance alloys in engineering.

Difficulties Related to the Cutting of Reflective Metal Machining

Aluminum and highly polished stainless steel are metals with enhanced reflectivity that also happens to pose great difficulty while machining them. Their surface reflects light and heat which increases the challenges posed by mitigating the laser’s cutting effect. Furthermore, these metals possess high heat conductivity and therefore lose heat very rapidly, complicating the maintenance of temperatures necessary for cutting. These problems are often addressed by applying non-reflective coatings on the surface of metals, adjusting the cutting parameters, or using tool materials that do not reflect light. These actions enhance the effectiveness of the equipment, mitigate wear, and improve the quality of cuts.

What Makes Fiber Lasers Preferable To CO2 Laser Cutters?

The Benefits Of Fiber Laser Technology

Fiber lasers are far superior to CO2 laser cutters in many ways. Here are some of their advantages:

1. Increased Productivity: Fiber lasers use less power while providing more accurate and consistent results which increases productivity.
2. Fiber lasers have fewer moving parts and do not require gas supply systems, making it easy to maintain and highly durable compared to CO2 lasers.
3. The Speed Of Cutting: Fiber lasers have an increased speed of cutting thin materials which increases the throughput in different manufacturing processes.
4. Range Of Use: Fiber lasers are capable of cutting a wide variety of materials, such as aluminum and copper, which are highly reflective without damaging the equipment.
5. Space Effective: These systems are easified to integrate into different types of industries, making it less cumbersome while providing more workspace.

Investing in fiber lasers provide increased productivity, accuracy, and efficiencies compared to CO2 laser systems while still providing shred value to the industry.

The Laser Power and Efficiency Ratio

In the ratio of laser power against efficiency, fiber lasers score higher than traditional CO2 lasers on almost all parameters. To begin with, fiber lasers typically display an increased energy efficiency as they are able to convert electrical energy into laser light at a rate of 25-30 percent while CO2 lasers only reach 10-20 percent. These figures result in lower operational costs and energy consumption. In addition, fiber lasers are capable of producing superior beam quality which translates to precise cutting and improved material utilization. The faster cutting speed makes it possible for operators to increase productivity when working with thinner materials. Because of these factors, fiber lasers prove to be more beneficial and cost-effective when considering numerous industrial applications.

Precision and Speed of Cut with Fiber Lasers

Owing to their, high power density and superior beam quality, fiber lasers achieve unrivaled speed and precision. The ability to focus energy into a smaller spot size allows controlled and accurate cuts, minimizing distortions on the surrounding material. Such precision is critical in industries focused on intricate designs and delicate materials. Faster cutting speeds are also achieved which further increases production efficiency when working with thinner metals. These features guarantee high productivity without sacrificing quality.

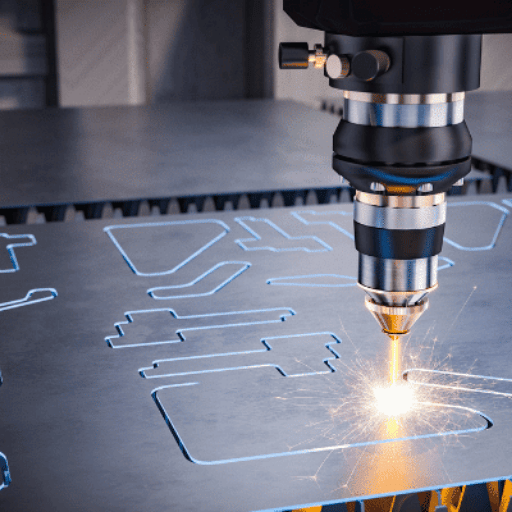

Metal Cutting Optimization for Various Cutting Tasks

Let’s Analyze Thick Metal vs Thin Metal Sheeting

When working with thick metal, employing low cutting speeds and higher laser power is crucial to achieve a clean cut to avoid cases of incomplete penetration. To further enhance the situation, assist gas such as oxygen can be utilized as this will improve heat transfer during the cutting process while also enabling the expulsion of molten material. When it comes to achieving consistent cutting depth, proper focus adjustment is also very critical.

As regards sheet metal cutting, it is best to employ moderate laser power alongside higher cutting speeds in order to prevent overheating and material warping. In regard to the assist gas, nitrogen is commonly used as it does not oxidize the edges of the cuts and results in lower edge contamination. Further focus optimization ensures the laser beam is maintained at the surface of the thin sheets, thus maximizing the quality of cuts.

Enhancing the Effectiveness of a Cutting Process

Start by making sure the laser machine is set up correctly because angles have significant effects on performance and cut quality. Next, oxygen assist gas should be chosen for thicker metals and nitrogen for thin ones in order to avoid oxidation. Also, remember that shutters and lenses should be cleaned regularly to avoid contamination that will negatively affect the quality of the beam and it’s effectiveness. Finally, use cutting software with recommended parameters to simplify operations and minimize waste to generate greater productivity and reduce costs.

How to Choose the Correct Cutting Head and Setup

The selection of the setup and cutting head greatly affects the efficiency and accuracy of a laser cutter operation. Sophisticated cutting heads that use autofocus are able to adjust the distance of the cutting lens to the workpiece to match its thickness thus facilitating accuracy and saving time. As well, the addition of high-pressure nozzles improves gas flow during the cut, resulting in more efficient cuts on thicker materials. During the setup of the system, it is recommended to utilize a tool for beam alignment in order to ensure that the laser source is properly positioned relative to the cutting head since this can have a detrimental impact on the cutting performance. Also of concern is that the lens type and focal length need to correspond to the material and application in question. These, along with proper settings for power and cutting speed, can be relied upon to ensure good quality results on many cutting assignments.

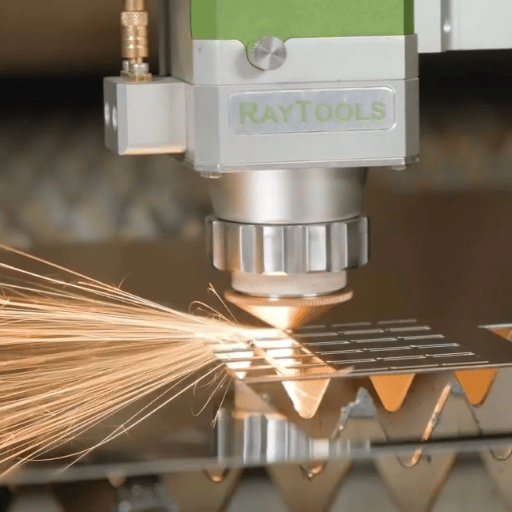

What Are the Latest Innovations in Laser Cutting Technology?

Developments in Fiber Laser Cutters

In the past few years, fiber laser cutters have received a large amount of attention for their modern designs that are aimed towards promoting efficiency, precision, and versatility. Some of the key advancements include increases in laser power, where certain systems have achieved upwards of 20 kW, enabling quicker cutting of thick steel and aluminum. Another significant innovation in laser-cutting technology is the increased quality of the beam, which facilitates cutting of a wider range of metals and improves the quality of the cut. Moreover, intelligent nesting software and monitoring systems that allow for the real time optimization of materials eliminate overuse and wastage of materials. Additionally, modern fiber laser cutters are cost-efficient and eco-friendly due to compact designs and energy saving features, which makes them ideal for a wide range of industrial needs.

Upcoming Developments in Metal Fabrication

The future trends of metal fabrication appear to show a sustained movement towards the incorporation of new technologies alongside sustainable measures. It is anticipated that automation and robotics will further simplify the quality and efficiency in the production processes. More AI (artificial intelligene) and machine learning systems are being added to fabrication systems for automated prediction of equipment failures and real time control of processes such as material cutting. Furthermore, the industry is adopting greener measures by investing in more energy-efficient machines and using recycled raw materials to lessen the negative effects on the environment. There is also growing adoption of additive manufacturing methods like 3D printing which fosters a shift in design and subsequently lowers waste material. Collectively, these modifications seek to increase productivity, precision, and sustainability in the sector.

The Importance of Metal Laser Systems in Contemporary Manufacturing

Due to their define and high degree of mechanization, laser systems have become central to the contemporary manufacturing process. Concentrated laser beams are used to cut, weld, etch, or engrave on the surface of metal components which is exceptionally precise. In addition, material expenditures are notably low because of the minimal wastage. These systems are particularly beneficial for high quality production of complex designs in bulk, which requires a uniform standard across output. In addition, progress in fiber laser technology has enhanced the energy efficiency and broadened the scope of materials that can be processed by laser. Industries experienced in the manufacture of aerospace, automotive, and electronics are however more inclined to resort to metal laser systems to maintain competitiveness within sophisticated and fluid production requirements.

Frequently Asked Questions (FAQs)

Q: What is a metal laser cutter, and how does it function?

A: A metal laser cutter is a highly efficient laser device that effectively cuts metal through a complex process of focusing light beams. A metal laser cutter focuses a laser’s energy at a small designated point on the metal piece. Once focused on, heat is generated at such a level that it either melts or vaporizes the assigned spot. This makes the whole metal cutting application precise and efficient.

Q: Which metals are ideal for cutting with a laser cutter?

A: Metal laser cutters can slice carbon steel, mild steel, stainless steel, aluminum, and even some brass and copper. However, the ability to cut certain types of metals depend on their thickness as well as the power and wavelength of the laser.

Q: How does a laser cutter differ from other metal cutting machines?

A: Unlike the traditional metal cutting machines, laser cutting equipment enables its users to take advantage of greatly reduced material waste, highly precise cutting at faster speeds, and the ability to cut complex shapes with ease. Additionally, CO2 and fiber laser processing options make it a great candidate for cutting different types and thicknesses of metal.

Q: What is the difference of CO2 and fiber laser cutting?

A: The virtual distinction exists as regards to the type of laser used and the mechanism through which the laser beam is produced. CO2 lasers are gas lasers best suited for cutting non-metal materials such as acrylic sheets or some metals. Fiber lasers, on the other hand, utilize solid-state crystal lasers and are generally more effective when cutting thin sheet metal and other reflective substances.

Q: Is it true that a laser cutter can engrave on metal apart from cutting it?

A: Certainly. A laser metal cutter can equally engrave on the surface of metal. The process if engraving starts by setting the power of the laser machine to a lower value and the speed to a higher value, which permits the laser to, without cutting into the metal, etch intricate designs or text onto the surface.

Q: How thick of a metal sheet can be drilled by a laser cutter?

A: The thickness of the metal sheet that can be cut depends largely on the power of the metal laser cutter. High-powered laser cutters can cut thicker materials, while lower-powered machines are typically used for thin sheet metal cutting. For instance, carbon steel sheets of a thickness of one inch can be cut by a high powered laser.

Q: What measures need to be taken when operating a laser cutting machine in terms of safety?

A: While operating laser machines, users should put on protective equipment like safety goggles to shield the eyes against the machine’s light beam. The room where the machine is operated should be properly ventilated so as to not inhale any smoky substances. The machine also has to be well maintained in order to avert any mishaps.

Q: Why is laser cutting important for the industry?

A: The merits of laser cutting for industrial procedures include faster intricate design cutting, increased accuracy, and increased repeatability. Laser cutting increases efficiency by eliminating the need for many tools, decreasing setup time, and minimizing person-hours and materials spent when mass-producing metal products, which in turn increases profit margins.

Q: Is it easy to know what laser cutter you need?

A: The correct laser cutter can be determined by considering the type of metal, thickness of the materials, and what you are willing to spend. Consider researching a few different laser series and checking out boss laser news for their latest information and products to see which series would be the best laser cutter for your needs.
