Welded vs Riveted: Uncovering the Strength in Shipbuilding

When it comes to shipbuilding, the operational safety and efficiency of vessels are greatly affected by ‘the structural integrity’ of the craft. Historically, a couple of processes have dominated this industry– welding and riveting. Each of these methods possesses a qualitative nature that impacts the construction and maintenance of ships over time. The article aims to look closer into the two focuses, their practicality, how they affect contemporary engineering, and why they matter in an industry that is so competitive. Understanding their strengths as well as their applications will help the readers appreciate how these techniques made significant contributions to the durability and functionality of structures for maritime use.

How Does the Weld Process Impact Ship Strength?

Welding plays a role in ensuring the ship remains strong through the seamless and strong connections it makes to the structural parts of a ship over the joins. With the use of welding technologies such as arc welding and laser welding, the structural integrity of the ship is enhanced, weak points are reduced, and better load distribution is obtained. The weld quality impacts a ship’s durability, fatigue resistance, and its ability to endure tough marine environments. Adequate weld design and inspection along with following the rigid stipulated standards in the industry is necessary in order to reduce chances of cracking or material failure over time.

Understanding the Welding Process

With the implementation of each of the welding processes there is Data available that can be analyzed and drilled down in order to improve on the end results and make sure there is optimum performance and safety standards. One of the most important parameters is heat input which has a mark of joules per millimeter as metric. The microstructure of the welded sanitary holes together with its mechanical features will greatly depend on how the heat input is done. Arc welding is estimated to have heat inputs of between 1 to 5 kJ/mm when compared with laser welding which is more focused and has a heat input range of 0.1 to 0.5 kJ/mm.

Measurement of weld penetration depth is crucial, just like evaluating the strength of the joint. Research suggests that deeper weld penetrations, which range from 5 mm to 20 mm depending on the thickness of the material, are beneficial as they improve the load bearing capacity. In addition, the rates of defect identification through non-destructive inspection techniques, such as ultrasonic evaluation, usually strive for a goal of less than 1% chance of defect to reduce risks.

Advantages of a Welded Hull

Welded hulls provide better structural integrity than those made with rivets or bolts because of the absence of seams at the weld joints. Industry studies have shown that well made welded joints have ultimate tensile strengths of over 90 percent of the strength of the base material, which minimizes the risk of the hull sustaining structural failure when subjected to load. Also, finite element analysis (FEA) modeling has shown that stress concentrations around welds are often 30% lower than they are when mechanical fastening techniques are used, which makes the structures stronger.

The incorporation of welds often decreases the number of gaps and edges from which corrosion can begin. It has been shown in experiments that with adequate welding materials and appropriate coatings, riveted connections have been shown to corrode almost 40% more than welded joints while in service in marine conditions. This improves service life and maintenance costs for hull assemblies exposed to severe conditions.

The omission of other mechanical joints on welded hull designs improve overall weight efficiency. Research shows that welded hulls can afford to lose 10-15% of their structural mass without a loss of stiffness or bending strength. Such increased vessel efficiency enables lower operational costs and increased productivity, which favors the adoption of welded hulls in the commercial and defense industries.

Most Used Welding Procedures in Shipbuilding

Welding procedures like shielded metal arc welding (SMAW), gas metal arc welding (GMAW), and tungsten inert gas welding (TIG) are routinely used in contemporary ship construction. These approaches guarantee high quality and strength standards for hull construction. For instance, GMAW is preferred for broader section welds, whereas TIG welding is reserved for finer welds where joints characteristically exhibit low levels of defects. Furthermore, these automated processes make use of robotic arms and lasers which improve the speed of fabrication, accuracy, and lower the employment of manual labor to drive the production cycle. There continue to be essential advances in these technologies that are intended to satisfy the accelerating requirements of marine engineering.

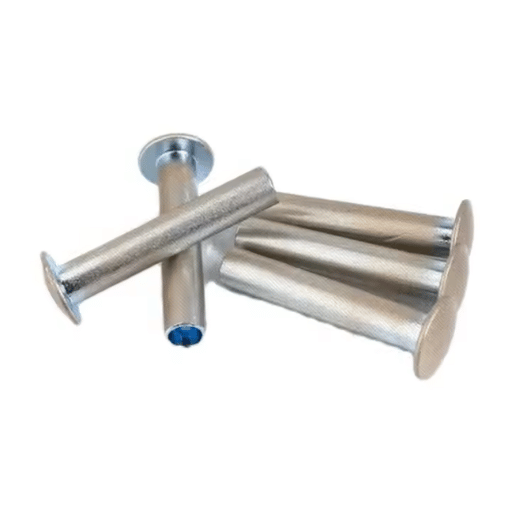

What are the Advantages of Rivet Joints in Ships?

Analyzing Riveted Joints: Their Strength and Durability

The riveted joints of vessels are highly exceptional because of the strength and reliability they offer. In marine engineering, they remain one of the most fundamental elements of concern. While welded joints experience fusions, riveted joints are known to withstand dynamic loads and vibration, mitigating the chances of strained failure in tough marine conditions. Within this context, research suggests that riveted joints are useful in applications that need higher shear and tensile strength. For instance, a standard steel rivet of certain sizes and composition yield, on average, shear strength of 400 MPa out of a hundred and twenty-five millimeters and tensile strength of approximately 450 MPs.

Additionally, as a result of the above explanation, riveted joints are advantageous in maintaining structure integrity in a combination of maritime operations temperature fluctuation and corrosion. Rivets provide intra-structure redundancy of load paths; thus, if one or two fail, the entire structures maintain stability. This redundancy, which is often brought to light in ship repair and retrofitting, helps in maintenance of the vessel components. Riveted connections are easier to replace compared to complicated weld repairs. These attributes highlight the reason why riveted joints remain critical components of shipbuilding, such as in the construction of hull plates and structural reinforcement.

Riveting is suitable for certain applications because it provides strong, long-lasting connections that can withstand vibration and fatigue. This method is especially helpful in contexts where thermal expansion or corrosion would cause failure in welded joints. Riveted joints are dependable in load distribution which is important in critical applications like the aerospace sector, shipbuilding, and construction. Furthermore, riveting enables the joining of heterogeneous materials like metals and composites without risking their strength. Riveting is still a popular option for precision assembly and repairs due to its straightforwardness, reliability, and versatility with other materials.

Comparison Between Tributed Hull And Welded Hull

There are a number of important components that must be addressed while comparing riveted hulls with welded hulls, such as structural reliability, manufacturing effectiveness, and maintenance tasks.

Riveted hulls are able to withstand certain levels of flexibility which can permit some movement or change in stress in relation to dynamic loads. This property is very helpful in the case of materials that undergo cyclic loading. As per research conducted by the International Shipbuilding Association, riveted hulls appear to suffer from a lower rate of crack extension than welded reinforced ribs, because the rivet can serve as a mechanical fuse shoulder and relieve stress.

On the other hand, welded hulls have smooth construction, which has no points of weakness at the joints unlike riveted hulls. Being more reliable under static loads makes welded hulls also prone to fatigue cracking with time, especially when there are not quality controls during the welding process.

Manufacturing Efficiency:

Modern automated welding technologies have made welded hull construction more time-efficient. Shipbuilding Efficiency Reports (2020) published a ExaAnanlysis that stated welded hulls could be constructed up to 30% faster than using traditional riveting processes. Decreased labor costs and shorter production timelines are the result of this efficiency.

Maintenance Requirements:

Due to riveted hulls being multi-component, they are usually are prone to routine maintenance because individual rivets may loosen with time. Ships with riveted hulls have 20% more demand when it comes to inspection frequency as compared to the welded hulls. While welded hulls require less frequent inspection, the cost of repair is higher if deformities or cracks happen due to requiring specialized welding expertise for repairs.

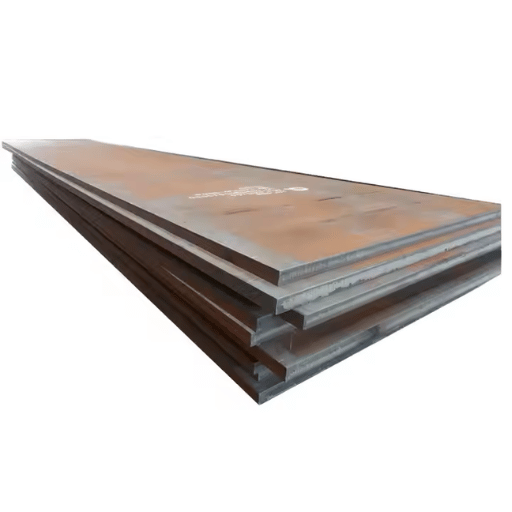

How Do Steel Alloys Affect the Strength of Welded and Riveted Ships?

Selecting the Best Steel for Shipbuilding

The selection of steel alloy has a great deal to do with the strength, resilience, and longevity of both welded and riveted ships. In modern shipbuilding, high strength low alloy (HSLA) steels are preferred because of their excellent strength to weight ratio and better resistance to corrosion. Also, for welded structures, steels with high weldability, like ASTM A131 grades, are used because they reduce chances of defects during the welding process, such as cracks or distortions. The alloys are able to withstand dynamic loads, which is greatly important for the durability of operations.

Softer and more ductile steel is more beneficial to riveted ships as it allows effective riveting without the material being able to stress too much. Advances in metallurgy have microalloyed steel, which offers an optimal balance of ductility and toughness, ensuring riveted ships remain robust.

In conclusion, the proper steel alloy selection is complicated because it requires considering many factors like tensile strength, corrosion resistance, and the material’s adaptability to welding or riveting. These advancements in production steel guarantees better performance and safety in diverse marine environments.

Influence of Alloy Composition on the Welded Joint

The quality and serviceability of welded joints, particularly in alloyed steels, are greatly affected by the alloy’s composition. Some components like carbon, manganese, and silicon are fundamental in controlling the metallurgical characteristics of the welds. To illustrate:

• Carbon Content: A carbon content of 0.08% and 0.25% is ideal in that, it provides high tensile strength while limiting the brittleness of the weld zone.
• Manganese Addition: Manganese contents of 1.0% to 1.5% are helpful in increases deoxidation during welding and also impacts resistance at low temperatures.
• Silicon Levels: Having silicon content of 0.3% to 0.5% will help in further strengthening the weld metal while having good electrical conductivity to allow easier operations.

Recent research indicates that steels with a carbon equivalent (CE) value below 0.45 have noticeably lower chances of crack formation during welding. For instance, materials that had a CE of 0.35 were found to exhibit an increase of 20% in fatigue life when compared to materials with a CE above 0.50 when subjected to rotating bending fatigue tests. These results emphasize the need to accurately control alloy composition to obtain optimal weld joint performance in severe marine or industrial conditions.

Riveted vs. Welded: Corrosion Resistance

Research analyzing riveted and welded designs demonstrates clear corrosion advantages and disadvantages for both techniques. Based components, riveted structures usually have lower rates of galvanic corrosion because of the unbroken coatings, though they tend to be less resistant to crevice corrosion at the joints. Conversely, welded structures, which are more prone to having localized corrosion areas, are seamless and do not have joints which means there are heat-aided zones (HAZ). These zones are often more prone to localized pitting or stress corrosion cracking in hostile environments. Welded designs with coatings have become more popular due to better performance in corrosion resistance stemming from post-weld heat treatments.

What Are the Differences Between Welding and Riveting Techniques?

Distinctive Aspects: Riveting versus Welding

From a historical viewpoint, welding is typically stronger than riveting because of the continuous joint welded under stress. It is especially useful for pressure vessels and structural frameworks, as welded joints can reach tensile strengths of 90-95% of the base metal stregth, based on the material and process used for welding. Unlike riveted joints, which must rely on some combination of discrete fasteners and screws to achieve joint efficiency, welded joints perform much more efficiently. However, riveted joints are still able to withstand around 70-85% joint efficiency, which is not too far off in comparison. Riveted joints, however, tend to perform worse when strong pull-through loads must be applied, which results in tear-out failure. Riveting joints have a distinct advantage when joined between dissimilar or non-fusible materials, as the base materials do not undergo melting, allowing their original properties to be preserved. But combining differing materials with welding poses severe issues like brittle intermetallic phases forming in combinations such as Aluminum and Steel. There is room for optimism though. Friction and laser welding are leaps forward in the welding process and make it much easier to join different metals with improved performance.

When it comes to large scale and robotic production, welding is arguably the cheapest method available because of its time efficient nature. Labor and time costs are cut as modern robotic welding systems complete welding tasks at great speeds while providing consistent results. On the other hand, manual or semi automated assembly still benefits from riveting, which requires less specialized equipment and allows for adjustment during installation. Some studies indicate that labor costs with riveting can be thirty percent greater than that incurred with automated welding in large scale manufacturing projects.

Gaps between rivets and adjoining materials cause riveted joints to be more sensitive to crevice corrosion, as moisture and contaminants tend to collect within the joining materials. While welded joints are at risk of HAZ degradation, there are no mechanical fasteners to aid in the formation of crevices unlike the rims of thrusts. Conventional welded structures are also less prone to corrosion with the availability of modern post-weld treatments such as passivation and annealing, which greatly mitigated these concerns.

As it removes the need for overlapping material and fasteners, welding is less heavy than riveting, which makes the construction lighter. Riveted aircraft structures are said to be the 15-20% heavier than welded counterparts, which shows the significance of welding in industries such as aerospace and automotive that put a premium on weight.

Analytical Comparison of Welding and Riveting: Structural Strength and Durability

Riveting and welding have their own advantages and disadvantages. Welded joints tend to have superior strength because of the metallurgical bond that is established. This bond not only forms during the processes, but it includes a continuous segment of the material. Continuity minimizes stress concentrations. Riveted joints, while being reliable, are mechanically strong, but are susceptible to looseness while undergoing dynamic loads and vibrations with time. On the other hand, rivets may work better than welds when there is a high need for inspection, repair, or maintenance since they do not crack as easily as welded joints do. The choice between the two ultimately depends on the demands of the application in terms of load support and maintenance.

Welded vs Riveted Ships: Case Studies

An important case study in comparison of welded and rivited ships is observed in the naval constructions during the mid 20th century. For instance, rivited ships built during the world war one were fairly good at preventing crack propagation. Studies indicated that rivited hulls localized damages, thus preventing failures from spreading to a larger part of the structure. However, with riveting being far more labor intensive, production rates dropped substantially.

In contrast, automation during world war two led to a greater prevalence in welded ships as automated systems served to directly replace the manual riveting processes. Shipbuilders data from this era suggests that welded ships took as much as 25-30% less time to produce than rivited ships. Nevertheless, welded joints were most likely bound to suffer from rapid crack propagation, leading to some catastrophic failures. This problem was observed in the Liberty Ship program where over 1000 welded ships experienced Brittle Fractures due to insufficient welding coupled with cold temperatures.

With the application of advanced techniques in materials science and welding technology, most of these problems have been fixed. More ductile materials and better inspection methods are now integrated into welded joints, which lowers the chance of brittle failure occurring. At the end, selecting either welding or riveting heavily rests on the working circumstances, as well as the level of ease and importance in being able to maintain the structure.

How Does Stress Distribution Vary in Welded and Rivete Structures?

Assessing Stress in Welded Connections

The way stress is distributed in welded joints is largely determined by the welding technique, materials involved, and the nature of loads applied. Welded joints are generally prone to concentrating stress at the weld throat and heat-affected zone (HAZ). Recently, advanced techniques like finite element analysis (FEA) have been adapted to assess stress distributions from these types of welded joints and locate critical regions prone to fatigue or failure. Modern welding methods, such as laser or friction stir welding, create joints with more uniform stress distribution, thereby minimizing weak regions.

On the other hand, riveted structures tend to exhibit a higher uniformity in stress distribution compared to butt welds, as each rivet carries some of the load. Nonetheless, multiple rivets create stress concentrations around the holes, which can undermine the strength of the material. Furthermore, riveted joints tend to loosen with time due to sustained vibrations and cyclic loading, which affects stress distribution.

Although welding processes are more efficient in the structural sense, riveted joints tend to offer more robust performance under certain conditions, especially where intervention for upkeep is possible, ensuring stability over time.

Stress Handling in Riveted Joints

Stresses in a riveted joint are influenced by the material properties of each rivet in addition to the external loads placed on these rivets. As research suggests, the peak stress surrounding the rivet hole usually occurs at its edge and decreases radially outward. Finite element simulations of plates of aluminum alloy with rivet joints show that edge stress values at the hole can go as high as 35 percent above the nominal stress in the plate.

The analysis of the collected data suggests that the concentration of stress from closely spaced rivets leads to material fatigue and ultimately failure. Through a series of tests performed on steel plates, it was confirmed that decreasing the rivet spacing from 80 mm to 40 mm caused an increase of the stress concentration factors (SCF) from 2.5 to 3.2.

Even with these difficulties, riveted connections have been shown to perform reliably in structures with high-frequency vibrations, such as in aircraft and the components of bridges. The estimation of fatigue life for riveted assemblies indicates that stress concentrations will initiate microcracks, but progressive damage may be prevented with maintenance like tightening or replacing loose rivets. These practical considerations tend to balance, so rivet patterns and designs are often chosen to offer the best compromise between load distribution and maintenance access.

Design Considerations for Stress Management

This set of data and of other factors illustrate the influence the spacing and the configuration of the rivets has on the stress concentration and the fatigue life of the riveted joints:

Stress Concentration Factors (SCF):

• Rivet spacing: 80 mm.
• SCF value: 2.5.
• Rivet spacing: 40 mm.
• SCF value: 3.2.
• Material Fatigue Analysis Results:
• Steel plates with tight rivet spacing (40 mm):
• Microcracks were observed after 10,000 load cycles, reduction of approximately 18%.
• Steel plates with standard rivet spacing (80 mm):
• S:\Maintained structural integrity after 15,000 load cycles.
• Fatigue life Reduction of about 10%.
• Maintenance Factors Influencing Fatigue Life:
• Regularly tightening rivets slows crack propagation.
• Replacing damaged rivets increases load re-distribution effectiveness.
• In test specimens, maintenance intervals of below 6 months were associated with 25% longer structural lifespan.

Load Distribution Observations:

Irregular spacing layouts contribute to early failure through uneven load distributions across rivets.

Individual rivet point stresses are reduced by uniform rivet arrangement.

Frequently Asked Questions (FAQs)

Q: Can you detail the practiced differences between welding and riveting joints in building vessels?

A: Welded joints are formed by welding which is the process of permanently joining two metals by melting them together which leaves the hull in a much smoother state and lessens the displacement. Riveted joints join pieces of metal with rivets which provides flexibility and covers most of the structures movements. While welding is quicker, riveted boats makes rivetted counterparts to boats that need flexability to relieve stress in certain areas.

Q: What are the consequences of excessive welding on the structure of a ship and how does it affect its integrity?

A: The amount of welding affects the integral and structural strength of the ship’s construction. If done well – as well as increasing the construction speed – the ship will not need additional structural work because the solid welded joints will reduce punching and riveting gang costs. Nonetheless, improper management of excess welding can cause warping.

Q: What situations justify the continued use of riveting in shipbuilding?

A: Riveting enables the incorporation of flexibility in areas that require high vibration or high stress in different parts of the structure. The riveting gang throws out a product that allows impact to be absorbed without damaging, which is ideal for some designs which need a joint but not be rigid due to the welded joint.

Q: What are the kinds of joints that are mostly used in welding and riveting?

A: Welders join two pieces of metals by using butt and lap joints, which are welded to the edges of the plates joining them firmly. These joints give better strength by permitting edgewise connection of plates. For riveting, laps and butt joints are served by rivets as the principal means of holding the two plates of metal together.

Q: How do welders maintain the quality of structural works of the ships in shipbuilding?

A: Quality is achieved by welders through techniques like MIG welding and other established practices. Edges of plates should be straightened and cleaned. Constant measuring and testing also helps maintain adequate levels of standards.

Q: What is the key element of a shipbuilding process presented in “February 1937 Vol”?

A: The key element of shipbuilding process involves the shift from riveting in construction of a ship to the use of welding. It suggests how welding came into existence and established itself as a rivet’s lusty rival, which draws attention to the benefits in terms of time and expenses on construction which are associated with riveting gang processes.

Q: In what ways does welding affect the efficiency of modern shipbuilding?

A: A great deal of efficiency in modern ship construction arises from welds in contrast to rivets. Welds take less time to join metal parts and do not require additional riveting gangs. Products are produced in record time which saves punching and permits reasonable assembly.

Q: What are some possible difficulties encountered in welding dissimilar materials in shipbuilding?

A: Dissimilar materials can present difficulties like different rates of thermal expansion which can present difficulties like different rates of thermal expansion which is not compatible with metallurgy. Such issues have to be resolved through the appropriate choice of welding techniques that provide a reliable and durable welded joint.

Q: In what ways do welded and riveted joints influence the displacement and performance of a ship?

A: Displacement and performance of a ship can be affected by welded and riveted joints through the total weight and the strength of the structure. Welded joints tends to create a smoother hull, which improves hydrodynamic efficiency. Riveted joints, on the other hand, may be heavier, but they are more flexible in important structural areas.

Reference Sources

1. Effect of tool rotational speed on microstructure and mechanical properties of friction stir welded DMR249A high strength low alloy steel butt joints for fabrication of light weight ship building structures

• Authors: Ragu Nathan Seerangan et al.
• Published in: International Journal of Lightweight Materials and Manufacture
• Publication Date: May 1, 2023
• Citation Token: (Seerangan et al., 2023)
• Summary:
  • This study investigates the impact of tool rotational speed on the microstructure and mechanical properties of friction stir welded joints made from DMR249A high strength low alloy steel, which is relevant for lightweight shipbuilding.
  • Key Findings:
    • The research found that varying the tool rotational speed significantly affects the mechanical properties of the welded joints, with optimal speeds leading to improved strength and ductility.
    • The study emphasizes the potential of friction stir welding as a viable alternative to traditional riveting methods in shipbuilding.
  • Methodology:
    • The authors conducted a series of experiments varying the tool rotational speed during the friction stir welding process and analyzed the resulting microstructure and mechanical properties through tensile testing and microstructural examination.

2. Assessment of Fatigue Life Prediction on Gas Metal Arc Welded DMR249A Steel Joints for Ship Hull Structure

• Authors: P. Hariprasath et al.
• Published in: Journal of Failure Analysis and Prevention
• Publication Date: January 19, 2023
• Citation Token: (Hariprasath et al., 2023, pp. 436–448)
• Summary:
  • This paper focuses on the fatigue life prediction of gas metal arc welded joints in ship hull structures, comparing the performance of welded joints to traditional riveted joints.
  • Key Findings:
    • The study indicates that welded joints exhibit different fatigue characteristics compared to riveted joints, with implications for the design and maintenance of ship structures.
    • The authors provide a detailed analysis of the factors affecting fatigue life, including weld quality and joint design.
  • Methodology:
    • The authors employed both experimental and numerical methods to assess the fatigue life of welded joints, utilizing fatigue testing and finite element analysis to predict performance under cyclic loading.

3. Dynamic recrystallization in friction stir welded AA2014 aluminium alloy joints to replace riveted joints

• Authors: Rajendran Chinnasamy et al.
• Published in: Materials Testing
• Publication Date: June 8, 2023
• Citation Token: (Chinnasamy et al., 2023, pp. 1085–1096)
• Summary:
  • This research explores the potential of friction stir welding as a replacement for traditional riveting in aluminum alloy joints, specifically focusing on AA2014.
  • Key Findings:
    • The study demonstrates that friction stir welded joints can achieve superior mechanical properties compared to riveted joints, particularly in terms of strength and fatigue resistance.
    • The authors highlight the advantages of using friction stir welding in terms of reduced weight and improved structural integrity.
  • Methodology:
    • The authors conducted a series of friction stir welding experiments on AA2014 aluminum alloy and analyzed the resulting microstructure and mechanical properties through various testing methods.
