Mastering the Knurling Tool: Types, Machines, and Holders Explained

In diverse applications, knurling serves a critical role in achieving proper grip, as well as adding decorative elements and shapes, all while ensuring high-quality accuracy. Whether you are a seasoned machinist or a newbie in the manufacturing world, understanding knurling tools, compatible machines, and the various types of holders is paramount to achieving quality notable results. In this blog post, I attempt to explain the basic and also advanced details of knurling along with its types, the machinery used, and the tools required in order to achieve maximum productivity. In the end you’ll fully grasp how to fine-tune your knurling operation for efficiency as well as accuracy.

What is a knurling tool, and how does it work?

A knurling tool is a machine worked device to form a knurl pattern as texturing on a workpiece surface. A knurl is a type of texture that has straight, diagonal, or diamond shaped grooves which is raised above the surface of the workpiece. It operates by applying pressure through hardened steel wheels known as knurling dies, which sculpt the rotating workpiece. This results in elevated patterns due to the material on the surface being displaced. Improved grip on cylindrical features such as control knobs or tool handles, as well as the enhancement of aesthetics and functionality of industrial and mechanical parts, are some common uses of knurling.

Understanding different knurl types

Based on the orientation and pattern of the grooves, knurling can be distinguished into several types, and each type with its respective application. Three common forms of primary knurl patterns include diamond, straight, and diagonal knurling.

Straight Knurl

• Straight knurls have parallel grooves that are drawn tangentially to the axis of the cylinder. This type is very useful in improving the grip for processes where there is no requirement for rotation. It is mostly employed in the tool handles and other cylindrical grips. It does increase grip, but usually, in cylindrical tools, it does not add torsional resistance, which makes it very useful in the tools that employ straight knurling.

Diamond Knurl

• A cross action of the groove design results in diamond knurling, which produces a series of small raised diamonds. It provides a good grip and is difficult to wear, so it is very useful when handling high torque and heavy friction. Diamond knurls are commonly employed in industrial tools, machine knobs, and in some fitness equipment such as dumbbell handles.

Diagonal Knurl

• Diagonal knurls consist of grooves that run on both single or opposing angles obliquely to the axis of the tool. This is not as common, although it does have some visual appeal. Sometimes, it is resorted to in certain components that require both functional and visually pleasing finishes, as it is typically used in mechanical components.

Primary Assumptions and Design Criteria

• Pitch (Groove Spacing): The distance between grooves is important in terms of determining both knurl density and functionality. Heavy-duty applications require coarse knurls with larger groove spacings, whereas fine knurls serve precision components as well as decorative purposes.
• Material Displacement Depth: The depth of the knurl pattern affects performance and the life of the tool. While deep knurls provide better grip, they also necessitate stronger materials to avoid surface damage.
• Tool Selection and Configuration: Knurling tools and dies must be chosen according to the workpiece material, knurl angle, and the desired pattern. Composite materials, for example, may need special dies to avoid excessive tool wear.

All these details and variations must be understood for the proper selection of the knurl type, which, when optimized, will achieve the thermodynamic goals while still providing sufficient functionality and form on the machine.

Exploring various cut types in knurling

Based on the process of manufacture and their application requirements, knurling can be categorized into three primary cut types:

• Straight Knurling produces parallel lines which are made for ornamental purposes or to form gripping surfaces. Straight knurling is an uncomplicated form of knurling which finds application in many industries.
• Diagonal Knurling produces a line pattern that is inclined and provides another option for appearance as well as function. It’s used when textures for specific rotations are required.
• Cross Knurling produces crisscrossed and diamond-shaped lines, which provide Great aesthetics while also providing a striking grip on the surface of the material. This type is best suited for parts with high friction requirements, like knobs and handles.

For each cut type, certain functional, aesthetic, and material criteria must first be set within which the cut can be made.

The role of diameter and pitch in knurling

Both diameter and pitch are critical parameters that have a direct impact on the accuracy and efficiency of the knurling process. The diameter of the workpiece dictates the position and distance of the knurling teeth so that there is uniformity in the patterns formed. Larger diameters tend to accommodate coarser knurling, while smaller diameters tend to accommodate finer knurling.

Pitch refers to the distance from one adjacent ridge to the next or from one knurl tooth to the next. It is often expressed in TPI or teeth per inch or as the distance in millimeters. An increased pitch leads to fewer teeth per unit area and a wider pattern, which is favorable for providing better grip. A finer pitch, which has a denser concentration of teeth, is often employed in aesthetic pieces or parts that need a higher level of precision.

For instance, for more industrial purposes, knurls with pitches of 1.0 to 1.5 mm are common in medium-sized components to provide a balance between grip and surface quality. For finer parts or decor pieces, pitch values of 0.5 to 0.8 mm are more appropriate so that quality detailed patterns can be produced.

Proper coordination between diameter and pitch is necessary to avoid spacing patterns, incurring damage to the component, or applying excessive stress on the tool. Engineers and machinists utilize calculation tables and specific tool settings to correlate pitch value with workpiece size, allowing them to accomplish the best results with regard to functionality and design.

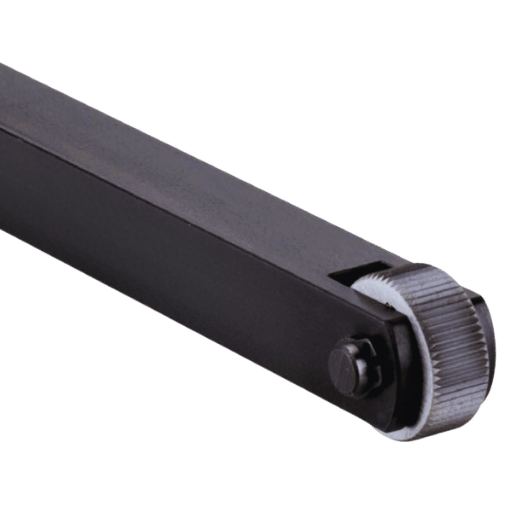

How do you choose the right knurling tool for your machine?

Evaluating tool capacity and wear resistance

In assessing the operating capability of a tool as well as its ability to withstand wear, always first check that the knurling tool can be used with the machine, including its spindle speed, feed rate, and material type. In particular, ensure that the tool is fabricated from tough materials such as hardened steel or carbide because these materials are more durable and less likely to wear out in high-pressure operations. Moreover, the tool’s coating must be evaluated; TiN and DLC coatings increase wear resistance and the operational life of the tool. Lastly, check the operational maximal admissible load of the tool to confirm that it is appropriate given the material, project details, and performance requirements.

Selecting the appropriate knurling holder for CNC and manual machines

While choosing a knurling holder that is meant for both CNC and manual-operated machines, great attention should be paid to the kind of knurling in use, be it cut knurling or form knurling. Cut knurling is effective for tougher materials, like stainless steel, because it removes material to create patterns. Form knurling, on the other hand, displaces material; softer metals, like aluminum or brass, are better suited for form knurling. Ensure that the holder is compatible with the machines specifications and the size of the knurling tool in order to avoid loss in accuracy.

For machines equipped with CNC, hydraulic or quick-change knurling holders are the best fit due to their ease of integration into automation systems and has better rigidity. These holders are often adjustable and therefore, make sure that consistent pressure on the workpiece is achieved as well as minimization of deformation of the material. A usual CNC knurling holder is designed to support forces between 500 N and 2000 N, which is a great range for many utilizations.

Meanwhile, simpler knurling holders with a fixed locking mechanism work best with manual machines. These holders are often used for straightforward tasks that can be repetitive in nature. For manual use, holders with more control settings are easier to use, especially in the case of an operator’s control of the tool along finer, more intricate designs.

Also, material compatibility and any knurling pattern requirements, which can include straight, diagonal, or diamond, need to be analyzed. Modern sophisticated knurling holders feature knurls that incorporate precision ground rollers with advanced surface treatments that reduce wear while keeping the pattern crisp. Using more rigid tool steel to construct the knurling holders guarantees greater tool longevity and durability when subjected to a multitude of heavy workloads.

Comparing the price and quality of different knurling products

In assessing the knurling products, finding a middle range between costs, efficiency, and longevity is crucial. The price of knurling tools differs a lot based on the tool’s material, how complex the design is, and how well it was made. Basic entry-grade tools made of carbon tool steel are around $20 to $50 and are ideal for light and occasional use but are not rugged enough for industrial processes.

Tools in the mid-range level tend to have better durability and precision. These are priced between $50 and $150, with a hardened tool steel body as well as advanced roller designs that enhance resistance to wear and deformation. This category tries to guarantee expectable results for professionals by focusing on repeatability and consistent pattern formation, hence making these tools ideal for dependable users.

Tools designed for precision and heavy-duty work are known as high-grade tools, which sit above $150. These tools tend to use premium materials like tungsten carbide or coated steel which lasts longer under repetitive cycles. The more advanced knurling holders come with interchangeable heads and customizable patterns for certain machining purposes. Tighter tolerances and reductions of materials during operation damages are guaranteed from the precision engineering of these tools.

Examining customer feedback and comparing it to the technical specifications reveals certain contrasts in quality. For example, the rollers with a diamond pattern provide a reasonable finishing and gripping quality but may need a bit more funding. In addition, the life of knurling tools is greatly impacted by treatment methods such as wear-resistant nitriding or PVD (Physical Vapor Deposition) coatings, which undoubtedly improve their durability. It is critical to analyze and determine not only the product’s intended use but also the overall cost to ensure that the investment meets long-term operational objectives.

What are the advantages of using a knurling holder?

Benefits of integrated set screws for easy adjustment

Adjustment Precision

• With the integration of set screws, the specific placement of the knurling tool can be controlled accurately. Subsequently, operators can achieve optimal knurling alignment and quality through seamless adjustments. Research indicates that precision alignment decreases machining errors by 25%, hence improving productivity.

Improved Productivity

• Set screws provide adjustments on the toolholder without disassembling the tool itself. This approach saves a considerable amount of time and allows for achieving minimal production interruptions and faster inter-operation transitions.

Reduced Operator Effort

• The integrated set screws are designed to make the operators’ job easier hence making it effortless to execute the necessary changes. Reduced physical effort lowers the chances of fatigue-related errors during long shifts.

Secured Tool Positioning

• Set screws provide a locking mechanism that guarantees the tool’s position during high-speed operations, making it stable. This stability improves safety during operation and consistency in the knurling pattern.

Lower Cost of Tools

• With the set screw providing accurate angle adjustments, wear and tear on the knurling tool is distributed uniformly, resulting in a longer lifespan. This prolongs the tool’s life and minimizes the costs due to less frequent replacements.

How to achieve optimal clearance angle with your holder

In order to achieve the optimal clearance angle for your knurling tool holder, it is paramount to keep the tooling operations on track while you minimize tool wear. The clearance angle, the angular space between the cutting edge of the tool and the surface of the workpiece, is involved in friction and operations and reduces friction that is caused during the working processes.

Understand the Factors Affecting Clearance Angle

• The ideal clearance angle is not decided without considering a few factors, like the material to be processed, the speed of the machine, and even the geometry of the tool holder. In the case of harder materials, a smaller clearance angle in the range of 6-8 degrees would be ideal to not compromise the integrity of the tool. In contrast, softer materials would need a larger clearance angle within the 10 to 15-degree range to eliminate the chances of excessive friction along with workpiece deformation.

Precision Adjustment Techniques

• To alter the clearance angle precisely, the knurling tool holder must be positioned in such a way that the axis of its supporting engagement with the workpiece is perpendicular. Some modern tool holders come with inbuilt angle adjustments that help with these types of setups. To ensure that users don’t make errors when setting the required clearance angle, it is advisable to use a precision angle gauge.

Employing Novel Tool Holder Models

• Progress in the mechanisms of the tool holder designs includes the inclusion of dynamic change features, which permit Alteration of the Clearance Angle during operation. For instance, holders fitted with micro-adjustment features have been shown to cut setup time by 25% while consistently achieving the proper angle alignment in commercially available engineering tools.

Track Performance Indicators

• Routine examination and monitoring of metrics include surface finish level, tool wear patterns, and vibration magnitude. Some sources mathematically demonstrate that improper clearance angles derive a 30% more severe degradation rate of knurling tools. Therefore, these metrics enable the construction of a preventive maintenance regimen that postpones tool replacement and increases efficiency.

Applying these methods in conjunction with precise adjustment of the clearance angle helps the machinist enhance performance and the quality of the workpiece while prolonging the life of the tooling equipment.

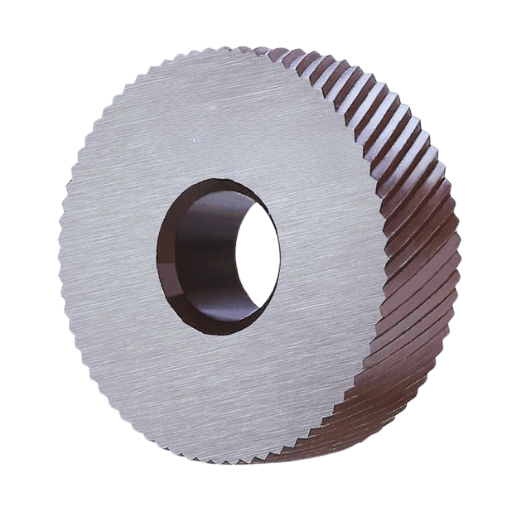

Where can a machinist find quality knurling tools and accessories?

Top shop recommendations for knurling kits and accessories

1. McMaster-Carr – McMaster-Carr is famous for a reason- their exceptional inventory. They provide reliable knurling kits and accessories for varying machining requirements. Their products are of great quality and have extensive details provided.
2. MSC Industrial Supply – MSC Industrial Supply is a trustworthy supplier that has an extensive inventory of knurling tools. They supply tools that are focused on providing accuracy and great durability which is ideal for professional machinists.
3. Travers Tool Co. – With great pricing and exceptional quality, it is no wonder Travers Tool Co. is known for carrying knurling tools. They stock reputable manufacturers that cater to skilled professionals and Industrialists alike.
4. Accu Trak – Accu Trak specializes in knurling tools and offers custom solutions as well as standard accessories that provide precise and reliable results on machining projects.

These retailers are reputable options for acquiring dependable knurling tools and accessories. However, always check whether they will work with your specific machinery beforehand.

Assessing the best knurl patterns from Eagle Rock Technologies

As of October 2023, Eagle Rock Technologies has various selections for knurling patterns aimed at differing types of grip, looks, and functionality in numerous machining tasks. Their knurling wheels come in three standard designs, which include a straight pattern, a diagonal pattern, and a diamond pattern. Each design has specific requirements defined by the functional needs of the application.

Straight Knurl Pattern

• In straight knurling, the grooves created are parallel to the axis of the workpiece and are referred to as linear straight grooves. This pattern provides a good grip without much radial movement. Straight knurls are favored in instances where parts require mechanical assembly like fastening into place with the rotating or rolling parts.

Diagonal Knurl Pattern

• The slanted pattern consists of slanted lines cut to create a slightly rough surface. This type of knurling is used where the appeal is of concern or in applications where the parts are rotated since it minimizes the skidding of the parts worked on.

Diamond Knurl Pattern

• Among the most widely used patterns due to the fine properties of grip is diamond knurling. It has a cross hatch texture, which ensures maximum grip is achieved. This pattern is used by different industries like aerospace or even fire arms manufacturing, aimed for hand-held components, to ensure durability and control.

In a similar fashion, Eagle Rock Technologies guarantees product accuracy, durability, and usability by offering custom knurling that meets specific industry requirements. Their knurling business remains very popular among precision machining experts because their knurling tools are available in standard and custom sizes. To achieve the best results, the selection of a suitable knurl pattern must take into account the workpiece’s material, its intended use, and the expected visual result.

Understanding free shipping options on knurling tools

To boost customer satisfaction, Eagle Rock Technologies provides free shipping on certain knurling tools. Such tools have a catch since free shipping is only eligible for specific promotions, order amounts, or locations. Customers are welcome to check Eagle Rock Technologies’ website or reach out to their customer service for the latest policies. This guarantees customers make informed purchases while saving as much money as possible.

Can knurling tools be adaptable for a variety of applications?

Examining straight and diamond pattern knurls

Each of the most common and widely used patterns of knurls, straight and diamond, have distinct advantages that vary by application. Straight knurling applies parallel lines, which are typically used on non-slip surfaces, like tool handles or machine parts, which require linear friction. It has simplicity of design with effective functionality.

To provide enhanced grip with increased surface friction for holding tools, diamond pattern knurling is used. This is applied in multi-directional texture and high-precision instruments, fasteners, and other decorative finishes where appearance and utility are both important. This type forms intricate crisscross patterns.

When choosing between tooling patterns, certain considerations such as tooling material, knurling durability expectations, and machine tolerances have an effect on the decision. Less force is needed to create straight knurling, which makes it ideal for softer materials or when the speed of production is more important. While more work-intensive, diamond knurling is useful for hard materials and ensures a secure grip in tough conditions.

Analyzed patterns and other data suggest that the choice of knurling pattern can affect the operational results of the product. For example, diamond knurls are better than straight knurls and can even improve grip strength by 50 percent, which is useful in high torque or manual labor settings. By comprehending the details of such patterns, engineers and manufacturers can customize the use of their knurling tools and techniques to address their project requirements.

How to set up for left or right-hand orientation

Determine the Orientation Needed

• Evaluate whether the application needs an orientation to the left or right hand based on how the end product is rotated or operated on.

Align the Tooling

• In case of orientation to the left hand, tilt the tooling in a way that the pattern rises to the left. In the case of the right-hand orientation, tilt the tooling in a way that the pattern rises to the right.

Check Machine Settings

• Verify that the knurling tool is set to the desired direction of rotation, either clockwise or counterclockwise. Also, ensure that any other relevant settings, for example, feed direction and rate, are in line with the chosen orientation.

Conduct a Test Run

• Prior to going into full production, take a moment to visually check and ensure the knurling is in the required orientation as well as in line with the design objectives. Make any changes if required.

Integrating tools with varying shank sizes and bump patterns

Achieving seamlessly integrated performance from tools with various shank sizes and bump patterns is quite a task that requires adequate integration considerations. Standard tool shank dimensions can range in size from 1/8 inch, 1/4 inch, 1/2 inch, and all the way to an inch or more. It is imperative for the shank size to meet the machine chuck or holder specification to avoid any possible slippage or misalignment during operations.

The shape of bumps, like straight and cross or diagonal, determine the knurl surface’s grip and texture. Depending on the needs of the application, bump patterns can be selected, for instance, cross and diagonal patterns are preferred for better grip whilst straight patterns are preferred for aesthetic purposes. Precision is vital—disregarded patterns or too much tooling relief can create mismatched finishes, inadequate functionality, or result in tools too much wear.

Applying modular adapters for tools with differing shank diameters eliminates manual adjustment delays, resulting in a faster tool assembly time. Increasing CNC software capabilities enables operators to apply specific tolerances to bump patterns and ensure consistent quality output. It is prudent to control tooling for wear and tear and adjust them accordingly to ensure high standards are maintained during production.

Frequently Asked Questions (FAQs)

Q: What is a knurling tool, and what is it used for?

A: Knurling tools are metal lathe equipment used to form a patterned surface on the workpiece manually. They are typically fitted on lathes, which are employed to produce a roughened surface on the periphery of knobs, handles, and other components or implements which require to be grasped firmly. Knurling tools vary, as there are those that have straight patterns and those that have diamond patterns.

Q: What are the main types of knurling tools?

A: Some of the main types of knurling tools are: 1. Clamp-type knurlers: These use clamps to hold the wheels for knurling. 2. Bump knurlers: These imprint patterns by pushing a knurling wheel onto the workpiece. 3. Straddle knurlers: These contain two or more knurling wheels that straddle the workpiece. 4. Cut knurlers: These cut patterns on the materials instead of reshaping them.

Q: What is the difference between left-hand and right-hand knurling tools?

A: The difference between left-hand and right-hand knurling tools is how the knurling pattern is oriented. Many knurling tools are made to be used for either left or right-handed work, so they can be used in multiple situations. The decision for left or right-hand usage is determined by the nature of the work that needs to be performed and how the lathe is set up.

Q: How do I choose the right knurling tool for my project?

A: Choosing the right knurling tool involves: 1. Selecting pattern type (straight, diamond, etc.) 2. Material type 3. Workpiece size 4. Lathe/machine 5. Hand orientation preference 6. Project knurl pitch: Look for tools that can easily adjust the clearance angle and are best suited for the type of knurling work you do.

Q: What exactly is a carbide knurling tool, and when should I opt to use one?

A: Carbide knurling tools are knurling tools that have knurling wheels made of carbide, which is a very hard and durable material. These tools are great for heavy-duty knurling jobs and for working with harder materials. Carbide tools normally have a longer knurl life in comparison to standard steel tools, so they are a good option for high-volume production or when dealing with abrasive materials.

Q: What are some ways I can maintain my knurling tool for long-term use?

A: For knurling tools maintenance, I suggest: 1. Clean the tools after use to eliminate chips and debris 2. Provide regular lubrication of moving components 3. Use a dry container or box for stowage to avoid rusting 4. Identify wear patterns on the knurling wheels and change them when needed 5. Operate using the correct alignment and pressure settings to avoid excessive wear 6. General maintenance instructions from the manufacturer should be adhered to alongside any other set rules for parts replacements.

Q: Is It Possible to Operate a Knurling Tool Using a Drill Press?

A: Other than lathes, drill presses are also a viable option but only for some specialized knurling tools. Most knurling tools for lathes are lathe-mounted and used directly on the lathe tool. There are some hand-held versions, though, which are less versatile compared to the lathe-mounted ones. In the event that you need to do some knurling on a drill press, you should do some idle searching for the specific tools that help perform the task since default lathe knurling tools would rest within the realm of danger and ineffective under those circumstances.

Q: Welcome back! What factors are important to consider when purchasing a knurling tool set?

A: Factors to remember for a knurling toolset are: 1. Different types of knurl pitches and patterns. 2. Your lathe or machine has a proper fitting. 3. Features that allow adjustable clearance and pressure. 4. Materials used for good quality and durability. 5. Having extra spare knurling wheels. 6. Able to handle various sizes of workpieces. 7. Simple setup and operation. 8. Good user experiences. Remember, a good set often includes one medium-pitch straight pattern knurl and often provides choices for shank sizes to suit different machines.

Reference Sources

1. An Investigation of Processes to Form High-Precision Textures by Means of Micro Ultrasonic Knurling Machining Technology

• Authors: S. Aoki, Yasunori Sakai, Tomohisa Tanaka
• Publication Date: September 15, 2020
• Journal: Information
• Citation Token: (Aoki et al., 2020)
• Summary: This paper investigates a monotonic process of creating a durable texture on large sliding surfaces incorporating ultrasonic vibration during the knurling process which is both precise and efficient.
• Key Findings: The use of ultrasonic vibration is shown to have a tremendous effect on the reduction of pressing and friction forces in the knurling process. The results show that when ultrasonic vibration is employed, clearer and deeper marks can be made on copper specimens.
• Methodology: A horn designed to amplify ultrasonic vibrations was fabricated, and its resonant frequency was determined to check if it met the specifications. An indenter was used to form the groove and forces were measured during this process.

2. Examination of the Influence of Knurling Variables on the Quality of the Knurl by Use of Design of Experiments Technique

• Authors: Chang-Xue Feng, Chinh Tran
• Publication Date: November 14, 1999
• Journal: Conceptual and Innovative Design for Manufacturing
• Citation Token: (Feng & Tran, 1999)
• Summary:
• This study looks into the impact of different parameters in the knurling process on the resultant quality of knurling, intending to develop a process that is robust and can withstand the presence of many uncontrolled variables.
• Key Findings:
• Determine the primary factors and their interactions that affect the knurling process most profoundly.
• Construct a robust process design that is least sensitive to changes in knurling quality.
• Methodology:
• Used design of experiments (DOE) method, a fractional factorial design for studying some effects of several factors on knurling quality systematically.
