What is Medical Machining ?

Technological innovations are the primary driver of transformation in the medical sector today. One of the most critical components leading to this change is precision CNC (Computer Numerical Control), which provides various services such as making specialized surgical tools, devising implants, and even designing prosthetics. CNC machining can now manufacture these incredibly detailed and precise medical parts, making them indispensable for the medical industry.

In this article, we will analyze the effectiveness of CNC machining in healthcare. We will also discuss its accuracy, efficiency, compliance with rigid standards, and positive effects on patient safety while improving medical results and aiding in developing advanced personalized medicine. When you finish reading, you will understand precisely how precision CNC machining helps health professionals and patients, transforming healthcare for the better.

What is Precision Medical CNC Machining, and Why is it Important?

Precision Medical CNC Machining involves using computers to control machinery to produce precise, detailed, and highly sophisticated medical device and equipment parts. There is no other technology with such ability to create parts that meet ‘exceptional accuracy’ standards of tolerances and quality, which is essentially paramount in the medical field. The technology also enables manufacturing complex designs like surgical instruments, internal implants, and prosthetics while ensuring safety and functionality. The medical sector can improve efficiency, consistency, and innovation in advanced and personalized care with the aid of CNC machining due to processed complexity and accuracy.

Understanding CNC Machining in the Medical Sector

Which materials are most frequently utilized in CNC machining in the medical field?

CNC machining mainly employs biocompatible and incredibly tough materials in the medical field. These include stainless steels, titanium, cobalt-chrome alloys, PEEK (polyether ether ketone), and other medical-grade plastics. These materials are specifically selected for their corrosion resistance, strength, and compatibility with the human body.

What is the degree of precision of CNC machining in medical components?

CNC machining provides high precision accuracy that meets industry standards, with tolerances available usually within ±0.0127 mm to ±0.0254 mm. Accuracy in accuracy such as this greatly assists in ensuring that components like implants and surgical tools are accurate, which is an essential requirement for medical-grade components.

What kinds of medical devices can benefit from CNC machining technology?

CNC machining is used for many devices, such as surgical instruments (scalpels and forceps), orthopedic and dental implants, and prosthetic limbs. It also manufactures components for robotic surgeries and diagnostic medical devices.

What are the benefits achieved from integrating CNC machines in the medical industry?

Uniformity in Quality – Guarantees the same quality during mass production.

Capability to Complex Designing – Can produce complex geometrical features of sophisticated medical devices.

Possibility of Processing Numerous Materials – Works on numerous compatible materials.

Increased Speed of Prototyping – Speeds up the prototyping and testing stages of production.

Increased Component Safety – Makes components that follow risk management processes and standards.

Are there any guidelines that govern the specifics of CNC-machined medical parts?

All CNC-machined medical parts are subject to stringent guidelines, such as ISO 13485 for quality management systems and FDA regulations for medical devices. These guidelines ensure that the manufactured items are safe, reliable, and effective.

The Role of Precision in Medical Device Manufacturing

Defects in medical devices are detrimental to the well-being of their users; hence, executing manufacturing precision remains crucial. The implementation of CNC technology has drastically shifted the standards of medical device machining due to the technological capabilities of achieving tolerances as tight as ±0.001 inches (±0.0254 mm). Such accuracy is often needed for parts such as surgical instruments, implants, or diagnostic machinery because they have strict requirements regarding anatomy and functionality.

Industrial providers integrate advanced CNC technologies such as 5-axis machining to achieve those precision levels. These enable more precise results and faster operation because the need for several setups is reduced. Moreover, titanium, stainless steel, medical-grade polymers, and other materials have increased compatibility due to their strength and biocompatibility.

Some of the other critical metrics in medical precision device manufacturing are:

Surface Roughness: Medical devices usually require a smooth surface with Ra 0.1 to 0.4 microns to reduce friction and enhance cleaning and disinfection.

Geometrical Accuracy: Precision should be maintained for implants and other medical devices as tolerances, like ±0.005 mm, are critical for proper functioning and positioning.

Compliance: To guarantee quality and comply with regulations, medical devices must meet ISO 13485, FDA requirements, and other certifications.

CNC machining uses the latest equipment together with exceptional quality control and keeping to rigid benchmarks to fabricate accurate medical devices. Most importantly, these devices are safe for the end users.

How CNC Technology is Transforming Medical Applications

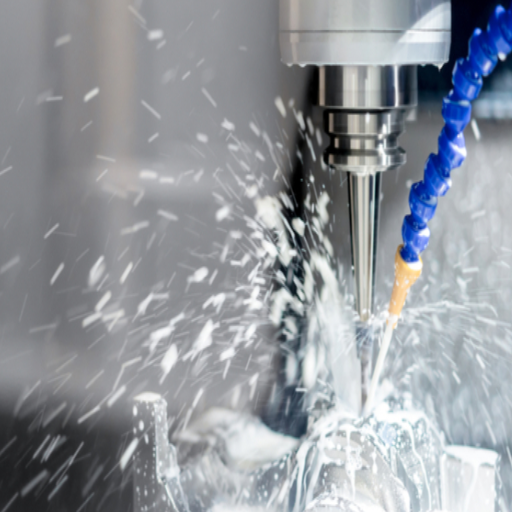

What Are the Key Benefits of CNC Machining for Medical Parts?

CNC machining is extremely valuable in the healthcare industry and has key advantages in producing medical instruments. It boasts unrivaled accuracy, which guarantees the precise manufacture of complex parts with tight tolerances, such as surgical instruments and implantable devices. Furthermore, incorporating medical-grade materials, such as titanium, PEEK, and stainless steel, ensures both biocompatibility and durability. Reduction in lead times while maintaining does not compromise cost efficiency, which can be attributed to the rapid prototyping and scaled-in production capabilities of CNC machining. Precision, efficiency, and accuracy are guaranteed through solid quality controls and compliance with ISO 13485 and FDA regulations; CNC machining guarantees the production of medical devices that are precise, safe, and effective.

Achieving High Precision and Accuracy in Medical Components

Enhancing Efficiency in Medical Manufacturing Processes

Enhancing efficiency in the medical manufacturing sector involves using the latest technology, automation, process optimization, and maintaining compliance. Here are ways suggested by prominent industry leaders:

Using Lean Manufacturing Approaches: Lean approaches target waste, rework, and maximize productivity through value-added activities stream mapping, waste and downtime activities, and JIT production, which minimizes inventory while still maintaining delivery schedules.

Incorporating Advanced Automation: Using robotics, machine learning, and AI accelerates processing speed, reduces errors, and increases systems throughput. For example, automated inspection systems ensure that components are fabricated to tolerances of ±0.001 inches.

Adopting Smart Manufacturing (Industry 4.0): The application of IoT devices and cloud-based data analytics facilitates real-time processing and predictive maintenance, reducing the likelihood of unexpected downtime by as much as 30%. Connected systems also allow for better communication between machines, enhancing transparency.

Material Technology: Biocompatible and durable materials, such as medical-grade stainless steel, PEEK polymers, and ceramics, improve product quality and simplify manufacturing processes.

Comprehensive Temperature and Climate Control Systems: Cleanroom (ISO Class 7 or better) environments help improve compliance while minimizing contamination risks, which is beneficial for sensitive medical products.

These steps together help improve productivity, comply with regulations, and ensure the quality of medical devices. These steps allow manufacturers to keep pace with the sector’s changing demands.

Enabling Complex Designs for Advanced Medical Devices

To support advanced medical devices’ intricate designs, we employ state-of-the-art techniques that include additive manufacturing, advanced materials, and precision machining. For example, 3D printing permits the production of complex shapes and the ability to manufacture patient-specific devices promptly. PEEK, titanium, and bioresorbable polymers are also used due to their biocompatibility. Other critical engineering parameters are the ability to hold tolerances of + / – 0.005 inches for critical features, ISO 13485-certified procedures, and Design Assurance, including structural failure modes and fluid dynamics considerations. These approaches allow innovation in the face of stringent regulations and functional requirements.

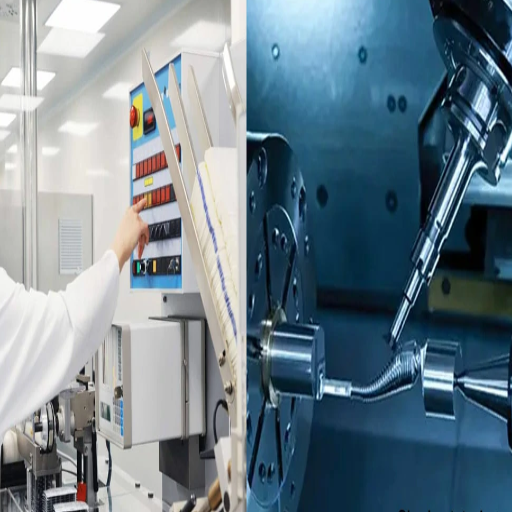

Which Medical Devices and Components Can Be Produced Using CNC Machining?

Using CNC machining, it is possible to manufacture some medical devices and components with astonishing accuracy and dependability. Such devices include surgical tools, dental devices, orthopedic implants such as bone screws, joint prostheses, and custom prosthetic limbs. In addition, very sophisticated parts such as catheter fittings, diagnostic equipment housings, and other housings or components of ultra-sensitive instruments can be manufactured. This adaptability serves the medical industry’s standard and custom needs, which makes CNC machining an indispensable technology.

Common Medical Parts Manufactured with CNC Technology

Material choice and measurement accuracy are essential when producing medical parts utilizing CNC technologies. This is a summary of the main parameters for many frequently manufactured products:

Surgical Instruments

Material: Stainless Steel (316L or 440C), Titanium

Tolerances: ±0.001 inches

Surface Finish: Ra 0.1-0.6 µm post hygiene treatment

Orthopedic Implants, Bone Screws, Joint Replacement

Material: Titanium Alloys (Ti-6Al-4V), Cobalt-Chrome Alloys

Tolerances: ±0.0005 inches

Surface Treatment: Anodised and polished to inhibit corrosion.

Dental Components

Material: Zirconia, Titanium, Stainless Steel.

Tolerances: ±0.002 inches

Surface Finish: Mirror polished or sandblasted for biocompatibility

Custom Prosthetics

Material: Biocompatible Polymers, Titanium

Tolerances: +- 0.003-0.005, depending on how much customization is done.

Customization: Ergonomics and patient-specific needs.

Catheter Components

Material: PEEK, PTFE High-Performance Polymers

Tolerances: ±0.001 inches

Key Features: Light and flexible

Housings for Diagnostic Devices

Material: Aluminum, Stainless steel, Medical plastics

Tolerances: ±0.002-0.003 inch

Design Considerations: Sensitive components must be shielded from EMI.

Sensitive Equipment Components

Material: Aluminum alloys, usually 6061, titanium.

Tolerances: ±0.0005 inches

Surface Treatment: Coated to resist wear and extend life.

Observing these specifications achieves accuracy, reliability, biocompatibility, and performance of the parts under extreme conditions.

Exploring CNC Machining for Medical Implants

CNC machining is integral to manufacturing medical implants because of its unrivaled accuracy and capability to handle biocompatible materials. According to my findings, CNC machining guarantees that implants satisfy rigorous standards by accomplishing high tolerances and excellent surface finishes, which are fundamental for patient safety and proper functioning within the human body.

Important Technical Factors for CNC Machining of Medical Implants:

Choice of Materials: Titanium, surgical stainless steel, PEEK

Required Fits: ±0.0001 to ±0.001 inches, depending on the complexity of the implant

Finishing Treatment: Ra ≤ 0.2 µm to enhance biocompatibility while minimizing friction

Possible Sterilization: Allowing all parts to undergo considerable heat or chemical sterilization.

By following these parameters, CNC machining can produce custom-made, durable, and precise implants for medical compliances and patients. This technique is essential in improving the solutions available in modern healthcare.

Custom Medical Equipment: From Concept to Reality

Custom medical devices and equipment require a well-optimized process that transforms an innovative idea into a precise operational solution. In my perspective, this has several steps. Initially, it starts with a rough concept drafted in detail on the CAD system, ensuring self-consistency on the human body’s scope and anatomy. Selecting materials comes next. Though violations of some grades are medical, biocompatible titanium metals and polymers are deeply engineered thermoplastics, which are medically safe, hot melt adhesives. These are proven to be challenging and secure enough. Medical devices and equipment need sharp precision to be used in medicine. Therefore, CNC machining and 3D printing are the preferred methods, as they can reach tolerances up to 0.005 mm. After fabrication, devices are tested and sterilized internally to guarantee compliance with the ISO 13485 requirements for medical equipment. This method combines naivety with angularity to design fitted solutions to sophisticated medical problems.

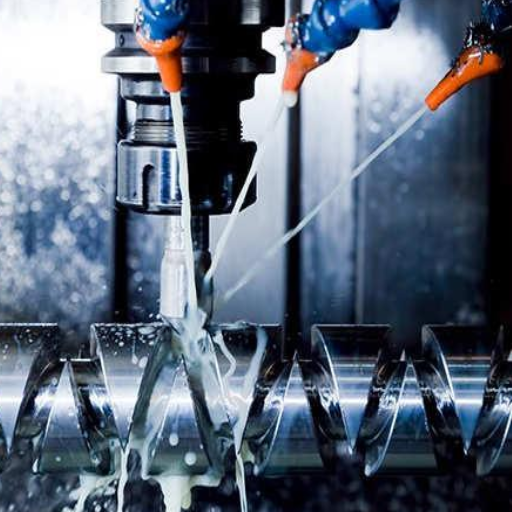

How Does CNC Machining Ensure Quality and Compliance in Medical Manufacturing?

CNC machining guarantees quality and compliance in medical manufacturing using its precision features, repeatability, and following strict industry rules. CNC machines use sophisticated software and automated systems to achieve the tight tolerances necessary for medical devices, thus decreasing the possibility of human error. Also, the materials used must pass biocompatibility and sterilization tests, lowering dangers to people’s health. Numerous other inspection and validation procedures accompany this process to confirm that every part meets the requirements stated in ISO 13485 and FDA regulations. This mix of precision engineering with biological effects oversight assures quality and regulatory achievement in medical device production.

Meeting Stringent Medical Industry Standards

Quality Control Measures in CNC Machining for Medical Applications

Effective quality control in CNC machining in the medical field is essential for meeting the industry’s rigorous standards. Below are some important focal points that require special attention.

Accuracy and Tolerance Levels

Medical parts made with CNC processes can have tolerances stricter than ±0.001 inches (±0.0254 mm) and to ±0.0005 inches (±0.0127 mm) depending on the use of the components. Precision measurement systems such as coordinate measuring machines (CMMs) and laser scanners are used to confirm that specialized directives are met.

Material Certification and Traceability

Marking grades like Grade 5 Ti-6Al-4V, 316L stainless steel, and PEEK Polymers are classified as Medical Grade. These medically applied materials must be traceable throughout the supply chain and require documentation such as mill certifications, lot numbers, and traceability.

Surface Finishing

Orthopedic implants are smoothened with tools to achieve Ra values of 0.2 µm, a dimensionless measure of surface roughness. Polishing, bead blasting, and electropolishing are some of the processes which provide the necessary finishes.

Validation and Testing

All CAD-CAM machined parts in medical devices are fully validated, such as through First Article Inspection (FAI). Process capability is continuously monitored (e.g., Cp and Cpk values ≥ 1.33). Those parts also undergo functional and fatigue testing per ISO 10993 standards for mechanical and practical functions.

Cleaning and Sterilization

Post-machining cleaning up, either by ultrasonic or passivation, cleans the parts from contaminants and debris. Subsequent steps prepare the components for sterilization by autoclaving or ethylene oxide (EtO) to pass biocompatibility tests.

Regulatory Compliance

The primary criteria, such as ISO 13485, FDA GMP, and ISO 9001, are expected to be consistently met. Each production run is encapsulated by a robust documentation system covering traceability and responsibility to provide adequate proof of focus and intentions.

CNC machining manufacturers could adhere precisely and perform accurately, incorporate these guidelines and stringent quality control measures, and ensure the precision, performance, and regulatory compliance requirements of the industry’s medical components and devices.

Traceability and Documentation in Medical CNC Machining

Keeping track of processes and documentation during medical CNC machining is essential for compliance and quality assurance. Maintaining traceability requires recording the entire production process, including the source of materials, machine settings, and what the operators did. These Machines help trace every part to its origin, guaranteeing responsibility and quick action in case of recalls or defects.

Here are some relevant technical parameters to keep in mind:

Unique Identifier Codes- Parts are marked with distinct serial numbers or barcodes for identification.

Material Batch Records- All raw materials used should contain batch numbers corresponding to their certificate of compliance.

CNC Machine Calibration Logs—Maintenance and calibration records guarantee that machining operations will be performed within the specified tolerances, usually set at +/—0.0001 inches for medical-grade components.

Inspection and Testing reports- Documentation of these activities is essential because they include design and material dimensional inspections, surface finish quality (Ra > 0.8 um for high precision parts), and functional tests, which all need to be done.

Electronic Documentation: The use of MES (Manufacturing Execution Systems) or other digital tracers allows for easy retrieval and storage of retraceability data which decreases human error.

Following the protocols above ensures that CNC processes are performed with the precision and compliance required to guarantee the reliability of medical devices and components.

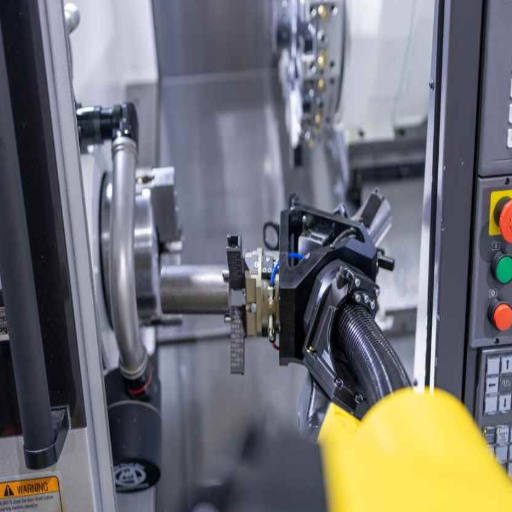

What are the latest advancements in CNC machining in the medical field?

The past few years saw the refinement of CNC machining processes, significantly improving the efficiency, innovation, and accuracy of medical manufacturing. Advanced technologies, such as 5-axis CNC machining, make it possible to produce intricate, complex geometries demanded by implants and surgical tools. Automation and AI technology increase consistency, decrease lead time, and streamline production. Additionally, biocompatible and durable advanced materials, such as titanium alloys and medical-grade ceramics, are commonplace. The demand for minimally invasive devices has spurred micro-machining innovations, while hybrid additive manufacturing with CNC ensures unrivaled design versatility. Collectively, these improvements redefine the limitations of medical device manufacturing.

Innovations in CNC Milling and Turning for Medical Devices

High-Precision Tolerances

Modern CNC milling and turning methods have reached a level of efficiency that allows them to achieve remarkable tolerances of about 001 mm. This precision is essential when fabricating components such as joint implants or intricate surgical instruments, as it guarantees functionality and patient safety.

The existence of 5-axis and even 6-axis machining removes the need for multiple setups, creating time-efficient and accurate production processes. These processes also allow for complex geometries to be developed, greatly benefiting devices with intricate surface designs, such as orthopedic implants.

Tooling Specifically Designed For Materials

Using specialized tooling for materials such as titanium, stainless steel, or PEEK medical-grade materials improves productivity, efficiency, and the tool’s lifespan. Coated carbide tools are the go-to for metals, while ceramics are diamond tooled.

Excellence in Surface Finishing

CNC technology can now achieve state-of-the-art polishing and finishing operations that align with machining. Surface roughness of as low as Ra 0.2 μm can now be achieved, which is ideal for frictionless and biocompatible surfaces.

High-Speed Machining (HSM)

HSM aids in delicate part manufacturing by reducing cycle time with precision at spindle speeds up to 20,000 RPM. This is important for compact medical devices with complex features, such as microsurgical tools.

Automation and Lights-Out Manufacturing

Robotic part manipulation and real-time monitoring allow lights-out manufacturing, automating human-centered processes. These systems are much more productive and encourage the reliability of continuous production at a high volume.

Standards of Measurement and Control

Integrated inspection systems with coordinate measuring machines (CMMs) and in-process probing can achieve dimension accuracy combined with stringent quality control requirements. For medical devices, dimensional variances must often be within ±0.005 mm.

These developments improve advanced medical instrument fabrication’s effectiveness, accuracy, and dependability.

The Rise of 5-Axis CNC Machining in Medical Manufacturing

Five-axis CNC machining is the latest technological advancement in medical manufacturing. It offers exceptional precision, speed, and versatility in fabricating intricate parts. Unlike 3-axis machines, which are limited to a three-way movement, 5-axis tools can operate on five axes simultaneously. This allows medical devices to be manufactured with intricate details. This type of machining can process geometries of higher complexity without changing the position of the workpiece, which leads to savings in preparation time and improvements in production quality.

Benefits of 5-Axis CNC Machining

Increased Surface Complexity and Accuracy

5-axis CNC machining is most suited for producing implants, surgical instruments, and other intricate parts due to its capability of making intricate shapes and freeform surfaces. For instance, prosthetic joints often require tolerance levels as tight as ±0.002 mm to ensure they function and fit within the human body.

Lowered Production Lead-time

Fewer setups translate to reduced production time. This is particularly important for high-volume items such as custom bone plates or implants used for dentures, as timeliness dramatically impacts patients’ wellbeing.

Reduced Surface Roughness

A higher order of 5-axis machining results in smoother surfaces, reducing the need for extra polishing. This is particularly important for medical procedures that involve interaction with living tissues, which require the devices to be biocompatible and have smooth surfaces to minimize irritation.

Our five-axis machine prioritizes a user-friendly interface. Precision screen technology has been implemented in the machine, making the manual controls intuitive and ensuring a flawless user experience.

As for the five-axis CNC machining, the dominant axis being rotated around is A, while B is defined as the head tilt’s variation up to 180 degrees. Movement on the working plane is defined as linear routing, whilst any motion away from the centerpiece of the machine performed with the appropriate tool is termed rotational action.

Manufacturing components which are externally located on the equipment is possible due to the designed bore’s longer axial length, therefore these components can also be included in the rotary table systems.

Micro Devices Precision Technologies claims that 20:1 to 60:1 magnification is required for super-precision machining operations on each product.

At a glance, US technology company Invenios uses advanced algorithms integrated with CAD/CAM software systems to achieve maximum kinematic freedom for specific SKDs. As a result, a flexible CNC slab can adapt to an optimal position without limits.

Open upper limb orthoses are widely used as a remedy for neuromuscular diseases. These orthoses allow semi-flexible relief to the elbow joint, ensuring reliable shoulder fixation.

Medically incorporated orthosis Devices, in turn, are designed to support the treatment of limb contractures and post-traumatic arthrodesis of the ankle joint.

Microdevices, such as versatile orthoses, help control mobility in the shoulder joint. They feature an adjustable stabilizer that enables restricted movement when needed.

Monolithic Custom Wheeled Orthosis is specially tailored for femoral osteosynthesis and post-in situ fixation of distal femoral fracture.

The orthosis is defined as a type of external control for articulation, so it is appropriate to define movable elements in the structure that can be combined and disassembled in selected positions.

Five-axis CNC micromachining has become vital for sharpening, drilling, and milling diverse geometric features on medical device parts.

Integrating Automation and AI in Medical CNC Machining

Implementing AI and automation is revolutionizing the health sector’s CNC medical machining through increased accuracy, efficiency, and flexibility. Thanks to AI algorithms, we can forecast tool wear, improve workflow automation, and implement machine learning for intricate geometrical shapes. Automation technology enhances accuracy by minimizing human error, shortening lead times, and allowing for 24-hour manufacturing, increasing scalability. Integrating cutting tools with specific machine parameters like tolerances, as precise as ± 0.001 millimeters, and spindle speeds of up to 60,000 RPM for micro-machining, along with toolpath optimization algorithms, ensures high accuracy and repeatability of medical device fabrication. Together, this facilitates achieving bespoke solutions with the stringent quality needed in a healthcare system.

What Does the Future Hold for CNC Machining in the Medical Industry?

Emerging technologies could increase the CNC machining capabilities in the medical field. AI and machine learning technologies that integrate AI’s addadument will further broaden imprecision and flexibility in the adaption of medical devices. New cutting hybrid technology, which incorporates CNC and 3D printing dynamically, increases the level of intricacy in geometrical forms and implants while retaining the ability to manufacture large quantities. Furthermore, progressive development in material science will usefully broaden the range of biocompatible materials, improving their crystalline functionality and patient results. Automation and real-time tracking will guarantee lesser production time with bisyllabic quality and recurrent demands for precise, efficient, effortless, and patient-specific reserved health care.

Emerging Trends in Medical CNC Machining Technology

Due to the growing pace of technological development, alongside engineering methods, the medical CNC sector is evolving at an impressively high rate. The following are the most critical trends in the industry identified: The convergence of CNC and 3D Printing. The most notable development is the scheduling of sophisticated geometry implants and their mass production. Medical devices, such as internals and surgical instrument implants, require less and more accurate parts. Stents and microfluidic devices are complex structures that can be efficiently processed with CNC at a tolerance of ±0.001 inches (±25.4 microns).

Use of Advanced Materials

The need for biocompatible and resilient materials keeps increasing. The most omnipresent materials for medical CNC machining are titanium, stainless steel, PEEK, and cobalt-chrome alloys. These materials possess ideal corrosion resistance and excellent strength-to-weight ratios, which are essential for implants and long-term human body use.

Integration of Multi-Axis Machining

The use of 5-axis and even 6-axis CNC machines is becoming commonplace in medical applications. Such machines enable the creation of complex geometries in a single setup, lowering manufacturing time without sacrificing quality. For instance, multi-axis capabilities greatly aid in manufacturing prosthetic joint components because of their complex contours.

Automation and Smart Monitoring

CNC machines with real-time monitoring systems benefit from predictive maintenance and immediate quality control feedback. IoT-based systems monitor spindle speed, tool wear, and temperature, providing more reliable and efficient production cycles.

Advanced Surface Finishing Methods

Surface finishes are expected for medical devices to minimize soreness or the risk of infection. Electropolishing, passivation, and mirror-polishing achieve surface finishes of Ra 0.4 µm, which are considered smooth and meet cleanliness and functionality expectations. These processes are referred to as post-machining processes.

In this case, these shifts emphasize the need to advance in medical CNC machining because bespoke patient needs and regulatory constraints continuously shuttle the needle regarding precision and quality standards.

The Impact of 3D Printing on Traditional CNC Machining in Healthcare

The solidification of the healthcare sector is stimulated by the application of 3D printing and additive manufacturing, which offers incredibly advanced additive manufacturing alongside traditional manufacturing methods. 3D printing, unlike CNC machining, which is known to be accurate and capable of processing hard materials like titanium and stainless steel, offers more design freedom and increased speed for complex geometric shapes and lightweight structures.

The Most Notable Benefits of Implementing 3D Printing Into CNC Machining

Geometric Manipulation

With 3D printing, internal channels, organic shapes, and intricate lattice configurations can be produced, which are impossible to achieve with CNC machining. Orthopedic implants, for example, can be constructed using 3D printing to enable osseointegration by optimizing porous structures.

Material Efficiency

Compared to replaceable manufacturing and CNC machining, additive manufacturing more effectively conserves materials. This method is quite effective when dealing with expensive biocompatible materials, including titanium and cobalt chrome alloys.

Customization and Prototypes

Individualized dental crowns and prostheses can be fabricated and simulated in real life to match the specific patient’s anatomy with 3D printing. The parts produced also have tolerances and critical surface finish requirements provided by CNC machining.

Integrated Workflows in Healthcare Manufacturing

The hybrid workflow, incorporating 3D printing technology with CNC machining processes, utilizes the advantages of both methods. For example:

3D Printed Structures

A cranial plate implant can be 3D printed from titanium powder using Selective Laser Melting (SLM) technology. It is possible to create a unique implant customized to the precise shape of the patient’s skull.

Post-Printing CNC Machining

The same implant undergoes CNC machining to smooth critical surfaces and achieve tolerances of ±0.01 mm, guaranteeing proper fitment and compatibility with the body.

Technical Parameters and Applications

Resolution and Layer Thickness in 3D Printing

Metal 3D printers can achieve a layer thickness of 20-60 μm, necessary for accurate and detailed structures. However, a resolution of 50 μm or even lower is often essential for elaborate medical devices.

Tolerances in CNC Machining

Parts requiring post-processing commonly need tolerances of ±0.005 mm for critical dimensions to ensure functional reliability and reproducibility.

Surface Finish

Hybrid parts may require roughness values as low as Ra 0.2 µm on surfaces in contact with biological tissues to prevent irritation or bacterial growth.

Obstacles and Prospective Forecasts

Despite the benefits of combining 3D printing and CNC machining, obstacles remain, such as high setup costs, material limitations, and production workflow integration. Nonetheless, the emergence of new technology will surely transform how hybrid manufacturing will produce medical devices in terms of customization, patient satisfaction, and affordability.

Predictions for the Evolution of CNC Machining in Medical Applications

In my perspective, the use of CNC machining for medical purposes will progress rapidly in a couple of years. Surgical implants, for instance, will require even greater accuracy, pushing tolerances down to an astounding ±0.002 mm. Moreover, advancements in multi-axis CNC systems combined with AI functionalities will drastically improve machining speeds and reduce time for production without sacrificing accuracy. There will also be more available materials, particularly biomaterials such as PEEK and titanium alloys, which are anticipated to be easier to machine. Moreover, a Ra 0.1 µm surface finish will be achieved, promoting better biocompatibility and reduced contamination chances.

Regarding workflow, real-time feedback systems such as in-line metrology tools will automate the inspection processes of CNC machining. In addition, adopting hybrid methods that combine CNC and additive manufacturing will continue to expand, enabling even greater fabrication of complex geometric shapes uniquely designed with organic features for specific patients. These innovations will enhance customization while simultaneously decreasing costs, which signifies a revolution in the manufacture of precision medicine.

References

Medical device

Technology

Numerical control

Leading CNC Metal Machining Provider in China

Frequently Asked Questions (FAQ)

Q: What is precision medical CNC machining?

A: Precision medical CNC machining is a highly accurate manufacturing process used in the medical industry to create complex and intricate medical device and equipment parts. It involves using computer-controlled machines to cut, shape, and form various materials with extreme precision, ensuring high-quality medical components that meet strict industry standards.

Q: What are the primary applications of CNC machining in the medical industry?

A: CNC machining for the medical industry has numerous applications, including producing surgical instruments, implants, prosthetics, diagnostic equipment components, and various medical device parts. It is also used to manufacture custom-designed tools for specific medical procedures and create prototypes for new medical innovations.

Q: What materials are commonly used in CNC machining for medical devices?

A: CNC machining for medical devices utilizes various materials, including medical-grade stainless steel, titanium, aluminum, plastics (such as PEEK and UHMW), and different alloys. The choice of material depends on the specific requirements of the medical application, such as biocompatibility, durability, and sterilization capabilities.

Q: How does CNC machining ensure precision in medical parts manufacturing?

A: Precision medical machining is achieved through advanced CNC processes and technologies, including high-speed, multi-axis, and Swiss-style machining. CNC machines are programmed with precise instructions, allowing for the consistent and accurate production of complex medical parts with tolerances as tight as ±0.0001 inches.

Q: What are the advantages of using CNC machining for medical devices?

A: CNC machining offers several advantages for medical device manufacturing, including high precision, repeatability, and consistency in production. It allows for creating complex geometries, enables rapid prototyping, and provides flexibility in material selection. Additionally, CNC machining ensures compliance with strict medical industry regulations and standards.

Q: How does CNC Swiss machining contribute to medical part production?

A: CNC Swiss machining is particularly valuable in the medical industry due to its ability to produce small, intricate parts with high precision. Swiss-style CNC machines are ideal for manufacturing long, slender components often used in medical devices, such as bone screws, dental implants, and minor surgical instruments. This machining process offers excellent surface finishes and tight tolerances, crucial for many medical applications.

Q: What quality control measures are implemented in CNC machining for medical parts?

A: Quality control in CNC machining for medical parts involves rigorous inspection processes, including coordinate measuring machines (CMMs), optical comparators, and other advanced metrology equipment. Manufacturers also implement strict documentation and traceability protocols, adhere to Good Manufacturing Practices (GMP), and often obtain ISO 13485 certification for medical device production.

Q: How does CNC machining contribute to innovation in the medical industry?

A: CNC machining plays a crucial role in medical innovation by enabling the rapid prototyping and production of new medical devices and components. It allows for creating complex, custom-designed parts that may not be possible with traditional manufacturing methods. This capability supports the development of cutting-edge medical technologies, personalized medical solutions, and advancements in minimally invasive surgical techniques.
