Mastering the Art of Machining: How to Create High-Quality Toothed Pulleys on a 3-Axis CNC Machine

Producing toothed pulleys on a 3-axis CNC machine is no easy feat, and requires properly integrating modern machining skills and techniques. These components are critical in enhancing a mechanical system’s performance. The proper fabrication of toothed pulleys, which are essential in power transmission systems, can set the mark for success or failure. Regardless of your skills as a professional machinist, learning the intricacies of fabricating these components will surely boost your skill set and knowledge. In this guide, we elaborate the materials and toolpath optimization considerations that have to be taken into account alongside the processes themselves. As a trained professional in the field, you know that the production of these components is not as straightforward as it seems and requires extreme skill. This blog is dedicated to those looking to enhance their skillset pertaining to determining the industry standards for pulleys.

What are the Most Important Elements in the Machining of Toothed Pulleys on a 3-Axis CNC?

The Coordinate System of the CNC Machine in Use

Achieving precision with the toothed pulley turns on an understanding of the CNC machine’s coordinate system. The system has three linear movement axes- X, Y, Z. Each of these defines a direction for the machine’s movement. Lateral movement left to right will use the X axis (left being – and right being +), Y axis will cover forward and backward motion, and Z axis covers vertical up and down movement. Proper comprehension of provided information will allow correct placement of stock material as well as appropriate programming of the toolpath for the x and y axis. A clearly marked work origin or ‘zero point’ at the start of the process is key to aligning the design with the machine’s coordinates for consistent and accurate cuts.

Functions of the Spindle and Cutting Tool Regarding Pulleys

The two factors that determine accuracy and quality in the machining process for the pulleys are the spindle and the cutting tool. Both parts of the pulley system influence the end product. The spindle provides the necessary rotary motion that sets the cutting tool to its correct speed and feed rate. The cutting tool, which is mostly chosen as per the pulley material and design, does the material cutting. The spindle and the cutting tool need to be set and serviced in such a manner so as to facilitate proper functioning of the machine without operational defects that will lead to the deterioration of the quality of the machined pulley.

The Role of CNC Mill and Timing Belt in Mid Complexity Manufacturing

The combination of CNC mills together with timing belts is critical for the success of CNC industrial processes and pertains to precision manufacturing and mechanical engineering. CNC mills are essential for complex and geometrically intricate parts due to their high accuracy and high repeatability machining processes. The system alone, however, does not enable the most optimized performance; alternatively, the use of efficient power transmission timing belts provides an optimized solution due to its precision toothed design. Timing belts are also very beneficial in CNCs because they make sure that synchronous operations are performed without slippage and vibration. These enhancements enable improved control and stability during operations, which is very critical in automotive, aerospace and robotic industries. Implementing both manufacturers’ technologies guarantees superior productivity and precision engineered components with minimal down time meeting the highest industrial standards of quality.

How to Prepare Your CNC Machine for Machining Toothed Pulleys?

Setting Up Leveling for the CNC Machine

In ensuring that the CNC machine section is calibrated, start by level and ensured that the machine is firmly stationed. This makes sure no external vibration threatens the accuracy of work done. Next, undertake a check of the machine’s reference points with a dial indicator or laser measurement tool over X, Y, and Z axes. Using the machines control panel, adjust the axis parameters in line with the reference points. Apart from this, attention should also be paid to the backlash settings, which ought to be compensated for. This diminishes inaccuracies during movements in the course of machining. Lastly, it is advisable that simple parts be test run to verify that all calibration settings such as the backlash compensation settings are in working order.

Preparation of the Workpiece for Accurate Machining Results

Ensure the workpiece is rigidly secured on the machine’s worktable to remove any chances of movement during the machining process in order to achieve desired outcomes. The relevant clamping tools can be used to fasten a workpiece located on the table and it must be properly leveled and aligned to the machine’s reference coordinates. The workpiece material and size should also satisfy the design requirements. Furthermore, the tool length and diameter offsets must be verified at the control panel to check for the necessary machining operations. The system must be checked for all these parameters in order to ensure accuracy and minimize the chances of mistakes and errors during the operation.

Programming the CNC Machine for Effective Operations in the Production of Toothed Pulleys

It is critical to maintain accuracy on the CNC machine when creating the tool for the toothed pulley so that the tooth profile required to transfer rotary motion is precisely achieved. Start from creating a CAD model of the pulley where the tooth specifications like tooth, pitch, and diameter are included. After that, import the model into a CAM environment to provide the required toolpaths while ensuring the cutting strategies will work for the material and the machine.

Use age appropriate tools when cutting such as end mills or specific gear hob cutters depending on the material and tooth configuration needed. The removal of material should be made efficiently while prolonging the life of the tool. The spindle speed, and feed rate must always be calculated. Moreover, the toolpaths must ensure smooth movement of complex contours while providing ample allowance for avoidance of interference. Identify and address issues with the toolpath before G-code is exported to the CNC machine by using the CAM software simulation functions.

Once the G-code has been uploaded to the CNC control unit, check alignment with the intended setup and tools. Make sure the coolant, speeds, and feeds settings are relevant to the material being machined. Run a trial test once all parameters are correct and set in order to diagnose the degree of tolerance and operational parameters of the machine. Following this procedure guarantees the accurate machining of toothed pulleys that will satisfactory function and mechanically perform as desired.

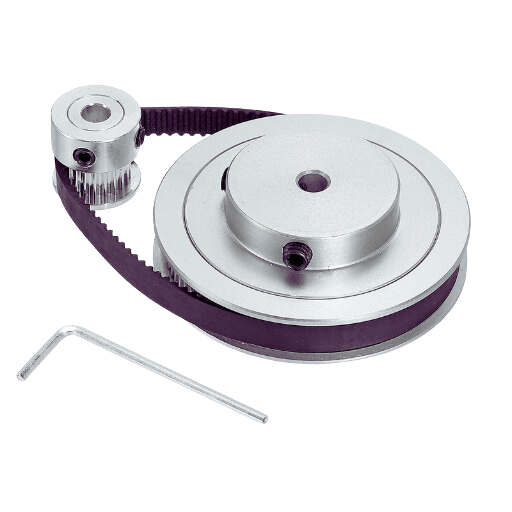

Guide to the Toothed Pulleys Machining Process on a 3-Axis CNC Machine Step By Step

Modifications to the CNC Program for Running Pulley Design

In processing a toothed pulley design, one must first import the CAD designed pulley into the CAM package. Check that the dimensions and geometry match the design criteria. Then, define machining operations – roughing, profiling, finishing – for the features of the pulley, and create appropriate toolpaths. Select the cutting tools according to the material of the part and the design details. Establish feedrate, spindle speed, cut depth, and coolant settings to enhance performance and reduce tool wear. Use the simulation features embedded within the CAM systems for making sure that the toolpaths are error free. After that confirm the program works correctly, export it into the CNC machinable format and upload it to the system.

Maintaining Focus While Machining Is Underway

To ensure success in the machining process, it is important to correctly position the workpiece within the CNC machine’s jaws. Also, the coordinator must ensure that the step-motor has been set and aligned per the preferred dimensions of the design. Rely on the effectiveness of the cutting tools, their sharpness, and their number of uses, since this can greatly impact the outcome. Float control should be enforced to maintain temperature and avoid the materials from taking an undesired form. The workpiece should also undergo routine checks during the machining process to ascertain that the tolerances and design purposes, and the overall workpiece are inline with acceptable parameters and for machine components. Everything must be done at the right time to ensure that the quality produced is at the right level.

How To Accurately Finish Colt Pulleys

Achieve that end goal of being capable of high quality finishing of the toothed pulleys, accuracy and surface and structure fidelity of the design parameters, especially the torque limits must be closely monitored. The desired sequence of operations is roughing which is performed by milling or broadening while streamlining the surface contours and getting rid of defects. Tools must be effective and free of wear in case straight edges, contours and angles along with the circumferential width need to be mitigated to ensure accuracy, effectiveness, and compliance right after the last phase finished operations. Employ calibrated devices and regularly assess the water level and shape to guarantee getting the desired parameters for the specification.

Contamination can negatively affect surface quality, therefore, keeping the workspace and equipment clean is necessary. During finishing operations, use appropriate cooling and lubrication to control friction and thermal stress which may negatively affect the material. After finishing, it is important to perform a thorough inspection. Inspect the surface texture and tooth profile through the use of optical or tactile measuring systems. Following these practices, all industry requirements for durable, high-performance toothed pulleys within the industry will be achieved.

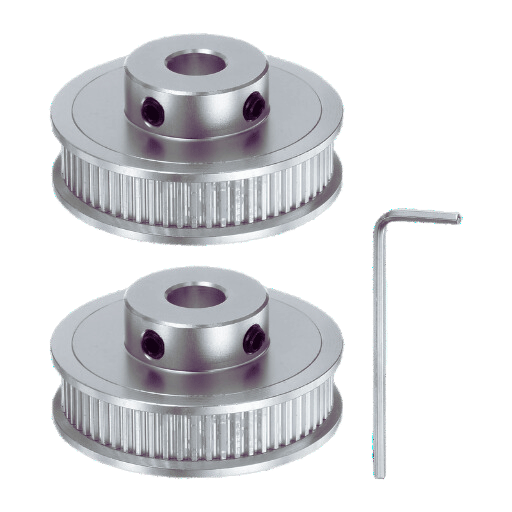

What Difficulties Could You Face When Manufacturing Toothed Pulleys?

Challenges In Achieving Precision In Toothed Pulley Manufacturing

Achieving accurate tolerances in toothed pulley production is difficult because a very high level of dimensional and surface accuracy is needed. Moreover, the processes of cutting, thermal expansion, or even machine stability breaks such tight tolerances. To solve these problems, a high quality custom made cutting tool, equipment with constant calibration and structured approach to machining like CNC milling or grinding need to be applied. Furthermore, keeping adequate control on the surrounding environment like temperature also prevents thermal distortion. Throughout the entire production process, measures like regular temperature monitoring are needed to ensure tolerance retention.

Resolving Problems Faced In Power Transmission Systems

Power transmission as a whole deals with problems like system misalignment, unwanted movements, and insufficient power transfer. To resolve the issue of system misalignment, all components must be positioned correctly and if possible, monitored for movement. In most cases, unwanted movement can be mitigated through the balancing of rotating elements or the use of rotating dampers. To optimize the power transfer, use materials which do not require constant lubrication while in motion, as well as undertaking proactive maintenance plans which allow for better resource allocation and less wasted time.

Modification of Feed Rate and Speed to Achieve Best Results

In regard to achieving optimal performance, I adjust speed and feed rate by understanding the material that is processed and the machine requirements. I also try to maintain an appropriate cutting feed rate to balance cutting efficiency with tool wear and part damage. Likewise, I set the speed according to the material type and the combination of cutting parameters to achieve a reasonable level of accuracy and productivity. By paying attention to such details during the operation, I am able to achieve consistent high results.

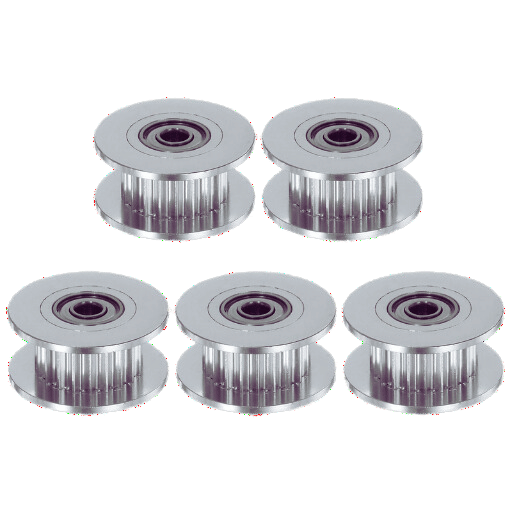

What Are the Benefits of a 3 Axis CNC Machine for Pulleys With Teeth?

Improvement of Pulley Machining Processes Productivity

With the use of a 3-axis CNC machine for work on the toothed pulley, the overall process becomes more efficient and productivity is ensured. These machines are also helpful when it comes to controlling the cutting processes. The automation of the machinery allows for the dimensions, quality, as well as each pulley that is manufactured, to be accurate. Every 3-axis CNC machine is capable of maintaining precision on various geometrical designs, which directly leads to savings in costs due to the optimum understanding of material waste. Additionally, the speed in which the machine operates is faster due to manual errors and mistakes no longer being a concern.  The CNC machines are also reliable when it comes to executing complex tasks such as machining CNC pulleys.

Achieving Uniformity of all Pieces Machined Removing Each Individ Dual Piece

With the aid of 3 axis CNC machines, achieving uniformity of all pieces machined removing each individ dual piece becomes a core advantage. Each toothed pulley is machined with great circumstantial precision allowing for minimal variability to be present from one unit to the next. As a result, when mass producing, the cuttings of these machines become slightly more reliable, providing greater accuracy when implementing engineering processes. The effectiveness of the pulleys allows for simplified efforts in ensuring quality resulting in time and resources being reduced in the manufacturing stage.

Cost-Effectiveness and Scalability of CNC Machining Overview

CNC machining improves cost-effectiveness because of the automatic system that reduces labor cost and material wastage. By optimizing resource usage, these machines’ accuracy and repeatability minimizes errors and reworks. Furthermore, the cost scalability obtained from CNC machining makes it ideal for setting up and managing production processes of almost any volume. It can easily manage quality and efficiency for small prototype batches and large-scale manufacturing runs. This feature contributes to the ability of businesses to respond to various market needs while controlling production costs and maintaining efficiency.

Frequently Asked Questions (FAQs)

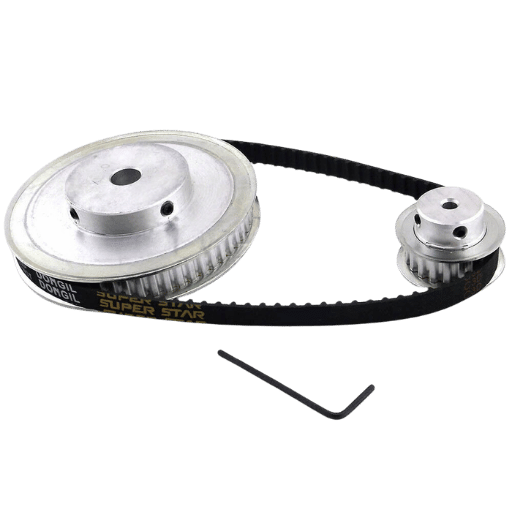

Q: What is a timing pulley and its purpose in machining?

A: A timing pulley, or timing belt pulley, is an integral part of any system that requires power transmission. It engages with the timing belts for optimum synchronization in various mechanical processes. In machining, timing pulleys play an important part in motion control accuracy, particularly in CNC machines where the level of precision in the manufactured parts is often very high.

Q: Which factors are most important in getting the tooth profile correct when machining timing belt pulleys?

A: As previously mentioned, the precise tooth profile when machining timing belt pulleys is achieved through the use of high-quality cutting tools, proper tool paths, regularly adjustable machine cutting speed, control of the material properties, and coolant infusion. Accurate machine coordinates are also critical. Additionally, to maintain the high-precision results, regular calibration of your CNC machine is essential.

Q: In what ways can the production of high quality toothed pulleys be optimized by a CNC tool machinist?

A: A CNC tool machinist can optimize high quality toothed pulleys production by: 1. Developing comprehensive G-code programs. 2. Choosing the cutting tools and relevant parameters to be utilized. 3. Properly setting up the fixtures. 4. Carrying out precise quality control measurement in the manufacturing of high quality pulleys. The CNC machine requires consistent service and calibration for optimal output of high quality pulleys. Designing specialized software for the intricate tooth profiles of advanced pulleys is also a consideration. Increasing their grasp of CNC machining processes and the design of toothed pulleys is also important.

Q: From a practical perspective, what are some uses of CNC manufactured toothed pulleys?

A: Some uses of CNC manufactured toothed pulleys include: 1. Automotive engine and transmission systems. 2. Industrial robots and machinery. 3. 3D printing and other additive manufacturing machines. 4. Conveyors and material handling machines. 5. Equipment using stepper motors. 6. Measuring and other precision devices. 7. Different types of mechanical systems with toothed belt drives.

Q: In what ways does the selection of materials influence the manufacturing of toothed pulley components on a 3-axis CNC tool in terms of speed and efficiency?

A: The choice of materials affects the machining of toothed pulleys significantly, especially regarding the amount of torque and the load that can be carried. Various materials have different requirements for cutting speeds, tool selection, and feed rates. For instance, aluminum has a higher cutting speed and is easier to machine, whereas hardened steel tends to have more cutting tool restrictions. The material’s characteristics also influence the product’s strength, weight, and efficacy regarding power transfer.

Q: What steps can be taken to resolve problems encountered when trying to manufacture highly accurate toothed pulleys on a CNC Machines tool?

A: Several issues CNC machines face when constructing high-quality Toothed Pulley are: 1. Overcoming impediments to ideal tooth shape: Solve this with the application of techno economic high range CAM systems and high range tooling. Advanced Tooth Shape: Specialized CAM Software with precision tooling. 2. Consistency in quality: Use stringent measures in quality control and machine maintenance to increase the chance of high quality. 3. Increasing the rate of supplying goods: Create and refine dev machining methods and automate them wherever possible. 4. Managing tool life: Establish healthy parameters of depth of cut, types of cutting and tools and implement tool life management methods. 5. Overly complicated designs: Have a contining program of training for employees alongside modern CNC technology and approach changes.

Q: What is the connection between CNC coordinates, machine coordinates, and the production of toothed pulleys?

A: Your answer hinges on the idea that coordinates of CNC and Machine are cardinal in the processing of the toothed pulley. CNC coordinates specify the tool’s motion outline, and the software program functionality while machine coordinates define the physical location of the machine axes. The crossing of these two systems must be achieved in such a way that the design of the machined pulley is accurate. To successfully produce toothed pulleys of high quality, machinists must understand and work with these coordinates.

Reference Sources

1. Title: Manufacturing Method for Large Cylindrical Worm Gear Set of ISO Type I on Universal CNC Machine Tools
   • Authors: K. Kawasaki, I. Tsuji
   • Publication Date: 2023-02-24
   • Summary: This paper analyzes the production of large cylindrical worms and gear sets utilizing endmill tools on universal CNC machines. The authors elaborate on how the tooth flank forms and the requisite cutting conditions for effective high speed machining were established. The research highlights the predominance of the use of so-called “standard” tools as opposed to special “gear-generating” machines, which enable more cost-effective and simpler manufacturing processes. The results suggest that the method employed allows for the low cost production of high quality gears without ancillary equipment(Kawasaki & Tsuji, 2023).
2. Title: Tooth Profile Design of Cycloid Gear Based on NC Forming Machining
   • Authors: Guixiang Liu et al.
   • Publication Date: 2016-12-31
   • Summary: While this paper exceeds the five-year threshold by a margin, it does offer considerable guidance towards comprehending the design and machining processes related to cycloid gears, which resemble toothed pulleys. The authors elaborate on NC (Numerical Control) Forming methods as an advanced technique in gear manufacturing to increase the accuracy and productivity of gear production. The research illustrates the significance of properly chosen machining processes, tools, and parameters in achieving the expected profile and surface area of the tooth(Liu et al., 2016).
3. Title: Design and Fabrication of a Low Cost 3 Axis CNC Router Machine
   • Authors: Mudawi I Adam et al.
   • Publication Date: 2022-10-18
   • Summary: With this publication, we want to showcase how a low-cost 3D CNC router machine, that can operate on XYZ axles, can be used for performing primary functions like producing toothed parts. The authors quantitatively describe the building process so as to explain the choice of materials and components as well as their values in productivity. The research highlights prospects of usage of such machines in educational institutions and centers of small industry(Adam et al., 2022)
