Master the Art of Cutting Calculation: Your Guide to Precision in CNC Machining

As is the case with anything mechanical, accuracy is a modern CNC machine’s signature foundation, and this specific aspect can be achieved only if a thorough understanding of cutting calculations is available. This article will highlight relevant steps and methods that constitute the accurate cutting parameter determination process. From basic concepts of cutting speed, depth of cut, and feed rate to their impact on machine performance and the resultant part’s quality, we will attempt to cover as many actionable insights as possible. And for those who are aiming to maximize productivity or detail level of workpieces produced, this guide will help in CNC machining mastery.

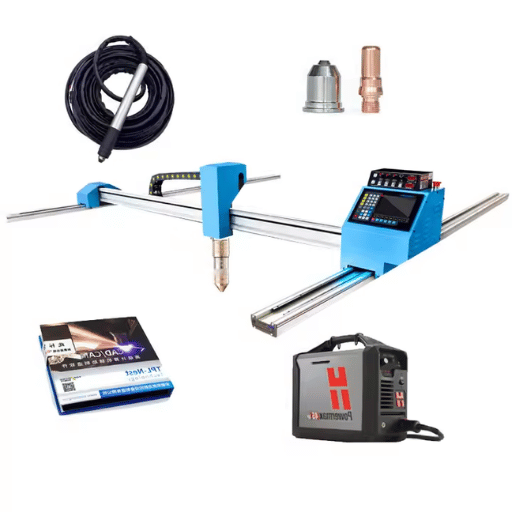

What is the meaning of cutting speed and how do you calculate it?

Cutting speed refers towards the rate of linear motion of the cutting edge and surface of the workpiece. Often, it is calculated in SFM or surfaces feet per minute or even in meters per minutes m/min. To derive cutting speed, one uses the following formula:

Cutting Speed (V) = (π x D x N)/12 (in imperial units)

V = metric space velocity in SFM

D = dimensions of workpiece or tool (in inches)

N = spindle speed (RPM)

In case of use of metric units, then instead of 12 put use 1000 and do the calculation as:

Cutting speed(V) =π x D x N/1000

Comprehending Cutting Speed Within CNC Machining

There are multiple specificities that affect the cutting speed of a CNC machine and they include the material of the workpiece and the type of cutting tool used, as well as the operation being performed. Materials constituting the workpiece like aluminum, steel, and titanium have different levels of hardness and thermal properties which require different cutting speeds. In the same manner, cutting tool materials such as high-speed steel (HSS) or carbide tools, as well as ceramic, impact how hot the machining tool can get before it loses its sharpness.

The optimal cutting speed also changes with the different machining operations which include turning, milling, and drilling. For instance, milling also has its own set of speeds depending on the number of tool flutes as well as the feed rate. Implementing recommended cutting speed ranges enables precise cutting and consulting guidelines ensures efficiency in all operations.

The changes in velocity can be calculated using the following formulas

Cutting speed (Vc) is one of the important parameters that need to be calculated in various machining processes. It is defined using the formula:

Vc = (π × D × N) / 1000

Vc = Cutting speed (meters per minute, m/min)

D = Diameter of the workpiece or tool (millimeters, mm)

N = Spindle speed (revolutions per minute, RPM)

Aligning the spindle speeds and diameters with desired cutting speeds ensures accurate and efficient tool performance. Some adjustments utilizing the materials properties, cutting tool parameters, and machining conditions may be required. References on specific tool manufacturers recommendations and standards greatly aid in achieving optimal results.

Factors affecting cutting speed

Different materials possess different hardness and thermal properties which affect the optimal cutting speeds. For example, softer metals such as aluminum allow for much greater cutting speeds as compared to harder metals such as stainless steel.

Every tool made from high speed steel (HSS) or carbide or even ceramic have enabled varying performance capabilities, but in general it is able to be observed that the carbide tools tend to support higher speeds due to their increased durability in withstanding heat.

As efficiency is maximized by increasing the shape and sharpness of the cutting tool, smooth and safe cuts have to be ensured by optimal tool geometry at higher speeds.

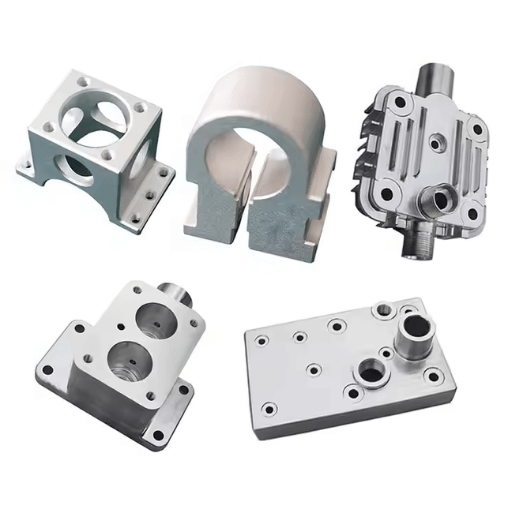

How do you determine the depth of cut in a machining process?

Establishing depth of cut and its significance

In relevance to a machining operation, depth of cut is the distance a cutting tool goes into the workpiece during the process. It is defined by the distance between the uncut surface and the machined surface. This setting is usually based on the type of the workpiece material, the cutting tool’s capability, and the strength of the machine at hand.

To find the optimal depth of cut:

Material Properties – There is usually greater depth of cut allowance on softer materials than harder ones that require shallower cuts to protect the tool from damage as well as overheating.

Tool Strength – These refer to the strength and sharpness of the particular cutting tool. Tougher tools are able to tolerate deeper cuts.

Machining Conditions – Aspects such as power of the machine, its stability, and how well vibrations are controlled are critical. With cuts being deeper, the rigidity of the machine tends to be greater, thus enabling deeper cuts.

Choosing the appropriate depth of cut always guarantees improved efficiency in machining, better tool life, and minimizes chances of making mistakes during machining. Always comply with guidelines provided by the manufacturers regarding particular materials and tools.

Applying a calculator for precise feed rates

To get accurate feed calculations, a calculator will need the user input of feed per tooth (Fz), spindle speed (N), and the number of flutes (z). Using these parameters, you can easily calculate the feed rate (Vf) for your machining process using the formula Vf = Fz × N × z. This helps in the achieving target efficiency without compromising quality and increasing tool life. Please pay careful attention to the input values and units because errors do occur and can affect calculations negatively.

Common mistakes in determining the feed per tooth

As with other calculations, there is also the most common mistakes as misinterpretation of units measuring. In this case, feed per tooth (Fz) is either given as millimeters (mm) or inches, and unit shifting for conversions is done incorrectly. Another mistake of the type is not considering the correct value for flutes (z), especially when the guage is two-flute tool. Calculating the rate with an assumed value of 4 flutes increases the chances of overloading the cutting edges which will eventually wear the tool out or break it.

So that you can better understand the data, here are two sample cases:

Feed per tooth (Fz): 0.1 mm/tooth

Spindle speed (N): 12,000 RPM

Number of flutes (z): 4

Fz × N × z = 0.1 × 12000 × 4 = 4800 mm/min

After the calculations, the correct value of Feed rate (Vf) is 4800 mm/min.

Feed per tooth (Fz assumed): 0.2 mm/tooth (wrongly changed from actual 0.1 mm/tooth)

Spindle speed (N): 12,000 RPM

Number of flutes (z): 4

Vf = Fz × N × z = 0.2 × 12,000 × 4 = 9,600 mm/min

This incorrect assumption gives a feed rate of 9600 mm/min which is double the required rate and will most probably lead to excessive machine vibration, lowering the surface finish of the part, and tool damage.

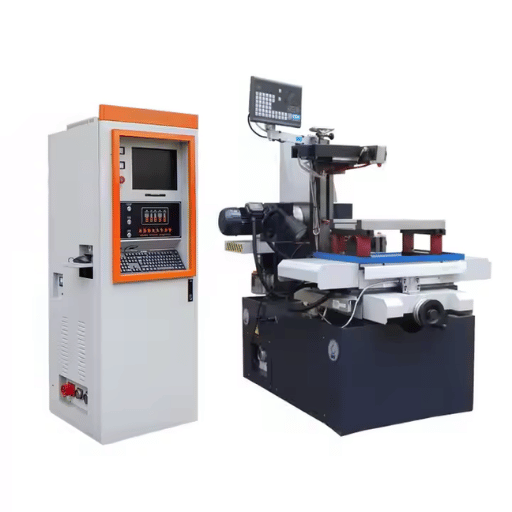

What is the role of machine tool in cutting force measurement?

Investigation of functionalities of machine tools

The measurement of cutting forces is closely linked to the efficiency of machine tools since they provide the surface from which the forces during the machining process are measured and recorded. In machining, cutting forces are one of the most important parameters affecting the process, the life of the tool and the quality of the part. The necessary integrated or external force measurement devices, such as dynamometers and load cells, are installed on the machine tools for measuring these forces. These systems offer measurement of forces in real time in X, Y, and Z axes which enable detailed analysis.

Cutting force measurement is constantly improved with new types of sensors and data acquisition systems with the goal of ease of measurement and minimal interruption to the machining process. Multi-component dynamometers are also a case in point. They can measure cutting forces that are sensitive, and therefore, are used with CNC machines for better control. Furthermore, the accuracy with which the forces are measured is affected by the rigidity and stability of the machine tool, which requires that the cutting conditions be matched to the capability of the machine. Therefore, integration of these measurement systems with the machine tools aims to optimize cutting parameters, maintain stability of the process, and reduce the possibility of tool wear or deformation of the workpiece.

Using Machine Tools to Measure the Cutting Force

The measurement of the cutting force has several dependencies which must be taken into account. Following is a summary of the most important ones along with new information from recent research:

The cutting forces are greatly affected by the cutting speed and the feed rate. A good example is the reduction of the cutting force with the increase of cutting speed from 50 m/min to 200 m/min during turning operations due to thermal softening as it was shown in a study conducted on steel alloys. On the other hand, raising feed rates from 0.1 mm/revolution to 0.3 mm/revolution increases the cutting forces by approximately 60% because of the larger cross-section of the chip.

The cutting tool rake angle and its material composition are also greatly important for the cutting forces. For example, tools with positive angles such as +10° rake angle produce lower force levels compared to tools with neutral and negative rake angles. Tougher materials like cemented carbide or polycrystalline diamond (PCD) have higher resistance to cutting and therefore, the harder those materials are to cut, the more active machining can be done without significant tool wear.

Just as the part to be machined is hard and its microstructure refined, so too is the degree to which the material is machined. For instance machining aluminum alloys usually results in a reduction of the cutting forces by 40%-50% when compared to carbon steels under the same cutting conditions. Experimental data suggests that harder materials like a steel whose hardness is in excess of 50 HRC, employ greater forces due to the resistance to the removal of the material.

Cutting fluids can be used to lower the cutting forces remarkably by reducing friction at the tool-chip and tool-workpiece boundaries. Tests have indicated reductions in cutting forces by 20%-30% when utilizing high-performance cutting fluids or MQL systems, when compared to dry machining processes.

The vibrational behavior and the static stiffness of the machine tools will also affect the measurement. Machines with a greater degree of dynamic stiffness minimize the errors in measurement of forces due to deformation or shudder of the system, thus providing better information.

Armed with empirical evidence quantifying these factors and their effects, manufacturers can know in advance how to adjust the machining conditions and performance optimization can be achieved. From the standpoint of precision engineering the combination of advanced dynamometers and analytical models enables accurate force prediction which boosts productivity and quality of the product.

Efficient Methods of Cutting Force Optimization

There is a growing emphasis on real-time telemetry and machine learning in cutting force optimization. Integrated sensors in dynamometers are able to record force data with higher accuracy even in difficult machining scenarios. Advanced algorithms utilize this information for predicting tool life, fault diagnosis, and suggesting feed, cutting speeds, and depth of cut.

The use of new materials for cutting tools, particularly polycrystalline diamond (PCD) and ceramic composites, have greatly improved the machining dynamics due to lower cutting force requirements and superb surface finish quality. When these materials are used in conjunction with cryogenic machining or advanced MQL cooling systems, tool life and productivity are improved. In summary, employing these techniques result in manufacturers obtaining better performance and cost effectiveness in economically aggressive industries.

How do you calculate machining time in cnc milling?

The Components of Time Relative to Machining Operations

The machining time in CNC milling has several core components, such as the length of cut, feed rate, and tool speed. For efficient machining, accuracy depends on these various factors and their correlation. Basic machining time (T) can be calculated by the following equation:

T = L / (F * N)

T = Machining time in minutes

L = Total length of cut in mm

F = Feed rate in mm/revolution or mm/minute

N = Spindle speed RPM

Example data:

Material: Aluminum alloy

Cutting Length (L): 150 mm

Feed Rate (F): 0.25 mm/rev

Spindle speed (N): 1200 RPM

Applying the formula:

T = 150 / (0.25 * 1200)

T = 150/300 = .5 minutes or 30 seconds.

Considerations for Accuracy:

Adapt the spindle speed and feed rate to suit the material being machined and the tools used.

In detailed planning, include setup times, tool change times, and any other operational waiting times for industrial applications.

For simulation, CAD/CAM software can break the machining times into smaller segments, therefore increasing accuracy and decreasing the chance of error, guaranteeing cycle optimization.

Steps to compute machining time with utmost precision

Here is a detailed outline of the major parameters and relevant data pertaining to the calculation of machining time.

Material Type: Aluminum alloy

Hardness Level (if applicable): Moderate

Thermal conductivity and wear characteristics (for consideration for tool selection)

Cutting Length (L): 150mm

Feed Rate (F): 0.25 mm/rev

Spindle Speed (N): 1200 rpm

Tool Type: Carbide Insert Cutter

Tool Diameter (if applicable): Custom dependent on cut type

Machine Type: CNC Lathe Machine (and mode of operation)

Surface Speed: Is calculated and derived based on the spindle speed if it was not done previously.

Chip Load per Tooth: Is dependent on the cutting tool and the rods used.

Coolant (if used) – Has to be applied for efficiency in cooling effects.

Operational Delays / Adjustment ( Tool Changeover Adjustment, tool and part alignment externally)

Machining time (T): 30 seconds or 0.5 minutes

Addional Adjustments (dwell adjustment, retaction adjustment) – as appropriate to the final values.

Techniques for Improving Productivity Through Reductions in Machining Time

There are several methods that can be applied for productivity enhancements and time reduction in machining processes:

• Adjust Tooling Conditions: Changing the feed rate, spindle speed, and depth of cut for the machined material can result in higher rates of material removal without lowering surface quality or tool life.
• Select Superior Tooling: Use of high-performance cutting tools such as coated carbide inserts provides better wear resistance, thermal stability, and efficiency during high speed machining operations.
• Adopt High-Speed Machining (HSM): HSM improves the throughput of softer materials and during the finishing stages by greatly decreasing cycle times.
• Apply Newer CNC Technology: Modern CNC machines with improved acceleration and deceleration as well as rapid tool changes decrease idle time and aid in improving the speed at which machining is done.
• Reduce Non-Value Add Time: Better planning and automation for tool setup, retraction, and dwell time saves considerable time during repetitive or batch processes.
• Apply Coolants: High-pressure or directed coolant systems applied correctly can reduce tool wear due to overheating and allow for faster cuts while maintaining excellent quality cuts.

Frequently Asked Questions (FAQs)

Q: Why is cutting calculation critical in CNC machining?

A: As it pertains to cutting calculation, this aspect is important in CNC machining because it aids in defining the optimal machining parameters towards efficiency and accuracy. This means that the blade can operate at an ideal speed and feed rate while minimizing wear and oxidation. Such action will prolong the life of the equipment as well as improve the quality of the turned parts.

Q: How would you calculate cutting speed in CNC turning?

A: The cutting speed in CNC turning may be calculated using the formula: Vc = (π × D × N) / 12. In this case, the operator must remember that Vc is the cutting speed in inches per minute, D is the diameter of the workpiece and N is the rotational speed expressed in revolutions per minute. This machining formula aids operators in determining what speed will yield the desired results.

Q: What are the basic elements that affect the calculation of chip thickness?

A: The calculation of chip thickness is influenced by feed rate per revolution, geometry of the blade, speed of machining, and the material properties of the workpiece. Knowing these factors assists in ensuring the most optimal machining processes are utilized to produce precise cuts.

Q: How is theoretical surface finish evaluated in CNC machining?

A: The theoretical surface finish is evaluated based on the feed per unit distance, nose radius of the tool, and the amplitude of rotation. This theory predicts the surface roughness and helps the operator determine the required surface quality to modify the machining parameters accordingly.

Q: What is the role of machinability in cutting calculation?

A: As one of the definitions of machinability, it also refers to the facility of cutting the material and this has an effect on the cutting calculation. As the machinability improves, the power requirements for the cutting operations and the surface deterioration also improve. Knowledge of machinability aids to further define the cutting parameters like the spindle speed and the feeding speed for optimum results.

Q: What steps do you take to find the best rotational speed for CNC turning?

A: By analyzing the workpiece’s diameter, preferred cutting speed, and its material characteristics, one can determine the optimum rotational speed. In this case, operators apply the formula N = (12 × Vc) / (π × D) to calculate the required RPM (revolutions per minute) in a way that guarantees both accuracy and efficiency of the machining process.

Q: Why does the feed rate tolerance need to be met in CNC machining?

A: The correct feed rate facilitates minimal tool wearing, good surface finish, and accurate dimensions. The feed rate, which is usually in inches per minute (IPM), defines the average volume of material removed per rotation, therefore impacting the effectiveness and accuracy of the machining.

Q: What is done to improve cutting performance in CNC operations?

A: Advanced tooling materials, automatic tool changers, machining parameters optimization, and coolant systems are used to reduce the temperature and oxidation, thus, improving the cutting performance and acting as a solution for the CNC machines. These practices are of considerable benet when striving for greater productivity, accuracy, or extended service life of CNC operations.

Q: What is the method to calculate the radius of curvature for the turned part?

A: For a turned part, the radius of curvature is determined according to the tool’s nose radius and feed rate. This is a crucial aspect since these values help calculate the final contour of the workpiece. The contour must also satisfy the design requirements. Measurement of the radius is essential during CNC turning.

Reference Sources

1. “Direct calculation of Johnson-Cook constitutive material parameters for oblique cutting operations”(Nguyen & Hosseini, 2023)

• Published in 2023
• Authors: Nam Nguyen, A. Hosseini
• Key Findings: The authors developed a direct calculation method to determine the Johnson-Cook constitutive material parameters for oblique cutting operations, which can accurately predict the cutting forces and temperatures.
• Methodology: The authors used an analytical model combined with experimental validation to directly calculate the Johnson-Cook material parameters without the need for iterative optimization.

2. “Calculation and analysis of quasi-dynamic cutting force and specific cutting energy in micro-milling Ti6Al4V” (Zhang et al., 2022, pp. 6067–6078)

• Published in 2022
• Authors: Yabo Zhang, Q. Bai, Fengrui Zhang, Peng Wang
• Key Findings: The authors proposed a calculation model to predict the quasi-dynamic cutting force and specific cutting energy in micro-milling of Ti6Al4V alloy, which showed good agreement with experimental results.
• Methodology: The authors developed an analytical model based on the undeformed chip thickness and cutting edge geometry to calculate the cutting force and specific cutting energy, and validated the model through experiments.

3. “Optimal calculation and experimental study on cutting force of hypoid gear processed by generating method”(Jiang et al., 2021, pp. 1615–1635)

• Published in 2021
• Authors: Chuang Jiang, Jing Deng, Xiaozhong Deng
• Key Findings: The authors proposed an optimal calculation method for the cutting force of hypoid gears processed by the generating method, and validated the model through experimental studies.
• Methodology: The authors developed an analytical model to calculate the cutting force based on the gear geometry and cutting parameters, and conducted experiments to verify the accuracy of the model.
