what is a cnc machine in the medical field

Bringing innovation, reliability, and precision, which are of utmost importance in the medical field, especially in manufacturing medical devices and components, CNC (Computer Numerical Control) machining is being utilized nowadays for its unmatched accuracy and consistency. This post explores how CNC machining changes medical device production regarding product quality, innovation, and compliance with complex regulations. It will cover the benefits of CNC machining in medicine and how it fosters innovation and the development of life-saving technologies. The main topics will be enhanced product quality, innovation, and complex regulatory requirements. Upon finishing the article, the reader will understand how precision CNC machining redefines medical device manufacturing.

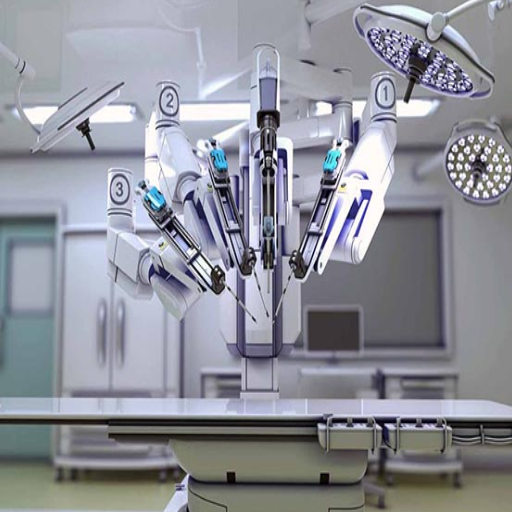

What is CNC Machining in the Medical Industry?

CNC Machining, or Computer Numerical Control Machining, integrates sophisticated techniques for the automated manufacture of parts by using computers and mechanical accessories. Its precision and accuracy have made it critical in the medical field to fabricate components in medical devices, surgical instruments, prosthetics, and implants. CNC Machining helps to meet stringent tolerances, controlled standards for the materials used, and individualized design requirements, which means critical medical products are dependable, safe, and effective. CNC Machining, in all its flexibility, is extremely important to healthcare technology advancement.

How does CNC machining technology work for medical applications?

The CNC Medical Machine Technology devices are made of stainless steel, titanium, and specific plastic materials, which are further processed to medical grade. The components are initially designed using CAD (computer-aided design) software. The design is uploaded into CNC software, after which the machine can automatically cut, drill, or mill the material with precision according to the uploaded design.

Some of the notable technical features of CNC Machining include:

Tolerance Levels: Generally within ±0.001 inches, adequate for medical components.

Surface Finish: Ra 0.4 – 1.6 µm, suitable for surgical tools and implants.

Materials: Biocompatible materials like Titanium (Grade 5) and PEEK.

Repeatability: For CNC machines, ±0.0001 inches is the average accuracy for identical parts.

Compatibility with sterilization: Parts and components are constructed to survive autoclaving and other forms of sterilization.

Incorporating sophisticated features such as multi-axis machining and real-time monitoring ensures that CNC machining delivers high precision, safety, and durability to the fully realized components.

What are the key benefits of using CNC machines in the medical industry?

Refined Precision and Accuracy

With CNC machines, precision is guaranteed extensively due to tolerances reaching ±0.001 inches for medical components. Accuracy is vital in manufacturing complex medical devices such as implants, diagnostic equipment, and surgical instruments, as they tend to function with little or no margin for error.

Scalability and Reproducibility

In CNC machining, vast quantities of the same part without variation are easily achieved. This is especially important in the medical field, where productivity for prosthetic devices and customized implants guarantees brand usefulness and reliability. Quality is offered regardless of the scaled maximum limit, which is highly beneficial.

Material Versatility

PEEK, medical-grade plastics, titanium, and stainless steel are just some of the biocompatible materials used by CNC machines. The durability and safety of meeting the healthcare regulation standards make these materials exceptional for implants, surgical tools, and other specialized medical devices.

Reduced Lead Time and Quick Prototyping

With CNC technology, prototypes can be quickly constructed and tested, followed by further modification of the product received. Products are delivered faster to the market, improving grade development cycles. This allows for the implementation of new innovative solutions in medicine much quicker.

Compatibility with Sterilization Processes.

CNC-milled parts can withstand severe sterilization methods (autoclaving, gamma radiation, or chemical sterilization), which are essential for maintaining safety and hygiene in medical environments.

Integration of Advanced Technologies.

Traditional CNC machines now include multi-axis versions, which allow for machining intricate geometries necessary for sophisticated medical devices. Furthermore, real-time monitoring and automation of the production process help minimize operational mistakes while guaranteeing strict quality control measures.

CNC machining is one of the most essential medical technologies because of its accurate engineering and high speed, which is fundamental in healthcare industries.

Which medical devices and components are commonly produced using CNC machining?

Some standard medical devices that include CNC machined components are diagnostic imaging instruments, orthopedic implants, and surgical tools. For example, surgical tools, especially precision scalpels and fine forceps, have tolerances achieved by CNC machining that are often ±0.001 inches. These precision tools must be perfect for accuracy during critical procedures. Additionally, orthopedic implants such as hip and knee replacements, as well as bone screws, are machined using biocompatible materials like titanium and stainless steel. The biocompatible materials and the CNC machines ensure smooth surfaces and correct tolerances for patient safety and implant durability. Parts and housings of diagnostic imaging instruments also utilize CNC plastic machining. Such methods make it possible to produce intricate components from aluminum and plastics with complex geometries. The information provided emphasizes the precision and quality requirements that CNC machining fulfills in the medical field.

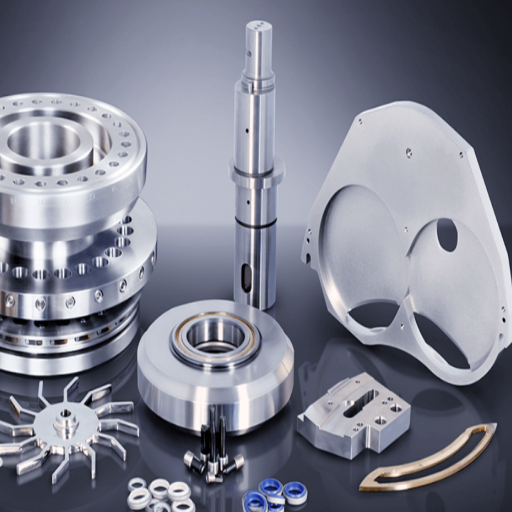

Why is Precision Essential in Medical CNC Machining?

Precision is essential during medical CNC machining because it affects patient safety, device functionality, and compliance with governing bodies. Medical parts like surgical implants, instruments, and diagnostic devices must observe tight tolerances to work properly with the human body. The slightest deviation can cause the device to fail or harm the patient. Regulations like ISO 13485 also require accuracy to sustain medical manufacturing quality.

How does CNC machining ensure high-quality medical parts?

Using modern technologies, CNC machining enables the fast and precise fabrication of complex medical parts due to its high precision, accuracy, and ability to meet high standards. CNC machines achieve tolerances of up to ±0.0001 inches, which is necessary to produce medical components. This level of accuracy provides lower chances of errors and increases compatibility with the human body.

In addition, the numerous other machines, tools, and materials used in CNC also aid in creating complex three-dimensional structures of medical-grade titanium, stainless steel, and plastic that can mate with the human body. Multiaxis machining enables the manufacture of complex geometric shapes for surgical instruments and implants. With CNC machining, quality assurance is guaranteed because of in-process inspection techniques that meet ISO 13485 and FDA requirements.

Important technical parameters:

Tolerances: medical exacting components ±0.0001 inches.

Surface Finish: Ra 0.4 µm or smoother to ensure safety and smoothness.

Material Compatibility: Utilizes medical-grade titanium, stainless steel, and PEEK.

Repeatability: ±0.0001 inches to provide accuracy in production quality over time.

This ensures CNC machining can consistently provide safe and high-quality medical parts.

What level of precision can be achieved with CNC machining for medical devices?

The CNC machining process for medical devices can achieve the precision the medical field requires. Components of different shapes and various materials are accurate within tolerances of ±0.0001 to ±0.0005 inches. Even the most complex medical parts are guaranteed to fit and work properly. The surface finishes are also astonishing, with an impressive Ra value of 0.2 µm, which makes these delicate parts safe for medical use.

CNC technology can manufacture medical-grade materials such as titanium, stainless steel, cobalt-chrome alloys, and PEEK with high accuracy and repeatability. Cutting-edge multi-axis CNC machines make manufacturing intricate geometries and microminiature parts needed in implants, diagnostic devices, surgical instruments, and other components possible. In addition, the high precision repeatability ensures that the production quality of each batch is constantly the same, ordinarily no worse than ±0.0001 inches. CNC machining devices are vital in manufacturing as they guarantee compliance with rigid medical device regulation standards.

Why is precision critical in medical device manufacturing?

In medical device manufacturing, accuracy matters significantly because it drives patient safety, device effectiveness, and compliance with regulations. Precise accuracy results in the smooth and effective operation of devices like implants or surgical instruments. Failure of such devices increases complication risks. Manufacturing accuracy is in line with strict domestic and international standards like ISO 13485 and FDA guidelines that guarantee reliability and quality. Some of the core technical parameters are tolerances, which are frequently ±0.001 inches, surface roughness of smoother finishes Ra 0.2 – 0.8µm, and the biocompatibility of materials. The accuracy drastically reduces errors and aids the production of advanced medical technology, which saves lives.

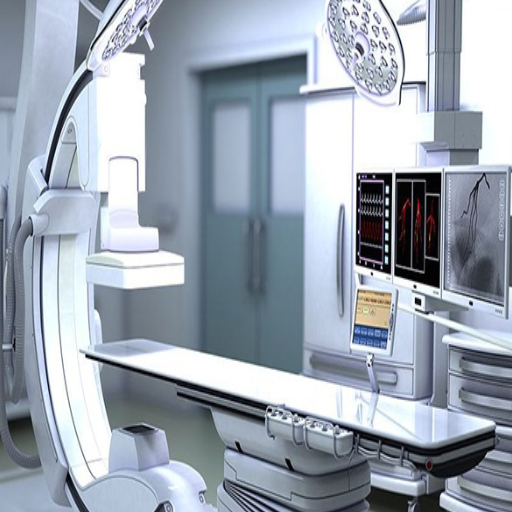

What are the Applications of CNC Machining in the Medical Sector?

The precision and automation of CNC machining make it indispensable when crafting intricate medical components for a wide range of applications. Surgical instruments, including scalpels, clamps, and forceps, are CNC machined to ensure precision accuracy is attained for safe use. CNC machining is also prevalent in prosthetics, where patients’ limbs are ensured to fit perfectly. Moreover, the process is critical in the production of implants such as orthopedic screws, plates, and dental implants that are sensitive to biocompatibility and tolerance issues. Aside from that, CNC machines can develop bespoke medical instruments designed for particular patients for further development in medicine tailored to individual patients.

How are surgical tools manufactured using CNC machining?

The healthcare sector has transformed due to innovation and advancement in personalized medicine, and CNC machining is at the center of all these developments. CNC machining is vital in manufacturing surgical tools. It assures the utmost accuracy, consistency, and ability to machine advanced materials, such as titanium and cobalt-chrome alloys, for fabricating biocompatible materials.

Some of the most critical factors in the development of surgical instruments using CNC machining are:

Accuracy: Claims: Accurate to ±0.005 mm of measurement or even stricter than that.

Surface Finish: Attained by polishing or other finishing operations, usually between Ra 0.2 to 0.8 µm within the cleanliness and ease of use requirements.

Cutting Speed and Feed Rate are controlled to avoid overheating the material and destroying its integrity. Depending on the material’s characteristics, they are usually between 50 and 200 m/min.

Tool Selection: Application of high precision cutting tools, i.e., carbide and diamond coated ones, enable clean cuts with sharp features.

The process often starts with computer-aided design (CAD), where the tool’s design is done on a computer. Then, the CNC machines execute the programmed steps, cutting the material into the required geometric shapes with high accuracy. The instruments are surgical scalpels, forceps, retractors, etc. The combination of technology and precise parameters guarantees that the products comply with the rigid requirements of the medical industry.

What role does CNC machining play in producing medical implants?

The manufacture of medical implants relies greatly on CNC machining for its required precision and consistency. Using advanced software and tooling, implants like joint replacements, spinal implants, and dental prosthetics can be made with micrometer-level accuracy. Achieving these standards ensures their biocompatibility, functionality, and safety.

Some often considered key technical parameters are surface roughness values, such as Ra 0.1 – 0.4 micrometers for osseointegration-promoting implants. The tolerances of dimensional accuracy are ± 0.001 inches, and biocompatible materials like titanium alloys, stainless steel, and cobalt-chromium are used for their strength. Moreover, this process creates sophisticated geometry for custom or patient-specific designs that are rising with precision medicine. CNC machining provides the backbone for dependable medical implants by integrating speed, precision, and flexibility.

Which medical equipment relies on CNC machining for production?

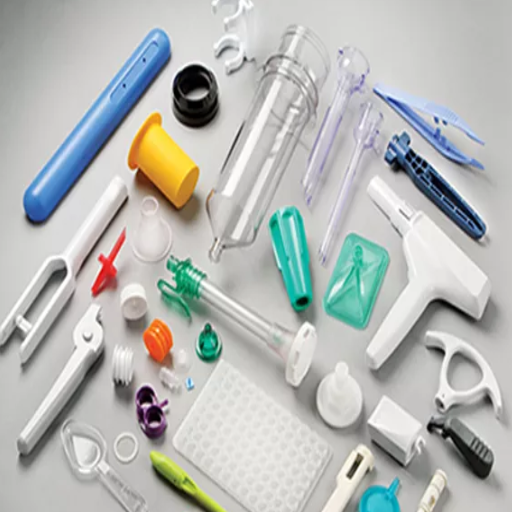

What Materials Are Used in CNC Machining for Medical Products?

Materials used in CNC machining for medical purposes have strict standards for biocompatibility, strength, and precision. Commonly used materials include titanium, which is strong and biocompatible; stainless steel, which is strong with high corrosion resistance; and cobalt alloys, which are great for high-wear applications such as joint replacements. Specialized plastics such as PEEK and medical-grade polymers are also used, as they are lightweight and strong. These materials have been chosen to be safe and reliable for medical use while providing the best performance possible.

Which materials are commonly used for machined medical parts?

Titanium and Its Alloys

Notable Features: Superb biocompatibility, lightweight materials, corrosion resistance, and a high strength-to-weight ratio for titanium.

Uses: Bone plates are utilized in surgical implants, Dental implants, and Hip joint replacements.

Stainless Steel (such as 316L)

Notable Features: Stainless steel is highly resistant to corrosion and has a high level of mechanical strength and toughness, which is essential when sterilizing a sample.

Uses: It has several medical applications, including surgical clamps, pins, and instruments.

Cobalt and Chromium Alloys

Notable Features: Combination of more rigid metals, qualifying cobalt, and chromium alloys have superior resistance towards wear and even toughness.

Uses: Metal prosthesis, joint Pseudarthrosis, and Dental prosthesis.

Polyether Ether Ketone (PEEK)

Notable Features include lightweight, high strength, chemical inertness, and radiolucent properties.

Uses: Spinal implants, Dental healing caps, and other load-bearing devices.

Ultra-high-molecular-weight polyethylene (UHMWPE) medical-grade polymers

Notable Features: Has excellent resistance towards frictional wear, low latent heat, biocompatible.

Uses: Commonly used in joint prostheses as bearing surfaces.

The selection of materials is sustained not only in the extreme conditions of component fabrication and in remaining biocompatible but also in medical applications. Advanced machining assures proper control of tolerances and accuracies within the demanding limitations of health standards.

How does material selection impact the quality of medical devices?

The materials chosen to construct medical devices are essential to their performance, safety, and lifespan. Materials selected for the device to undergo operation must have relative properties fitting to the device’s intended purpose and the surrounding conditions in which the device will be employed and operated. Some factors include biocompatibility, mechanical properties and strength, corrosion, and fatigue durability resistance. For instance, titanium alloys are some of the most commonly used implant materials owing to their mechanical properties, low weight and corrosive strength, and excellent biocompatibility, meaning they can bear loads and contact with body tissues for extended periods. Stainless steel is used in surgical instruments because it is strong and inexpensive and can be cleaned easily by disinfecting and sterilization.

Other essential features are the technical parameters, which include tensile strength, fatigue limit, and wear resistance. For example, cobalt-chromium alloys are used as they have a tensile strength of approximately 900 to 1,500 megapascals, which can be used in joint replacement or dental prosthetics. In the same way, some polymers, such as PEEK, have high chemical resistance and a reasonable level of elasticity, which is identical to bone’s 3-4 GPa, and they do not block the rays during imaging. Meticulous planning of patients’ needs and selection ensures that the legal requirements are met, the risk to patients is reduced, and optimal results are achieved throughout the device’s life cycle.

What are the challenges in machining different materials for medical applications?

When machining materials used in medical applications, it is constantly challenged by the precision and properties needed. For instance, ensuring tight tolerances is critical since components may need to function within the human body with tolerances as high as ±0.001 inches, which is minute. Furthermore, materials like titanium and cobalt chrome alloys are tough to cut due to their biocompatibility and extreme hardness, necessitating special tools and processes. Extreme machining poses other problems, like heating the material, which can change the material and the structure’s integrity. In such cases, a sound cooling system is necessary. In the case of polymers such as PEEK, surface roughness must be precisely controlled because it can lead to increased bacterial adhesion or partial implantation surfaces, which is not ideal. All of the problems encountered require advanced precise control of the process tools and high-performance cutting blades combined with CNC machines to satisfy the highly regulated requirements of the medical devices industry.

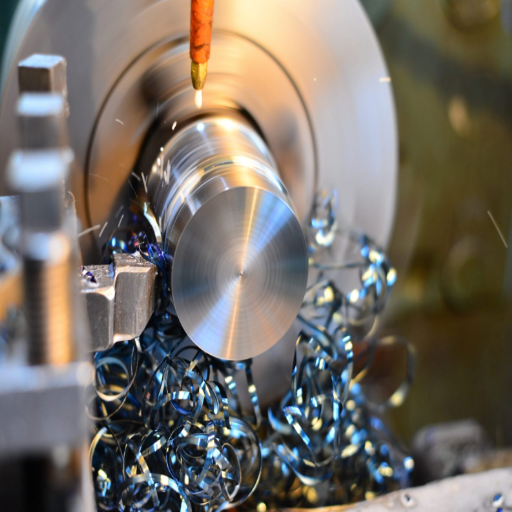

How Does CNC Machining Improve Medical Manufacturing Processes?

Medically engineered implants, implant-operated devices, surgical instruments, and diagnostic devices all require a high degree of precision in their construction. CNC machining produces these devices with unmatched transitive accuracy, efficiency, and repetition. These machines also manually automate the manual transformation of complex geometrical shapes into intricate parts, decreasing human error and guaranteeing consistent quality across production runs. Furthermore, titanium and other grade plastics, which are highly durable and biocompatible, can be easily employed as materials. These features, combined with the ability to work with stringent government regulations, significantly improve patient outcomes.

What advantages does CNC machining offer over traditional manufacturing methods?

How does CNC machining contribute to faster production of medical components?

With its speed, precision, and automation, CNC machining dramatically improves the production of medical components. Surgical implants, tools, and even diagnostic machinery can now be manufactured as small as ±0.001 inches. Additionally, automated CNC systems do not require manual processes because they are repeatable and can be run 24/7. Pre-programmed designs within the CNC machines also mean medical parts can be fabricated with exact duplication of even the most complex details.

CNC machining also widens the scope of biocompatible materials, including titanium, stainless steel, and medical-grade plastics. These materials are crucial for high-quality CNC medical components. Multi-axis machining (3, 4, and 5-axis systems) also increases the speed of automation, reduces setup time, and allows several operations to be done in a single program cycle. For instance, 5-axis CNC machines can do advanced milling and drill complex curves on prosthetics and medical implants while shortening production cycles.

The integration of high-speed spindles (30,000 RPM and above), specialized software, and real-time monitoring has increased efficiency in the cutting processes, reducing machining time without sacrificing precision. This combination of speed, versatility, and accuracy ensures that CNC machining meets the strict demands of the medical industry for quicker, reliable, and cost-effective production.

In what ways does CNC machining enhance consistency in medical part production?

CNC machining controls the precision levels in the automated production systems of medical parts, ensuring consistency. With programming integrated with rigid tolerances as acceptable as ±0.001 inches, human error gets minimized, guaranteeing uniformity within all parts, even in high-volume production. Moreover, real-time monitoring with closed-loop feedback systems ensures every part is compliant with the required specifications. Besides, the material properties are considered, as implants made of titanium or surgical stainless steel are, and their cutting speeds and feeds are optimized for those materials. This system is tightly controlled to provide the level of repeatability necessary for medical purposes so that the results can be relied upon to comply with the set regulatory standards.

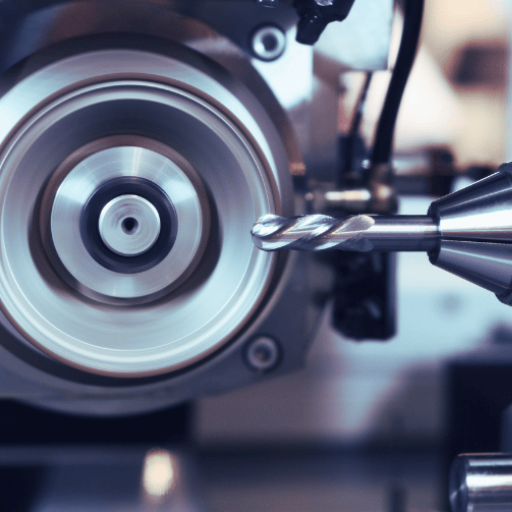

What are the Future Trends in CNC Machining for the Medical Industry?

Like any other sector, the medical industry will also benefit significantly from the new technologies and emerging needs in CNC machining. AI and machine learning integration is increasing, allowing for greater precision and efficiency due to self-optimization capabilities. In addition, there is a growing acceptance of 5-axis machining, which enables the production of complex and intricate geometries essential in modern medical implants and devices. New hybrid techniques for rapid prototyping and production that combine CNC and additive manufacturing are also emerging. Furthermore, there has been increased focus on custom implants and devices for patients, which has widened the use of biocompatible materials. With these changes, AI ensures that CNC machining will continue to change significantly with the needs of the medical sector.

How is CNC technology evolving to meet the demands of the medical field?

CNC technology is transforming, integrating several innovations to keep up with the medical field’s requirements:

Reduced Errors During Machining Using AI and Machine Learning

AI is now being integrated into CNC systems, which are used to improve the overall accuracy of their work and even minimize mistakes made during their machining processes. The self-optimization ability of today’s CNC systems makes it possible to work within tolerances of ±0.001 inches, which is necessary for complex medical components.

5-Axis Machining for Complex Geometries

5-axis CNC machining allows the creation of highly detailed, organic shapes needed for medical instruments and implants. It facilitates an advanced production evolution of higher speed, better geometry, and reduced need for additional tooling.

Integration of Additive Manufacturing

Combining traditional CNC machining with 3D printing is a rapid prototyping solution for custom implants. For example, bioprinted scaffolds using CNC can achieve a resolution of 10-100 microns, making them precise and easier to work with.

Increasing Use of Biocompatible Materials

There is a shift in the use of biocompatible materials in the CNC machining processes of titanium alloys, PEEK, and cobalt-chrome. These materials are safe and robust for medical use and can still meet stringent requirements like ISO 13485.

Streamlined Production Efficiency

Using new, advanced CNC machines with multi-tool and part-handling automation dramatically minimizes production time. It maximizes scalability, essential for mass device production and custom low-volume manufacturing.

The constant changes in precision, material use, and hybrid systems integration guarantee that CNC technologies will always be the leaders in medical development.

What innovations in CNC machining are shaping the future of medical device manufacturing?

In my opinion, there are a few innovations that are significantly accelerating the CNC machining process related to medical device fabrication:

Systems that Incorporate Both Additive and Subtractive Manufacturing

This new hybrid system combines additive manufacturing, which is 3D printing, with subtractive CNC machining and is a true marvel of modern engineering. This method allows intense prototyping of complex shapes and maintains surface quality accuracy. For example, complex internal cavities can be created through additive processes, and external surfaces can be refined through CNC machining. The combination of these methods can achieve micrometer-level tolerances.

Automation and AI

Modern CNC machines are adopting new types of automation and AI to enhance workflow efficiency. Intelligent software can calculate tool positioning and movements during machining, saving 20-30% time without negatively affecting machining accuracy. Integrating automation, such as robotic arms for handling parts, also helps improve workflows in mass production settings.

Ultra-High Tables

Diamond-coated composite and ceramic tools further enhance the precision achievable to an incredible tolerance of ±5 microns. These tools are very effective when machining titanium alloys and PEEK biocompatible materials, enabling higher quality compliance standards due to minimized defects.

Micro and Nano Machining

With the rise in the need for minimally invasive devices, micro and nano CNC machining capabilities have developed. These capabilities allow for creating parts for stents, implants, and intricate surgical instruments on a scale often less than one hundred microns or sub-millimeter, making them suitable for sophisticated medical procedures.

As a result, the industry is now working towards better and more innovative solutions since these changes form the backbone of the strategy. It also proves how modern CNC machining is adapting to the demands of contemporary medicine while still following stringent guidelines and quality assurance standards.
