The Complete Guide to Understanding Solder Melting Point

Soldering is an essential procedure in electronics, plumbing, and several metalworking industries, yet it is effective only within certain bounds, including one fundamental reason: the melting point of the solder. Understanding solder melting points is essential to guarantee dependable bonds and prevent expensive mistakes during assemblies or repairs. This guide will delve into the science of solder alloys, the factors that affect their melting behavior, and the consequences of choosing an inappropriate solder type for your application. Whether you are a seasoned technician or a hobbyist in electronics, this all-inclusive guide will provide you with the insight needed to make sound decisions and produce better outputs.

What is the solder melting point?

The solder melting point is the temperature at which solder changes from solid to liquid and can bond two metals together. This is the case for ubiquitous lead-tin solder with a 60/40 composition, which occurs at approximately 370°F (188°C). This value is lower with non-lead solders, which are more common nowadays due to government policies; these solders typically have melting points around 428°F (220°C), depending on the alloy makeup. Always check the manufacturer’s instructions for the exact values.

Understanding the melting point of the solder

Proper joint formation during soldering, especially with electrical solder, requires careful consideration of the solder’s melting point. Conventional lead-tin solder (60/40) has a melting point of about 370°F (188°C), distinct from gold solder. Lead-free solder usually hovers around 428°F (220°C), though there are some variations depending on the alloy used. Always check the manufacturer’s documentation to ensure these temperatures and the best results.

Importance of solder melts in electronics.

Soldering in electronics requires a precise temperature to create a reliable joint. The proper melting temperature of the solder guarantees strong mechanical bonds alongside optimal electrical conductivity for the components and circuit board. Operating above or below the recommended range can cause cold joints, which may lead to weak or variable connections. Manufacturers often provide definitive guidelines on the melting temperature for solders. Observing these specifications is indispensable to providing reliable results.

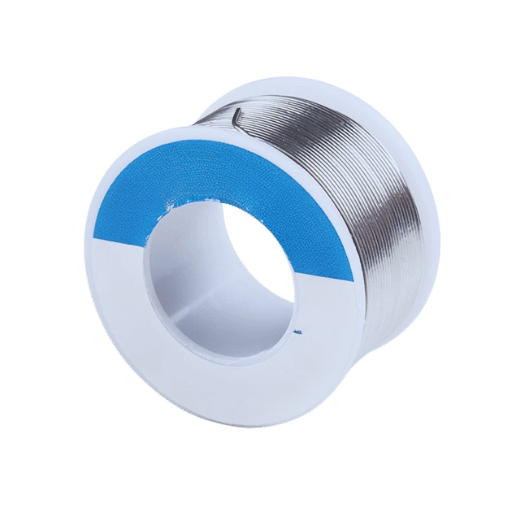

What are the factors affecting the melting point of solder?

The role of solder alloy composition

An alloy’s composition determines its melting point. The common solder alloys, tin-lead (Sn-Pb) and tin-silver-copper (SAC) have different melting temperature ranges. A 60/40 Sn-Pb alloy, for instance, melts within 183-190°C, while SAC alloys are lead-free and have higher melting temperatures, around 217-220 °C. By choosing specific ratios of alloys, manufacturers can design solders with a particular range of melting suitable for specific applications to ensure that performance is not faltered and the materials are compatible.

Difference between lead-free solder and leaded solder

The composition of lead-free solder differs significantly from that of leaded solder, but so does its environmental impact, weighing in on the side of ecology. Generally, solders without lead are said to be less toxic. A common form of welded solder is the amalgam of tin and lead, usually in the ratio of 60/40, which has a lower melting point and is, therefore, easier to work with. Unfortunately, because of the health issues associated with lead and the environmental problems it poses, its application has faced severe restrictions through laws like the RoHS directive. Conversely, lead-free solder usually comprises tin, silver, and copper alloys. While the absence of lead makes it more environmentally friendly, the solder has a higher melting point and requires higher temperatures, adversely affecting its reliability.

Impact of flux on melting temperatures

Flux is critical in soldering because it helps remove the oxide layers on metal surfaces, lowering the effective melting temperature. Flux also assists in the cleaning and preparation, ensuring that the solder performs well with wetting and adhesion, especially with a preform, thus creating strong, reliable solder joints. Although flux does not directly change the melting point of the solder alloy, the improved conditions created by applying flux allow the solder to flow at the intended temperature more efficiently.

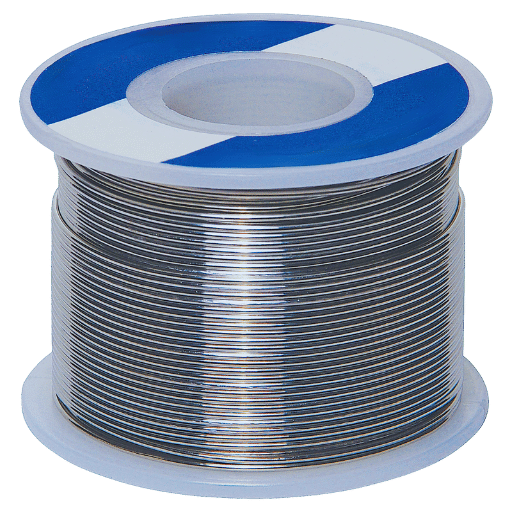

How do you choose the right solder for your project?

Comparing low-temperature solder and high-temperature solder

A solder that operates at low temperatures is better suited for heat-sensitive components or applications requiring connections at lower thermal limits. It usually consists of compounds like tin-bismuth, with a melting point lower than 300°F (150°C). In contrast, solders that operate at higher temperatures, like tin-silver-copper alloys, are meant for use in higher thermal areas or where greater mechanical strength is required. These solders have a melting point greater than 500°F (260°C). Solder choice, whether low-temperature or high, depends on the thermal limits, environment, and structural strength durability needed for the device.

Criteria for selecting solder types

1. Thermal Requirements: Select solder based on the application’s operating temperature. A low-temperature solder is appropriate for heat-sensitive components, whereas a high-temperature solder is appropriate for higher thermal requirements.
2. Mechanical Strength: Assess the mechanical stresses the joint will face. Typically, high-temperature solder is more forgiving for extreme strain applications.
3. Component Compatibility: Check the solder’s compatibility with the parts glued together. Some components may need certain solder alloys because of disparate thermal expansion or material properties.
4. Application Environment: Other factors, such as exposure to moisture, vibration, or corrosive substances, can impact the joint’s performance and lifespan.

These criteria, especially the project’s specific needs, will help choose the most appropriate solder type that guarantees the best operation efficiency.

Understanding soldering process requirements

When it comes to soldering process requirements, pay attention to the following three key factors:

• Temperature Control: Soldering temperatures should not exceed levels that would damage parts while permitting the solder to fill joints freely, aiding in making secure connections.
• Cleanliness: Every free surface should be clean and void of contamination. The presence of contamination is a threat to bond reliability.
• Joint Inspection: All solder joints must be inspected for proper adhesion, alignment, and integrity.

Following these guidelines will result in an optimized process, which will ensure reliability and reproducibility in the execution of procedures.

What types of solder are commonly used?

Exploring eutectic solder and its benefits

An eutectic solder is a type of solder alloy that has a definite melting and solidifying temperature. This property is valuable in applications requiring extreme accuracy and dependability because there is no chance of a plastic or semi-liquid state during cooling. The eutectic solder which is most commonly used contains 63% of tin (Sn) and 37% of lead (Pb), and has a melting point of 183°C (361°F). Some distinct advantages of eutectic solder are quick solidification, decreased probabilities of cold solder joints, and increased general process efficacy. Due to these attributes, eutectic solder is extensively used in the manufacture of electronics and other delicate soldering operations requiring reliable performance.

Applications of silver solder in electronics

Widely applied in electronics, silver solder outperforms other alloys by combining silver, copper, zinc, or tin. Its remarkable mechanical strength and thermal and electrical conductivity make it appropriate for applications where precision and durability are critical.

Silver solder is widely used in the manufacture of high-frequency circuits because of its considerable conductivity and low signal loss. Due to its exceptional strength at elevated temperatures is reinforced in cases exposed to thermal stress, such as power electronics and LED manufacturing. The silver solder alloy’s melting point, depending on composition, lies between 620°F and 800°F (327°C and 427°C), which allows it to make cases where powerful metallurgical bonds are required.

Moreover, silver solders are popular because of their strength, particularly in repairs of connectors, terminals, and delicate wire assemblies. Silver solder is also used in critical aerospace and medical device manufacturing applications. These industries require precision soldering, and the parts must resist corrosion, making them essential. Even though silver solder is more costly than lead—or tin-based soldering options, there is great value in applying it where high-performance standards are required.

How does melting temperature impact soldering quality?

Effects on solder joint integrity

A solder’s melting temperature impacts the solder joint’s quality in terms of its strength, reliability, and resistance to non-eutectic environmental stress, as was described in earlier formulations. A solder that provides an adequate melting range will facilitate the wetting and, therefore, the bonding of the materials being joined, resulting in a more secure connection. On the other hand, if the melting range is too low, the joint will be prone to failure under heat or mechanical strain due to lack of strength. If the melting range of the solder is too high, thermal stress posed to the components may damage them or interfere with proper bonding, thereby causing problems. Thus, attaining optimal joint integrity involves consideration of the materials and application of the joint to select a solder with an appropriate melting temperature.

Managing soldering iron temperature for optimal results

To accomplish soldering optimally, the temperature of the soldering iron must be set within a limit for the specific solder being used. Generally, the temperature needs to be 20-50°C higher than the melting point of the solder for proper heat transfer and wetting. High temperatures may lead to deterioration of the solder, damage to specific components, or an increase in oxidation. On the other hand, low temperatures may lead to weak or incomplete joints. Always check the manufacturer’s recommendations for the solder material and change the soldering iron’s temperature to the temperature set within the recommended values. Consistent performance of the soldering iron can be achieved with regular calibration, which is advised for its use.

Frequently Asked Questions (FAQs)

Q: What is the melting point of tin-based solder?

A: The melting point for tin-based solder is approximately 183°C (361°F). However, this value might shift slightly with the precise composition, particularly when other metals like lead are included.

Q: What factors affect the melting point of solder used in electronics?

A: About electronics, the melting point is affected by the composition of the solder used. For instance, solders with a higher tin concentration frequently exhibit lower melting points, while bismuth and lead raise the overall melting range.

Q: Why are lower temperature solders significant in electronics?

A: They are critical because they defend delicate components on a circuit board from damage. This is particularly true when the solder used is lead-free. A lower melting point solder reduces the heat applied to the board and components, protecting them from thermal damage.

Q: How does a eutectic alloy play a role in soldering?

A: Take, for instance, the classic tin-lead solder. It’s a eutectic alloy with a single-value melting point. It is best for forming trustworthy electrical connections because it has a sharp transition from solid to liquid.

Q: What distinguishes high-temperature versus low-temperature solder types?

A: The distinguishing characteristic of high-temperature solder types is that they can withstand more significant amounts of heat, such as during the copper soldering process, because of a higher melting point. On the other hand, low-temperature solder types are suited for more sensitive electronics that run the risk of overexposure to heat because of a lower melting point.

Q: What is the function of lead in solder?

A: The role of lead in solder is to reduce the solder’s melting temperature and enhance its wettability. However, concerns regarding a person’s health and the environment have increased focus on substitutes for leaded solder, with a preference for lead-free and copper-based solder.

Q: What importance do solder wire melting points have?

A: For effective and safe soldering, the solder wire’s melting point must suit the technique (in this case, multi-piece melting soldering). A solder wire with the right melting point guarantees that components will not overheat while allowing for a solid connection.

Q: Why has solder made from tin and lead not been replaced with lead-free alternatives?

A: Tin is still used, and lead solder is used because of its dependability during the melting phase and general practicality within the industry. Existing environmental and Public health policies are beginning to slow the pace of change, but lead-free alternatives are still desired.

Q: What is wave soldering, and how does the solder melting point impact it?

A: In wave soldering, the solder is brought into contact with circuits or other components already placed on the circuit board. The solder’s melting point is essential for proper bond formation to avoid damaging the board or components due to excessive heat.

Q: In what ways do high melting point solders support high-temperature operations?

A: Application to engines and other automotive parts constantly exposed to extreme temperatures uses high melting point solders. They provide reliability to joints exposed to thermal stress and strains, which would cause failure when used with low-melting solder.
