Understanding Sheet Metal Thickness: Your Comprehensive Gauge Guide

Understanding the thickness of sheet metal is essential as it directly determines how well the metal can serve the purpose of a material for a given project. The metal’s strength, flexibility, and performance are all affected by its thickness, which is measured using a system known as the gauge scale. However, navigating through all the intricacies of the gauge system proves to be quite tricky, especially when it comes to steel, aluminum, and copper. This guide will help you decipher sheet metal gauge measurements, their meaning, and their relevance in practice. Whether you are a veteran or new to the profession doesn’t matter. You can make informed decisions and optimize your projects with the knowledge provided in this overview.

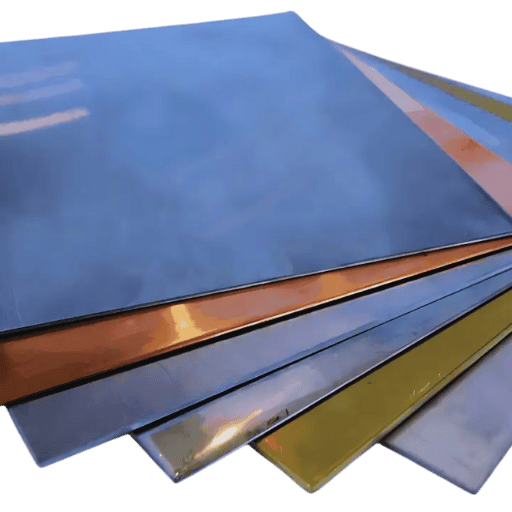

What is sheet metal, and how is its thickness measured?

Sheet metal is a thin and flat piece of metal that is produced by an industrial process. It is a flat piece of steel, aluminum, or copper used in manufacturing, construction, and automotive because of its durability and versatility. The construction and automotive industries use this form of metal extensively. The thickness of this metal is measured in gauges, which signify the level of thickness of that material. Gauge systems work inversely, meaning lower numeric measurement has higher material thickness. In order to give more precise measurements, manufacturers define thickness with the use of decimals or millimeters.

How is sheet metal thickness defined?

Sheet metal thickness can be defined using a gauge system or measured directly in inches or millimeters. The gauge system assigns numbers based on an inverse relationship to the sheet’s thickness; smaller gauge numbers represent thicker sheets, while larger numbers correspond to thinner sheets. To make it more precise, the thickness can also be stated in decimal inches or millimeters, which can be used in industrial applications.

What are the standard methods to measure sheet metal thickness?

The primary methods for measuring the thickness of sheet metal include a micrometer, caliper, and ultrasonic thickness gauge:

1. Micrometer: A unique tool that accurately measures the thickness of the sheet by placing it between its spindle and anvil and reading the thickness of the micrometer scale.
2. Caliper: A versatile electronic tool that measures its thickness by clamping around the sheet and directly measuring the thickness from the display.
3. Ultrasonic Thickness Gauge: This nondestructive technique measures thickness using ultrasonic waves, which is beneficial for coated sheets or sheets with otherwise difficult-to-reach areas.

These tools are essential in industries and factories because they measure weight, thickness, or dimensions accurately and reliably.

Why does the gauge system matter?

The gauge system is essential because it offers a universal means of assessing and defining the thickness of sheets, irrespective of the materials, metal or plastic. This fosters uniformity across different industries, eases interaction between clients and manufacturers, and guarantees product quality. Having an accepted gauge system allows for less variation and mistakes in the specifications of materials, streamlining production processes and making them more effective and dependable.

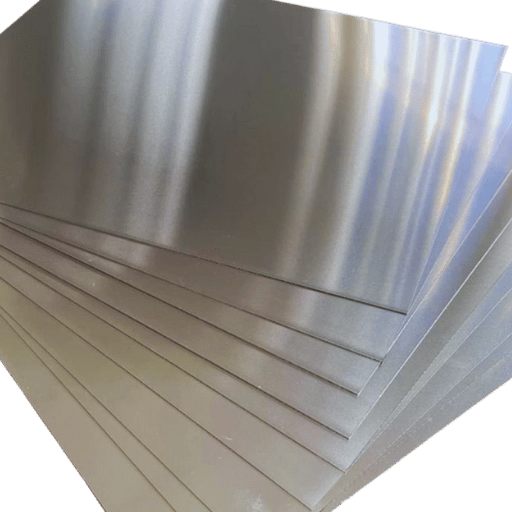

How does sheet metal gauge relate to thickness?

What is the sheet metal gauge chart?

The gauge number of a metal sheet is listed in a corresponding row with its thickness in the reference table known as the sheet metal gauge chart. An increase in gauge number indicates a thinner sheet, while a decrease indicates a thicker sheet. This chart also displays measurements in inches and millimeters, assuring precision and accuracy. This device is extensively used throughout sectors to ensure standardization of material requirements and improve interaction between customers and manufacturers.

How does the gauge number affect metal thickness?

As the gauge number increases, the thickness of the metal decreases and vice-versa. A lower gauge number translates to a thicker sheet of metal, whereas a higher gauge number indicates a thinner sheet. This framework enables the standardization of measurement for the selection of materials for accuracy and uniformity.

What are the differences between gauges for steel and aluminum?

The main distinction is concerning gauge numbers and their relation to thickness. Steel is nearly always thicker than aluminum for the same gauge number. This difference occurs due to steel and aluminum’s varying density and weight characteristics, resulting in differing standards for gauge charts of each material. Therefore, steel and aluminum have separate gauge charts to precisely measure their respective material thickness.

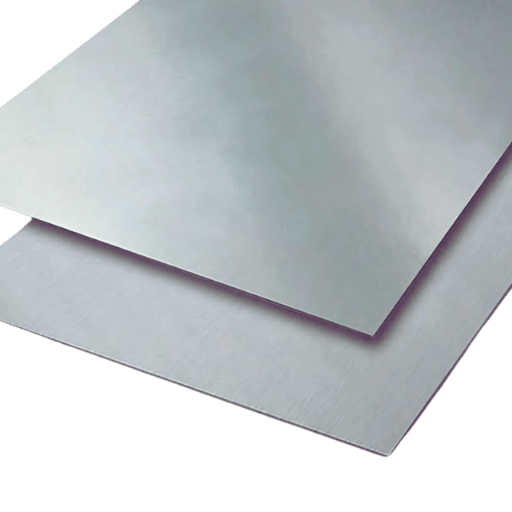

Why is sheet metal thickness important in metal fabrication?

How does thickness influence the metal fabrication process?

The quantity’s thickness determines which fabrication policies and techniques will be used during metal fabrication. More powerful equipment with higher cutting power or additional forming processes is usually necessary to shape or modify thicker sheets. Specialized techniques such as these are often required to appropriately shape or alter the material. In contrast, thinner sheets are less complicated to manipulate, but greater precision is necessary to avoid damage or warping. Ensuring the sheet thickness is accounted for or properly handled will ensure that structural integrity is achieved and aligned with the project specifications.

What are the implications of choosing a thicker sheet?

Opting for a thicker sheet increases the strength and toughness of the final product and can be helpful in applications that require considerable load-bearing or impact resistance. However, the material costs would be higher, and more sophisticated machinery or greater energy consumption during processing would be necessary. Furthermore, thicker sheets could lead to heavier end products, affecting their transportation and handling requirements.

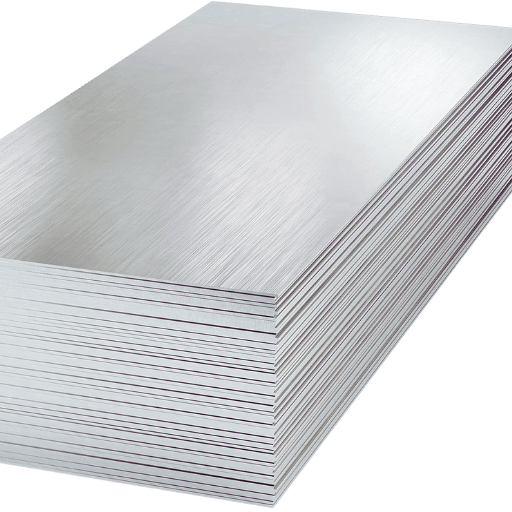

What is the standard thickness of sheet metal?

What are the typical steel sheet thicknesses?

In the American system, the usual thickness of steel sheets varies from 30 gauge to 7 gauge, with lower gauge numbers denoting thicker sheets. For example, 30-gauge steel is roughly 0.012 inches (0.3 mm) thick, while seven-gauge steel is approximately 0.179 inches (4.5 mm) thick. Manufacturing tolerances and the steel grade employed can cause these values to differ slightly.

How can I find the standard sheet metal sizes?

Industry references such as steel gauge charts and molded manufacturing documents provide standard sheet metal sizes. Usually, sheet metal sizes vary with the type of material and its application. For steel and aluminum, standard sheets 36 inches by 96 inches or 48 inches by 120 inches are regularly in stock.

Moreover, different metals also have gauge standards for categorizing their thickness. While aluminum is often based on the American Standard Gauge (ASG), steel usually follows the U.S. Manufacturers’ Standard Gauge. These charts contain important conversion information from gauge to inches or millimeters, which is crucial for engineering purposes. Suppliers commonly provide catalogs or technical guides that outline dimensional ranges and tolerances for other particular requirements, enabling users to select details according to their objectives.

What role does material thickness play in product design?

The thickness of a material is one of the most vital elements in the crafting of products because it is integral to their durability, performance, and the entire manufacturing process. In some instances, thicker materials yield superior strength and resist deformation, particularly useful in load-bearing or high-stress applications. For example, in automotive manufacturing, material selection is often driven by the need to minimize the overall weight of vehicles so that fuel efficiency can be increased without compromising structural integrity owing to better material engineering. On the other hand, thick materials such as steel beams are used in construction due to their strength and ability to maintain compliance with safety standards.

Different industries approach the problem from a different perspective; for some, the thickness of a material defines the possibility of using specific fabrication methods like cutting, welding, or bending. For example, laser cutting is very straightforward with thin materials, but special consideration must be taken for thick sheets to ensure precision. Studies covering the behavior of materials suggest that, particularly in aerospace, the balance between thickness, weight, and strength becomes crucial because of the very high-performance demands coupled with limitations in the amount of strength and weight reduction.

Besides, thicker materials generally increase the cost of resources due to the additional raw materials required, and as a result, such materials could be viewed as marketing expenses. Designers frequently grapple with finding the best balance between fulfilling functional needs and being cost-effective. This study shows that material thickness is not merely a physical parameter but a highly important factor in engineering design.

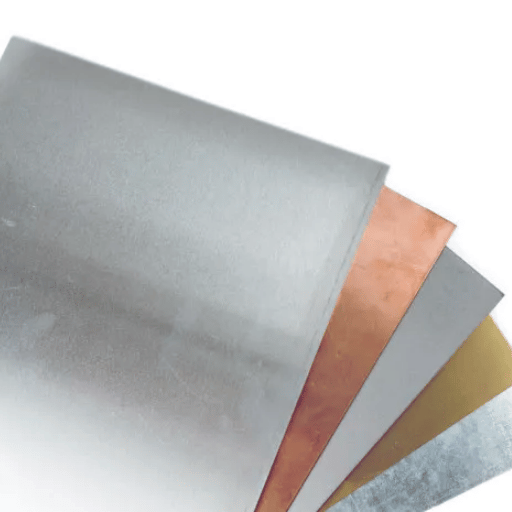

How do different metal types affect gauge thickness?

What is the impact of material on gauge thickness?

The characteristics of the particular metal in question determine the influence of the material on gauge thickness. Take softer metals, like aluminum, and harder ones, like stainless steel, with the same nominal size as an example; they will have different gauge thicknesses, which is why they are more challenging to work with. This is due to gauge standards concerning the density and strength of the materials, which means that a specific gauge number is set for different actual thicknesses depending on the type of metal. Whenever I select materials for a project, I factor in these discrepancies to ensure no conflict with the intended application and performance specifications.

How does stainless steel compare to other metals?

Compared with other metals, stainless steel is unique due to its resistance to corrosion, durability, and strength. Stainless steel does not deform, rust, or corrode in much harsher environments and heavier loads like aluminum. Moreover, stainless steel has low maintenance requirements, is resistant to staining, and is hygienic, which makes it preferred for construction, medical equipment, and food processing. However, it is more costly and denser than aluminum and carbon steel, which may be more desirable for lightweight or cost-sensitive jobs.

Frequently Asked Questions (FAQs)

Q: What is Sheet Metal Fabrication?

A: It is the process of creating metal products and structures by forming a sheet of metal into a specific shape and size by cutting, bending, and assembling it. This method is widely utilized within multiple industries.

Q: How is the Thickness of Sheet Metal Measured?

A: The thickness measurement for sheet metal is done via a gauge system where the gauge size directly correlates to the thickness of the metal. A higher gauge number correlates to a thinner sheet. For greater precision, it is common for the measurement to be presented in millimeters (mm) or inches.

Q: What is the Sheet Metal Gauge Thickness System?

A: The gauge thickness chart contains various gauge numbers whose values correspond to the specific thickness assigned to each gauge number. The sheet metal gauge thickness system is used in manufacturing and building construction and communicates the size dimensions of sheet metals.

Q: Why is Understanding Sheet Metal Thickness Important?

A: Knowing the sheet metal thickness is essential to choosing the specific type of metal for the project while ensuring the structural integrity and material costs. The thickness also alters how the metal is fabricated, handled, and finished.

Q: Can you clarify what “common sheet metal” means?

A: “Common sheet metal” applies to readily available grades of steel, aluminum, copper, etc. Having such characteristics as strength, corrosion resistance, and ability to take different shapes, these metals are selected for use.

Q: In what way does the type of metal relate to the thickness chart?

A: The type of metal affects the thickness chart because of the different properties and densities of the various metals. Thus, other sheet metal materials may have a particular gauge size, but they may be conceptually different thicknesses among different metal sheets.

Q: Can you identify the differences between sheet, plate, and foil?

A: Sheet metal generally has a thickness that ranges from 0.5 mm up to about 6 mm, while plate metal is anything thicker than 6 mm. On the other hand, a single sheet of foil made of metal is fragile, ranging from 0.0002 in (0.005 mm) to 0.020 in (0.5 mm) in thickness.

Q: What is a thickness guide, and can you explain it to me?

A: A thickness guide is a means or device to determine how thick a metal sheet is. This type of guide usually has a thickness chart with gauge numbers, which are measured in the actual thickness of various metal materials.

Q: How does the final product get affected by the gauge size?

A: The gauge size determines the final product’s strength, weight, and flexibility. Thinner sheet metal is more flexible and lighter but less strong than thicker metal sheets, which are stronger and more durable.

Q: In what ways does a steel gauge vary from other metal gauges?

A: A steel gauge measures the thickness of steel sheets, which differ from other metal materials and each other, like aluminum or copper, because of material differences. The thickness of the sheet metal is often included in a steel gauge chart specific to steel.
