Unlocking the Secrets of Shaft Machining: Techniques and Services

Shaft machining is arguably one of the most complex procedures in a manufacturing industry as it requires the computation of different methodologies and sophisticated technologies to achieve the utmost level of accuracy and performance. Noting that all of these industries heavily rely on the shaft components used, Automotive, Aerospace, and Industrial equipment are some of the industries that rely on the components. However, what techniques are employed to ensure that shaft machining remains successful and, why is it, that this discipline is so crucial? As a guide to shaft machining, this article addresses the highly specialized techniques that these professionals rely on for walls containing both precision and accuracy which further enables modern engineering and technology. Thus, Getting to the heart of the matter, we shall look at the methods, skills, tools, and determination that help unravel the secrets of the complex processes intricately intertwined with innovation.

What is Shaft Machining and How is it Used?

Shaft machining is the technique of contouring and polishing the surfaces of a metallic or non-metallic shaft to specific dimensional requirements. Shafts are fundamental parts in many fields, for example, in the automotive, aerospace, and manufacturing industries, where they play a role in the rotation or transmission of power and even provide proper structural support. Usually, turning, grinding, and milling of shafts are performed to the required accuracy, surface finish, and strength. Accurately machined shafts ensure system or machinery component reliability and performance in rigorous conditions making it an essential procedure in modern engineering design and manufacturing systems.

The Basics of Shaft Machining

Machining of the shaft is an operation that must be broken down into a series of steps, all of which will require considerable accuracy for the resulting product to operate correctly. The steps are: selection of the materials, rough machining, heat treatment, and finishing. In selecting a material, parts for the shafts will often be made from high-strength alloys like carbon steel or stainless steel and other alloyed materials, which have good mechanical properties under stress and different environmental conditions.

In the rough machining process, turning operations are performed to reach the given tolerances and lower the piece to the approximate dimensions by getting rid of excess material. Following this, the shaft is subjected to heat treatment which damages the material surface. This treatment increases the item’s hardness, durability, rate of wear, and failure resistance, all of which are important in shafts that endure high loads and speeds of rotation. This is then followed by precision machining, which includes grinding and milling, aimed at achieving tight tolerances of ±0.001 inches and very high surface roughness.

Advances in Shaft Machining Technology

The integration of modern technologies like CNC (computer numerical control) machines, and industrial automation have refined even further the processes of shaft machining. CNC machines ensure remarkable accuracy and uniformity in the production of intricate shaft designs, deviating only minimally from the intended dimensions. Moreover, feedback systems evaluate the machining parameters in the course of operations in real time leading to proactive process optimization and defect reduction.

Data from the industry demonstrates the need to keep surface roughness values (Ra) below 0.8 microns for high-performance applications in aerospace or automotive assemblies, which leads to friction reduction, and therefore greater efficiency. Also, new innovations in cutting tools, such as those using ceramic and carbide inserts, ensure greater tool life and capability of withstanding high-speed machining processes that greatly reduce cycle times.

In conclusion, shaft machining is yet another area that is continually receiving a boost from a further integration of modern technologies and accurate engineering to fulfill the evolving needs of sensitive industries.

Applications of Custom Shaft Manufacturing

The tailoring of a shaft is imperative to optimum performance, dependability, and efficiency for a plethora of sectors. The following are the primary uses of shafts with specialized constructions:

Automobile Industry

For custom-manufactured shafts, the automobile industry has a growing demand for due to its dependency on powerful bespoke shafts for industrial motors. Bespoke shafts are fundamental for the construction of drive train assemblies as well as the construction of transmissions and steerable mechanisms. These components often require precise tolerances and a particular material that is capable of surviving high torque levels for a prolonged period. For instance, advanced custom shafts can transmit power and fuel in an optimized manner which translates to a 15-20% increase in fuel economy.

Aviation Sector

Jet engines, flight control, and landing gears utilize precision shafts. Bespoke shafts in aviation must enable high-speed rotating motion while satisfying stringent safety and compliance regulations. Moreover, the aerospace industry requires that shafts be manufactured from composites with titanium alloys which are light but strong as these could enhance the durability of the shaft while decreasing the weight.

Shafts with rod-like figures are often used in industrial machinery ranging from conveyor belts to turbo compressors. Heavy-load machinery applications require the use of strong steel shafts tailor-made for the purpose as they increase the load-bearing limit by 25% which reduces maintenance time.

Renewable Energy Systems
Energy from a wind turbine is captured through blades that spin rotors attached via custom-designed shafts with gearboxes to the turbine. These custom shafts are the most critical components as they have to withstand shock loading and fatigue over time. In advanced manufacturing, shafts for turbines have higher strength capabilities, resulting in greater harsh condition durability which supports long operational lifespans.

Medical Equipment
Custom-made precision shafts provide unwavering interactivity of surgical robotic arms, MRI and CT imaging systems, and engineered laboratory devices supporting life-saving procedures. Such life-critical systems require high-integrity performance and strict machining tolerances that are, at times, measured in microns.

Oil and Gas Industry
Shafts of drill pumps and compressors are subjected to extreme high-performance demands of elevated pressures and temperatures. Economical shafts for vertical drilling rigs were developed which significantly lower the wear rate by 30%, highly increasing efficiency for the cost.

Marine Engineering
Saltwater environments severely limit the lifespan of a ship’s or submarine’s propeller and rudder shaft assembly. Corrodible marine grade stainless or duplex steel provides maximum endurance in harsh environments and is used custom for these designs.

Automation and Robotics

The precise design and lightweight features of the shafts used in robotics and automated systems provide effortless movement and high accuracy in the performance of tasks. For instance, custom shafts improve the repeatability of robotic arms by an astounding 10% during rapid tasks.

These industries are served through the integration of material science, geometry, and machine-based concepts in custom shaft manufacturing to meet industry goals that further support innovation and excellence across many spheres.

Understanding the Machining Process

To achieve the desired shape of a material, usually metal or plastic, a controlled removal of material is done. This shaping is done using various tools such as lathes, mills, and drills. The process is categorized into those subtractive manufacturing types that focus on precision and surface finesse. Other primary factors that need consideration when machining include a selection of the material, tool type, and rotation speed, as they all impact the efficiency, accuracy, and quality of the final product.

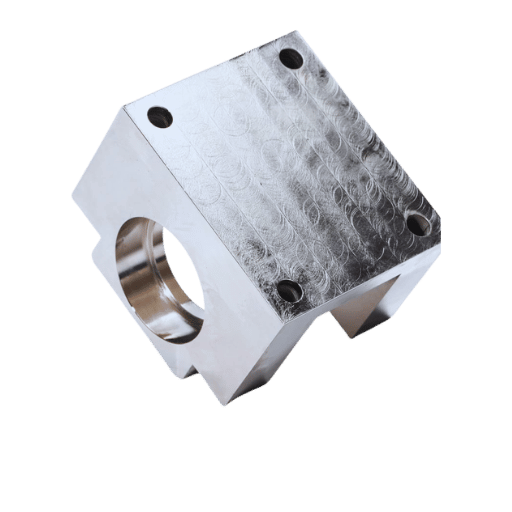

How to Achieve the Best Surface Finish in Shaft Machining?

Factors Affecting Surface Finish

Multiple operational parameters and techniques dictate the surface finish achieved in shaft machining. The important ones are listed below with some details:

Material Properties

The surface finish of the manufactured part is intimately associated with the workpiece material. Softer materials, such as aluminum, are easier to machine, but their surfaces are prone to tearing and smearing. Stainless steels are harder metals that need suitable tooling and optimized cutting velocity to avoid rough surfaces.

Cutting Tool Geometry

Surface quality is affected by the form and sharpness of the cutting tool. Tools with sharper cutting edges produce better surface finish and less surface damage. In addition, with appropriate nose radius selection, the tool’s surface profile can be enhanced.

Machining Parameters

Feed rate, cutting speed, and depth of cut are some of the parameters that will affect the surface finish. In general, low feed rates and high cutting speeds yield finer finishes. For example, machining steel with a feed rate of 0.05 mm/rev and cutting speeds above 200 m/min results in significantly smoother surfaces.

Coolants and Lubrication

Correct application of coolant minimizes possible thermal deformation and dissipates heat which may be harmful to the surface finish. In addition, lubricating fluids minimizes friction from the tool movement over the workpiece which results in lower tool wear and material sticking, thus ensuring a finer finish.

Machine Tool Condition

The machine’s accuracy and rigidity are crucial. Machines with greater stability and less vibration yield more reliable tool paths which results in better surface finish. However, too much vibration can produce chatter marks resulting in roughness of the surface.

Environmental and Operator Factors

Operator competency and ambient conditions, like temperature or humidity, also affect the machining operation. An operator who is skilled at determining appropriate and reasonable parameter values and tool positioning can produce favorable results even under a range of circumstances.

By carefully and efficiently controlling the various parameters set within each factor, advanced computer-aided design systems integrated with real-time diagnostics can greatly enhance the precision and quality of the finished product.

Importance of Quality Control in Surface Finish

Efficient quality control procedures are crucial for attaining the required surface finish and uniformity in manufacturing processes. Quality Control systems consider surface roughness, dimensions, and material properties to be checked against set tolerances’ thresholds. With the help of profilometers and 3D optical scanners, manufacturers are now able to measure the surface of objects as well as evaluate surface irregularities at a scale of one micron.

Research shows that surface roughness is known to have a direct association with how well a product is likely to perform, about wear, fatigue along corrosion resistance. As an example, a paper published in the Precision Engineering Journal claims that a 20% reduction of average surface roughness (Ra) produces a 15% increase in fatigue life for a few critical components. Additionally, precise super-finishes are needed in aerospace and medical device manufacturing, as even a couple of micron deviations can lead to non-compliance or degraded performance against rigid requirements.

Meanwhile, incorporating statistical process control and monitoring systems into existing QC frameworks tend to improve the consistency of processes. These technologies allow manufacturers to evaluate their data and identify which processes are causing more defects than average, increasing variability or lowering process standards, all while decreasing production costs without getting rid of quality. Manufacturers who adopt stringent quality assurance practices will meet customer requirements related to performance and cost.

Techniques for Improving the Surface of the Shaft

Shaft surface finishing is very important as it improves performance, enhances durability, and increases wear and fatigue resistance. The manufacturing environment usually has optimal surface finishing procedures that employ precision grinding, superfinishing, and roller burnishing techniques.

Precision Grinding process techniques are required for the desired results.

With precision grinding, the shaft to be machined is fitted in a straddle-type fixture with high-accuracy abrasives rotating on a spindle removing material at a very low variability, giving a finishing surface of 0.2 µm Ra. This helps in achieving tight limits of accuracy and the best form of the shaft which is required in high stressed applications in aerospace or automotive industries.

Superfinishing

Superfinishing can be done with the use of stones or tapes which bring the surface finish of a material to an ultra-smooth 0.01 µm Ra. This function is in place to improve micro-roughness and give the shaft’s surface a better bearing ratio to lubricant while also reducing friction in engines and gearbox applications.

Burnishing with Rollers

Burnishing with rollers is a cold-work procedure that enhances a shaft’s surface finish by using highly polished rollers with an amplitude of about 0.05 to 0.2 µm Ra. The process also increases the overall hardness and the fatigue resistance of the shaft, which, in turn, prolongs the operational life of the component being manufactured. Moreover, Roller burnishing improves the surface finish (around 0.05 to 0.2 µm Ra), along with the hardness and fatigue resistance of the component, thus, increasing the operational life.

Coatings and Electroplating

The use of electroplating coatings, such as chrome, and advanced materials like diamond-like carbon (DLC), improve the surface hardness. In addition, coatings reduce erosion and corrosion of precision-ground surfaces. These coatings are suitable for shafts that undergo aggressive environmental conditions as they are above 70 HRC in hardness and exhibit good adhesion to ground surfaces.

Texturing Surfaces with Lasers

Texturing surfaces with lasers (LST) lowers the friction between the micro-patterns created on the shaft’s surface with controlled laser pulses. In tribology, friction coefficients, and load-carrying capacity, as reported in studies on high-speed machinery, are improved with laser surface texturing. The friction reduction rate is as high as 40%, supporting the decrease of friction.

The relevant enhancement technique to adopt will depend on the operational stresses, requirements from the application, and type of material. Employing these techniques, along with sophisticated real-time monitoring systems and strict quality assurance systems increases the performance and durability of the shaft to fulfill the industry standard.

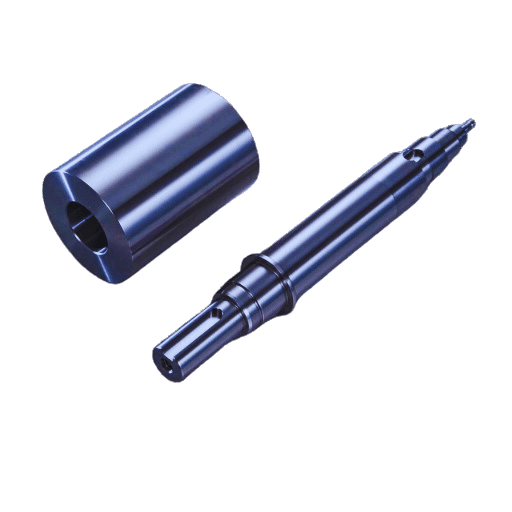

What Are Common Machining Techniques for Custom Shaft Manufacturing?

Exploring Electrical Discharge Machining

Electrical Discharge Machining (EDM) refers to a non-contact and highly precise manufacturing process that is often used to produce complex geometries or parts with tight tolerances. EDM functions using controlled electrical discharges (spark) created between an electrode and the workpiece. During this electrical discharge, the workpiece is eroded along predetermined lines. This procedure works exceptionally well for hard materials like tool steel, titanium, and carbide, which is why it is important in aerospace, automotive, and medical device manufacturing.

EDM operates in two principal forms: die-sinking EDM and wire EDM. Die-sinking EDM is best suited for three-dimensional cavities such as molds and dies while wire EDM is best for cutting intricate shapes of fine detail. The workpiece is submerged in a dielectric fluid that cools the material, washes the debris, and acts as insulation until a voltage that is satisfactory enough to create a spark is applied.

Technically speaking, EDM is capable of achieving tolerances of ±0.0001 inches with surface finishes of 4 Ra (Roughness Average) depending on the variables set. This method also relieves the mechanical stresses on the workpiece since it does not use ordinary cutting forces. However, the speed of EDM is generally slower than conventional machining processes, which could impact the time of delivery.

Automated adaptive and closed-loop control systems are new advancements in EDM that increase accuracy and repetitiveness. Also, new materials for electrodes such as copper tungsten and graphite have benefited efficiency by decreasing wear and prolonging operational life. EDM is widely used in micro-manufacturing for semiconductors and medical components where tolerances and quality are of utmost importance.

As much as EDM is beneficial in machining very intricate and difficult materials, it poses some challenges with the design of the electrodes, the geometry of the part, and the materials used. Combining EDM with other machining processes and employing sophisticated process control systems makes it possible for manufacturers to realize the highest precision and efficiency in custom shaft production.

Advantages of CNC Turning and Milling

High Precision and Accuracy

CNC turning and milling machines are made to create parts with high accuracy; So high, in fact, that tolerances can be as finely tuned as ±0.001 inches. The level of precision these machines are capable of achieving is incredibly important for aerospace, medical devices, and automotive manufacturing industries.

Enhanced Repeatability

A set program will allow CNC machinery to produce the same component repeatedly. This machine’s capacity to repeat an action numerous times, especially where large quantities need to be produced, is very instrumental.

Versatility in Material Usage

Various metals such as aluminum, steel, and titanium can easily be worked on using PLC-controlled CNC lathes or mills, but also polymers and composites. This flexibility permits it to be used in various diverse fields of engineering.

Complex Geometries

Pockets, contours, and even threads can be produced through advanced turning and milling technologies. Parts that have intricate features can be machined with the aid of CAD software using multi-axis computer numeric controlled machines (CNC).

Efficiency and Time Savings

Machining CNCs does not compromise on accuracy with speed. With features like automated tool changing and running the machines continuously, lead times can be decreased, which accelerates the ability to meet production targets.

Long Run Cost Effectiveness

Despite initial setup expenses, the prolonged savings offered by CNC machining, in terms of efficiency, low waste, and low personnel costs, make it cost-effective. There is also a reduction in many costly reworks due to error precision automation.

Production Scalability

Whether intended for mass production or prototyping, CNC turning and milling are easily scaled. There is a near-zero lag time for manufacturers switching between small-batch production and large-scale manufacturing.

Integration with CAD CAM Software

CNC machines interfacing with CAD CAM software permits effortless movement from design to production. With this integration, accurate designs are guaranteed while machining strategies are greatly enhanced.

Low Maintenance and Durable

Operational efficiency is greatly enhanced by the decreased downtime, as modern CNC machines are durably built and require little maintenance.

Automation Compatibility

These systems can be effortlessly integrated with robotic setups and other advanced automation options, allowing for smart manufacturing practices and increased production throughput.

The unmatched benefits of CNC turning and milling make them essential processes for precision manufacturing, providing immense value to industries needing top-quality components with complex specifications.

Innovative Machining Capabilities and Techniques

We adopt modern machining methods and technologies in our facility to achieve superior precision and efficiency. The multi-axis CNC machines, advanced tools, and real-time data capture devices work in unison, guaranteeing the accuracy and consistency of each project. Moreover, the integration of new technologies such as adaptive machining and additive manufacturing enhances flexibility in meeting complex production requirements. These improvements make certain that we remain leaders in manufacturing.

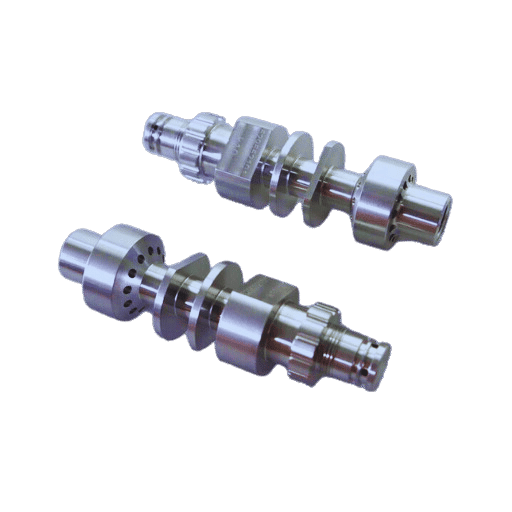

How Does Material Choice Impact Shaft Machining?

Properties of Carbon Steel and Alloy Steel are often used in the manufacturing of custom shafts’ surfaces for enhanced performance.

Iron and carbon are the main constituents of carbon steel. The percentage of carbon is nominally 0.03% to 2.0% along with weight. In shafts used for construction and other industrial sectors, the carbon content in steel needs to be higher because it tends to augment the strength, wear resistance, and hardness of the shaft. Low-carbon steels, which are more ductile and machinable, make them easy to work with. For high-carbon steels, hardness increases, but malleability decreases. A well-known example is AISI 1045 carbon steel, which has a proof strength of 570 MPa to 700 MPa and is known for its ductile nature.

Alloy steels prove stronger and harder than AISI1045 as they incorporate additional elements such as nickel, vanadium, chromium, and molybdenum. The deployment of these elements enhances the anti-corrosive nature along with improving the tensile and impact strength of the alloy.9900 alloy steel, AISI 4340, and 4140 alloy steel are good examples of shaft applications with high performance of performance under stress. In Hydro-thermal conditions, AISI 4140 also showcases a proof strength range of 655 MPa to 2000 MPa and is preferred for high-strength fatigue-resistant materials.

Engineers can achieve desired shaft performance by selecting the proper material, be it carbon steel for cost savings and reasonable strength, or alloy steel for superior performance when facing difficult conditions.

The Role of Corrosion Resistance and Wear Resistance

The role of resistance in corrosion is vital for extending the operational life of shafts while they are being used in moist, chemical, or industrial environments. Materials like stainless steel, specifically 304 or 316, are well known for their resistance against suffering corrosion because of the existing chromium in their constituents which passively oxidizes on the surface of the material. For instance, 304 stainless steel has around 18% chromium and 8% nickel which itself guarantees tremendous resistance to oxidation and rusting of materials at normal environmental conditions. On the other hand, 316 stainless steel has an additional 2-3% molybdenum to improve resistance in more aggressive environments like saline or acidic surroundings.

Also, similarly, wear resistance is crucial for applications involving repetitive contact, friction, or abrasives. Case-hardened steels like AISI 8620 or nitrided surface-treated components are known for their superb wear-resistant properties thanks to a tough outer layer and a tough inner core. Further friction reduction and resistance against wear over a longer term of time can be achieved by using advanced surface coatings like titanium nitride (TiN) or diamond-like carbon (DLC). It is a proven fact that materials enhanced with TiN coat can have their wear rate reduced by more than 50% when compared to uncoated materials.

Through the use of efficient material selection and surface treatments, engineers achieve a reliable performance of industrial machinery in challenging environments, significantly decreasing maintenance costs and downtime. In the selection of materials, balancing the corrosion resistance and wear resistance is critical for ensuring dependable performance.

Choosing Materials for Specific Needs and Applications

Engineers often consider numerous elements that could affect the functional performance metrics of a material for a specific application of construction, machinery, and other projects. Mechanical features, resistance to external factors, weight, thermal conductivity, and cost are some of the primary elements to analyze. Below is a summarization table outlining and describing the relevant features and materials preferred for various applications:

Strength and Durability

• Carbon Fiber Composites: Used in missiles and sports equipment, these composites are usually stronger than traditional composites and offer great weight advantages.
• Structural Steel: Used for construction and heavy machinery, structural steel has good cubic compression and tensile strength. Also, it has a good toughness.
• Titanium Alloys: Known for their strength and lightweight, custom-machined shaft titanium alloys are becoming more popular. Custom shafts are also used widely in medical implants for their corrosion resistance and strength and aerospace engineering.

Corrosion Resistance

• Stainless Steel (e.g., 316L): Stainless steel is less susceptible to rusting and pitting in marine, as well as chemical environments.
• Aluminum Alloys: Due to their lightweight nature and corrosion resistance, aluminum alloys have become widely popular in the packaging and transportation industries.
• Polyether Ether Ketone (PEEK): Corrosive chemical-resistant polymers are often used in harsh chemical processing industries.

Thermal and Electrical Properties

• Copper alloys: Traditionally used for wiring and heat exchangers because of their electrical and thermal conductivity.
• Silicon Carbide (SiC): Silicon carbide is commonly used for thermal management in high-temperature applications due to its high conductivity and strength.
• Glass Ceramics: Used in glassware and optical instruments because of their ability to rapidly change temperatures without damaging the material.

Wear Resistance

• Tool Steels (e.g., M2): Recommended for long-term tool usage and high wear rate from machining processes.
• Ceramic Materials: As components in cutting tools and industrial bearings, structural ceramics have low friction and high wear resistance.
• DLC Coatings: These coatings add substantial wear resistance to mechanical components, especially for use in automobiles and aircraft.

Lightweight Applications

• Magnesium Alloys: Notable for being one of the lightest structural metal materials magnesium alloys are used in automotive and aerospace components where weight reduction is important.
• Polymeric Materials (e.g. Polycarbonate): Used in lightweight panels and housings for electronics and transport consumer goods.
• Graphene: Still in the research stages for broader applications, graphene is unrivaled when it comes to weight and strength.

Cost Effectiveness

• Low-Manganese Steel: Reasonably priced and adaptable which is why it is commonly used in cars and buildings for custom shafts’ production.
• Recycled Aluminum: Provides savings and enhanced green credentials while still performing at industry standard.
• Plastics (e.g., Polypropylene): Commonly selected for use in containers and household products because of their low cost of production and flexibility.

Engineers must evaluate the simulation tools and testing data to determine how the materials will react under the defined working circumstances while selecting the right materials. This structured strategy for material choices guarantees performance goals are achieved while also improving the system’s overall effectiveness and sustainability.

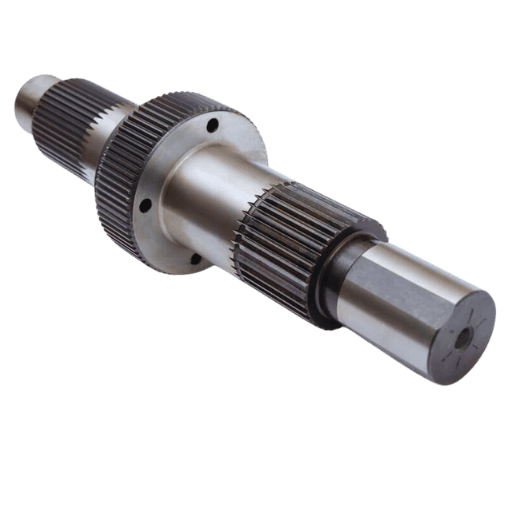

What Are the Key Considerations in Custom Shaft Machining?

Ensuring Precision Machining and Tolerance

The processes implemented in precision machining and tolerance control of custom shafts are meticulous. Some of them include:

Material Considerations

The selected material accurately identifies the required strength, durability, and machinability, which contributes to consistent outcomes.

Machining Tools

Production of custom shafts with appropriate tolerances and repeatability relies heavily on high-end CNC machines.

Quality Equipment and Inspection

Adherence to tolerances may be verified using micrometers and CMM machines at regular intervals of time to check the dimensions.

Stability of the Entire Process

Parameters such as cutting speed, feed rate, and tool state are defined and kept constant to decrease variances and ensure conformity to most design specifications.

If these considerations are met, the strict performance criteria associated with the applications will be fulfilled.

Understanding Shaft Parts and Their Functions

Shafts are structural elements made up of mechanically rigid rods used for driving rotating machinery or transmitting power in an apparatus. The following are the components of a shaft:

Keyways

A grove is engraved on the surface of the shaft to accept a key that is used for fastening belts and components such as gears, and pulleys to prevent relative movement.

Shoulders

Formed raised portion that positions and holds components such as bearings which depends and balances on shafts in place.

Bearings

Sits on the shaft to minimize friction and provide for smooth rotation. They maintain the high strength of the shaft’s position within the assembly.

Splines

Connections with similar components for transferring torque are ridges or teeth shaped along the longitudinal portion of the shaft.

Ends (Tapered or Threaded)

Serves the purpose of mounting other mechanical items such as coupling or vice versa for fixing the custom-cut shaft in the assembly.

These components together ensure motion and torque are transmitted proficiently, which is required of mechanical systems.

Integrating Quality Control in the Process

Every engineering process has quality control as a vital step that guarantees product and component conformance to preset standards and specifications. When organizations implement quality control during the production of mechanical systems like shafts, they can realize greater accuracy, reliability, and durability of the end product.

One powerful technique is the use of non-destructive testing (NDT) methods like ultrasonic testing and magnetic particle inspection. Surface and subsurface discontinuities can be detected without physically changing the shaft’s structure through these tests. Ultrasonic testing makes use of high-frequency sound waves to detect internal defects and boasts up to 90% accuracy if done with precision.

Verification of dimensional accuracy is also important. CMMs or coordinate measuring machines can directly measure notable features like diameters, splines, and shoulders, all while maintaining the required tolerances. Studies show that CMM technology is up to 50% faster than the traditional ways of measuring parts which results in fewer mistakes and more productivity.

Spectrochemical analysis is an example of a method that determines the quality of a shaft through material analysis and compares it to industry requirements like ASTM or ISO specifications. A case in point would be testing the amount of carbon within steel shafts which dictates hardness and endurance against operational stresses.

To sum up, employing statistical process control (SPC) tools increases accuracy across production lines. By tracking process parameters over time, manufacturers can detect changes to processes in real time, which limits defects and preserves product quality over time. Research proves that SPC reduces manufacturing defects by 40%, leading to increased efficiency and productivity due to lower costs.

These measures not only help manufacturers meet rigorous industry requirements but also improve the reliability and durability of mechanical systems, which results in enhanced customer satisfaction and operational efficiency.

Frequently Asked Questions (FAQs)

Q: What are the common types of machine shafts used in manufacturing?

A: Some common types of machine shafts used in manufacturing are keyed shafts, splined shafts, and tapered shafts. Each type has specific functions depending on the application like torque transmission or high load bearing.

Q: How does the shaft machining process work?

A: The shaft machining process consists of working on a blank by cutting, drilling, and grinding it. This process is essential for the transformation of a shaft blank into a functional custom shaft of precise dimensions and surface finishes.

Q: What materials are typically used for manufacturing custom machined shafts?

A: The most common materials used for manufacturing custom-machined shafts are steel, titanium, and aluminum. These materials are selected because of their strength-to-weight ratio, ultimate tensile strength, and their applicability to specific parts that require lightweight yet durable components.

Q: What are the advantages of using CNC machining for shaft machining services?

A: CNC machining provides the precision that is needed when dealing with shaft machining services and ensures uniformity. This type of machining has the capability of creating complex geometrical shapes with great accuracy which is important when dealing with long and cylindrical mechanical parts.

Q: In shaft machining, what is the function of grinding?

A: Grinding is a vital rudimentary step in the shaft machining process and is important for accomplishing a surface finish with set geometry; thus, dimensions are precisely attained. It is pivotal in cases where the machining needs high accuracy and great quality of surface finish.

Q: What is the relationship between CAD and those employed in the custom-made shafts?

A: Custom-made shafts are designed with CAD software, which provides the details necessary for customization as well as adjustments. These design files are used to control the machining operations carried out on the shafts so that they are manufactured within the specifications and configured to the given application.

Q: What advantages exist for electric discharge machining when manufacturing shafts?

A: Electric discharge machining (EDM) is advantageous when attempting to achieve an intricate shape and features on the shaft that cannot be done easily with conventional methods. EDM is beneficial for the precision machining of hard materials face.

Q: Why is it necessary to consider tensile strength when selecting the shaft material?

A: It is necessary to consider tensile strength in this case, as it determines the ability of the shaft to take the amount of stress and load impacting it. Materials with high tensile strengths are preferred in heavy-duty applications where severe forces are expected to act on the shaft.

Reference Sources

1. Title: “Optimization of the Shaft Machining Process Using 2k Factorial Design”

• Authors: Jéssica de Assis  Dornelles, Jassen Rodrigues da Silva, L. Lerman
• Journal: Proceedings of the International Conference on Industrial Engineering and Operations Management
• Date Published: 5 April, 2021

Essential Insights:

• The objective of this study is to optimize the shaft machining process while ensuring the quality requirements are met.
• Shape error was found to be highly influenced by the interaction of feed rate, depth of cut, and tool tip radius.

Methodology:

• An experimental project was implemented to optimize machining parameters utilizing a 2K factorial design and ANOVA analysis (Assis Dornelles et al, 2021).

2. Title: “Cost And Vibration Considered Accuracy Allocation of Machining The Shaft System”

• Authors: Zhenyi Shi, Tao Sun, Zhenlai Ma, Wanbo Yu, Peng Shu, Ji Zhang
• Journal: Journal of Physics: Conference Series
• Date Published: July 1st 2023.

Important Highlights:

• The current document focuses on a new approach to budgeting the manufacturing accuracy of vibration and machining costs for shaft systems.
• A proposed budget allocation model of accuracy was developed based on the analysis of residual unbalance of the pump shaft system through a numerical model.

Methods:

• This study assessed the costs of the vibration and the finite model of the shaft system design using the orthogonal method (Shi et al., 2023).

3. Title: ”Dynamic vibration absorber for shaft machining”

• Authors: O. Drachev. I. V. Turbin, I. Amirdzhanova, Tatyana Varentsova, Veronika Petrova
• Publication Information: MATEC Web of Conferences, 2020

Key Findings:

• The research provides a new approach ot the reduction of vibration in non-stiff axisymmetric components during the process of machining.
• The implementation of the dynamic vibration absorber increases the accuracy of vibration-prone machining processes.

Methodology:

• The authors of the document outlined the schematic layout of the vibration absorbers and explained its action as that of fictitious elastic stiffness parameters (Drachev et al., 2020).

4. Machine

5. Machining
