“Common Defects in Aluminium Extrusion: Causes and Solutions for Aluminium Profiles”

Aluminium extrusion is crucial to the production of aluminum profiles that are widely used in construction, automotive, aerospace, and other sectors. Unfortunately, like with any other sophisticated manufacturing strategy, this technique too suffers from issues. Failing characteristics while performing aluminium extrusion can affect the overall quality, functionality, and aesthetic value of the product, ultimately increasing the costs, delaying the production schedule, and resulting in lower customer satisfaction. This article seeks to optimize the knowledge base concerning the most common problems faced during the extrusion process, reasons for these problems, and their feasible solutions. Challenges like these, if properly understood and tackled, can elevate the standard of quality that is often anticipated from manufacturers and subsequently improve production efficiency. This guide is useful to both, a professional and a novice in aluminium extrusion, as experts will appreciate the depth of information while the novices will understand the basic intricacies involved.

What Are The Common Defects in Aluminium Extrusions’ Processes?

Extrusion and Deformation Problems in the Aluminium Extrusion Process

Issues of extrusion and deformation in the aluminium extrusion process can stem from defects in the material, incorrect die geometry, or improper process parameters. Frequent issues include poor surface finish, lack of dimensions, and the final product having a weak physical structure. These defects are often caused by the die having non-uniform metal flow, too much friction, or inappropriately set temperatures during the extrusion. Overcoming these issues involves proper settings of the extrusion apparatus, cleaning and regular maintenance of the die, and observance of the optimal conditions of the process, which in this case are the temperature and pressure. These types of flaws can be eliminated, or at the very least, made less frequent through frequent monitoring and maintaining better control of the machine’s moving parts andDies.

Aluminum Profiles – The Consequences Of Oxidation

Oxidation is an electrochemical process that occurs when aluminum interacts with oxygen, resulting in aluminum oxide forming at the surface. The oxide layer that is created serves as a corrosion protective feature, however, it can be detrimental in certain cases by interfering with surface conductivity or aesthetics. Blending surface treatments like anodizing or applying clear coatings can moderate oxidation effects. Consequently, oxidation does not compromise the functional and aesthetic requirements placed on the aluminum profiles. Periodic maintenance and cleaning further help address the adverse effects of oxidation.

Aluminum Extrusion Defects and Metal Flow

The quality of extruded aluminum is greatly influenced by the metal flow since it impacts the extrusion profile’s uniformity and consistency which is essential for aluminum extrusion solutions. Increased or decreased metal flow speeds can lead to defects such as warping, cracking, or uneven cross-sectional areas compromising its beauty and strength. Metal flow can be controlled using die design, billet temperature, as well as speed of extrusion. Managing these variables will result in favorable flow patterns of the aluminum leading to accurate lines and high quality extrusions.

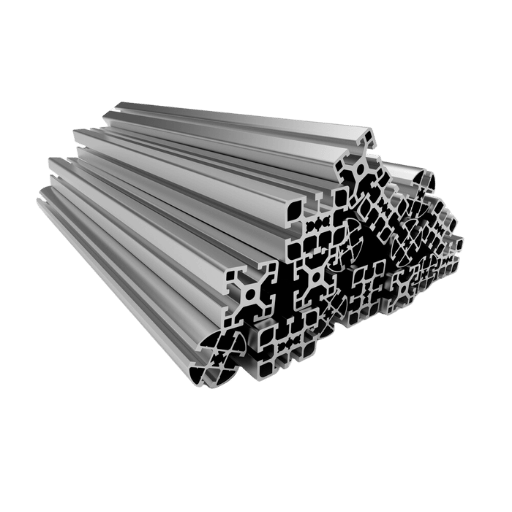

How to Detect and Stop Defect in Extruded Aluminum Profiles?

Extrusion Die Design And Its Failures

The extrusion die design affects the accuracy and overall quality of aluminum profiles extrusions. A prominent problem is improper metal flow, die wear or even surface damage caused by insufficient die geometry or material selection. These problems can be solved with visual inspections, measuring the dimensions, or running different computer simulations. Such failures can be avoided by assuring precise die design with modeling software, making dies from good materials, and controlling lubrication during operation. The die wear and tear must be fixed with proper maintenance and controlling the die, which prevents failure and increases uniformity and quality.

The Importance of Correct Extrusion Temperature Control

The extruder has precision to capture voids that stem through a defect into any form of an aluminum extrusion process. Misalignment of the extruder components such as the die and the extrusion press is an issue. Like any other work, the alignment of the tools and their parts is a priority. Any obstructions in this process will be a barrier for smooth aluminum flow thus the resultant surface will be wrought with puddly and featureless imperfections. Along with this, there may also be dimensional distortions in the structure. Inadequate pressure application does unleash void, cracks and or profiles that are far from being complete. For the risk of defect mitigation, temperature control, lubrication and force all need to be uniformly distributed. An automated system paired with a failure alert for the extruder shaft that is regularly monitored ensures defects are minimized while the quality of the end product experiences an increase.

The Role of Extruder in Aluminium Extrusion Defects

Exceeding or not reaching the optimum scope of parameters set can result in degradation of material, poor flow and structural irregularities. All of which can stem through the crude form of distortion in the profile that is extruded. Correct regulation of temperature makes certain that the material maintains proper viscosity so that the output can be effortlessly processed. In tandem with this, all dimensions are use appropriate specifications too. It has been proven in studies that an automated thermometer and a real-time defect detection tool enhances fail rates to increase while wastage, along with defects suffering near perfection with improvements in production along with product reliability.

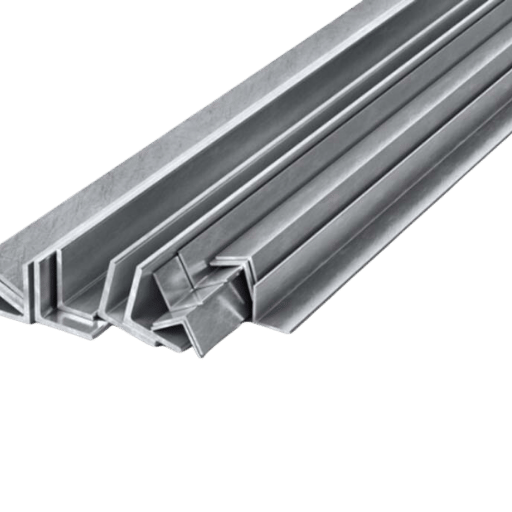

Exploring The Causes And Solutions To Defects in Aluminum Alloy Extrusion

Aluminum Extrusion Problems Solved.

Below is a list of solutions aimed at fixing common defects during aluminum alloys extrusion processes.

1. Optimize Die Design. The simulation should predict and operate on fixing die flows and surface defects issues that advanced tools such as simulation systems can adequately handle.
2. Control Extrusion Parameters. Apply sever processes such as extrusion at optimal temperatures, pressures, and speeds so as to not cause cracks, surface tears and non-uniform protrusions.
3. Ensure Material Quality. To lessen the chances of errors during the machining process, high quality billets with consistent composition and impurities must be used.
4. Regular Equipment Maintenance. Regular overall servicing and checking of heating systems, extrusion press, and dies increase upkeep while reducing the chances of operational faults that can lower product quality.
5. Implement Real-Time Monitoring. Sensors and other automation devices can be used to monitor various actions in real-time, so that anomalies in extrusion pressure can be quickly fixed to lessen damage.

The integration of the mentioned solutions greatly benefits production efficiency while minimizing defects, increasing overall product quality.

Billet Quality and Homogenization

To address the billet quality and homogenization, I ensure selection of high-grade raw materials and their proper storage to minimize contamination. Precise thermal control during the homogenization process is employed to improve microstructural uniformity while segregation is eliminated. By applying strict quality checks and process parameters compliance, I am also able to improve the final billet quality and assure reliable extrusion process for all the billets.

How Does Lubricate Influence the Aluminum Extrusion Process?

The Significance of Proper Lubrication During Extrusion

Lubrication is needed for smooth working of processes, and in the case of aluminum extrusion, proper lubrication reduces friction between the tooling and the billet. Proper lubrication aids flow, reduces machinery wear, prevents profile-surface imperfections, and ensures that the lubricated components are easy to remove. Efficient lubrication is also instrumental in maintaining a constant extrusion pace, which cosequently improves dimensional accuracy and the overall quality of the product. With the right method of lubricant application, manufacturers can improve the extrusion and maintenance of machinery used in the process.

Challenges in Lubrication of Extrusion Cylinder

The main problems in lubricating the extrusion cylinder include the uniform distribution of the lubricant, as well as the selection of lubricant that can withstand the harsh temperatures and pressures of the process. Increased Friction, alongside reduced lubrication, uneven material flow, and a defected end product are all results of poor and uneven lubricant application. The opposite effect can also be observed when dealing with heat; some lubricants become ineffective when under extreme thermal conditions because of the loss of overall concentration. Both of these extremes will cause pound after pound of equipment getting worn away. To counter these effects, consistent follow-ups and maintenance inspections over the machinery is essential.

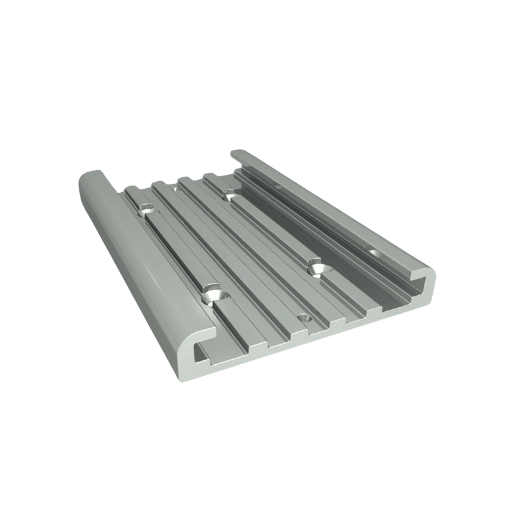

What Are The Innovations In Die Design For Industrial Aluminum Profiles?

What Are The Innovations To Consider For Effective Die Design In Aluminum Profiles Sections?

Appropriate die design for the aluminum extrusions process holes sizes optimization is one of the primary challenges in die design. Some of the key innovative techniques are :

1. Advanced Simplification of Die Geometrical Shapes: Advanced flow analysis methods in die geometry includes advanced divisions for use of stress concentration prevention molded plug formation that ensures molten metal in gage cavities of the mold does not exceed set limits.
2. Integrated Thermal Control Systems: Modification of dies for introduction of cooling channels or other advanced temperature control systems significantly increase extrusion dies temperature maintenance accuracy, thus improving the set accuracy of the dimensions and maintaining high standards for the produced extrusions.
3. Finite Element Analysis: Integration of FEA simulations and analysis in the design process to estimate material usage, evaluate elements absence or presence, examine feasibility, and make adjustments to the die structure prior molding setups eliminates problems during the die structure.
4. Modular Components Design of the Die: Designing modular dies devises and systems with integer suffer part outlines enables faster maintenance of components or complete system changes for valuable machinery moral and economic resources.
5. Application of Coating and Surface Treatments: Application of coatings or surface textiles to extrusions dies that withstand high draft angle damages increases the life of the dies.

Not only do the changes above increase profitability of a company, but they are also a step towards better class aluminum profiles sections for industrial needs.

Reducing Compression and Weld Lines through Design

Achieving the optimal shape and structural properties of an aluminum extrusion makes the design techniques applied to the die crucial since weld lines and imperfections must be kept to a minimum. One strategy involves the optimization of the flow channels within the extrusion die so that material distribution is uniform. This would reduce areas of high compression that lead to the creation of compression lines. Also, using flow dividers can help control metal flow to eliminate the production of excess weld seams. Altering the billet temperature and extrusion speed are also critical for defect elimination. Constant thermal conditions tend to produce smoother die flow and control the amount of weld seams. Incorporating advanced simulation tools to test the design prior to refining it increases the end results further by preemptively fixing issues early on.

Frequently Asked Questions (FAQs)

Q: What are some of the frequent issues concerning aluminum extrusion profiles?

A: Issues regarding aluminum surfaces such as scratches and die-lines, dimensional inaccuracies alongside twisting and bowing are quite common. Other structural issues include internal voids and uncontrolled porosity. These defects have the potential to compromise the quality and performance of the aluminum products, imposing the need for specific aluminum extrusion solutions.

Q: In which way does the production process have an effect on the quality of aluminum extruded products?

A: As seen in other production procedures, the process of fabrication has considerable effects on the quality of the end product. the die design, extrusion temperature and speed, and rate of cooling all have an impact on the final product. To reduce the defects present in the product, building these parameters is invaluable.

Q: What are some of the suggestions for improving the surface finish of aluminum extrusion profiles?

A: Improving surface finishes of aluminum profiles can include optimizing die designs, using high quality copper alloys such as 2024, lubrication, and applying surface treatments such as powder coating or anodizing while eliminating other constraints. These methods improve the quality and appearance of the aluminum profile products.

Q: How can fabrication techniques be used to fix defects found in aluminium extrusions?

A: Certain defects in aluminum extrusions like interference fit dimensions can be corrected using machining along surface enhancements to increase overall aesthetic appeal. Additionally, other processes like straightening for bowed or twisted profiles enhances appearance value. Advanced fabrication techniques can help recover almost perfect components and minimize scrap aluminum profile production.

Q: How does forward extrusion affect aluminum extrusion profile quality?

A: The exercised processes of machining aluminum extrusions can dictate a quality end product. Forward extrusion improves internal flow of metals therefore improving voids or gaps left within the material wall. Appropriate and accurate preliminary set up rehearsal on forward extrusion will gain better results on the structure integrity and surface quality of parts.

Q: How do companies like Shenzhen Oriental Turdo Ironwares Co., Ltd. address common defects in aluminum extrusions?

A: Deficiencies in aluminum extrusion are likely addressed by Shenzhen Turdo with the help of modern equipment and quality control along with a history of improvement. These may include the purchase of newer extrusion equipment to increase production, implementation of inspection checkpoints, and even custom engineering aluminum profile products.

Q: What impact do surface finishing techniques have on aluminium curtain wall system performance?

A: Surface finishing techniques is a critical step of the construction of an aluminium curtain wall system. Adding anodizing or powder coating add cosmetic value while protecting the base from looming corrosion and weathering. With proper surface treatment, the quality of durability and longevity of the aluminum extrusions in the curtain wall system is definitely better for performance of the structure and maintenance of the building envelope.

Reference Sources

1. Title: Investigation of welding quality and internal elongation problem in aluminum extrusion
   Authors: Ö. Ayer, İsmail Karakaya
   Journal: Journal of Manufacturing Processes
   Publication Date: 2023-11-01
   Citation Token: (Ayer & Karakaya, 2023)
   Summary:Welding and internal elongation problems arising from aluminum extrusion processes are analyzed in this work. In their research, the authors noted two major problems: weld quality, and internal elongation that is bound to cause defects in the product. This research combines modeling of experimental studies with a particular emphasis on the process and its parameters to solve these problems. The results of the study suggested that extruded aluminum products require more effective process control and monitoring systems to improve their quality.
2. Title: Effect of Temperature on Surface Cracking Defects in AA7075 Hot Extrusion
   Authors: T. Funazuka, K. Dohda, N. Takatsuji, Ngernbamrung Sukunthakan
   Journal: Key Engineering Materials
   Publication Date: 2022-07-22
   Citation Token: (Funazuka et al., 2022, pp. 409–415)
   Summary:This document analyzes the effect that temperature has on the surface cracking defects during the hot extrusion of AA7075 aluminum alloy. The authors perform simulations and experiments on the range of temperatures to observe the occurrence of tearing and other surface defects. The study demonstrates that when the temperature is properly regulated, defects can be minimized, therefore maximizing product quality. The work focuses on the connection between processing conditions and the mechanically altered properties in the extruded material.
3. Title: A case study on implementing Lean Six Sigma: DMAIC methodology in aluminum profiles extrusion process
   Authors: Hassan Araman, Yahya Saleh
   Journal: The TQM Journal
   Publication Date: 2022-02-10
   Citation Token: (Araman & Saleh, 2022)
   Summary:This case study analyzes the implementation of Lean Six Sigma tools to pinpoint the changes needed in the aluminum profiles hot extrusion process. The authors apply the DMAIC (Define, Measure, Analyze, Improve, Control) model for defect analysis and for enhancing the process. The research shows that there was an appreciation in the yield percentage and a number of defects decreased thus bringing to light the potency of systematic approaches in dealing with some of the quality concerns in aluminum extrusion.
4. Title: Investigation of Cold Extrusion of Aluminum AA 2024 Alloy using Finite Element Analysis
   Authors: Anupama Francy Kothasiri, S. R. Chalamalasetti
   Journal: INCAS Bulletin
   Publication Date: 2022-09-09
   Citation Token: (Kothasiri & Chalamalasetti, 2022)
   Summary:This research examines the cold extrusion process of the AA 2024 aluminum alloy, employing finite element analysis (FEA) to optimize the die angle, ram speed, and coefficient of friction. The research outlines significant causes of defects in the extrusion process and suggests precautionary measures to enhance productivity and decrease damages. These findings highlight the critical role simulations play in achieving a better understanding of problems related to extrusion and finding suitable solutions to them.
5. Title: Modeling of Aluminum Profile Extrusion Yield: Online Billet Cutting
   Authors: J. Hassamontr, Theera Leephaicharoen
   Journal: Lecture Notes in Networks and Systems
   Publication Date: 2021-05-13
   Citation Token: (Hassamontr & Leephaicharoen, 2021)
   Summary:This article illustrates a model for forecasting productivity in the extrusion of aluminum profiles, more specifically, for the problems related to online billet chopping. The authors examine the consequences of differing parameters on yield and provide systems to enhance efficiency and minimize waste. The study draws attention to the intricacies of the extrusion process and the operational difficulties that most certainly require innovative methods for modeling.
