Discovering the Different Types of Bolt Heads and Their Uses

Bolts serve a quintessential purpose in various industries, from construction, manufacturing, automotive, and even aerospace. Not all bolts are the same; however, different types of bolt heads can drastically change how functional a bolt is, how easy it is to use, and how appropriate it is for a particular task. This guide identifies the most common types of bolt heads, their distinguishing features, and the practical conditions where each is most effective. Understanding different types of bolt heads and their applications is critical in selecting the proper hardware for any project. Be it a secured fastening expert or a curious learner, this article aims to improve every reader’s understanding and inform their choices.

What Are the Main Types of Bolt Heads?

Screws and bolts are divided into numerous levels such that for each screw type, there is a specific design catered to fasten-joining elements and any bolt’s exact purpose. The most common types of heads are:

1. Hex Head: Most common in general construction or machinery due to strength and simplicity while being removable or tightened with a wrench.
2. Socket Head: This is a special-purpose socket head for installation with a hex key (Allen wrench), mainly when space is limited.
3. Round Head: Often employed in aesthetic applications, very low torque is required.
4. Flat Head: These heads are primarily for flush installation and sit within countersunk holes for smooth surfaces.
5. Pan Head: Heads are used for lightweight fixtures and are slightly rounded with a flat bottom.

All include a wide variety of screws and bolts meant for other fastening purposes, and all show dependent accuracy in work.

Exploring Hexagonal Heads and Their Applications

Equilateral hexagons are called hex heads. These are the most useful in construction and manufacturing since they are robust and easy to use. Their six-sided shape gives a firm grip, so greater torque can be applied with standard wrenches and sockets. They are easy to grip and effective in high-stress environments where strength is needed the most. Structural and mechanical applications use bolts and screws that are hex heads so that fastening can be done without worry. Their design includes easy installation and removal features, making them applicable across several industries.

The Versatile Round Head Bolts

Round head bolts are identified by their head, which is dome-shaped and smooth for low surface profile. This helps minimize projections on the surface, which prevents snags or injuries. Round head bolts are commonly used in woodworking, furniture assembly, light construction work, and other similar projects as they fasten reliably while decreasing the effect of pressure caused on surfaces. These bolts also serve aesthetic purposes as they can be used in sculpture designs and designs needing visible bolt heads without the heads protruding. With diverse uses, round-head bolts are easy to use in many industries.

Understanding the Square Heads

Square head bolts are defined as fasteners possessing square-shaped heads. This shape allows tools to gain a better grip, preventing slackening during installation. These materials are often used in construction, heavy machines, and other places that require a firm grip and high durability. Furthermore, this shape allows these bolts to be utilized in tight spaces, as wrenches or pliers can quickly grasp them. These bolts are preferred due to their strength in high torque situations and their efficiency in load distribution.

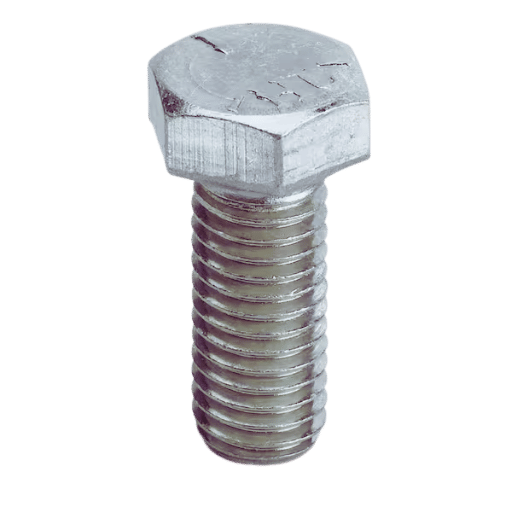

How Do Bolt Heads Differ?

Comparing Flat Heads vs. Socket Heads

Flathead bolts have a countersunk design, which allows them to sit flush with the surface upon installation. This feature is ideal for applications requiring an uninterrupted surface, such as furniture assembly or aircraft panels.

On the other hand, socket-head bolts have a cylindrical head with an internally driven hexagon or star, which allows for a firmer grip when tightened. They are advisable when high strength and torque are required, such as in industrial machinery or auto parts. Socket bolts typically sit above the surface, providing a better tool gripping area and increased shear resistance, unlike their flat counterparts.

It all comes down to the user’s needs. Several design factors, including aesthetic appearance, load, and accessibility, must be considered.

Examining the Button Heads and Truss Heads

Both truss and button heads are versatile fasteners, but each has a specific use case. However, these heads can be chosen based on their final aesthetic finish or tool functionality. Button heads have a wide domed top, which provides a smooth finish and allows tools to grip them during installation.

Truss heads are better suited for tighter spaces since they are designed with a broad surface area, allowing for lower clearance and better load distribution. Bolts of both types serve different purposes but can be chosen based on visual appeal or practical uses.

What Are the Most Common Types of Bolts Used in Construction?

The Importance of Hex Bolts in Structural Integrity

Strength and adaptability make hex bolts one of the most prevalent fasteners in construction. Their head’s six-sided shape facilitates the application of adequate torque to ensure structural assemblies stay tightly and securely reinforced. Hex bolts are commonly found in steel fabrication, bridge construction, and heavy machinery assembly, where the joint stability of the structures is pivotal for safety and durability.

Hex bolts have numerous advantages, especially regarding their materials. Usually composed of high-strength steel alloys, they are designed to withstand large loads without deforming. Industry research has pointed out a tensile strength of 150,000 psi for commercially and industrially active grade-8 hex bolts, which attests to demand.

Zinc plating and galvanization are further finishes applied to hex bolts to help them withstand the environment. This is useful for outdoor constructions or corrosive environments requiring long-lasting durability. Material engineering studies have shown that galvanized hex bolts can prolong the lifespan of crucial infrastructures due to decreased wear and tear from corrosion.

The correct protocols will guarantee that the hex bolts will work to the best of their abilities to keep the structure intact. This includes getting the necessary bolt size, grade, and thread pitch depending on the project’s load and environmental specifications. Problems with bolts and structures in the practical world can be fixed by following guidelines such as those provided and set by ASTM International. Notably, these standards help prevent problematic structural safety issues arising from excessive loading or unfit installations.

Combining detailed and accurate design specifications, strong material properties, and rigid industry standards allows for the effective use of hex bolts in construction. These structures are efficient in static and dynamic load-bearing situations, making them a dependable construction component.

Why Anchor Bolts Are Essential for Stability

Anchor bolts are essential in integrating structures and their functions by resisting wind, seismic, and vibrating energies that might cause imbalance or damage. They also withstand tension and shear energy to ensure buildings and equipment are appropriately placed. These components fasten and displace resistance in terms of structural movement. Placing and installing the bolt according to these determined standards improves structural resistance and strength.

Benefits of Using Carriage Bolts

Due to their efficiency and flexibility, carriage bolts are exceptionally advantageous in the construction and assembly processes. These bolts are perfectly safe and do not leave an aesthetic rough finish due to their rounded head design, which contains no sharp edges. The combination of the square neck beneath the head provides extra friction, which helps keep the bolt stationary while it is installed. Carriage bolts serve best with wood and bolted metal, providing robust and secure fastening. They are made of strong materials such as stainless steel or other durable metals, which powerfully resist rust and corrosion, thus making carriage bolts ideal for outdoor and indoor fixtures.

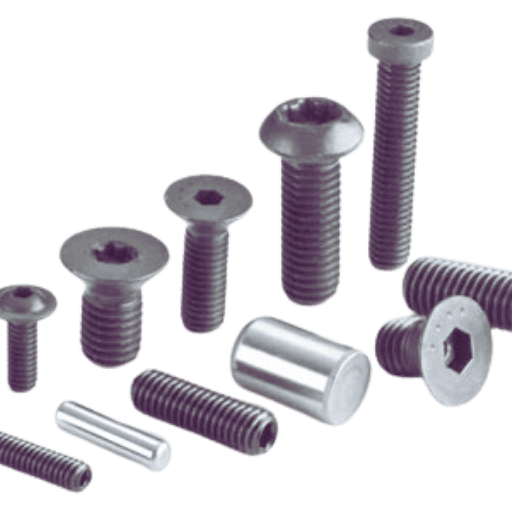

What Factors Influence the Selection of a Type of Bolt Head?

Material Compatibility and Load Requirements

The type of bolt head chosen is impacted by material compatibility and load requirements, which are of utmost importance. The bolt and the components connected to it must be made of the same material, so there is no scope for material degradation due to corrosion over time. For example, a stainless steel machine screw may be used when working with aluminum to prevent galvanic corrosion. The load requirements for the bolt in terms of tension, shear, or compression determine its effectiveness. When there is a heavy load or stress, high-strength bolts like those with alloy steel are preferred to ensure there is no compromise in the integrity and safety of the structure. It is these factors that provide practical and durable connections.

Environmental Considerations and Corrosion Resistance

External factors like moisture, chemicals, and temperatures influence the selection of bolt heads. In humid or corrosive environments, materials with stainless steel or coated alloys have high corrosion resistance, preventing their degradation. During coastal or marine applications, durability is enhanced using specialized protective coatings like zinc or epoxy. When designing for corrosion resistance, spending on maintenance is minimized when materials suited for the working environment are used.

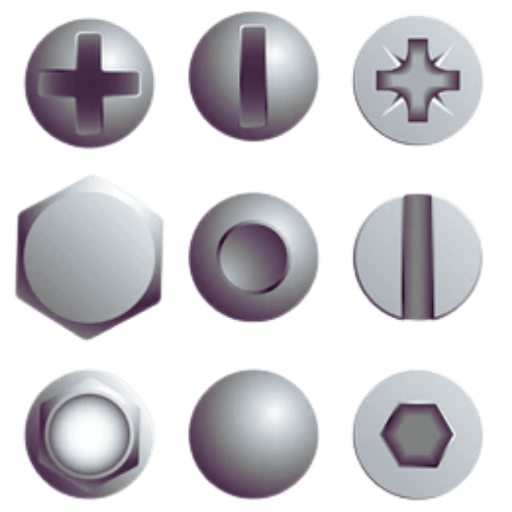

Why Are Different Types of Bolt Heads Preferable for Specific Applications?

The Role of Hex Washer Bolts in Heavy-Duty Applications

Heavy-duty applications with significant stress expect a reliable connection with hex washer bolts, uniquely custom to serve this purpose. These bolts can be subjected to considerable torque due to their hexagonal shape, while the integrated washer prevents damage through even load distribution. Such bolts are preferred in construction, automotive, and mechanical industries, but their use is not limited here. The treated design offers industrial-grade strength, ensuring that the loosening of the bolt does not occur due to vibration and instability, which are prerequisites in most engineering environments.

Advantages of Using Oval Head Bolts

An oval head bolt has many benefits due to its streamlined and shallow structure. Their head, which is curved and low profile, can sit flush with or below the surface of the material, which allows for a smooth finish and minimizes the chances of getting snagged on or interfered with by other components. Because of this, oval head bolts are best suited for applications where a neat appearance is required or, as in the case of furniture and electronics assembly, where components need to be surface-flush. In addition, the capability of their design offers enhanced stability while reducing the chances of material damage, which warrants better pressure distribution. These benefits make oval head bolts a preferred choice in aesthetic and functional applications.

Frequently Asked Questions (FAQs)

Q: Describe the types of bolt heads available.

A: Bolt heads come in a wide variety of kinds, such as hex head, oval bolt, flat bolt, truss bolt, square head, round bolt, button bolt head, pan bolt head, dome head, and flange bolts, to mention a few. Each bolt type, including the cylindrical and flat-topped heads, is suited for particular uses based on shape and function.

Q: In what manner do hexagonal heads and hex heads differ in their application?

A: Hexagonal heads and hex heads are both used for tightening and loosening bolts and screws with a wrench or spanner. With time, hex heads have dominated the industry as the most efficient and manageable standard for torque transfer and grip with tools.

Q: What is an eye bolt used for?

A: An eye bolt attaches cables, ropes, and chains. It is built with a head that is easy to connect and is primarily used for lifting and suspension.

Q: Why do people still use square heads even when new designs exist?

A: Square head bolts offer a straightforward and efficient method of applying torque via a wrench or spanner, making their application relevant today. They are also crucial in old machinery or equipment, as they are aesthetically pleasing and functional.

Q: What is the advantage of a truss bolt head?

A: With its head construction, a truss bolt’s shape helps distribute the load over a larger area. Its lower profile permits its use in restricted-space applications or those that require a flush finish.

Q: In what ways does a pan bolt head differ from other types of bolt heads?

A: Pan bolt heads have rounded tops on flat bases like round heads. This design allows for greater contact surface area, which is beneficial when using fasteners to join materials that require even pressure distribution.

Q: What are the uses of flat-head bolts in assembling items or equipment?

A: This type of bolt is designed to be level with the surface of the assembled parts, which is critical when the bolt cannot be above the surface. This is a prevalent type of head used in countersunk applications.

Q: What is the purpose of a head with a hexagonal recess?

A: A recessed head made hexagonally, also called a socket head, accepts a hexagon wrench or Allen key to tighten or loosen its bolts. In this case, torque can be applied along the axis of the bolt with minimum slippage, which is optimal.

Q: What are the applications of a flange bolt?

A: Flange bolts are a type of head bolt with a washer attached underneath the head. This washer provides a greater surface area for evenly distributing pressure. Flange bolts are primarily used in cars and other applications where vibration is prevalent and nuts and bolts must be as fixed as possible.

Q: Why might one choose a bolt with a rounded head top?

A: Aesthetic preference, smoother surfaces, or even tactile reasons allow using a bolt with a rounded head top or socket driver head. The described socket head helps chafe in applications with safety or esthetics as priority.

Reference Sources

1. Title: Enhancing Lifespan of bolted joints for Aircraft Maintenance and service

• Authors: V. V. Dunaev et al.
• Journal: Journal of Machinery Manufacture and Reliability
• Publication Date: 17 June, 2011
• Citation Token: (Dunaev et al., 2011, pp. 230–236)
• Summary: The paper deals with the increasing longevity of bolted joints in an aircraft. It also states the relevance of maintenance of bolts or nuts to avoid breakdowns. The investigation examines a range of bolts and their use within aviation in terms of engineering features and behavior for aviation bolts under different working conditions.

2. Title: Equivalent Axial Stiffness of Bolt Heads Subjected to Axial Loading

• Authors: Y. Amir et al.
• Journal: Transactions of The Korean Society of Mechanical Engineers A
• Date of Publication: November 9th, 2012
• Citation Token: (Amir et al., 2012, pp. 789-800)
• Summary: This paper conducts finite element analysis on various styles of bolt heads (hex, hex flange, socket, etc.) to find their approximate axial stiffness under a load. The study emphasizes bolt head shape as a critical factor in the mechanical characteristics of bolted connections and illustrates how various forms influence load transfer and stress concentration.

3. Title: The Journal of Strain Analysis for Engineering Design Fillet Under a Bolt’s Head: Shape Optimization

• Authors: A. Sorrentino et al.
• Publication date: 2019-06-27
• Citation Token: (Sorrentino et al., 2019, pp. 247–253)
• Summary: This paper presents a striking stress concentration under a bolt’s head that can lead to fatigue failure. It focuses on developing an optimal fillet shape for the bolt head to meet the application’s needs using a genetic algorithm with finite element analysis. Results show that optimal fillet designs reduce stress levels considerably compared to standard designs.
