Understanding Subtractive Manufacturing Tolerance in Modern Production

Modern industrial production relies heavily on manufacturing processes, which require utmost accuracy for consistently high-quality results. The processes of milling, turning, and drilling mark the principal phases of material removal where subtractive manufacturing allowance tolerances come into play and discrepancies in achieved results are acceptable. In this blog post, the necessary details of subtractive manufacturing tolerance are preserved with a focus on how they affect the product design for compliance with functionality and industry efficiency requirements. I hope this guide helps you, whoever is involved in the processes whether in knowledge engineering or a more consultative project management approach, in tackling the challenges of ever tighter control and the consequences in quality that increasingly closer tolerances will produce.

What is Subtractive Manufacturing and How Does it Work?

Subtractive creation is a process in which a big block of material is transformed into a pre-defined geometric-shaped object by cutting out sections of the block using various methods such as turning, drilling, grinding, or milling. It is often performed with the aid of a CAM-partnered manufacturer for added precision. For most productions, the first step involves using a block or sheet of material and cutting it down to a desired shape for final completion. As such, the technique fulfills the production of components with tight tolerances or very geometrically complex features which is most useful in the manufacturing of aerospace, automotive, and medical devices products.

Core Principles of Subtractive Manufacturing

Material Removal Procedure

Subtractive manufacturing works with a piece of material that is greater than the desired workpiece, and it progressively removes material using drills, grinders, or cutters until the right dimensions and shape are achieved.

Precision and Accuracy

This procedure is capable of achieving a high level of detail and fine measurements, which is necessary for designs that are intricate in nature as well as complex in nature.

Tool Control

Most modern subtractive manufacturing uses some sort of computer-controlled machine tool (CAM). In this way, tools are programmed and controlled automatically which lessens the chance of errors and maintains uniformity.

Material Considerations

This procedure can use a wide selection of materials such as composites, plastics, and metals, but the selection of materials directly impacts how the workpiece is processed and the tools that will be used.

Applications Based on Design Complexity

Subtractive manufacturing is best suited for clients who have projects that involve laser-sharp detail such as prototypes, components for aerospace and automotive industries, medical devices, etc.

The Subtractive Manufacturing Process: Step by Step

Design and CAD Modeling

The very first stage involves the draftsman developing a design in the CAD program. This model functions as the baseline prototype. CAD systems of today allow accomplishing measurement and geometric details, so the final product will be crafted exactly. Also, different machining conditions are optimized using design software even before the complete product is manufactured.

Selection and Acquisition of Materials

Choosing the material is the most important step in achieving the mechanical properties and tolerances desired. The hardness of the material, the rates of thermal conductivity, and the machinability are some of the factors that are taken into consideration. Metals like steel and aluminum are most preferred because of their reliability, whereas aluminum is readily machinable and steel is remarkably durable. According to industry standards, if the material is said to have an approximate 100% degree of ease of processing, like brass, then it is above standard.

Machine Setup

The chosen material which is in the form of a block or sheet is now placed on the machining apparatus as a workpiece and it is tightly held in place. At this point, the toolpath instructions with which the machine is supposed to work, are already generated in CAM Software and uploaded to the CNC machine. In modern CNC systems, automation is used along with adaptive controls. In any industry that requires accuracy in the machining process, there are techniques how to control the production process by compensating for unplanned changes within micrometer details or the absolute precision level.

Roughing

In this phase of machining, the priority is to remove excess material as quickly and efficiently as possible. Tools like end mills or drills are used in the roughing stage, where the material reduction is prioritized over the form’s surface finish. The industry standard roughing feed rates are between 0.005 to 0.02 inches per tooth for milling, depending on the material being machined.

Finishing

Finishing steps guarantee that each product is within the dimensions, tolerances, and surface finish outlined in the specifications. This stage has finer cutters and does the machining at slower speeds so that the surface finish achieved has a roughness average lower than Ra 0.4 µm in the medical and aerospace parts machining sectors.

Inspection and Quality Control

After the machining process, the component dimension and surface quality are critically checked for accuracy with the normal tolerance requirements. Generally, methods like CMM and NDT are used. Data indicates that facilities that operate at high precision can uniformly achieve tolerances of ±0.001 inches, by regulations ISO 2768.

The addition of heat treatment, coatings, and deburring serves to shift material parameters as well as specialist functionalities. An example would be anodizing aluminum pieces for better corrosion resistance, and shot-peening steel for better fatigue resistance.

Different industries have their own requirements, which are often very technical. However, through a precise set of multi-step and subtractive manufacturing, parts, and prototypes that qualify to surpass these guidelines are created.

Role of CNC Machines in Subtractive Manufacturing

CNC (Computer Numerical Control) machines are essential for subtractive manufacturing due to their unmatched accuracy, speed, and flexibility when making parts. These machines process complex cutting tools in a controlled manner using software that mechanically removes materials via cutting, milling, turning, and drilling. Statistically, CNC machining achieves tolerances as tight as ±0.001 inches or better making it the go-to machining process for industries like aerospace, automotive, and medical devices where precision is critical.

Modern CNC systems often utilize multi-axis configurations like 5-axis machining which permits more complex geometry to be manufactured without multiple setups. For example, in the aerospace domain, 5-axis CNC machining is adeptly applied in the fabrication of turbine blades where dimensional accuracy and intricate shaping is crucial for its operation under high stress.

One benefit of CNC machines is that they can run non-stop which greatly improves productivity. With advanced capabilities like constant monitoring and feedback, manufacturers are in a better position to improve process reliability while minimizing downtime. Research shows that CNC techniques can allow for as much as 50% time savings in production compared to manual machining along with less material waste.

In general, CNC machines serve as a link between design and product manufacturing with accuracy and efficiency, meeting all possible expectations of the industry in terms of quality, costs, and intricate designs. The importance of CNC machines in automated processes will only grow with the progress made in the fields of automation and digital technologies.

How Does Tolerance Affect Subtractive Manufacturing?

Defining Subtractive Manufacturing Tolerance

Subtractive manufacturing tolerances are changes permitted on the specified dimension during the machining of a part. These are limits within which a specific measurement can be altered without compromising the operational, design, and functional goals of a component. In my opinion, precision in tolerance control is essential because tighter tolerances guarantee higher efficiency but may complicate the costs as well as the time needed in production. It is important to balance these factors in order to accomplish efficiency and quality in the manufacturing of the parts.

Importance of Tight Tolerance in Production

Meeting tolerances, particularly tight tolerances, is critical in industries where accuracy and dependability are essential, such as in the aviation, automotive, and medical device industries. Dimensional tolerance adjustments have a direct effect on the operation, integration, and life span of a system, and these adjustments are frequently made to meet minimum boundary requirements. Regarding aerospace, safety, and performance in horrid conditions require microns of precision to ensure everything functions properly.

Research in the industry shows that the application of tight tolerances leads to lower chances of part failure and increased uniformity of the end product. For instance, in the automotive industry, it is common practice to perform high-precision machining of components like engines with tolerances of ±0.001 inches. Failure to do so may lead to inefficient functioning of such parts. Meeting these specifications often requires high-grade machinery and quality control systems, including but not limited to CNC machines, laser scanners, and coordinate measuring machines (CMM) which have preset limits and ensure accuracy.

Although precise tolerances streamline production processes, they also escalate manufacturing expenses due to a subsequent need for higher spending on time, materials, and specialized tools. One study recently noted that tolerances of less than ±0.005 inches could lead to an increase in project costs of up to 20% as a result of additional machining and inspection steps. This means that there is a clear need for thorough analysis where the benefits outweigh the costs with the particular focus that the tolerance value is set in a way that optimally meets requirements while also being cost-effective.

However, the achievement of tight tolerances is needed for exceptional manufacturing outcomes. This leads to product dependability which leads to increasing the brand image and being able to comply with the industry standards that need innovation and enhanced functionality in a competitive market.

Impact of Workpiece Geometry on Tolerance

During different processes of manufacturing, workpiece geometry greatly affects the tolerances of the workpiece. Complex geometries almost always create more variability because of difficulties encountered during the machining of the workpiece, the measurement of the workpiece, and the maintenance of the workpiece dimensions within the required limits. Parts that have sharp angles, tight radii, and deep cavities are often very difficult to achieve precise tolerances without employing special-purpose tooling or advanced manufacturing methods.

Research shows that tolerances are achievable by simpler geometries because there is lower deformation in terms of material and is much easier in terms of fixturing during a complex manufacturing operation. It has been reported that tolerances of approximately ±0.001 inches can be achieved consistently on flat or cylindrical surfaces. These figures are considerable for CNC machining operations; however, a lot of them rely on materials and their nascent freeform shapes. Thus, complex freeform shapes may need some tolerances around ±0.005 inches or even more due to the complexity of the shape, the material’s characteristics, and the method of manufacturing.

Moreover, these characteristics are the geometric position relation features that influence the ease with which these features can be assembled to form one system, which is called tolerance stack-up. These relations express concepts such as concentricity, parallelism as well as perpendicularity. The use of the above relations emphasizes the specific nature of geometric dimensioning and tolerancing (GD&T). These principles should be observed while employing open designs. GD&T achieves an optimal balance between design intent and manufacturability by ensuring a functional fit while minimizing production errors.

Through knowledge and consideration of how geometry and tolerance work together, the manufacturer can enhance the predictability of the process; costs can also be lowered, and at the same time, the excellence and dependability of the components being produced are greatly improved.

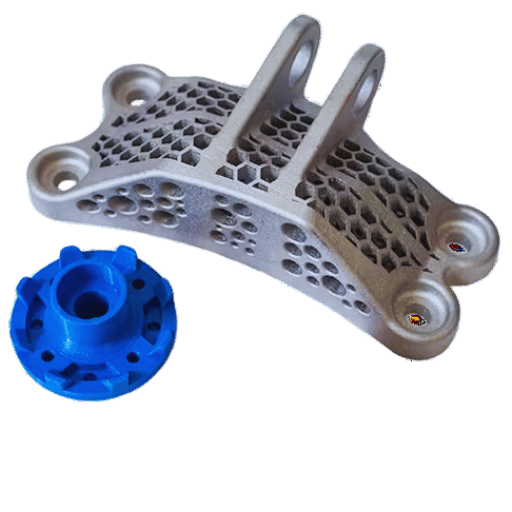

Comparing Additive Manufacturing vs Subtractive Manufacturing

Key Differences Between Additive and Subtractive Manufacturing

AM and SM are two noticeably different methodologies for part production with each methodology using its processes. Also known as 3D printing, additive manufacturing is the creation of components from the ground up by layering materials like polymers, metals, or composites. In contrast with comparative manufacturing, cumulative production is part of comparative manufacturing, where the material is extracted from a workpiece through milling, turning, drilling, and other production processes.

Material Utilization

One of the most notable distinctions is in the efficiency of the materials. With traditional methods, waste is generated during production in the form of raw materials.  A 2023 report highlights that using Additive Manufacturing (AM) in the production process can lessen material waste by as much as 90% when compared to efforts made through subtractive processes. Considering AM’s ability to sustain and maintain waste, it is the most efficient option of all the manufacturing processes. Whereas in subtractive manufacturing, there is a high probability of losing a large volume of materials in the process, unlike with AM manufacturing which operates in a negative space or constructs what is needed.

Complexity and Design Freedom

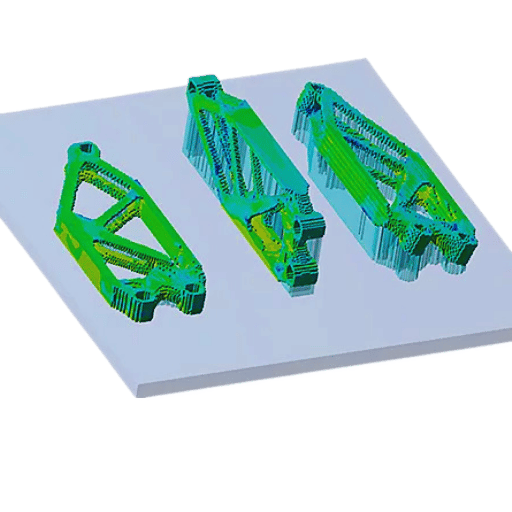

Additive manufacturing enables design freedom to an unparalleled degree. AM can easily accomplish complex geometries, internal structures, and intricate designs that would otherwise be impossible or far too expensive to achieve through alternative approaches. For example, the lattice structures employed in aerospace components for weight reduction are straightforward to fabricate using additive methodologies. Although subtractive manufacturing can achieve high tolerances and precision in the components produced, it is severely constrained by the cutting tools and the mechanical reach of the workpiece.

Lead Time and Production Volume

Additive manufacturing can provide quick iteration cycles enabling significant time savings with regards to prototyping. In some studies it has been shown that AM can decrease prototyping lead times by 50-75% for the automotive and consumer products industry. Nevertheless, for high-volume production, the subtractive method of manufacturing still retains higher efficiency because it is more scalable and faster with current CNC machines.

Material Properties and Surface Finishes

Post Processing parts made with Additive Manufacturing often necessitate secondary processing to improve their attributes or surface finish. For instance, machined metal 3D prints often need to undergo additional machining or heat treatment to make them more precise and durable. The same is not true for subtractive manufacturing; it begins with and Fabi finishing Construction painlessly and effortlessly, assuming that there is no further work necessary.

Economic aspects

Most additive manufacturing methods are ornately expensive, but for low volume or custom parts, the savings in material and waste compensation along the way can sometimes overtime savings. Subtractive manufacturing is typically preferable is a cost-effective option for Additive Manufacturing over the years has an existing tooling and process infrastructure supportive of large-scale production.

Both ways are relative to and dependent on the advancement in science and technology. It implies that the choice for either additively or subtractively would depend on specific project requirements including expenses, volume, complexity, and any other constraints.

Advantages of Additive Manufacturing Over Subtractive Processes

Geometric Flexibility

Using AM, it is possible to produce complex geometries that would otherwise be difficult or inefficient to accomplish through traditional methods. Specialized tooling is not needed to fabricate intricate designs such as lattice structures or hollow parts.

Material Efficiency

Additive fabrication builds components one layer at a time using only the needed materials. In contrast, subtractive processes that cut or machine away material often lead to significant waste. Some studies show savings of material by as much as 90% in certain applications versus subtractive manufacturing, which highlights the efficiency of additive manufacturing.

Customization and Personalization

Additive manufacturing is ideal for industries such as healthcare when patient-specific implants or prosthetics are needed because designs can easily be customized and adapted. Individual design variations do not necessitate additional tooling or setup, making it easier to achieve personalization.

Lower Setup Costs for Small Batches

As there is no need for molds, dies, or other tooling, AM greatly reduces the upfront costs for small production runs or custom parts. It becomes more economically viable than other techniques for prototyping and low-volume production while also taking into consideration the large footprint on the manufacturing floor.

Reduced Lead Times and Rapid Prototyping

Additive manufacturing technologies enable the rapid production and prototyping of parts within hours or days, whereas subtractive processes can take weeks or even months due to the tooling and machining requirements involved.

Reduction of Multiple Components into One

The integration of multiple parts into a single build is possible with additive manufacturing, which minimizes assembly and possible failure points. This is evident in the production of single-piece designs in complex aerospace components which improve their reliability and efficiency.

Conservation of Energy

Compared to traditional machining processes, additive manufacturing consuming energy processes less energy overall. With the removal of extensive cutting, drilling, and heat treatment processes, overall operational costs and sustainability improve.

Innovative Materials

Advanced materials such as metal powders, biocompatible plastics, and composites can now be used for Am, which aids in the development of innovative products. Furthermore, new developments allow the use of functionally graded materials which are otherwise challenging to achieve with subtractive methods.

Increased Access to Additive Manufacturing

With Amd bringing the capability of focused and on-demand production, there is the simplification of complex supply chains. This is a great stride towards localized manufacturing of the aerospace, automotive, and medical industries.

Enhanced Iterative Design Technique

Additive manufacturing enables designers to conduct rapid prototyping, designing, and product refinement. This iterative process is significantly more efficient than traditional subtractive manufacturing, which often necessitates the modification of tools or equipment.

The adoption of additive manufacturing in contemporary production processes, particularly in these industries, illustrates the advantages of innovation, customization, and sustainability.

When to Choose Subtractive vs Additive Manufacturing

Selecting between the two approaches, subtractive or additive, depends on a range of goals to be achieved such as the intended outcome of production, materials to be used, complexity of designs, and financial implications. Each technique holds certain advantages within its ranges, and knowing the differences can help make sound decisions.

Subtractive Manufacturing is often associated with a preference for quote-long production runs whereby the materials are made of solid and robust varieties like metals and plastics. In this manner, parts are consistently produced with very tight tolerance because of the precise machining performed which is characteristic of these industries as aerospace or automotive. Moreover, there is generally a good surface finish that may reduce the necessity for further processing. On the contrary, this approach produces a higher amount of raw material waste compared to other methods, and is not suited for very intricate geometries with detailed internal shapes.

Considered separately, 3D printing falls under the category of Additive Manufacturing, which is ideal for low-volume production and customized components. Designers can create sophisticated geometries and lightweight shapes that would otherwise not be achievable using conventional manufacturing methods. This method is, for instance, incredibly useful in the healthcare industry where prosthetic limbs or implants must be customized for individual patients. In comparison to traditional techniques, additive manufacturing leads to 75 percent lower lead times according to industry reports, and material efficiency is maximized due to the layer-by-layer methodology employed. Nevertheless, not all materials can be used with this technology, therefore requiring careful consideration of the selection of materials. Furthermore, there may be a need for additional processes to improve the surface finish and durability of the parts made.

The optimal solution available for many of these production cases may be hybrid. A good example is an integration where an intricate component is Additive Manufactured and subsequently Subtractive Manufactured precision tolerances and finishes. Using both methods as described makes the best of the benefits claimed by both to meet production needs and innovation as directed.

This choice rests on recognizing the particulars of your project – its cost, schedule, design, and even the space it will occupy on the shop floor. By harnessing the benefits of either or both approaches, manufacturers are able to synchronize their strategies with the changing needs of the market.

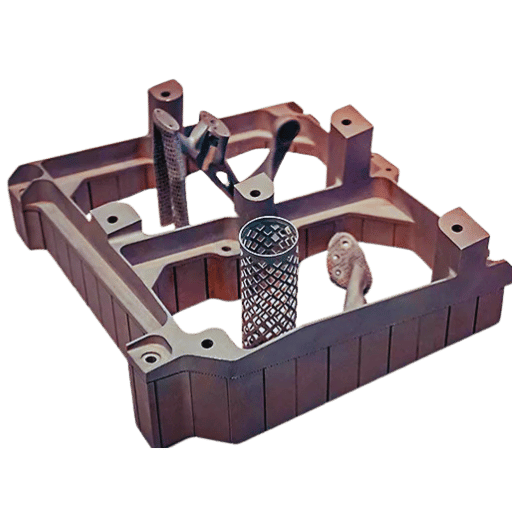

What are the Tolerance Standards Used in Subtractive Manufacturing?

Overview of ISO 2768 Standards

The ISO 2768 standards apply to form and position, as well as other processes for metalworking and subtractive manufacturing, through the definition of general tolerances for linear and angular dimensions. These categories are split into two broad sections:

1. ISO 2768-1: Concentrates on tolerances pertaining to linear and angular dimensions. It considers the level of precision and accuracy of tolerances to be categorized in four ranges; fine (f), medium (m), coarse (c), and very coarse (v).
2. ISO 2768-2: Concentrates on tolerances of form and position, or the alignment and shape of manufactured pieces. Strips of three levels of tolerances are defined; H (high), K (medium), and L (low).

Modifying works must observe these norms for better quality control, less detailed technical sketches, and functional order fulfillment of parts.

Understanding General Tolerances and Their Applications

Importance of General Tolerances

Tolerance should be defined and specified as it is necessary for the different parts of components to be assembled easily and efficiently in a manufacturing industry. Applications for different types of tolerances are provided below.

Dimensional Tolerances (ISO 2768-1):

• Tolerances that apply to linear and angular components’ dimensions systematically enable the components to be produced to the appropriate size without needing specific tolerances for every dimension on the component.
• Fine (f): A level between fine and medium, such as in biomedical devices and aerospace engineering where accuracy is extremely beneficial, and parts must fit securely together.
• Medium (m): Widely used for terrifically engineering fabricated structure parts.
• Coarse (c): This tolerance type is when high-level, less precise, and fast production is required.
• Very Coarse (v): These tolerances are used for rough components that require some basic accuracy without consideration of the volume of construction machinery components.

Form Tolerances (ISO 2768-2):

• Applied on components that are flat, cylindrical, or otherwise, to make sure their requisite shape is achieved and maintained.
• Straightness: These allow the shafts, rods, and beams to align as set out in the design.
• Flatness: Applied to large areas required to seal surfaces.
• Cylindricity: Used for the internal and external uniformity of cylinders which is common for engines and hydraulic cylinders.

Position Tolerances (ISO 2768-2):

• Position tolerances must be followed without exception during the order of assembly, therefore all parts work well together.
• High Precision (H): Used to fit rotating equipment with the greatest speed between components to reduce clearance.
• Medium Precision (K): A widely known term used in regular machinery components and their fabrication.
• Low Precision (L): This is used in situations that do not critically need a great quantity of alignment, like in structural connections.

Benefits of Applying General Tolerances

• Improved Productivity: Saves time in engineering design due to lack of requirement to define separate tolerances for features.
• Cost-Effective Manufacturing: Allows the manufacturer to set appropriate tolerances based on the actual functionality of the part.
• Enhanced Quality Control: Allows better inspection with less chance of over-designing since the performance criteria are stipulated.

With these clearly defined structured tolerances, manufacturers can gain efficiency and time while producing quality components in different industries.

Customizing Tolerances for Complex Parts

The customization of tolerances for intricate parts is contingent on the understanding of the functional needs, material characteristics, and the capacity of the fabrication which, in this case, also includes the iso 286 standard. The preliminary step is establishing the critical dimensions of the part that determine its performance and controlling these dimensions with tighter tolerances where accuracy is required, While for non-critical features, ease of construction and economy is achievable by applying larger tolerances. CAD (computer-aided design) and tolerance analysis software serve the dual purpose of achieving performance and manufacturability, thereby reducing the incidence of defects or assembly distortion. These customized tolerances, along with their rationale, need to be communicated with all interested parties from design, manufacture, quality, and other departments to avoid violation of the project requirements.

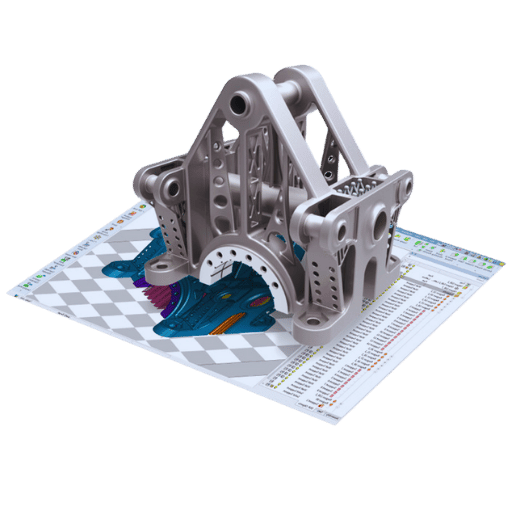

How Does Subtractive Manufacturing Compare to Additive Manufacturing?

Creating a Comparison Table Between Additive Manufacturing and Subtractive Manufacturing

Aspect	Additive Manufacturing (AM)	Subtractive Manufacturing (SM)
Process Description	Builds parts layer-by-layer using materials like plastics, metals, or composites.	Removes material from a solid block through machining, cutting, or grinding.
Material Utilization	High efficiency with minimal material waste.	Generates significant waste as excess material is removed.
Design Flexibility	Capable of creating complex geometries, including internal features and high-detail parts.	Limited to simpler designs due to tooling constraints.
Cost Efficiency	Cost-effective for low volumes or prototypes but becomes expensive for large-scale production.	Economical for high-volume production but less cost-efficient for prototypes.
Production Speed	Slower for large-scale production; most efficient for custom or low-volume parts.	Faster for mass production of uniform parts, additive and subtractive processes can significantly reduce lead times.
Tooling Requirements	Does not typically require specialized tooling, reducing upfront costs.	Requires detailed tooling and setup, increasing initial costs.
Material Types	Supports a wide range of materials, including advanced composites.	Primarily works with metals, plastics, or wood; material options depend on machining tools.
Accuracy and Surface Finish	Achieves high complexity but may require post-processing for improved surface finish.	Offers high precision and superior surface finishes directly after machining.
Applications	Ideal for rapid prototyping, custom implants, aerospace components, and detailed parts.	Common in automotive, aerospace, and mass-manufacturing industries for standardized parts.
Sustainability	Reduces material waste and energy use, aligning with sustainable practices.	Higher waste generation and energy-intensive due to extensive material removal.
Scalability	More suited for small-scale production or custom designs due to slower printing times.	Easily scaled for large volume production, increasing efficiency with quantity.

This comparison highlights the unique advantages and limitations of Additive Manufacturing and Subtractive Manufacturing, allowing companies to choose the best method based on their specific project needs, production volumes, and budget constraints. Combining the two methods in hybrid approaches can further expand capabilities, balancing precision with design flexibility while considering tolerance values.

Evaluating Additive Manufacturing Costs vs Subtractive Methods

Analyzing the cost difference between additive manufacturing (AM) and subtractive manufacturing (SM) methods, factors such as material consumption, cost of operations, and the quantity produced offer insights into the comparison between the two techniques.

• Material Consumption: Unlike SM which wastes a lot of expensive and scarce resources during its processes of cutting and carving, AM is known to preserve a lot of material, which ultimately enhances its cost-effectiveness.
• Operational Cost: Energy costs tend to be lower when using AM equipment as they are not labor intensive. Other than the expense of advanced 3D printers, day to day operational expenses can be lower with such equipment.
• Volume Efficiency: Custom orders or low volume orders are now cheaper to produce with AM due to lower setup times needed for complex designs. On the other hand, SM is more cost-effective in higher production volumes due to the reduced costs per unit because of mass production.

In conclusion, the primary choice of each model centers on the project such as the estimated budget, production size, operational complexity, and other parameters. What each model delivers centers around these criteria and offers unique cost benefits.

The Future of Hybrid Manufacturing Techniques

As with most things, The future of hybrid manufacturing techniques optimization is in their progress; regarding the effectiveness of the methods and processes from both adding and subtracting manufacturing systems within the industry. These methods will most likely be advantageous across sectors with very high levels of customization and intricate shapes, including aerospace, healthcare, and automotive. When a hybrid system integrates the flexibility of additive manufacturing with the accuracy of subtractive processes, efficiency in processes is achieved in reduced lead time, reduced material wastage, and enhancement of product quality. Increased automation and software development will continue to simplify the application of hybrid manufacturing methods making it broadly suitable and easier to implement in various fields. This method can become an all-inclusive answer to the demand for new and innovative production models while retaining a thoughtful consideration of the environment.

Frequently Asked Questions (FAQs)

Q: How is tolerance managed differently in additive and subtractive manufacturing?

A: Additive versus subtractive manufacturing has tolerance variances. As audio video manufacturing excludes CNC, 3D printers offer looser tolerances than subtractive methods and CNC comes usually within the range of +/- 0.001 inches. Like most technologies, additive manufacturing’s tolerances depend on the technologies and materials used and usually sits between +/- .005 to +/- 0.020 inches, which is relatively more tolerable than the price.   Most machining operations have tighter tolerances of around plus minus 0.001 inches other than that of CNC other technologies may range from plus minus 0.001 to plus minus 0.005 inches, while more modern alternative techniques like additive manufacture have much looser tolerances from the region of plus minus 0.005 to plus minus 0.020 inches widely depending on the methods, technologies, and materials that are being fabricated.

Q: What Xometry tolerances are applied for subtractive manufacturing?

A: As an alternative platform that supplies manufacturer’s parts, Xometry orders tolerances as per the other subcontractors in the market, both standard and customer-specified. Known standard operating ones with subractive machinings for CNC come with Xometry Pro which has more matteaized ISO 2768 medium tolerances by default reserved for without restirpcts only aid in other them. However, such requests can be aided by strict conformable limits too. Standard requests can also be aided by custom ones and will fall with Xometry’s limit after assessment decide the depended on the manufacturing procedures and materials that shall be used.

Q: What are the differences in the ASME tolerance standards and how do they differ from the ISO standards concerning subtractive manufacturing?

A: The ASME (American Society of Mechanical Engineers) and ISO (International Organization for Standardization) standards are two of the most commonly used frameworks in subtractive manufacturing. They have a few things in common, but also contain key differences: 1. ASME Y14.5 is dedicated to Geometric Dimensioning and Tolerancing (GD&T) that aims at creating a system with a specific set of rules that define and communicate tolerances. 2. Several other ISO standards that have an aspect of tolerancing, like ISO 2768 or ISO 286, are more simplistic in their approach. Both systems have worldwide popularity; however, in Europe and the rest of the world, ISO is more predominant while ASME is majorly accepted in North America. A number of manufacturers, Xometry for example, are able to work with both of these systems to satisfy the customer’s needs.

Q: What factors influence the right tolerance choice in subtractive manufacturing?

A: Choosing an appropriate tolerance in subtractive manufacturing is a multifaceted process. Some of the factors include: 1 . Purpose of the component 2. Type of manufacturing process (e.g. CNC milling, turning, grinding). 3. Characteristics of the material 4. Budgetary limits 5. Capabilities of the machinery 6. Requirements for assembly 7. Rules and norms of the relevant branch Often, precision can be obtained by considering these factors without overly specifying tolerances that make production unnecessarily expensive. The use of reliable manufacturers as consultants, or contact through portals such as Xometry can ease the task of estimating correct tolerances for a particular assignment.

Q: What are the differences in tolerance requirements for additive and subtractive manufacturing processes?

A: Tolerance requirements differ quite a bit in both verticals of manufacturing: 1. Accuracy: In comparison to additive processes subtractive processes are deemed to have greater tolerances. 2. Reliability: Results obtained from Subtractive manufacturing across parts is more reliable than from Additive manufacturing. 3. Influence of Materials: Material characteristics and the parameters of the printing Additive processes have more influence on the outcome compared to Subtractive processes. 4. Direct modification: Post-processing is often needed in Additive processes to refine parts. 5. Geometry manipulation: Additive methods can construct elaborate shapes with large tolerances while subtractive techniques are more efficient at creating basic shapes with stringent tolerances. Understanding these differences is vital for choosing the most effective method of manufacturing for a given purpose.

Q: What is a case of common applications in which tight tolerances in subtractive manufacturing are important?

A: Some of the key industries where tight tolerances in subtractive manufacturing are important include: 1. Components of aircraft 2. Medical instruments and devices 3. Parts of precision machinery 4. Components of automobile engines 5. Instruments of optics 6. Equipment for the manufacture of semiconductors 7. Equipment for scientific research 8. Equipment for sports of high competition These cases usually require CNC machining rather than an additive technique because subtractive methods tend to produce better finishes and tighter tolerances. Still, additive manufacturing keeps improving for precise applications as time goes by.

Reference Sources

1. An LCA and LCC study of pure subtractive, wire arc additive, and selective laser melting manufacturing methods

• Authors: Kokare S. et al.
• Journal: Manufacturing Processes
• Date Published: September 1st, 2023
• Citations: 31
• Summary: This work deals with LCA and LCC methodology focused on analyzing differences between components manufactured by pure subtractive and components manufactured by wire arc additive and selective laser melting approaches. The research focuses on assessing the impact and cost of different manufacturing processes, especially concerning tolerances and material utilization. The results indicate that when taking the eco-sustainability of manufacturing into account, subtractive methods, while precise, do not always prove to be the most sustainable, especially compared to their additive counterparts.

2. Sustainability Perspectives – Additive and Subtractive Manufacturing Review

• By: H. Jayawardane et al.
• Published In: Sustainable Manufacturing and Service Economics Journal
• Publication Date: 1st April 2023
• Citations: 32
• Summary: The review describes the sustainability contrivatives of both processes, additive and subtractive manufacturing. It discusses the balance that exists between the accuracy of machining processes and the efficiency of materials used in additive methods. The paper states that while high tolerances are attainable in subtractive manufacturing, there is usually a high level of material waste, calling for reduced impact sustainable manufacturing measures.

3. Best Process Planning for Hybrid Additive and Subtractive Manufacturing.

• Written by Hany Osman and colleagues.
• Source: Journal of Manufacturing Science and Engineering.
• Published: 03 February 2023.
• Number of Cites: 4.
• Brief explanation: This research develops a process planning model for hybrid additive-subtractive manufacturing systems. Such systems demand minimization of production cycle time with consideration of tolerances and quality bounds. The results suggest that rational process planning will improve the performance and precision of hybrid manufacturing systems.

4. Investigation of Hybrid Laser Additive and Milling Subtractive Manufacturing Tool Wear

• Author: L. Li et al.
• Journal: The International Journal of Advanced Manufacturing Technology
• Published On: September 27, 2023
• Citations: –
• Summary: This research describes the tool wear behavior in hybrid processes that integrate laser additive and milling subtractive technologies. In particular, the study focused on the consequences of tool wear on the tolerances and surface finish of manufactured parts. The findings show that controlling tool wear is necessary to sustain the precision and quality of hybrid manufacturing processes.
