“Die Casting Explained: Visi-Trak’s Role in Precision Casting Techniques”

The die casting process stands among the most sophisticated processes employed in modern industry today because of the accuracy, efficiency, and flexibility it affords in the production of intricate metal parts. At the core of this development is sophisticated control systems that ensure quality and streamline production operations. In this blog, we will focus on the contribution of Visi-Trak in the advancement of die casting technologies and the provision of effective solutions precise and uniform results. Professionals working in the industry as well as enthusiasts will appreciate the information regarding the impact of Visi-Trak technologies on the future of precision casting. Learn how these innovations are addressing obstacles, increasing productivity, and changing the benchmarks in die casting.

What A Die Casting Process Involves?

How Does A Die Casting Machine Operate?

A machine operates a die casting device by injecting molten into the desired form at high pressure. The process begins with the preparation of the die, which consists of two parts that are meant to form the desired shape. After the mold is set, the metal is injected into the cavity under the use of either a hot-chamber or cold-chamber machine depending on the type of metal utilized. During cooling, high pressure is retained to guarantee the competency of voids in the finished product. The cast part is then ejected and is prepared for any required augmentations. This method guarantees accuracy and speed in the production of complex components.

Injection in Die Casting: What You Need to Know

The die casting procedure’s injection phase is quite pivotal finally to the end product and how well the nozzle works. High pressure injection allows molten metal to fill the die cavity completely and quickly, thus reducing the possibility of air pockets or incomplete castings which improves die life. The use of hot chamber and cold chamber machines are determined by the type of metal. Low melting point alloys like zinc are used on hot-chamber machines while higher melting point metals such as aluminum are poured into cold-chamber machines. To maximize results and minimize defects, control of temperature, pressure, and injection speed must be precise. Achieving desired results while ensuring the structural integrity of the components is also imperative.

The Roles of Mould in Die Casting

The duties of the mould within die casting are complex and contribute towards facet complexity as well as ensuring precision accuracy. The mould is usually constructed from hardened tool steel and comprises of two parts, a stationary cover die and a movable ejector die. It is also designed in such a way which dictates how the surface finish, geometry, and tolerances will be in the cast. In addition cooling systems are built directly into the mould to control die temperature and lower cycle times. These measures ensure that efficiency is optimized in the die casting process. The mould needs to be maintained properly so that it doesn’t over wear, and so that the product quality is consistent throughout.

What Are The Benefits of Die Cast Parts?

Ensuring High Repetition

The precision involved in the die casting procedure is what gives die cast components a greater level of repeatability. The molds are meant to be reused and are configured in such a way that they can create bulk parts with even measurement and even surface finishes. This repeatability guarantees that every part produced is of high quality, which is important in the automotive, aerospace, and electronics industries. Besides this, die casting is automated, which further increases consistency by reducing the influence of people. All these factors enable a manufacturer to create a great number of similar parts within set limits of variation.

Die Cast For Precise Parts

Due to its capability to produce detailed and elaborate shapes with high precision, die casting is widely used in the production of precise components. The automotive, aerospace, and medical devices industries in particular are large beneficiaries of this industry. Parts like engine parts, brackets, and housings are frequently manufactured using die casting because it provides tight dimensional tolerances with high surface quality. These processes do not need secondary machining steps which makes the manufacturing faster and cheaper which helps maintain product quality and reliability.

Let me break down the differences between Casting and other methods.

In striving for innovation, casting has certain perks when compared to other manufacturing methods. It is more cost-efficient and is able to accommodate sophisticated designs. Unlike machining or forging, casting is a singular process that allows for the creation of intricate geometries without extensive subsequent procedures. Moreover, I believe it is very useful in the production of large quantities of parts with a high level of consistency and low tolerances using die casting. On the other hand, processes like forging and additive manufacturing are better suited for applications that require incredibly sturdy materials with a lower volume of production. In the end, I use whatever method meets the needs of the application, whether that be material properties, part complexity, production scale, or the cost per unit.

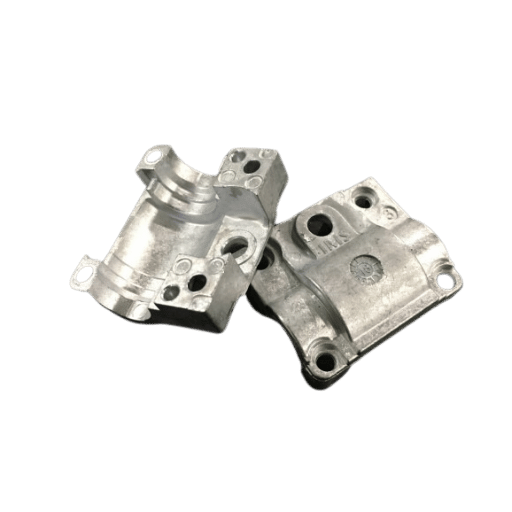

How to Solve the Most Common Problems with Die Castings?

Understanding Casting Porosity

Porosity in castings is defined as pores or voids in the metal structure which greatly affects the properties and integrity of the component. After all, the defect is often a result of fumes that got trapped, shrinking that takes place during solidification, or even poor flow of the material. It helps to further divide the classifications to grasp porosity better: gas porosity, shrinkage porosity, and micro-porosity, which all have distinct characteristics. One example is gas porosity, which usually is from air entrapment or gas formation during cooling of molten metal. The shrinkage type of porosity is caused by the phase change from liquid to solid in which the remaining material is not enough to take up the remaining volume.

With the help of material science and computational modeling, we can now foresee and eliminate the chances of porosity. Having vacuum-assisted die casting, optimized gating systems, and the addition of degassing agents as well aid in the elimination of gas cover. Using simulation software to assess solidification dynamics makes it possible for engineers to determine areas that are likely to suffer from shrinkage and then solve potential flaws in orthogonal design. These steps make it possible to produce and cast things of higher quality, particularly withstanding performance-centered and long-lasting industrial applications.

Eliminating Flawless Surfaces

Problems caused by surface flaws in castings can be avoided by looking into how materials are worked on, how the process is organized, and paying attention to the design. Keeping molds clean and sourcing raw materials properly increases the chances of avoiding contamination and imperfections. Changing the temperature for casting must be done in a way that prevents issues such as cracks or uneven surfaces resulting from thermal conditions. In addition, changing the way coating molds are applied can enhance the surface finish by reducing the interactions between the molten metal and the mold surface. Lastly, maintenance and inspection of the equipment actually makes it possible to guarantee target process conditions, and this prevents the formation of surface irregularities. Implementing these techniques together unifies the aesthetic with the structural utility of the cast components.

Rectifying Cycle Time Problems

Delivering the required cycle times for production processes entails solving certain bottleneck problems regardless of their complexity. Start with identifying which steps of the cycle result in delays, like in material handling, processing or cooling stages and work on them. Improving workflows, incorporating automation, or improving tools and machines used, and other strategies can also work. Also, monitoring active parameters like temperature, pressure, and other non-controllable factors allows for lesser downtime. Operators need to be trained periodically so they can take the necessary steps to follow standard operating procedures. These strategies can impact cycle times positively without negative impacts on the quality of the finished product.

Which Materials are Ideal for Die Casting?

Building upon Aluminium Alloys

The metals mentioned above are best for die casting because of their numerous applications and proficiency. Apart from being lightweight, these alloys are high resistant to corrosion and can throttle a good amount of heat. Accordingly, these alloys are extensively sourced worldwide. ADC12, A380, and A360 are some of the aluminum allots that are popular in die casting and are used in ADC12. These alloys are selected due to their set demand of performance efficiency for strength, durability, or ease in machining. Furthermore, aluminum can be recycled, which serves as a big incentive towards it for manufacturing processes that are environmentally friendly.

Extending to Magnesium and Zinc

These two metals are fundamental in die casting because of their distinct qualities and for practical reasons. Representatives of magnesium alloys are praised around the world for a very important reason, which is their light weight without sacrificing component strength. They possess very good dimensional stability along with excellent damping capacity making them very useful in parts for automobiles and electronics. AZ91D and AM60 are common magnesium alloys and they’re chosen according to their particular mechanical and thermal properties.

Zinc alloys are well known for their remarkable strength, durability, and ability to create thin-walled complex shapes. They exhibit superior dimensional accuracy and exceptional castability which make the mass production of sophisticated parts effortless. Furthermore, zinc alloy’s low melting point enables economical energy processing which reduces the cost of production. Well known zinc alloys like Zamak 3 and Zamak 5 are ubiquitous from the car industry to the house appliances industry due to their efficiency and affordability. At the same time, zinc and magnesium are important materials for the development of die casting technology and modern manufacturing processes.

Understanding How CNC Machining and Die Casting Work Together

The Collaboration of CNC Machining and Die Casting

The combination of CNC machining and die casting offers a greater degree of precision and functionality by taking full advantage of the two processes. Even though die casting is useful for making complex shapes in bulk with very little waste, CNC machining is used afterward to place finer details and get tighter tolerances than what is possible with die casting. This approach guarantees that the exact shapes and features required at the highest quality are achieved. Corporations gain from this method as it lessens the material deficit, enhances the surface finishes, and allows for variation of designs making it an effective method with contemporary manufacturing problems.

Benefits Of Post Die Casting CNC Machining

There are crucial advantages that govern using CNC machining after die casting that concern the quality and performance of components manufactured. First, CNC machining is more dimensionally accurate which is crucial to the aerospace, automotive, and medical device manufacturing industries as stringent standards must be met. It also allows for the incorporation of more advanced geometry, even features like drilled threaded holes and fine surface textures, which are difficult to achieve with traditional die casting.

Furthermore, the amalgamation of die-sink CNC machining and die casting allows for efficiency in cost. Manufacturers can minimize material waste along with production times by reducing the need for multiple remanufacturing processes. Therefore, this integration leads to a smoother, adaptable process that meets the high standards and requirements across multiple domains, especially in die casting.

Frequently Asked Questions (FAQs)

Q: What is die casting and how is it different from other casting processes?

A: Die casting is a type of metal casting where molten metal is injected at high pressure into a die cavity. Die casting is faster than sand casting because it creates more intricate and precise metal pieces in a shorter time frame. This is why die casting is preferred when a high volume of production is needed.

Q: How does Visi-Trak’s tool enhance precision in die casting?

A: Visi-Trak’s tool enhances precision in die casting tooling by its new monitoring and control systems that improve the precision and quality of every die casting shot. It allows die casters to improve the processes of casting due to its analytics and forecasting capabilities which enables better waste performance.

Q: What is the difference between hot chamber and cold chamber die casting?

A: In hot chamber die casting, the metal is low melting point metals, the metal is kept in a chamber connected to the die casting machine. High temperature metals can be melted via a separate furnace and then transferred to a shot sleeve. This process is called cold chamber die casting.

Q: Would you explain what events take place within the context of a die casting shot?

A: A die casting shot begins with the insertion of molten metal into the die cavity. The purpose of filling the cavity with high pressure is to make sure that all parts of the die cavity have been filled. This then results into metallic parts solidifying into shape and assures quality.

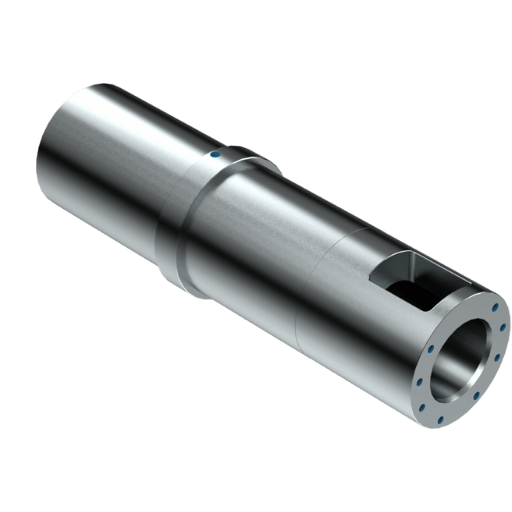

Q: What part does the shot sleeve represent in a cold chamber die casting cycle?

A: In a cold chamber shot cylinder, a shot sleeve is utilized during die casting to keep the liquid metal before it is injected into the mold. It is an important part since it helps to fill the cavity without too much movement that may cause error in the casting process.

Q: Which are the principal metals used in die casting alloys?

A: The principal metal in die casting alloys is composed of aluminum die cast and magnesium die cast, zinc die cast, and copper die cast. The reason these metal alloys are chosen is due to their wonderful features such as their strength, light weight, and high temperature tolerance.

Q: Which procedures does a die caster use to achieve removal of casting without inflicting damage?

A: A die caster applies precision engineered and finely made ejector pins. With a thoughtful use of the proper lubrication system, cooling system, and die half, the casting can be achieved without interfering with the part.

Q: Why is die casting primarily used for high-volume production?

A: Because die casting enables for the quick manufacturing of intricate and high-quality metal components with little after processing needed, it is primarily used for high-volume production as it is economical for mass production.

Q: What should one do if interested in learning more about die casting processes?

A: Those interested in understanding the processes of die casting, whether it is how die casting is a form of metal casting or the differences between hot and cold chamber processes should reach out to us or any other reliable foundry that will be able to provide more information and even practical demonstrations.

Reference Sources

1. Investigation of shot sleeve distortion and oil cooling in high pressure die casting
   • Authors: R. Crowley, J. Domblesky, Anthony Bowman
   • Publication Date: February 1, 2023
   • Journal: Journal of Manufacturing Processes
   • Key Findings: This research examines the interaction between shot sleeve distortion and the cooling processes in high-pressure die casting (HPDC). The sleeve distortion’s effects on the quality of cast products and the use of oil cooling to control those effects are evaluated.
   • Methodology: The authors analyzed in detail the thermal and mechanical performances of the shot sleeves under a variety of operating conditions, specifically concentrating on the relationship between the cooling methods and the integrity of the sleeve.
2. Effects of Fast Shot Speed and Wall Thickness on the Microstructures and Mechanical Properties of the High Pressure Die-casting 6061-SiC Composites
   • Authors: Q. Hu, W. Guo, P. Xiao, H. Zong
   • Publication Date: May 11, 2021
   • Journal: Metallurgical and Materials Transactions B
   • Key Findings: This study investigates the effect of high-speed shot forging and wall thickness variations of 6061–SiC composites produced via die casting on the microstructure and mechanical properties. It has been found that the mechanical properties of the castings are improved through the use of certain shot speeds.
   • Methodology: The authors utilized experimental methods to study the microstructure and mechanical properties of the composites in relation to the casting parameters.
3. Direct Observation and Simulation of Molten Metal Moving Behavior During Ladle Pouring and Plunger Slow Moving Phase in Die Casting Process
   • Authors: Koki Takada, Takumi Sugihara, Y. Maeda, A. Hasuno, Y. Mochida
   • Publication Date: July 26, 2022
   • Journal: International Journal of Metalcasting
   • Key Findings: This research is centered on an examination of the molten metal flow characteristics and the filling dynamics at the castings, especially ladle pouring as well as the plunger slow moving phases. The results of the study underscore the need to comprehend flow patterns so as to reduce defects in the end products.
   • Methodology: The authors created a model based on CFD simulations and onboard experiments regarding the molten metal flow with its quality casting parametric analysis.
4. Cooling-Assisted Ultrasonic Grain Refining of Aluminum E380 Die Casting Alloy
   • Authors: C. Vian, C. Kibbey, Y. Chen, C. Kuntz, Q. Han
   • Publication Date: July 2, 2022
   • Journal: International Journal of Metalcasting
   • Key Findings: This study focuses on the impact of cooling-assisted ultrasonic treatment on aluminum E380 die casting alloy’s grain structure. The findings indicate that the mechanical properties of the alloy can be improved through cooling-assisted ultrasonic treatment of grain structure refinement.
   • Methodology: The authors operated experiments which considered the use of ultrasonic treatment application on the cooling phase of the die casting technology, and measuring subsequent microstructural and mechanical property changes.
5. Digital Twin and Data-Driven Quality Prediction of Complex Die-Casting Manufacturing
   • Authors: Dong Liu, Yijie Zhang, E. Lordan, A. Jacot, Z. Fan
   • Publication Date: November 1, 2022
   • Journal: IEEE Transactions on Industrial Informatics
   • Key Findings: This paper introduces a framework of digital twin aimed at improving the quality estimation process for intricate die-casting manufacturing and analyzes how defect recognition and production quality can be improved via real-time integration of data.
   • Methodology: The authors created a model of a digital twin that incorporates data monitoring as well as data analysis to anticipate quality results in die-casting operations, which was verified with case studies.
