Unlocking the Art of Precision Turning: A Comprehensive Guide

One of the key processes in modern manufacturing is precision turning due to its capability to fabricate very complex parts at high accuracy. It is a combination of engineering and art since it requires sophisticated equipment and an in-depth knowledge of materials, tools, and processes. Regardless if you are a highly skilled expert looking to enhance your operational processes or a rational beginner wishing to discover its significance, this guide is formulated to help you understand the fundamentals and advanced concepts of precision turning. This article aims to equip the readers with everything they need to understand and appreciate the sophisticated world of precision turning. Be ready to embark on an in-depth journey into the world of precision machining, one of the most captivating subjects in mechanical engineering.

What is Precision Turning and How Does it Work?

It’s a machining method known as precision turning crafted for transforming metals, plastics, and other materials into a designed symmetrical shape involving a symmetrical CNC turning device removal. It relies on a lathe that spins the workpiece and shaves it with a cutting tool till the requisite outline is achieved. This is done with utmost accuracy, enabling tight tolerances and smooth surfaces which is a requirement in aerospace, medical manufacturing, automotive industry, and other sectors. Speed, feed rate, and depth of cut are controlled to achieve precision turning to ensure consistent quality and accuracy of the dimension in the final product.

Understanding the Machining Process

This process of machining entails the refinement of any component to acquire a requisite geometry, volume, and surface quality by cutting off any excess or unnecessary material, thus achieving the desired result. Carving, cutting, and drilling can also be done and can be easily accomplished with the correct and necessary equipment. As quality surface finishing and precise measurements are essential for meeting the required standards in industries, this process is also vital in enhancing and increasing the capabilities of components. For the boost and advancement of technologies in aeronautics, medicine, automotive, and many other branches, this process is accepted globally as it is efficient and precise.

The Role of CNC Machines in Precision Turning

CNC machines have changed the world of precision turning by automating the entire manufacturing process with never-before-achieved accuracy. These machines function with software that is pre-programmed to dictate the movement of tools, complex and precise components can be manufactured in control. CNC turning is crucial to aerospace engineering and medical device manufacturing, which are industries requiring precise turning with no margin for error.

Recent industry data suggests that CNC machines can achieve tolerances of approximately 0.0002 inches which makes them favorable for tasks that have incredibly prescriptive specifications. These machines also can work with numerous types of materials, such as metal, plastic, and composite materials, which makes these machines even more useful. Modern CNC machines also have multi-axe movement which enables complex geometry to be made in a single setup. This advancement cuts down on production time and costs dramatically.

Additional progress, like the inclusion of IoT technology and artificial intelligence-powered surveillance systems, has improved CNC machining efficiency through active monitoring and forecasting maintenance. These changes have lowered downtime and improved productivity, with certain facilities reporting gains of 20 percent in operational efficiency. Such advances demonstrate the importance of CNC machines in turning with great accuracy and give manufacturers the capability to mass produce highly sophisticated parts while satisfying the demanding needs of today’s industry.

Why Tolerance is Critical in Precision Turning

Tolerance is undeniably important in ultra-precision turning as it affects the quality, functionality, and interchangeability of manufactured parts. Sticking to specified tolerance levels assures that components mesh together as expected, lessening the chances of mechanical breakdown or performance malfunction. It also reduces scrap and rework in processes, which increases productivity. In sectors like aerospace, automotive, and medical devices, where safety and reliability are key, tight tolerances help manufacturers comply with Regulations and operational standards. These industries can regularly produce parts with the expected measurable accuracy, thereby assuring optimal performance along with customer satisfaction.

How to Choose the Right CNC Machine for Precision Turning

Factors to Consider When Selecting a Machine

Material Suitability

Verify that the machine can work with the materials you intend to utilize. Machines are not universal, each is designed for metals, plastics, or composites.

Precision and Tolerances

Confirm the machine’s capability of achieving tolerances that are acceptable for your application. More precise cuts are needed for industries that emphasize detail.

Production capacity in CNC Swiss machining and turning equipment is vital in servicing the customers.

Consider if the machine can achieve the desired production volumes within the maximum efficiency. Think about the spindle speed, feed rate, and cycle times.

Software Compatibility

Make sure the CAD/CAM system’s interfaces are appropriate to enhance proficient design and programming processes.

Service Needs

Determine the level of technical assistance on offer, maintenance considerations, and how these two factors will affect system downtime over time.

After looking at these aspects, it is possible to determine a CNC machine that meets operational demands and output consistency.

Benefits of Multi-Axis CNC Turning

The CNC turning process of today is improved with the use of multi-axe controls which greatly increases precision and productivity. This is accomplished by the simultaneous control of multiple cutting axes allowing complex machining operations to be performed in a single setup. Improved accuracy is achieved by reduced repositioning of parts which saves time and labor.

Based on market research, multi-axis CNC turning improves production efficiency by 30% because both milling and turning operations can be performed simultaneously. Such enhanced productivity is possible because of the precision tolerances that are provided at ±0.0001 inches. This is beneficial for the intricate components used in aerospace, automotive, and medical technology industries.

With limited use of material in multi-axis CNC systems, there is a significant waste reduction. Such systems can diminish waste by 20% when compared to traditional systems. Additionally, these machines can easily be paired with CAD/CAM software allowing for quicker programming adjustments along with greater flexibility in the design. With reduced need for tooling, operational costs are also reduced with some companies seeing as much as 15% reduction in expenses.

At last, multi-axis CNC lathes are built with automation features such as automatic tool changers and live tool machining. They enable unattended operation and consequently increase production hours without loss of quality. Such improvements have been shown to revolutionize the experience of manufacturers looking to increase output while precision manufacturing and lowering the cost.

Exploring CNC Swiss Machines for Precision Work

CNC Swiss machines are specialized tools used for the manufacturing of small and delicate parts with great detail. They feature sliding headstock technology where the material is passed through a guide bushing during machining to ensure that rigid materials, even longer workpieces, are precisely machined. They are useful for medical, aerospace, and electronic fields where components require tolerances of a few microns.

The capabilities of CNC Swiss machines continue to improve with the addition of multi-axes features that enable the concurrent machining of several components at once, thus reducing cycle times. Reports indicate that Swiss-type machines exceed the efficiency of conventional lathes by 30% or more when it comes to machining complex geometries. Moreover, bar feeders and automatic part catchers enable unmanned operation, which minimizes downtime and labor expenses.

CNC Swiss machines are known to be used in the manufacturing of medical implants like bone screws due to their exact dimensions and surface quality. Bone screws have a tolerance of ±0.0002 inches, which is quite difficult to maintain, but Swiss machines excel in such precision. In addition to this, many other models have adopted Industry 4.0 and can now be monitored and controlled over the Internet. These features are what make CNC Swiss machines so popular in modern manufacturing.

Exploring the Applications of Precision CNC Turning

Precision Turning in the Aerospace Industry

CNC Precision turning has a precise importance in the aerospace industry, where the detailing of tolerances and the quality of the material used is very high to guarantee safety and functionality. This includes aerospace components like turbine blades, landing gear parts, and structural fasteners, all of which demand > minimal craftsmanship and adherence to controllers with unit-level precision of 10^-6. The industry is made better by CNC Swiss machines CNC Precision turning focus on reliability, replicability, and the functionality of the piece working with materials like titanium, aluminum alloys superalloys that are common in the field and have high strengths.

Additionally, the further development of Swiss precision-turned parts has been stimulated by the evolution of CNC technologies which allows the creation of more complex geometries indispensable with contemporary aerospace designs. Estimates indicate that the aerospace sector CNC machining market was estimated at over USD 3.0 Billion in 2022 due to the increased supply of aircraft as per the industry requirements. Moreover, the incorporation of CNC technology with real-time systems that monitor quality and control greatly improves the efficiency and traceability of the components manufactured. As an example, consider the case of a jet engine manufacturer, which stems from the precision parts turning balances rotating components like shaft and disc, which is critical for effective operations under high temperature and stress.

In summary, the aerospace industry strongly relies on precision CNC turning for the preservation of longevity, lowering of weight, and fuel economy, depicting its essential importance in the development of advanced aviation technologies.

The Use of Precision Parts in Medical Devices

Accurate components are crucial for the effective performance of medical devices. They guarantee the dependability and consistency necessary for life – saving equipment. The level of precision achieved through advanced manufacturing processes enhances the quality and also the compliance with regulatory requirements. I count on the precision-engineered turned parts to improve patient outcomes and make medical technologies safer and more effective.

Production Runs and Prototype Development

The initial steps in medical device development include production runs and prototype creation. As a crucial aspect of the development phase, manufacturers make small quantities of the devices for functional and performance testing. This step consists of meticulous testing and design changes to confirm that the device functions appropriately under real-world conditions before mass manufacturing.

The production run phase follows the successful completion of the set technical requirements and regulations by the prototype. The implementation of modern manufacturing technologies such as precision CNC machining, additive manufacturing (3D printing), and injection molding have greatly improved these processes. For example, CNC machining can achieve an accuracy of ±0.001 inches which is essential for complex device parts. Moreover, 3D printing improves prototyping speed by shortening lead times for complex geometries from weeks to days.

After analyzing the data, it has been observed that incorporating advanced technologies into production runs can increase efficiency by 30% to 50%, while material waste can be minimized by up to 20%. This efficiency is especially important within the medical device sector, where there is little profit and greater innovation is needed due to high safety standards. In addition, automated tools for quality inspection, such as coordinate measuring machines (CMM) and optical scanners, ensure consistency for large order volumes, which results in less than 1% of defects.

All in all, the merging of prototype and production run cycles enables manufacturers to develop high-quality, competitively priced medical devices while complying with the regulatory requirements of the FDA’s Quality System Regulation (QSR) and ISO 13485. This methodology significantly reduces time-to-market and improves product quality, which is essential for better healthcare outcomes.

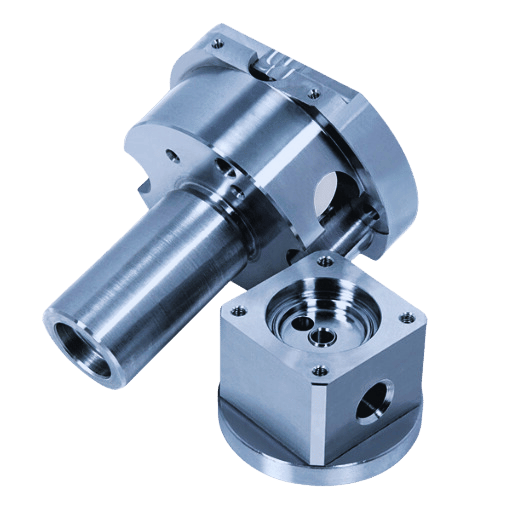

What Are the Benefits of Using CNC Turning Services?

Achieving High Precision and Accuracy

CNC turning services utilize state-of-the-art computer numerical control (CNC) machinery and software to manufacture and refine components to stringent tolerances and accuracy. Parts produced with CNC turning services have tolerances of ±0.0001 inches, meaning that parts will conform to set design parameters, minimizing variation. This degree of accuracy is crucial for industries like aerospace, medical, and automotive, where small differences could result in major problems.

Modern CNC turning machines have integrated high-speed spindles coupled with automatic tool changers, allowing for full automation of complex shapes and features with little human involvement. Furthermore, automated quality assurance systems check measurements for offsets every second, allowing immediate correction of any changes. This enhancement not only improves the quality of individual components but also the repetitiveness of the parts over large quantities of production batches.

As stated in industry reports, CNC turning can outperform conventional machining techniques in terms of speed, achieving up to a 50% reduction in time taken while still being as accurate. It also allows more options to be incorporated like stainless steel, aluminum, titanium, and even advanced plastics further aiding its usefulness. All this efficiency and rigidity from CNC turning services determines high-quality components expertly made to meet industry requirements making them extremely versatile.

Cost-Effectiveness and Efficiency in Machining

Today, modern machining processes, particularly CNC machining, represent one of the most cost-efficient and effective methods of manufacturing. Reduced human intervention with dramatically expanding automation drastically decreases labor expenditures. Research suggests that CNC machining is capable of reducing production costs by more than 30% relative to manual methods due to fewer mistakes, reduced cycle times, and efficient use of materials. In addition, precise programming of machines aids in contributing to lower raw material expenses because there is virtually no material wastage.

CNC machiner’s scalability is yet another vital contributor towards efficiency. The versatility and flexibility of these systems make them proficient in both low-volume and high-volume production components. Furthermore, improvements in modern CNC equipment ease power consumption while executing machinery functions with CNC’s supreme energy efficiency standing out. For example, machining centers with integrated variable speed control and smart power-saving technologies in CNC Machines have demonstrated an average reduction of 10-20% in energy consumption.

Moreover, CNC machining allows for quick and precise prototyping, which accelerates product development timelines. Companies can manufacture and evaluate turned components more efficiently, resulting in faster market penetration and maintenance of competitive advantage. The CNC machining’s accuracy coupled with efficiency and flexibility makes it a cornerstone in contemporary manufacturing, providing both economic and operational benefits across sectors.

Quality Parts with Consistent Results

CNC machining provides accuracy and precision, ensuring parts produced are of high quality. Machines produce parts to precise specifications because they follow programmed commands with scarce human intervention. CNC machining guarantees lower variability and higher consistency across many different industries and scales, making it reliable for critically manufactured components. With CNC operations, accuracy and precision integrate uniformity in the finished product, which is needed to maintain as well as pass quality checks.

How to Get Started with Precision CNC Turning Services

Finding the Right Machine Shop for Your Needs

Make sure to consider the most important aspects of a machine shop`s reputation when looking to hire precision CNC turning services to guarantee the best caliber of service. Make sure to check their previous works to validate their expertise. Check if they have state-of-the-art CNC machines and if they’re compliant with quality control procedures. The presence of certificates like the ISO 9001 is an indicator of quality management and adherence to set standards. Make sure that the shop is capable of working with the applicable materials and tolerances that your project needs. It is also wise to consider their lead times alongside customer support responsiveness and capacity for increasing output. Picking a shop that is well-known in the industry and has tangible evidence of having done great work will make your project a success.

How to Request a Quote for Your Project

To request a quote for a precise CNC turning project, one must first detail the machine setup for more accurate pricing and delivery estimates. Clearly outline the project specifics which include the type of material, dimension, tolerances, finishes, quantity, and even CAD drawings or 3D models, if available. Moreover, describe any secondary operations, like heat treatment, surface coating, or assembly, that need to be completed.

Now mark your preferred lead time and delivery schedule as it will help the machine shop assess their capacity to meet your deadlines. Also, when you reach out to the shop, confirm the means of communication, be it email or online portals, to help them get back to you promptly. Several advanced machine shops nowadays offer the convenience of submitting RFQs (requests for quotes) online which is beneficial to a lot of clients.

Recent information concerning the industry shows that shops that provide quick turnaround times for quotes, normally within 24-48 hours, boost customer satisfaction and project efficiency. Make sure the shop includes a cost breakdown and estimated completion date in the response. By providing comprehensive and precise quotations, customers increase the chances of collaboration.

When to Contact Us for Custom Solutions

It is crucial to understand when you should reach out to us for custom machining solutions to ensure your project is on schedule in terms of timing and accuracy. If your project includes complex geometries, ultra-tight tolerances, or specialty materials, it is best to get in touch at the first stages of project planning to uncover possible design or manufacturing limitations early. More sophisticated projects benefit from the early involvement of the machining center specialists to shorten the prototyping cycles.

Recent studies show that 58% of production delays stem from vague requirements or design alterations done too late in the process. Allowing our team to work with you early on allows you to avoid these pitfalls through communication and design-for-manufacture (DFM) assistance. Furthermore, if your schedule requires fast-track production, for example, prototype delivery within one to two weeks, contacting us early makes sure that resources are set aside to give priority to your project.

Custom solutions are extremely useful for some industries such as aerospace, medical devices, or automotive which have stringent compliance and material certification requirements like AS9100 or ISO 13485. Our advanced CNC capabilities coupled with material expertise enable us to respond to the changing demands, with 76% of companies reporting an increased need for lightweight, high-strength components, as more and more industries are seeking these components.

Get in touch with us for any personalized guidance, singular prototype designs, or even long-term mass-production business collaborations. Early collaboration makes sure we can develop timely and accurate solutions that are innovative and meet your set project objectives.

Frequently Asked Questions (FAQs)

Q: What is precision machining in turning?

A: In my opinion, precision machining compares to removing excess materials from a workpiece to produce complex parts with tight tolerances using tools such as a lathe or mill. In turning, the workpiece is usually held stationary on a spindle and rotated while it is being worn by a single-point cutting tool that describes the desired shape.

Q: What is the role of lathe in precision turning?

A: A lathe allows for precision turning because it enables the workpiece to spin while a cutting tool moves along the outer surface to cut it. This is important for producing cylindrical sections with high degrees of precision and accuracy, as they are required in the field of precision manufacturing.

Q: What is the advantage of having a CNC lathe in precision machining?

A: A CNC lathe improves the quality of precision machining by automating the movement of the workpiece and associated tools to be controlled numerically. This assures constant precision cuts, lowers the chances of human mistakes, and improves the ease of producing intricate parts, which makes it important in precision manufacturing.

Q: What task is the cutting tool responsible for in the turning process?

A: The cutting tool rotates as the workpiece turns and removes material. As the workpiece turns, the tool will engage it and will cut it to the required shape and size. The material, shape, and sharpness of the tool will always determine the machinability of the part and its accuracy.

Q: What is included in the process of CNC Swiss turning?

A: CNC Swiss turning is performed with a CNC Swiss machine. These machines are specialized for intricate parts which have relatively small dimensions. A feature of these machines is a guide bushing which holds the bar stock near the tool. This allows efficient and precise machining of small, complex parts.

Q: What distinguishes a mill from a lathe in the machining process?

A: In terms of fundamental features and operations, a mill is different from a lathe in that the movement of the workpiece and the tool in a lathe operates oppositely to how it moves in a mill. In a lathe, the workpiece has to rotate while a cutting tool does not. In a mill, a tool has to remain fixed while a workpiece moves. Each is suited for different machining tasks and part geometries.

Q: What are the advantages of precision CNC Swiss machining in some cases?

A: Swiss machining is more favorable in cases wherein specific features are required in a part to be manufactured with high accuracy and narrow tolerance. It is equally suitable for producing parts for medical appliances, aerospace components, and electronic devices as those industries are in dire need of accurate machined components and sophisticated designs. Thus, precise components can be achieved in great volumes at lower cost.

Q: What role does guide bushing play in CNC Swiss machines?

A: The guide bushing functions to hold the bar stock next to the cutting zone in CNC Swiss machines to reduce vibration and deflection during the process. This is beneficial in machining thin and small parts due to precision and accuracy, which is essential while combining CNC Swiss turning.

Q: What are the distinguishing features of turning centers and conventional lathes?

A: Turning centers are more sophisticated than traditional lathes as they have numerous features, including multi-axis motion milling and even drilling. The incorporation of these additional procedures results in more elaborate machining work being done in one setup, thus increasing accuracy and efficiency in producing metal parts.

Q: How do I request a quote for precision machining services?

A: If you want to receive a quote for precision machining services, do not hesitate to get in touch with us today. Share with us the scope of work of the project, including the type of material, part size, and relevant machining features, and we will be sure to develop a custom one for you.
