Unlocking the World of CNC: The Ultimate Guide to CNC Cutting Tools

Whether it is for precision manufacturing or detailed custom artifacts, Computer Numerical Control (CNC) technology has transformed production across industries. Every successful CNC CNC machine company has a key ingredient and that is cutting tools. They not only form materials with great precision, but they also affect how efficient, accurate, and productive the machining operation is. The following guide will take you deep into the world of CNC cutting tools where you will learn about their types, uses, and importance in today’s manufacturing. Professionals in any industry keen to improve their performance or hobbyists wanting to learn the basics of CNC machining will benefit from this article. Brace yourselves as we dive into the primary factors that render CNC cutting tools vital components in the modern-day manufacturing sphere.

What are CNC Cutting Tools and How Do They Work?

CNC cutting tools are defined as components, such as drills and lathes, used in CNC machines for shaping workpieces through the removal of excess material via a rotating spindle. These machines execute the provided commands via software that enables precise control over the movement speed and depth of the cut. Due to advancements in precision, speed, and efficiency, CNC tools have witnessed multi-industry applications spanning automotive, aerospace, and many more.

Understanding CNC Machine Operations

The operation of the CNC machines relies on the use of pre-set computer programs that control the sequential motions of tools and machinery. The machines undertake a particular pre-determined sequence of operations (known as a G-code) like cutting, boring, or shaping with the utmost accuracy. It is the responsibility of the operator to load the required tools and workpieces and to check the accuracy of every single part of the sequence. Because of the automated features of CNC machines, human mistakes, productivity, and the results of the machines are much more uniform in different manufacturing processes.

The Role of Cutting Tools in CNC Machining

Cutting tools constitute an important facet of CNC machining as these tools have a direct impact on the accuracy, productivity, and quality of the end product. These tools assist in carving out material from a workpiece by performing operations such as cutting, drilling, turning, and milling. The efficiency of a cutting tool is closely related to the composition of the material from which it is made, its geometry, and even its coating.

Contemporary cutting tools are indeed designed from materials such as polycrystalline diamonds, ceramics, carbide, and high-speed steel (HSS) so that they can withstand extreme cutting speeds and temperatures. Carbide tools, for example, are commonly used because of their ability to withstand wear as well as tear. These are great for rigorous machining work. Furthermore, cutting tool coatings such as titanium nitride (TiN) and diamond-like carbon (DLC) are also protective coatings that enhance tool life by decreasing friction and improving resistance to heat along with avoiding material adhesion to the face of the tools.

The selection of a cutting tool: its type and its parameters say the tool’s speeds of rotation and translation, as well as the depth of cut, are conditional on the properties of the material that is being worked on. Research confirms that the machining efficiency increases significantly by up to 20% in some cases if these factors are optimized. Moreover, the creation of modern geometries of cutting tools “enable” improvement of surface quality and reduction of workpiece distortion, for instance, by variable angles of the helical flute or chip breaking.

Also, without regular inspections and active tool replacement, optimal performance is elusive as losing cutting sharpness results in imprecise operations and incurring downtime costs. Incorporating superior materials, innovative designs, and advanced technologies into cutting tools guarantees precision in CNC machining and consequently superior quality output.

Common CNC Router Bits and Their Uses

The choice of proper router bits for particular tasks is crucial to the success of CNC machining. Given are some frequently used CNC router bits with their particulars and specifications:

End Mill Bits

End mill bits are commonly used as cutters for cutting, profiling, slugging, and plunging operations. Made from solid carbide or high-speed steel (HSS), which offer toughness and accuracy, they are among the most durable and precise. End mills also come with differing flute quantities (for instance, 4-flute or 2-flute), where softer materials are better with fewer flutes due to better chip elimination, while more flutes are better at surface finishing hard materials.

Applications of End Mill Bits: Aluminum machining, machining of plastics, carving of wood, and cutting of metals.

Tip: Coated end mills like titanium aluminum nitride (TiAlN) which resist heat and wear improve efficiency.

Ball Nose Bits

These bits have rounded ends and are used in contouring, 3D carving, and surface finishing. These bits are also very good at conical cutting. These bits are a must for detailed projects that have cuts and intricate designs.

Applications of Ball Nose Bits: Best suited for sculptures molds, and softwood materials

Specifications: Depending on detailing requirements, various sizes from 1/16″ to 1/2″ are available. Ball nose bits perform exceptionally with softer materials at spindle speeds above 15,000 RPM.

V-Groove Bits

V-groove bits are characterized by sharp-edged angular bits ideal for cutting decorative edges, signs, and lettering. The angles can range anywhere from 30° to 120°, depending on the level of artistic as well as practical requirements.

Applications include: Sign making and engraving, routed decorative panels.

Efficiency: They are effective in achieving smooth edges and high-precision clean cuts on wood composites, plastics, and medium-density fiberboard (MDF) when applied with carbon steel tools.

Compression Bits

These styles of bits have the feature of both upcut and downcut flute cutting styles which enhances their cutting ability. They work by compressing the material toward the center of the cut, minimizing flush tear-out on both surfaces.

Application includes: Where a finish on both sides is paramount, like laminates, veneer, and plywood.

Note: Avoid high feed rates, and use them with dust collection systems due to higher chip production.

O-Flute Bits

These bits have a unique geometry of the flute designed to excel in working on softer sticky materials like plastics and acrylics which can easily melt.

Benefits: Achieve a smooth finish with lower friction and less heat build-up while in use.

Technical Data Summary

Bit Type	Major Materials	Common Applications	Key Benefits
End Mill	Carbide, HSS	Aluminum, plastics, wood	Versatile, precise cutting
Ball Nose	Solid Carbide	3D carving, molds, wood	Intricate detail, smooth curves
V-Groove	Hardened Steel, Carbide	Sign-making, engraving	Sharp designs, clean edges
Compression	Carbide	Laminates, plywood	Tear-out reduction
O-Flute	High-Polished Alloy Carbide	Acrylics, plastics	Polished finish, reduced melting

By selecting the appropriate router bit tailored to the material and desired outcome, CNC operators can significantly enhance work precision, reduce waste, and optimize manufacturing efficiency. Regular tool maintenance and understanding feed rates are equally crucial for achieving consistent results.

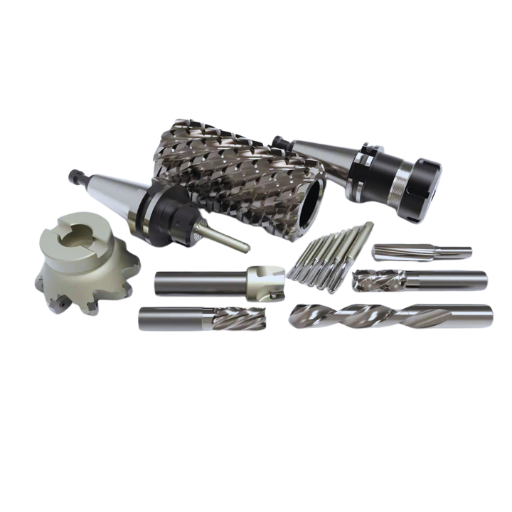

How to Choose the Right CNC Tool for Your Project?

Factors to Consider When Selecting a Cutting Tool

When choosing a cutting tool, always pay attention to the following aspects:

1. Material Composition: The material of the tool should be compatible with the material to be cut for optimal wear resistance and cutting efficiency. For example, carbides work best with steel while high-speed steel is preferable with softer metals.
2. Tool Geometry: The number of flutes, flute angle, and the cutting edge shape will affect both the quality of the cut and the longevity of the tool.
3. Speed and Feed Compatibility: Tools are selected based on the maximum allowable spindle speed and feed rate of your CNC machine without going into thermal overload or undue wear.
4. Coatings: Tools or cutting instruments with coatings like titanium nitride (TiN) or diamond-like carbon (DLC) perform better by increasing the heat resistance and decreasing the wear rate.
5. Project Requirements: Taking into account required tolerances, surface finish, and production volume determines the suitable tool selection.

These considerations contribute to the best outcomes, ensuring precision and quality while improving the tool’s durability for any CNC machining undertaking.

Importance of Materials Used in CNC Tools

The material composition of CNC tools is key to achieving effective machining, efficient tool usage, as well as quality results in CNC machine outputs. Modern CNC tools are manufactured with state-of-the-art materials that are purpose-designed for the extreme temperature, pressure, and wear associated with high-speed machining.

1. High-Speed Steel (HSS): HSS tools are rugged and reliable, and their toughness and durability make them ideal for applications that require resistance to shock or vibration. They are commonly used for general-purpose machining, but porous as other advanced machinable materials.
2. Carbide: Tungsten carbide is one of the most popular tools used for CNC machining because it possesses superior hardness, and it is heat resistant. Such tools are able to maintain the efficiency of the blade even at an extreme temperature which makes them ideal for high-speed operations. The latest research indicates that carbide tools have significantly longer lifespans, as much as 20 times longer than HSS tools under similar operating conditions.
3. Ceramics: Ceramic CNC tools are especially good at machining hard materials such as cast iron and alloys with high-temperature resistance. These tools have remarkable resistance to heat and wear and can cut around 10 times faster than carbide tools, but they are more brittle and therefore more limited to certain applications.
4. Cermet and PCD (Polycrystalline Diamond): Cermet and polycrystalline diamond tools are designed for precision machining applications that require intricate surface finishes and utmost accuracy. PCD tools, for instance, work efficiently on non-ferrous metals and composites as they resist wear, thus, providing a longer tool life and lower production cost.
5. Coatings (TiN, TiCN, AlTiN): Coatings like titanium nitride (TiN) and aluminum titanium nitride (AlTiN) greatly improve the characteristics of CNC tools. These coatings increase the tools’ effectiveness by augmenting their hardness, reducing their friction, and providing extra protection against heat.

Making adjustments to the selection of materials or coatings is essential to achieving better machining results. Recent reports from the sector indicate that using the right tools matched to the workpiece material and machining conditions may enhance productivity by as much as 30%, increase the time between tool replacements, and decrease the amount of downtime.

Types of CNC Tools and Their Applications

End Mills

• Application: Multifunctional tools ideal for roughing and finishing operations, end mills are used for cutting, profiling, slotting, and contouring.
• Details: With modern carbide coatings, end mills, which come in square, ball nose, or corner radius shapes, can be used on numerous materials from aluminum to hardened steel. Along with advanced coatings, modern carbide end mills have been shown to boost machining productivity by 25%.

Drill Bits

• Application: Used for making holes in materials, drill bits can also be used for drilling aerospace, automotive, and general manufacturing materials.
• Details: Precision-ground drill bits improve accuracy in hole placement by 20% while twist drills with titanium coatings increase effectiveness for high-speed drilling, prolonging tool life.

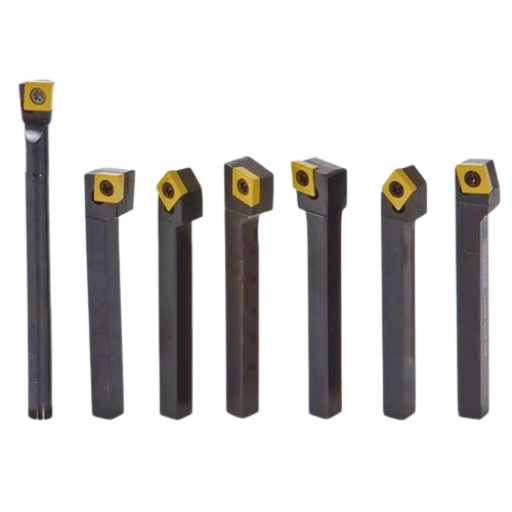

Turning Tools

• Application: Turning tools on a lathe machine work with the leading edge of a contact surface of a rotational workpiece carrying out internal and external turning, facing, and threading tasks.
• Details: The productivity of using turning tools on alloy steel is significantly improved by 50% due to reduced wear, high-speed operations, and increased effectiveness. Productivity is also increased with tungsten carbide in turning tools.

Boring Bars

• Application: Boring bars are used to widen or finish tight tolerance drilled holes.
• Details: According to industry statistics, modern boring devices possessing anti-vibration technology can help attain error rates that are lowered by 30% through precise machining in deep holes.

Threading Tools

• Application: These tools can cut precise threads either on the internal or external surfaces of components.
• Details: Production longevity is furthered with improved surface finishes as threading inserts with specialty coatings are optimized for high-speed threading.

Face Mills

• Application: To achieve smooth finishes, face mills can be applied for cutting flat surfaces, specifically aiding larger workpieces.
• Details: Greater efficiency in large-scale machining tasks is presented as face milling tools utilize indexable inserts, for these can supply higher material removal rates.

Reamers

• Application: To increase rough holes and improve finishes smoothing processes, reamers aid in achieving precise diameters.
• Details: Compared to standard alternatives, high-performance reamers with carbide cutting edges can enhance surface single-cut techniques effectiveness by 60%, demolishing surface roughness.

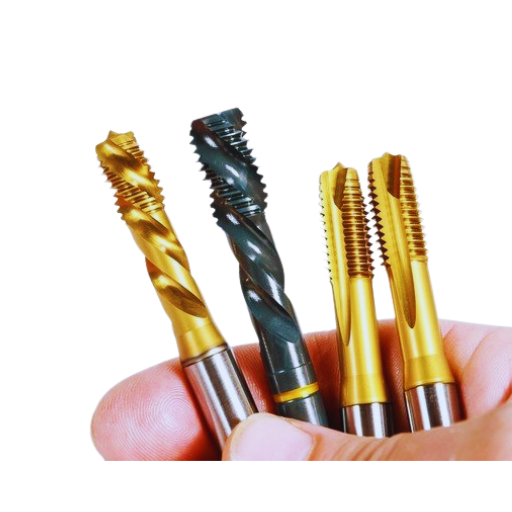

Taps and Dies

• Application: Cutters of carbon used for CNC or manual operations are known as taps and dies when utilized to internally thread holes or cut externally threaded ones.
• Details: The life of the tool can be increased by 30% when using HSS taps advanced geometries as they significantly improve accuracy in threading.

With these materials, manufacturers will be able to choose the right machines for their distinct machining processes and significantly increase efficiency and exactness, which these CNC tools and their uses catalog strive to achieve.

What Are the Different Types of CNC Machines?

Exploring Various CNC Milling Machines

CNC milling machines can perform complex machining tasks without losing precision, hence why they are considered versatile tools. These tools are commonly distinguished by their structural form, axis configuration, and purpose. The following are the prevalent forms of CNC milling machines along with their defining features:

Vertical Milling Machines

These machines are the most common forms of CNC milling machines. Vertical milling machines are essential for precision machining applications due to their spindle’s vertical orientation. However, they are also capable of working at fast speeds and can perform slot-cutting and contouring processes with high accuracy. They range from 2.5-axis to 5-axis machines and are therefore crucial to many sectors, including aerospace, automotive, and mold industries. Vertical machines are especially sought after as advanced machine tools.

Horizontal Milling Machines

Heavy-duty CNC machines that are equipped with parallel spindles to the horizontally oriented ground are known as horizontal milling machines. Their side-mounted horizontal spindles enable them to be highly effective when cutting heavy materials. Because they are proficient at large batch production, horizontal machines can utilize large tools such as slab cutters. In addition, horizontal machines can be fitted with other extensions like horizontal overarm structures for felted functionality.

5-Axis CNC Milling Machines

5-axis CNC milling machines work on five different planes at the same time. This offers unmatched flexibility by lessening the requirement for complex setups in multistep processes or for making parts with intricate designs. In the medical industry where implants and surgical instruments demand precision detail, manufacturers heavily depend on these machines. Research reveals that 5-axis machines are 25-30% more efficient than 3-axis machines due to their ability to reposition less frequently.

Universal Milling Machines

Universal milling machines are fitted with both horizontal and vertical spindles to allow the customization of all milling types offering greater versatility. These machines are required and valued with prototyping and low production runs where flexibility is crucial.

Router Milling Machines

CNC router-milled machines are quick and designed specifically for softer materials like plastic, wood, and aluminum. They dominate in the cabinetry, signage, and lightweight aerospace industries due to the spindle speeds frequently hitting 20,000 RPM.

Bed-type CNC Milling Machines

For bed-type milling machines, the spindle is stationary while the table is the movable component. Their ability to handle heavy-duty machining with large workpieces makes these machines incredibly rigid. They are also durable which allows them to excel in larger torque and more stable tasks.

Data Insights on CNC Milling Machines

The manufacturing productivity of modern CNC milling machines has increased by 40% due to the incorporation of advanced technologies, including high-speed machining and adaptive control. Moreover, for high-precision industries, accuracy tolerances in milling processes have reached ±0.002 inches. Furthermore, automated tool changers, which replace tools in three to five seconds, have reduced machine downtime considerably.

Integrating the appropriate type of CNC milling machine with a production line affects the productivity, quality of components, and operational cost-effectiveness. CNC solutions can be tailored to meet the precise requirements of each manufacturer to make the most out of his resources.

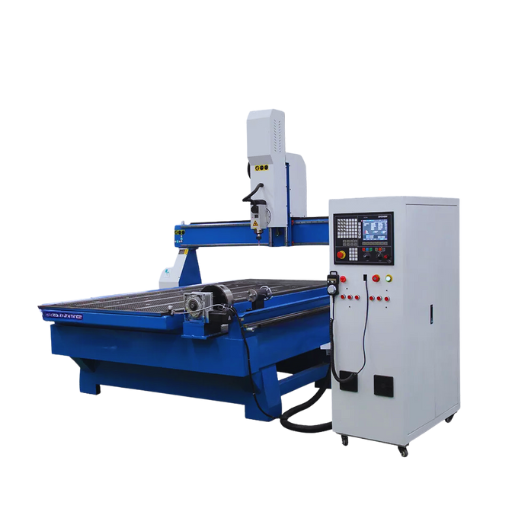

The Versatility of CNC Routers

In the manufacturing and fabrication sectors, CNC routers are some of the most multipurpose tools with the ability to work on wood, plastics, aluminum, composites, and more. These powerful machines possess exceptional capabilities in processes that require precision and fine subtleties, which is why they are very important in furniture construction, signage, and aerospace component manufacturing industries.

Modern CNC routers are built with sophisticated software integrations that improve usability and efficiency. For instance, some high-performance models now include automated material handling, nesting, and advanced bear bracketing which can increase yield by 15%-20% when applying advanced machine tools. Moreover, innovations like vacuum tables enhance the stability of the material during operations and ensure that cuts are accurate, reducing material wastage.

The primary benefits of CNC routers are speed efficiency and accuracy. Industrial-grade models have a cutting speed of approximately 2,000 inches and an accuracy rate of ±0.001 inches. This assists in sticking to deadlines without compromising on quality. Additionally, multi-axis CNC routers that work on 3, 4, or even 5 axes contribute to the development of complex and intricate shapes and designs enhancing usability for more complex projects.

The user-friendly programming interfaces embedded in CNC routers are another of their remarkable advantages. These systems support common file types like DXF as well as G-code, making work easier for engineers and operators alike. When paired with minimal setup times and reduced manual labor, CNC routers provide a powerful advantage for companies looking to save money on production costs.

The purchase of high-quality CNC routers leads to a significant increase in production volume, product quality, and overhead costs, which is necessary to stay competitive in challenging markets. CNC routers made of Carbon Steel are indispensable assets for manufacturers due to their flexibility, accuracy, and dependability.

Advantages of Using CNC Lathes

Accuracy and Consistency

CNC lathes can accomplish the desired machining operations with accuracy and little deviation. Due to the automated control capabilities of these machines, production quality is consistent, and tolerances up to ±0.001 inches can be achieved. These tolerances are important for sectors like aerospace and automotive manufacturing.

Speed and Efficiency Improvements

Automation of complex machining processes is performed by CNC lathes, reducing the time needed for production. Increased cutting speeds and more efficient operations allow higher volumes of work to be completed. For example, some CNC lathes are capable of multi-axis machining at the same time, increasing even more productivity.

Different Forms of Material Processing

CNC lathes are capable of working on different materials, including metals like steel, aluminum, and titanium, and non-metals like plastic and composites. Their multi-purpose efficiencies make these devices essential for various fields like manufacturing, electronics, and medical devices.

Error Reduction for Operators

Due to the computer-controlled system, CNC lathes don’t require human intervention for machining, eliminating the possibility of errors. Operators have the capability of pre-setting the machine with the exact parameters needed for precise production, guaranteeing consistency with every production cycle.

Reduced Amount of Waste

CNC lathes are capable of precise machining, leading to reduced material waste. Along with saving raw materials costs, this aligns with eco-friendly manufacturing processes.

Maintaining a System and Its Durability

Compared to older manual machines, modern CNC lathes are built to be more durable and require very little maintenance. Their trustworthiness greatly reduces downtime and maintenance costs.

Simple Interfaces and Programming

Operators can now run and program CNC lathes with CAD/CAM systems that have user-friendly interfaces. These features enable proficient operators to perform their duties and enhance production output.

Flexible Production Volume

CNC lathes can be used to produce small or big quantities of items without losing the quality or efficiency of the output. This flexibility is crucial for companies during economically unstable periods.

When implemented in industry, CNC lathes improve the quality of manufacturing functions, simplify processes, and optimize accuracy; thus, these devices are essential features of contemporary production environments.

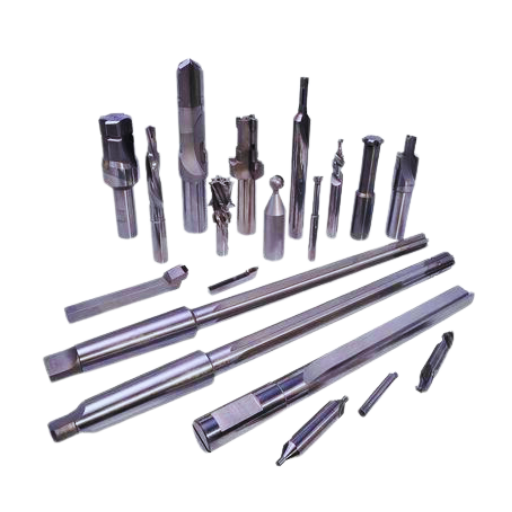

Why is Tool Maintenance Crucial in CNC Machining?

Extending the Life of Cutting Tools

CNC operators must implement the correct cutting tool maintenance practices to prolong their lifespan. These techniques aid manufacturers in optimizing productivity, lowering operational expenditure, and ensuring production quality does not fluctuate over time.

The Most Effective Cutting Speeds and Feeds

To prolong the lifespan of cutting tools, correct feed rates and cutting speeds should be applied. Failure to do so is likely to result in overheating which can cause excessive wear and tool failure. Studies indicate applying the suggested cutting parameters can increase tool life by 20 percent, which reduces the need for tool replacements.

Effective Lubricant and Coolant Application

The right coolant and lubricant will help mitigate overheating during machining by limiting friction. Research indicates that the right application of coolant can decrease tool temperature by 50 percent, which extends the lifetime of cutting edges.

Routine Tool Maintenance and Inspection

Establishing routine inspection policies results in greater chances of identifying early wear or damage. To illustrate, worn inserts may be replaced to avoid loss of accurate machining and expensive downtime. Consistent inspection and maintenance schedules have been shown to increase tool life on average by 30 percent.

Material-Specific Tooling Aspects

When tooling is tailored to the specific materials being machined, performance is improved and the loads on the tool’s cutting edges are diminished. For instance, firmly bonded advanced coatings, like titanium aluminum nitride (TiAlN) for carbide tools, are shown to increase wear resistance by 50% while machining heavier materials such as stainless steel.

Technology Integration and Monitoring

The addition of certain monitoring systems like vibration and temperature sensors makes real-time assessment of tool conditions possible. These systems notify operators when a tool is experiencing excessive wear so remedial actions can be taken. It is estimated that these technologies would be able to save roughly $15-25 per year in tooling.

CNC machining operations can save time and money while increasing precision and efficiency by adopting these practices alongside advancements in tooling technology.

Best Practices for CNC Tool Maintenance

Regular Cleaning

Clean every single CNC tool after use to avoid debris accumulation which can impact the tool’s performance and precision.

Inspect for Wear and Damage

Check your tools from time to time for signs of wear and tear such as dull edges and cracks. Tools that are significantly worn out need to be replaced to avoid disrupting operations.

Proper Storage

A tool’s protective holder must be stored in a clean, dry environment to avoid moisture and inappropriate handling that can lead to tool damage.

Adhere to Manufacturer Guidelines

Tools recommended by the manufacturer must be used to ensure maximum efficiency and lifespan in conjunction with maintenance schedules and other materials.

Tool Lubrication

During machining and cutting, fluids or lubricating materials need to be poured to prevent the tool from overheating and prolonging its life, unlike excessive wear.

Calibrate and Align Regularly

For guaranteed precision and minimal straining on the machine, tools must be regularly calibrated and aligned properly.

It is recommended to follow these guidelines to maintain high operational efficiency, prolong the life of manufactured tools, and improve the machining process.

Common Issues with CNC Cutting Tools and Solutions

Unreasonable Tool Wear

One of the most prevalent complications in CNC machining is tool wear, which can occur far too early, cutting efficiency, and surface quality. Overwear usually happens because of abnormal feed rates or speeds, insufficient coolant application, and incorrect tool material selection for the given workpiece.

Solution: Modify feed rates, spindle speeds, and depths of cut to correlate with the machined material. Supply coolant to the system using cutting fluids of adequate quality. Positioning of coolant nozzles should also be enhanced. Furthermore, for the specific workpiece, tungsten carbide and coated tools should be employed. Finally, conducting routine inspections on tools guarantees early detection of tool wear, thereby minimizing tool failure instances.

Chatter and Vibrations

Chatter is a phenomenon where cutting force instability creates localized vibrations. This causes negative effects in the form of uneven surface finishes and may result in damage to tools and/or work pieces. Improper setup conditions such as excessive tool overhang in combination with poorly defined cutting parameters are also a reason for chatter.

Solution: Decrease tool overhang to limit flex and reduce structural instability. Workpiece clamping should be tightened to improve rigidity, and the condition of the CNC machine’s components is termed single-cutting effective. Change the cut parameters by, for example, increasing the time taken to feed the workpiece or the depth of the cut, and try using tools with vibration ways to cut down on machining resonance.

Built-Up Edge (BUE)

This problem occurs when the work material bonds to the cutting edge of the tool, which often happens with high friction or poorly set-up machining parameters, diminishing the edge’s accuracy and life span. Built-up edge is particularly prevalent when machining soft metals like aluminum.

Solution: To combat BUE, it may be necessary to increase cutting speed so that there is enough heat to cut and enough cooling to maintain the required temperature. Protective coatings such as TiAlN increase lubricity and bond with the material less. Sharp-edged tools reduce friction and also lead to clean cuts.

Tool Breakage

Tool breakage is an often costly problem brought about by overloading, incorrect setups, or incompatible tools. Breakage can lead to machines sitting idle while parts are scrapped, hence affecting productivity.

Answer: Define cutting forces and apply them to the tool selection process employing FEA. Pre-machine material handling should not be inadequate and the fastening of the workpiece in the clamping device should not be excessive. Tool breakdowns due to incorrect performance of operations can be avoided with the help of advanced tool monitoring systems that provide real-time notifications regarding tool use.

Thermal Deformation

During the machining process, heat can build up and cause thermal deformation, which negatively impacts the workpiece and cutting tool. This, in turn, leads to inaccuracies and reduces the life of the tool.

Step: Optimize the flow of coolant and select tool materials that possess high resistance to heat. Employing the minimum quantity lubrication (MQL) technique, as well as cryogenic cooling, can aid in temperature control during machining. Also, using advanced cutting tools that possess heat-resistant coatings helps in holding the dimensions during long operations.

Concentrating on the described issues and formulating solutions enables CNC operators to increase tool life, meet product quality engineering requirements, and decrease idle time for machining processes.

How to Optimize CNC Machining with the Right Software?

The Role of CAM Software in CNC

The development of Computer-Aided Manufacturing (CAM) programs has improved the accuracy and efficiency of modern CNC tool design and execution processes. It generates precise plans and enables the execution of each machining operation to perfection. Furthermore, CAM software facilitates the effective transfer of information between the design and the operational stages by converting the CAD (Computer-Aided Design) models into a machine-understandable format (G-code).

One of the most advanced capabilities of CAM software is toolpathing, which allows cycle time reduction without compromising on quality. A good example would be case study data which suggests that sophisticated CAM solutions can lead to over 30% production efficiency gains for some manufacturers. This is made possible through the incorporation of high-speed machining (HSM), adaptive clearing, and collision avoidance strategies which are features of most CAM Systems today.

Moreover, the ability of CAM software to simulate operations allows operators to analyze the various parameters that can affect the machining cycle and visualize the results before engaging in live production. For example, simulations can help determine potential waste of materials and tool collisions which can lead to expensive mistakes on the shop floor. Industry data indicates that the traditional trial-and-error design processes can be diminished by nearly 50% by using CAM-based simulations, resulting in faster project completion.

The integration of CAM tools with cloud computing has transformed its capabilities, enabling collaborative work and access to libraries of machining methodologies in real-time. This increases flexibility, allowing teams to respond to changes in design or production needs with speed and efficiency. As technology improves, manufacturers are also increasing the adoption of machine learning algorithms that autonomously analyze machining data and propose optimizations. This improves the efficiency of the manufacturing pipeline.

The adoption of complex CAM software goes beyond improvement; it is essential with the level of competition offered in the current market that demands quicker output, lower costs, and higher quality products. With the capability to integrate design and physical production, CAD software changes the benchmarks of precision and productivity in CNC machining.

Using Computer-Aided Systems for Precision

Computer systems like Computer-Aided Design (CAD) and Computer-Aided Manufacturing (CAM) have greatly increased the accuracy of industries like aerospace and healthcare. Prototypes and final products are more accurate thanks to recent evidence showing that CAD software decreases design errors by 30%. Moreover, CAM systems allow manufacturers to machine complex geometrical designs with tolerances of up to 0.001 inches. Because of CAM systems, these manufacturers’ standards of quality and consistency are at an all-time high.

These systems have also made leaps in the incorporation of artificial intelligence and machine learning which facilitates adaptive control of machining processes. For instance, real-time monitoring of tool wear is made possible by AI-driven CAM software. This not only minimizes defects but also extends the life of the tool by 20%. In mass production where slight deviations can lead to enormous inefficiencies or wasted materials, this capability is vital.

While aimed at making cooperation simpler, the new generation of computer-aided systems enables teams to work simultaneously from various locations without time restrictions. Stakeholders also have immediate access to any updates or changes. The cloud’s integration makes it even simpler to allow collaboration across teams, regardless of where they are. In addition to this, computer-aided systems now integrate simulation and analysis tools, allowing workflows to be streamlined and predicting inefficiencies even before production begins. This reduces downtime, increases the efficiency of production by 40%, and improves overall efficiency.

With the implementation of modern computer systems, industries can attain high precision accuracy, efficiency, and output at lower costs, thus leading to innovation and technological advancement in industrial excellence.

Improving Efficiency with G-Code Programming

Machining processes in a business setup with G-Code serves as the programming language for CNC (Computer Numerical Controller) machines to achieve optimum operational efficiency. Through its ability to control machining operations, G-Code controls the pour of material, tool usage, and production accuracy. Furthermore, modern G-Code programming has incorporated advanced features like macros and conditional logic where machines perform the functions with lesser operator intervention.

Other recent improvements include the integration of G-code with CAM software for better productivity. For example, automated error detection allows programmers to fix issues that the machine will have once it starts running thereby setting the machine’s downtime by up to 30%. Also, G-Code assists with adaptive toolpath generation, where G-Code enables the cutting tool to use the most suitable speeds and depths to prolong the life of the tool while improving the surface quality. Research shows that manufacturers with well-written G-Code perform better than 20-40% in high-precision fields such as aerospace and medical machinery manufacturing, and the use of fine-tuned G-Code encourages productivity.

Moreover, cloud capabilities enable the secure sharing of G-Code files among global manufacturing sites, allowing for collaboration and machining standardization to occur in real time. Along with machine learning algorithms, these systems can use G-Code Information to recommend further improvements, thus guaranteeing permanent amends to the process. Fully exploiting the capabilities of G-Code in conjunction with new systems of modern manufacturing can yield consistent results, cost reduction, and improved operational efficiency.

Frequently Asked Questions (FAQs)

Q: What are CNC cutting tools and how are they used in machining?

A: CNC cutting tool refers to any of the tools such as end mills, drill bits, and cutters that are used in the CNC machines to heal a workpiece. These tools are generally meant for precisely cutting and shaping metal or other parts using machines requiring high speeds.

Q: How do I choose the right tool for my CNC machining project?

A: The choice of a tool depends on the materials involved, the finish needed, and the type of machining that needs to be done. Pay attention to the type of material of the tool like carbide or high-speed steel, the geometry of the tool like twist drills or face mills, feed rate, and speed for the job. Reach out for recommendations suited to your specifications.

Q: Which types of CNC cutting tools are used most frequently?

A: The most utilized types of CNC cutting tools are end mills, drill bits, face mills, and cutters. These are equipped uniquely and may possess several sharp edges that aid in machining flat surfaces or more complex shapes. Tools made from carbide are quite common owing to their toughness and accuracy in machining different workpieces.

Q: What makes carbide so ideal in the production of CNC cutting tools?

A: Carbide is a preferred material for CNC cutting tools due to its hardness and resistance to wear. Their durability makes carbide tools very efficient in high-speed machining and cutting of hard substances such as metals which improves the quality of the manufacturing process.

Q: What responsibilities does a machinist undertake regarding the CNC machining process?

A: The machinist’s work involves the preparation and operation of the CNC machines, the selection of tools needed for each particular operation, and making sure that the output produced conforms to the desired specifications and tolerances. They are vital for the realization of accurate machine parts and the proper functioning of the CNC systems.

Q: What steps can I take to increase the longevity of my CNC cutting tools?

In order to increase the lifespan of CNC cutting tools, ensure appropriate maintenance of the tools, apply the proper feed and speed ratio for the material, and periodically inspect for damages on carbon steel tools. Additionally, cutting tools produced from highly durable materials, such as carbide, can vastly improve tool life.

Q: About CNC machining, what are milling tools and what is their function?

A: Milling tools are a subcategory of CNC tools that perform the function of material removal from the workpiece to generate flat surfaces, slots, or other complicated configurations. These tools include end mills, and face mills, and are used in contouring, profiling, and slotting which are basic operations of producing accurate machine components.

Q: Are CNC cutting tools capable of working on non-metal materials?

A: Indeed, CNC cutting tools apply to a wide range of materials such as plastic, wood, and composites. The most important factor is to choose the right combination of tool material and geometry for the required purpose so that the needed functionality will be obtained.

Q: Why is tool geometry important in CNC machining?

A: In CNC machining, tool geometry such as the shape of the tools and the angles of the cutting edges, has a great bearing on the results obtained. Achieving one or more objectives such as effective material removal, reduction of tool wear, and achieving surface finishes on the workpiece is greatly dependent on the tool geometry. This is particularly important when two cutting tools are employed on a single workpiece.

Q: How can someone contact you to learn more about CNC cutting tools?

A: To learn more about CNC cutting tools, including single-point cutting tools, contact us today for assistance in selecting the right tool that meets the requirements of your project. If you have any queries or specialized needs related to carbon steel-cutting tools, our experts are best placed to assist you.

Reference Sources

1. Title: Efficient 5-axis CNC trochoidal flank milling of 3D cavities with custom-shaped cutting tools

• Author: Pengbo Bo, Hongyu Fan, M. Bartoň
• Publication: Comput. Aided Des. vol.151, 103334, 2022-05-01

Main Contributions:

• This work developed an efficient approach to trochoidal milling of 3D cavities with custom-shaped cutting tools.
• A multi-layer approach to support deeply embedded cavities is presented via a variational framework.
• The proposed approach yields a significant increase in the machining efficiency and surface quality of complex geometries.

Summary of the Approach:

• The authors created a computational model of the trochoidal milling process to perform simulations.
• The custom-shaped tools were experimentally evaluated against standard tools to determine their impact on machining efficiency and surface finish.

2. Machines can be operated with energy-conserving feature-based optimization methods that sequence and integrate cutting parameters.

• Researchers: Feng Chunhua, Huang Yugui, Wu Yilong, Zhang Jingyang
• Published in: The International Journal of Advanced Manufacturing Technology, 203.5, 503- 515
• Date of publication: 17 May 2022

Most important research discoveries:

• Taiwan’s advanced energy-saving technologies are integrated and highly enabled, allowing this type of advanced manufacturing method to save power.
• While the machining quality is guaranteed, the energy consumption is significantly low.

Methods Employed:

• The authors analyzed energy consumption data from case studies of CNC machining services.
• The sequences and cutting parameters were fixed using optimization algorithms and the best solutions were generated.

3. Identification and separation of dynamic and static errors for three-axis CNC machine tools based on feature workpiece cutting technique.

• By: Chao Liu, Sitong Xiang, Chengwei Lu, Chengyang Wu, Z. Du, Jian-Yang Guo
• Journal of: Advanced Manufacturing Technology, Volume 107, Pages 2227 – 2238
• Date Published: March 1, 2020

Highlights

• This research proposes a procedure for dynamic and static error separation and identification for three-axis CNC machine tools.
• The procedure improves the machining operation’s accuracy by resolving error sources properly.

Design/ methodology/ approach.

• The authors developed the error identification model using experimental data from CNC machining processes.
• The model was validated against laser interferometer measurements to ensure accuracy.

4. Milling (machining)

5. Machining
