Understanding the Machining of Titanium: Speeds and Feeds Explained

A blend of art and science, machining titanium relies heavily on precision and a thorough understanding of the unique characteristics of titanium. It is essential to aerospace, medical, and automotive industries due to its strength-to-weight ratio, corrosion resistance, and durability. However, these qualities pose remarkable difficulties while machining, especially with feed rates and speeds. This guide advances the process of precisely machining titanium, outlining working parameters while focusing on efficiency, tool life, and surface quality. It does not matter whether you are a novice or an advanced machinist; your operations will be optimized, and results will be improved.

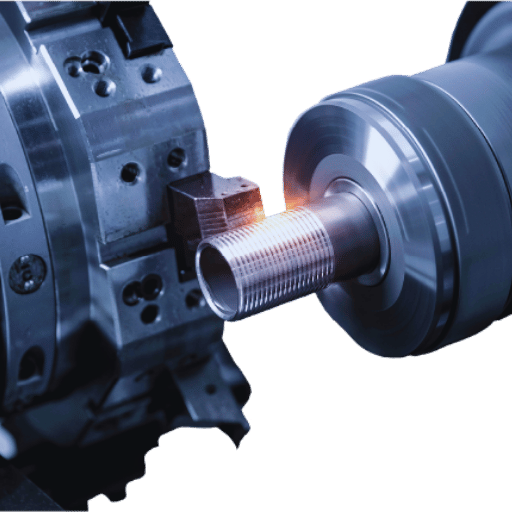

What Makes Titanium Unique in the Machining Process?

Machining titanium is a unique exercise as it has a specific strength, is resistant to corrosion, and can withstand extreme thermal conditions. All these components make it an extraordinary metal for rigorous use. However, these attributes can create difficulties when trying to shape it. Its low thermal conductivity causes the heat to focus on the cutting edge, increasing tool wear. In addition, the strength of titanium can cause it to work hard, producing greater cutting forces and lower material removal rates. These attributes make it critical that appropriate machining techniques are employed. With adequately selected cutting parameters and tools, the machinist can improve efficiency and quality while effectively machining titanium parts.

Advantages of Using Titanium in the Manufacturing Industry

Due to its outstanding characteristics, titanium is advantageous in the production industry:

• High Strength-to-Weight Ratio: Titanium’s relevant properties suit particular uses. It is strong but remarkably lighter than several metals, so it is used in applications where weight matters.
• Corrosion Resistance: Titanium is very resistant to corrosion. Because of this, products manufactured from titanium can be expected to last longer, even in rough environments such as seawater or acidic environments.
• Biocompatibility: Implants and prosthetics made from titanium are ideal because they are non-toxic and biocompatible.
• Thermal Stability: Titanium is more versatile in aerospace and power generation industries. This is because his mechanical properties are retained in high and low-temperature ranges.
• Longevity: Titanium parts have a longer lifecycle, while maintenance and replacing components have lower costs because of their strong nature, resistance to wear, and corrosion resistance.

Challenges in Machining Titanium Alloy

1. High Heat Generation: Cutting tools can sustain serious injury due to the concentration of heat in the machining zone. Titanium’s high thermal conductivity enables maximal heat concentration at the cutting zone.
2. Tool Wear: Due to the material’s rigidity, it can easily withstand deformation. This increases the frequent replacement of cutting tools, leading to excessive wear.
3. Springback Effect: Titanium has a high strength-to-weight ratio, which tends to enable springback during machining processes, hampering dimensional accuracy.
4. Low Machining Speeds: Increased cutting speeds are associated with enhanced productivity; however, titanium may need increased tool replacement and damage control, reducing cutting speeds.
5. Work Hardening: Sustained forces and high cutting speeds during machining have adverse effects. They tend to harden the material further, increasing energy consumption.

Overcoming these hurdles leads to efficient titanium alloy machining, requiring advanced tools, optimized cutting parameters, and precise process control.

Characteristics of Titanium That Affect Cutting Speed

The thermal and chemical characteristics of titanium greatly affect the cutting speeds of its machining. Such factors include the following:

• Low Thermal Conductivity: Titanium’s inefficient heat dispersement leads to tool overheating, which requires reducing cutting speeds.
• High Strength-to-Weight Ratio: The material’s strength resists deformation during cutting. This means slower speeds are sought to retain accuracy, mainly when high-speed cutting methods are used.
• Chemical Reactivity: Under high temperatures, the material vigorously reacts with the cutting tools, leading to excessive tool wear and further restricting achievable cutting speeds.

These characteristics and factors constrain the optimization of the machining parameters due to the consequences of both machining effectiveness and tool life.

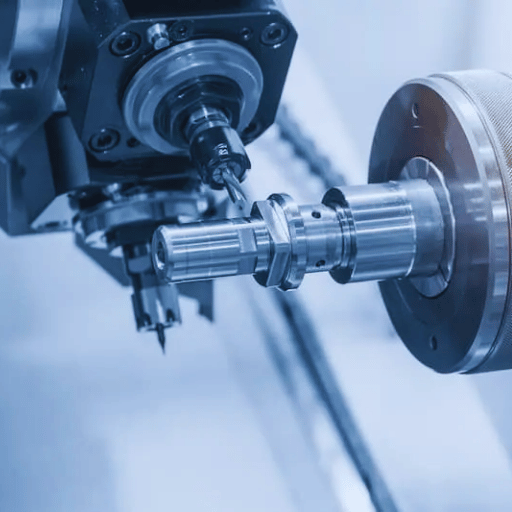

How to Cut Titanium Effectively?

Picking the Right Cutting Tool for Titanium

Ensuring tools are of the right type when cutting Titanium is crucial to achieving accuracy and productivity. Tools made of or coated with carbide are preferred because of their ability to endure the high strength and high temperature generated while machining titanium. Moreover, tools with sharp, high wear-resistant edges are essential to control temperature and excessive wear. Using a good quality coolant or lubricant also assists in maintaining the appropriate temperature and minimize the frictional force during the cutting processes, increasing the quality of work done.

Importance of Coolant and Lubrication in Titanium Machining

Because of the nature of the material, coolant and lubrication are critical in titanium machining. The low ability of titanium to conduct heat causes it to gather at the cutting zone, thereby increasing the probability of thermal damage to the workpiece and worsening the wear of the cutting tools. Coolant application is necessary because it will effectively transfer the heat away from the tool and the workpiece, thereby creating stable conditions at the cutting interface.

Coolants with superior performance, especially those formulated from pure and partially pure substances, are much more effective in the machining of titanium due to their better thermal control and less likelihood of built-up edge (BUE) compromises on the cutting tools. Moreover, adequate lubrication reduces friction between the tool and the workpiece, thereby facilitating the cutting process and increasing the tool’s life. Some researchers claim that applying coolant can improve machining efficiency, reporting an improvement of nearly 50% in surface finish and dimensional precision.

The machine processing operation of titanium has significantly improved due to revolutionary methodologies such as Minimum Quantity Lubrication (MQL) and cryogenic cooling. By accurately targeting the lubrication area, MQL optimizes precision while maintaining an incredibly low coolant consumption, thus minimizing environmental wastage. Cryogenic cooling employs sub-cooled liquid nitrogens or carbon dioxide for effective cooling at ultra-low temperatures to aid the processing of intricate titanium components that are problematic due to their dimensional extremes range. These strategies reinforce the practical and focused use of coolant and lubricant, which are critical to the smooth functioning and durability of the machinery.

Adjusting Cutting Parameters for Optimal Performance

Adjustments on cutting parameters are crucial in removing grindings as efficiently as possible and in tool longevity. Essential parameters are Cutting Speed, Feed Rate, and Depth of Cut. Cutting speed must suit the characteristics of the material and the tool; otherwise, excessive wear or thermal damage could occur. The feed rate usually tries to balance productivity and finishing quality, but sometimes, the tool can become overloaded. The depth of cut must be selected appropriately so that the tool’s limitation is not exceeded, but stability and precision are still maintained. These parameters must ensure that machine capability and the workpiece material are considered to achieve optimal performance with minimal costs.

Understanding the Machinability of Titanium Alloy

Factors Affecting Machinability and Tool Life

1. Material Properties: The properties of titanium alloys include salient features that reduce thermal conductivity and increase strength alongside high work hardening capability. The attributes contribute to enhanced cutting forces and heat generation at the tool-workpiece interface, making it detrimental to tool life.
2. Cutting Speed and Feed Rate: Spending too little time or being too heavy on the machining results in rapid spindle rotation and accelerates the tool’s thermal assault. And having an incorrect feed introduces excessive tool wear from chatter or its unevenness. Further optimization is required to improve the machining efficiency for these parameters.
3. Tool Material and Coating: The extendable tool life is achieved by improving the thermal resistance and reducing friction using wear-resistant and durable materials such as cobalt with a titanium nitride (TiN) coating.
4. Coolant Application: Control of temperature and improvement of the machinability and tool life is significantly achieved by correctly applying cutting fluids to lower stress and wash away chips.
5. Chip Formation and Evacuation: The long and continuous chips that titanium forms obstruct machining if not evacuated in time. Adequate tool polishing and chip-breaking methods assist with this.

All these factors converge in the need to choose the right tools, accurate cutting parameters, and suitable cooling techniques to attain optimal machinability without compromising on tool longevity, which would result in operational inefficiencies and increased expenditure.

Impact of Cutting Force on Titanium Machining

Due to titanium’s low thermal conductivity and high strength, titanium machining tends to generate considerably high cutting forces, resulting in tool wear and escalation in energy expenditure. To minimize the forces above, using well-conserved cutting tools, slow cutting speed, and appropriate cooling systems is critical. Effective management of cutting forces increases tool lifespan, improves surface finish, and reduces non-productive times to lower machining costs.

Influence of Chip Thickness and Cutting-Edge Geometry

Chip thickness and cutting-edge geometry are some of the most critical factors in evaluating the performance of any tool when machining particular materials such as titanium. Thinner chips allow easier cutting forces to be applied, less heat to be produced, and increase the overall life of a tool. On the other hand, optimal chip thickness can only be achieved if the feed rate and depth of cut are correctly set. Studies have shown that having side chip flow as an aid with minimal thickness can considerably expand the cooling capability and reduce the thermal burden on the tool and workpiece.

Moreover, cutting-edge geometry is also of primary importance in the performance criteria in machining. The machine’s performance may also increase due to changes in the cutting edge, such as angle. Higher angles may reduce the strength of the edge and eventually lead to it becoming so sharp there are chips in the material. Advances may reduce this in the design of tools, such as variable edge geometries and coatings, which evade the stress problem. Tools with positive rake angles at the edges and strategic micro geometry enhancements have led to superior chip control and wear resistance during high-speed machining operations.

Addressing those elements, chip thickness, and cutting-edge geometry guarantees that manufacturers achieve machining efficiency, tool life, surface quality, cost savings, and productivity.

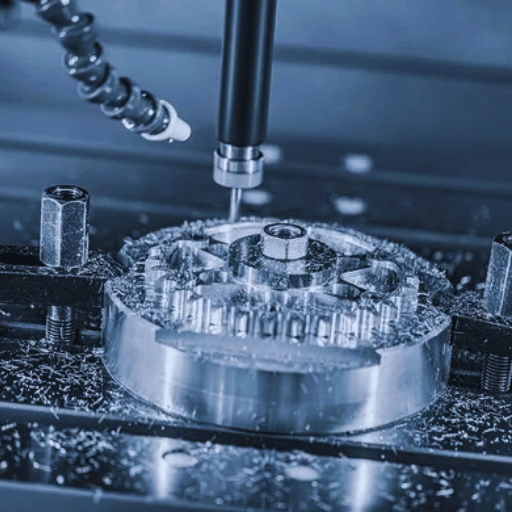

Exploring Ultra-high Speed Machining for Titanium

Benefits and Risks of High-Speed Machining

High-speed machining has several advantages, such as high productivity levels, faster material removal, and better surface finishes. It allows secondary operations to be performed more efficiently. Also, if done under optimal conditions, it can improve tool life by reducing cutting forces and heat buildup.

Nonetheless, the procedure does carry risks. If the speeds are too high, there may be excessive tool wear, thermal damage to the workpiece, and vibrational instability that is too high for precision work, such as the machining of novel materials. The material properties of titanium, for example, its strength and low thermal expansion, highlight further the importance of carefully balancing machine parameters. Appropriate selection of cutting tools, coolant, and feed rates is the key to taking full advantage of the material.

Strategies to Manage High Temperature and Tool Wear

The following strategies can be followed to reduce tool wear rates to keep tool wear at bay while machining at high-temperature extremes.

1. Optimize Cutting Parameters: Speeds and feed rates must be adjusted to accommodate more passengers to lower temperature and tool stress levels.
2. Use High-Quality Coolants: Equipment can be designed to introduce appropriate coolants or cutting fluids that enhance heat dissipation while keeping the working conditions stable.
3. Select Durable Cutting Tools: The selected tools can be manufactured using highly heat-resistant materials, e.g., carbide or coated tools.
4. Utilize Advanced Coatings: Cutting tools designed with titanium aluminum nitride (TiAlN) coatings can be more thermally resistant and have less friction-induced wear.
5. Implement Interrupted Cutting: Applying cutting methods interspersed with cooling periods can ease the tools’ thermal burden, relieving the fatigued heat.

These measures would significantly improve machining performance, achieving economized tool wear rates and workpiece quality.

How to Improve Tool Life When Machining Titanium?

Selecting Durable Tool Materials for Longer Tool Life

Choosing appropriate tool materials when machining titanium is critical to achieving a long tool life. Tools made from carbide and those with higher-grade coatings, such as titanium aluminum nitride (TiAlN), possess the requisite heat resistance and hardness. Moreover, high-ceramic and Cermet tools can be used in particular applications with high thermal stability requirements. Proper tool material selection minimizes wear and deformation during severe cutting conditions and provides consistent performance.

Techniques to Minimize Tool Wear and Deformation

My attention goes to using correct machining processes and selecting suitable cutting conditions when it comes to the reduction of tool wear and tool deformation. When manufacturing tools, special care is taken to ensure that proper cutting speeds and feeds are utilized so that unnecessary heat, which is the major factor for rapid tool wear, is avoided. Using high-pressure coolant systems effectively removes heat and reduces friction from the tool during the cutting process. Moreover, I use modern thermal and abrasive-resistant coatings on tools such as TiAlN. Proper chip control and tool blunting are periodically checked, allowing me to act promptly, thus balancing optimal tool life and consistent machining performance.

Optimizing Depth of Cut and Feed Rate

Cutting efficiency and the tool’s life can be balanced by optimizing the cut and feed rate depth. The material removal rate becomes more efficient when the depth of the cut is greater. However, greater cutting forces are present, increasing the tool’s wear or deformation. On the other hand, changing the feed rate to a suitable level optimizes the surface finish and reduces the chances of overstressing the tool. Market-suggested variables should be used for the machining operations considering the machined material and the tool used. Changes within reasonable limits should be made along with measurements to guarantee safety boundaries concerning operational parameters are always met for reliable performance.

Frequently Asked Questions (FAQs)

Q: What are the unique challenges in the machining of titanium?

A: Several issues arise with titanium machining, mainly due to the material’s low thermal conductivity. Cutting temperature increases significantly, cutting-edge materials quickly deteriorate, and the workpiece hardens with less effort. Additionally, titanium has low elasticity and high strength, so relying on specific tools and techniques to increase productivity further increases these challenges.

Q: What are the recommended cutting speeds for machining titanium?

A: Since titanium has low elasticity, it needs minimal cutting speeds. The trade-off is that this cooling aid prevents thermal expansion at the edges of the cutting tool. The result is that the tool undergoes significantly less wear and tear.

Q: Why are carbide tools considered adequate for machining titanium?

A: In cutting operations with titanium material, carbide tools are preferred due to their superior ability to maintain cutting-edge stability, wear resistance, and endurance at high cutting temperatures.

Q: What do you consider the importance of thermal conductivity while machining titanium?

A: Since titanium is a poor conductor of heat, the temperature created during cutting does not dissipate quickly. As a result, the temperature is concentrated at the cutting interface, so the cutting speeds should be low. Appropriate cooling methods should be employed during cutting to prevent damage.

Q: What machining difficulties does titanium’s work hardening bring forth?

A: Titanium’s work hardening complicates the material on the cutting surface as it is machined, increasing tool wear. Thus, the cutting speed, tool material, and machining strategies must all be constantly adjusted, increasing the procedures’ aggression.

Q: Describe the engineering benefits of titanium.

A: Besides having a good strength-to-volume ratio and being corrosion-resistant, titanium is exceptionally advantageous because it is bio-compatible, and these properties make sure that it can be used in medical, aerospace, and automotive industries.

Q: What do you consider to be the industry standards in tool selection for titanium machining?

A: A promising tool selection strategy is to pick carbide-cutting tools with moderate rake angles and coatings for the tool that will increase heat resistance and decrease friction. High-quality results without being present in the factory can also be achieved by employing CNC machining.

Q: Are elevated speeds useable in titanium machining processes?

A: With regards to the machining of titanium, high speeds are typically avoided because of the low thermal and wear resistance limitations but can be effective in a limited number of cases with sufficient cooling and sophisticated cutting tools to raise the removal rate without damaging tool life substantially.

Q: How does the machining of titanium alloy Ti-6Al-4V compare with pure titanium machining?

A: An alloy of titanium, Ti-6Al-4V, is widely used, so it is not rare for it to be more challenging to machine. It can be more difficult to machine because of its different composition and structure. Nevertheless, it can be machined successfully with proper cutting parameters and tool selection control.

Q: What is the role of the RPM in machining titanium alloy?

A: When machining titanium, an appropriate level of RPM needs to be appropriately selected as those values are essential to taking advantage of the high-speed advantages whilst managing the tool’s cut and rate of wear temperature. For instance, RPM amends the efficiency of the material by using the three means of modification—heating, lubrication, and tool selection.

Reference Sources

1. Xie et al. 2022 (Xie et al. 2022, pp. 2701-2713)

• Key Findings:
  • Evaluated the effect of spindle speed on cutting force and surface quality in the longitudinal-torsional ultrasonic vibration-assisted side milling of TC18 titanium alloy.
  • Increased spindle speed reduced cutting force but increased surface roughness and residual tensile stress.
• Methodology:
  • Performed orthogonal cutting methods with adjustable cutting speeds within the range of 40-80 m/min and other parameters of interest.
  • Obtained cutting force, surface roughness, and residual stress measurements.

2. Peng et al. 2023. (Peng et al., 2023)

• Key Findings:
  • The title investigates the impact of high-speed ultrasonic vibration cutting on microstructure, surface integrity, and wear behavior in titanium alloy machining.
  • High-speed ultrasonic vibration cutting exhibited better surface integrity and wear resistance characteristics than traditional cutting.
• Methodology:
  • Conducted experiments on titanium alloy at different cutting speeds employing ultrasonic vibrations at high speed.
  • The microstructure of machined surfaces, surface roughness, and wear behavior were studied.

3. Wang (2023) (Wang, 2023, pp. 4915–4942)

• Key Findings:
  • Analyzed literature regarding surface integrity factors when cutting Aluminium, Titanium, and Nickel alloys at high speed.
  • Cutting speed can adversely affect surface integrity, with more incredible speeds leading to unacceptable surface roughness and excessive residual stresses.
• Methodology:
  • High-speed cutting of these alloys was researched by accessing a broad range of published theses.
  • The impacts of cutting speed and other parameters on surface integrity were examined.
