Unveiling the Secrets of the Melting Point Apparatus: A Comprehensive Guide

When ascertaining the purity and recognition of compounds, scientists, chemists, and lab technicians have to exercise precision without tolerating deviations. One tool that assists them in the task is the melting point apparatus, which measures the exact temperature at which a particular substance changes from solid to liquid. How does it work? Why is it critical in scientific research and applications? This guide deciphers the workings and importance of the melting point apparatus. From professionals to those just beginning their journey, this article helps every reader understand the instrument, its functions within laboratory settings, and the best practices to ensure accurate measurements of melting point temperatures. Get ready as we discuss what will make you maximize the potential of this ultimate tool.

What is a Melting Point Apparatus, and How Does it Work?

A melting point apparatus is a laboratory device determining the temperature at which a given substance melts or changes from a solid to a liquid state. The process of determining the melting point of a substance involves gradual heating of the sample and temperature monitoring; it is also done using modern melting point apparatuses. Recent models of melting point apparatuses include a capillary tube to hold the sample, a heating element, and an observing system consisting of lenses or digital cameras to monitor the melting point. The equipment gives essential information regarding the identity of substances and purity levels and is also crucial in quality control checks in both industrial and research works.

Understanding the Basics of a Melting Point Instrument

A melting point device typically includes two or three essential parts: the sample holder, the heating unit, and the detection unit. The sample holder, in this case a capillary tube, captures the portion of the sample that is being examined. The heating system provides optimum temperature control so that radiometric heating of the sample can be accomplished. The detection system consists of, for example, lenses and cameras that capture the images needed to view melting and its processes. All these systems are integrated so that the operator can see the melting point of a substance since this dramatically helps in classifying the substance and materials to be used for melting in scientific research purposes and in other industries.

The Role of Capillary Tubes in Melting Point Determination

Capillary tubes play an essential function in determining the melting point of a sample. Their diameter is small and consistent, which helps maintain the sample in its position and aids in uniform heating during the experiment. This consistency further helps achieve accuracy and reliability in the measurements by reducing possible factors that could influence the melting. Also, capillary tubes are made of plastic, which makes it easier to see the sample during the melting process. Because of these qualities, capillary tubes are vital in laboratory settings to determine and analyze the purity of the material.

How Boiling Point Relates to Melting Point Analysis

The boiling point is analyzed in conjunction with the melting point, as both are significant physical characteristics that reveal a substance’s level of purity and identity. In essence, boiling point indicates the temperature at which a liquid changes to a gas, while melting point is the transition temperature at which a solid becomes a liquid. A substance’s impurities shift the melting and boiling points to an excellent range. Together, they provide a greater understanding of the material’s thermal properties and, at the same time, increase the potency of methods utilized for detecting impurities or discrepancies within the substance’s composition.

How to Use a Digital Melting Point Apparatus Effectively?

Step-by-Step Guide to Calibrate Your Instrument

1. Prepare the Instrument: Dust and clean residue from the apparatus, ensuring it is free of any remnants before placing it on a flat surface. Make sure that it is turned off before calibration.
2. Select a Calibration Standard: A known reference standard should contain materials with a precise and accurate melting point, such as pure benzoic acid or vanillin.
3. Set the Temperature Range: The equipment should be set to a temperature range with limits above and below the melting point of the reference material.
4. Insert the Sample: Attach a clean, dry capillary tube containing some amount of the reference material into the designated slot of the apparatus.
5. Initiate Calibration Test: Commence the cycle of raising the temperature and examine the sample alongside the temperature admitted by the instrument’s scale calibrator during the melting process. Document the temperature during the commencement and completion of the melting phase.
6. Compare Results: Check the previously documented temperature values and the melting point of the selected heating standard to consider and record them to refer back to any additional markings for correcting deviations from set standards, which can be mismatched.
7. Adjust Settings if Necessary: If a deviation from the provided or set values is observed, always apply the noted values in the user guide’s instruction booklet by presetting the listed guidelines surrounding changeable elements identified through predefined device measurements.
8. Finalize Calibration: Re-administer the test and confirm accuracy. The calibration process is completed when accurate readings are consistent throughout multiple checks, and the instrument is ready for use.

Check every manual, electronic, or graphical interface that provides user interaction with the system at rest—it is a resettable system controller, so frequent users should reset it often.

Optimizing the Temperature Range for Accurate Measurements

To maximize accuracy in temperature measurement, always adhere to the operational limits set by the device’s manufacturer. Operating outside these limits can expose the device to potential damage or yield incorrect measurements. Make sure the setting where the device is to be used possesses low-temperature variation and allows the device to adapt for an extended period before it is used. Ensure the device is periodically examined and its parts serviced to work properly within their respective environments. Most importantly, reliable measurements should be kept, and the manufacturer’s guidelines should always be trusted.

Ensuring Accurate Results: Tips and Techniques

1. Calibration: It’s best to use certified calibration instruments as outlined in the schedule, as this provides maximum results, while regular calibration ensures precise instrument measurements.
2. Environment: To ensure no measurement errors occur, operate the device within the temperature, pressure, and humidity ranges specified by the manufacturer.
3. Handling: Carefully handle the instrument to avoid misaligning components that could impact readings or cause physical damage.
4. Maintenance: Routine inspections and cleaning are necessary to keep the device in the best working condition. Any worn or defective parts need to be changed immediately to avoid issues later.
5. Training: All operators should be trained on proper device handling and usage to reduce any user error they cause.

Measurements across many applications can prove reliable and accurate when the abovementioned techniques are implemented.

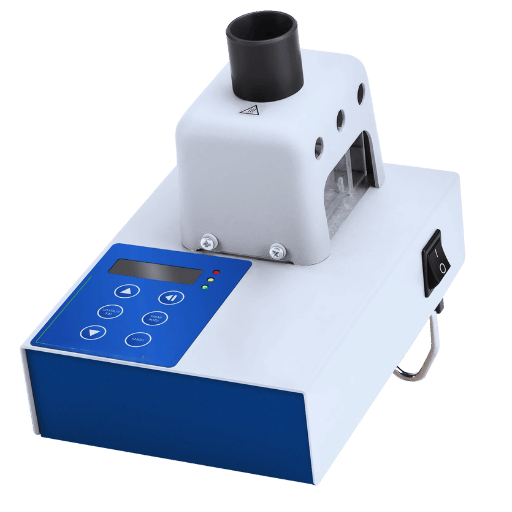

Why is the Slip Melting Point Important in Analytical Chemistry?

The Importance of Pharmacopeia Standards

The standards established are crucial in analytical chemistry because they set clear guidelines regarding the quality, purity, and uniformity of the substances utilized in a specific domain and pharmaceutics. These standards also guarantee that the products achieved are safe and effective and thus serve as a pharmacopeial benchmark for compliance and quality assurance. Complying with such standards allows researchers and manufacturers to retain reproducibility in the analyses and development, thereby minimizing variability and guaranteeing public health and safety.

Comparing the Cloud Point and Melting Points of Crystalline Substances

The cloud and melting points differ in the crystalline materials’ thermal characteristics. The cloud point pertains to the temperature at which a substance changes from a transparent appearance to a cloudy look owing to the beginning of phase separation or crystallization in a solution. It is frequently applied to check the solubility and stability at different temperatures. Comprising of solid crystalline, the substance has a definite melting point (or else referred to as the melting point of the substance). This value is essential while recognizing and describing a mono-crystalline substance. The cloud point is prominent in solutions and emulsions, while the melting point is relevant only to pure crystalline matter. Both measurements are essential in maintaining the standard and determining the nature of materials.

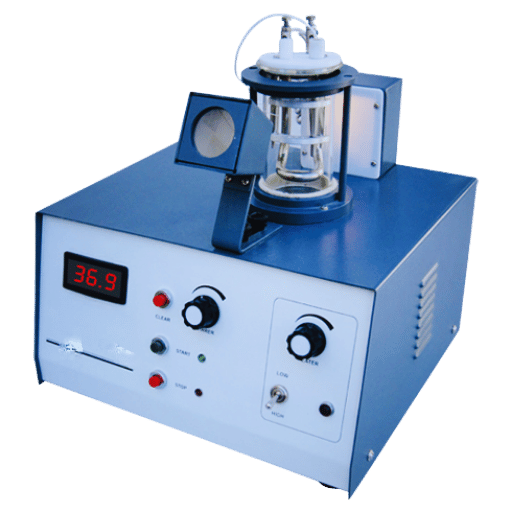

How to Maximize Your Efficiency with Melting Point Devices?

Choosing the Right Melting Point Device for Your Needs

Device selection begins with identifying the needs of your laboratory. If an easy-to-use device with basic features suffices, it can cater to routine quality control. On the contrary, academic and research laboratories may require advanced functionality, broader operating range, and advanced precision features to accommodate a wider array of samples. Ensure the device has the required temperature ranges and meets the predetermined accuracy thresholds on the device’s digital displays. Take into account the automation features of the device as well since fully automated devices can optimize work processes and minimize operator error. Lastly, check that the device performs within the bounds of the prescribed standards so you can obtain consistent and dependable results.

Sample Preparation and Melting Point Measurement

Proper procedures must be followed to obtain precise and accurate melting point determinations. Firstly, obtaining a clean, bunged sample is critical since impurities may alter the measurement accuracy. To facilitate adequate heat flow, the sample must be finely abraded and tightly packed within a capillary tube. During the measurement process, confirm that the device is calibrated correctly, the recommended heating rate is within the alleged bounds, and there is no orthogonal offset. Following precise temperature measurement and accuracy, adherence to defined sops will increase, resulting in certainty and consistency.

Utilizing Digital Image Technology in Modern Melting Point Instruments

Contemporary melting point apparatuses integrated with digital imaging technology improve the precision and dependability in determining a substance’s melting point. This technology allows accurate sample observation during melting, minimizing the operator’s subjectivity. High-grade cameras capture the whole phase transition, which can be analyzed and documented later. In addition, digital systems often include automated detection algorithms to find the exact melting point, improving operational efficiency and outcome consistency. These features enhance the functioning of analytical laboratories and make them reliant on imaging technology.

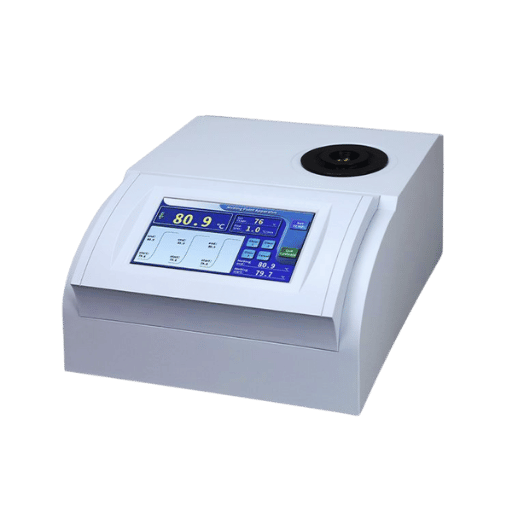

Exploring the Features of the SMP10 Digital Melting Point Apparatus

Analyzing the LCD Display and User Interface

The SMP10 Digital Melting Point Apparatus contains an LCD module that is high in contrast and is tailored for easy and accurate reading interpretation. The interface is user-friendly and has clear buttons that provide streamlined workflows. Such design considerations optimize the system’s usability while reducing training requirements for novice users. For example, display information includes but is not limited to sample temperature, progress, and melting point values, which aid in accurate monitoring and documentation of results. Collectively, these features improve the high performance, accessibility, and reliability of the device for laboratories that utilize it for professional training.

Benefits of Using 21 CFR Part 11 Compliant Systems

Systems compliant with 21 CFR Part 11 provide greater security and trust for electronic records and signatures, ensuring compliance with FDA requisites. These systems protect data integrity by safeguarding against unauthorized access, information modification, or data loss. Furthermore, these systems facilitate regulatory approval by providing complete audit trails, electronic signatures, system validations, and comprehensive compliance checks. In highly regulated sectors, including pharmaceuticals, biotechnology, and medical technologies, this compliance minimizes risks while enhancing documentation procedures within controlled processes. Adopting these systems enhances organizational productivity by increasing efficiency across critical processes.

The Impact of Thiele Tube Techniques on Precision

The Thiele tube technique markedly improves the accuracy of melting point measurement by offering constant heating and restricting temperature variations. This method guarantees proper heating throughout using a glass tube specially crafted for each case containing thermally conductive fluids such as oil. The slow and steady increase in temperature limits the degree of error due to the dominance of value discrepancies in the range of temperature gradient inequality, which is critical for the reliable and consistent determination of melting points in research laboratories and industrial systems.

Frequently Asked Questions (FAQs)

Q: What is the use of melting point apparatus?

A: A melting point apparatus determines the temperature at which a substance must be heated to convert it from solid form to liquid. This is very important when identifying or defining organic crystalline substances.

Q: How does a melting point tester work?

A: A melting point tester works by placing a sample in a capillary tube and raising the temperature until it softens, noting the temperature at which it begins to melt and when it is fully melted. This method allows for the simultaneous determination of the melting point of different samples.

Q: What is the significance of using a standard mercury thermometer in melting point determination?

A: A standard mercury thermometer tends to be the most accurate when associated with weak points of the melting range in a substance to be melted, therefore adding to the precision of the measurement for analysis.

Q: How does one calibrate a melting point apparatus?

A: A calibration procedure involves comparing the apparatus’s readings against a specific value supplied by the reference specimen, which states the melting point within the known bounds.

Q: In modern melting point instruments, how is image processing used?

A: For Mettler Toledo products, digital image processing involves sample image magnification and recording melting processes to enhance the precision and accuracy of modern melting point apparatus.

Q: What effect do you expect the ramp rate to have on the accuracy of melting point determination?

A: The rate at which temperature is increased, or ramp rate, determines how accurately one can measure the melting point. Measure the temperature at which a sample changes from solid to liquid (melting) slowly, which enables better range observation and, thus, greater measurement accuracy.

Q: Describe the Thiele’s melting point tube and its function.

A: A Thiele melting point tube is a type of laboratory glassware used alongside a melting point apparatus. The tube contains the sample and is placed in a heated liquid bath, ensuring the sample is uniformly heated, making it easier to determine when the sample melts or boils.

Q: What are the advantages of using analytical instruments to test melting points?

A: Research and industry focus on product development. Analytical instruments provide excellent clinical service in determining melting point value, ensuring standards of purity and quality are achieved.

Q: Can several samples be tested simultaneously in a melting point apparatus?

A: Yes, quite several contemporary melting point testers offer the capability of testing different samples simultaneously, which improves the lab’s efficiency and productivity.

Reference Sources

1. Using Keras and TensorFlow, a CNN-Based Deep Learning Model for Real-Time Analysis of the Melting Point of Chemicals.

• Author: Anurag Shrivastava
• Publication Date: August 23, 2024
• Summary: In this paper, the author develops a deep learning model to detect the melting point of chemical substances in real-time, which can be very advantageous in the pharmaceutical and chemical industries. With the aid of TensorFlow and Keras, the model is built on the framework of a Convolutional Neural Network (CNN). It employs a Deep Neural Network (DNN) architecture to classify images of the states of chemicals (solid or liquid) with profound accuracy rates of 99.72% and 99.37% for image classification and validation accuracy, respectively. The methodology is centered on providing image data processing and classification, particularly on the given model, which is purported to work on a single-board computer (Shrivastava, 2024).

2. A new algorithm to automate the detection of melting points of crystalline chemical substances.

• Authors: Anurag Shrivastava, R. Sushil
• Publication Date: June 8, 2023.
• Summary: This conference paper presents the Improved Melting Point Detector (IMPD) algorithm, which improves melting point determination accuracy by calculating intensity values from multiple pixels instead of a single pixel. This method mitigates problems with air bubbles in the measurement. The algorithm was applied to test five crystalline substances, yielding a maximum accuracy of 99.10% for magnesium nitrate and D-glucose. This research reinforces the need to compute intensity values from multiple pixels for reliable measurement (Shrivastava, Sushil, 2023, pp 1-7).

3. The Integration Intelligent Melting Point Apparatus

• Authors: Fang Bai, Shan Li, K. Cheng
• Publication Date: 1st June 2013
• Summary: This work explains the construction and operation of an Intelligent Melting Point Apparatus comprising a microcontroller, a temperature sensor, a heating system, and an LCD. The apparatus is inexpensive yet highly precise, with a temperature control accuracy of ±0.2°C. The study emphasizes the hardware framework’s elementary nature compared to the software algorithms implemented(Bai et al., 2013, pp. 1617–1621).
