How much does rapid prototyping cost?

Prototyping is essential in product development, linking initial pieces and market-ready designs. It allows a creator to test potential ideas and their flaws to improve and build upon them before full-scale production. But one question often arises – How much does a prototype cost? This blog post explores in detail the factors that affect prototyping costs, the approaches to rapid prototyping, and how companies can maintain an equilibrium between quality and budget. Regardless of attempts made to control expenses, prototyping will always incur costs. In this article, you will gain insights into managing expenses, streamlining procedures, and understanding the more significant scope of successful product development.

What is a Prototype, and Why is it Important in Product Development?

A prototype is defined as an early sample of a product made to test a concept for functionality and other aspects before commencing full-scale production. A prototype simplifies a product idea into a form that can be lived, touched, and visualized. This is especially important when creating new products because having an early representation in the shape of a prototype helps the stakeholders and markets evaluate the product better. Businesses can make better decisions and facilitate innovation using prototypes because they help resolve most challenges while devising and designing products. Ultimately, using prototypes enables companies to make more products in less time and ensures minimum expenses for a maximum rate of return.

Understanding the Basics of a Prototype

What is the primary purpose of a prototype?
The core intention behind creating a prototype is to test and verify a product concept before launching production. Seeking feedback during this stage allows for identifying problems and provides insight into improving the efficiency of functionalities.

What are the key types of prototypes?
Simple drawings or mockups that convey ideas quickly are categorized as low-fidelity prototypes. Attained through thorough prototyping, high-fidelity prototypes, on the other hand, include interactive models that approximate the finalized product and are therefore suitable for feature specification testing.

What are the critical technical parameters to consider?
To achieve intended goals, each feature needs to be designed accurately, ensuring functionality is accurately met. Materials chosen may aid in balancing cost (for example, 3D-printed plastics with lower realism) and effectiveness.

Dimensions and Tolerances: Verify quantity and limits meet measurement requirements for production.

Usability Testing Metrics: Assess user interactions’ success and failure rate to improve design further.

What are the impacts of prototyping on development cost and schedule?

Prototyping increases initial spending but lowers costs over time due to reduced mistakes and redesigns. Timelines benefit because many issues are fixed early rather than towards the end of the production stage.

Prototyping focuses on meeting these goals to aid in the transition from a concept to a finished product for users while meeting the necessary engineering requirements.

The Role of a Prototype in the Product Development Process

Prototyping is essential to product development because it links ideas with their implementation. It provides straightforward answers to important questions about the product’s scope of work, design, and market opportunities. Given the technology and research at hand, we try to answer the following questions:

What are the main benefits of prototyping?

Prototyping provides an opportunity to validate design and usability at the initial stages, which enables the elimination or minimization of errors and inefficiencies. Prototyping improves stakeholder engagement since they can see the model and provide their input into the final product. At the same time, prototyping reduces the chance of expensive errors during large-scale production. In addition, prototypes are designed to simulate real-life scenarios to guarantee products meet users’ needs and technical criteria.

How does prototyping affect costs and timeframes?

Although prototyping increases the initial outlay (a few hundred dollars to several thousand, depending on complexity and materials), it saves money in the long run by eliminating errors in subsequent development phases. Prototyping also reduces timeframes by solving design and functional issues early in the process, leading to a more efficient production phase and time savings by reducing delays.

What common prototype types are used, and what are the corresponding technical attributes?

Low-fidelity prototypes (like sketches or paper models) strive to support ideation during its earliest phases, emphasizing design instead of technical details.

High-fidelity prototypes (like 3D-printed production models or functional electronic devices) Have specific operational criteria for testing mechanical or electronic functions. Essential characteristics are strength, built-in tolerances (of mechanical parts, ±0.1 mm), and material characteristics.

Digital (CAD) prototypes, or software-based models, serve in virtual testing situations for performance, stress analysis, or inter-compatibility. Important aspects are the level of detail in the rendering (up to one px) and whether design software is used.

How does prototyping integrate the user’s needs and expectations within the technical scope?

Working on each prototype version’s feedback loop allows for meeting the prototype’s analysis criteria while allowing for more realistic expectations. This reduces ambiguity, improves communication between designers, engineers, and users, and almost guarantees the satisfaction of all parties concerned with the project.

In the end, prototyping allows for further development and the approval of several ideas, reduces delays in bringing the product to market, and increases compliance with set goals and consumers.

Why Prototyping is Essential for Successful Product Design

Prototyping plays a vital role in the design of a product since it allows us to test ideas before the start of production. A prototype takes a physical form that permits the concept to be evaluated for design issues, interface, and usability so that it can be made functional. It enables users to provide meaningful insight while also functioning as a filter to determine if the value is added during the initial stages of development, which saves money and time and increases the final quality of the product for both the consumers and engineers.

Key Technical Parameters to Consider in Prototyping:

Material Selection – A prototype material should simulate how the final product will be used in defense, function, and look.

Fidelity Level—Based on the production phase and required objectives, choose low-, medium-, or high-fidelity prototypes (for example, wireframes for initial phases and fully operable models for advanced testing).

Compatibility – Ensure the prototype interacts smoothly with the intended software or hardware parts.

Scalability – Determine if the prototype will be cost-effectively designed for mass production.

By utilizing these methods, the product vision can seamlessly align with its practical execution, making the prototype efficient and effective.

How Does Rapid Prototyping Work and What Are Its Benefits?

What Is Rapid Prototyping?

A product model is made using CAD software, and 3D or CNC manufacturing techniques, such as 3D printing, are used. The procedure begins with a digital design that the employees try to convert to a physical prototype using available tools. Because iterations are made rapidly, teams can improve on designs and concepts in real-time, which helps speed up decision-making and reduce development time. The iteration, testing, and building cycle accelerates these processes even further.

What Is The Importance of Rapid Prototyping?

Rapid prototyping helps shorten development cycles while remaining cost-effective. Better accuracy in operating in a rapid prototyping environment drastically reduces errors. These substantial benefits lead to better product-market fit analysis, thanks to gathering sufficient user feedback and addressing other technical issues in earlier phases of development. Creativity and innovation are further enhanced as more ideas and concepts can be presented, analyzed, and improved.

Exploring the Rapid Prototyping Process

Key Advantages of Rapid Prototyping in Product Development

Accelerated Product Development Timeline

Prototyping enables better visualization and iteration of product designs. Establishing functional prototypes within the design cycle allows engineers and designers to resolve issues proactively, thus addressing numerous debugging challenges and time-consuming revisions during the later stages.

Enhanced Collaboration and Communication

Designers, engineers, stakeholders, and potential customers can easily interact and share ideas with tangible digital or physical prototypes. This advanced feedback mechanism fosters improved collaboration and builds product consensus.

Cost Efficiency

Misguided prototypes lead to costly errors, but the iterative approach of rapid and agile prototyping helps mitigate design issues at the earliest stages. Economic prototype production enables the use of advanced equipment like 3D printers, CNC machining, and injection molding simulations, which reduces development expenses.

Improved Customization and Personalization

Meeting specific user or niche market needs is easy, with tailored designs made possible through rapid prototyping. Advanced additive manufacturing technology enables cheap tooling molds for detailed, customizable prototypes.

Validation from a Technical Perspective

To validate the technological aspects in the real-world context, teams can use prototypes that closely approximate the end product regarding materials, measurements, and functionality. For instance, testing the thermal performance within the range of seventy to eighty degrees Celsius alongside structural loading tests assures that the expectations are fulfilled.

Advance of Technology

The iterative prototyping design process is inherently experimental, allowing designers a wide latitude for creative problem-solving. Because it is so welcoming to innovation, it significantly changes the design, underlying functionality, and usability.

Rapid prototyping is crucial for harnessing these benefits. It accelerates the product development life cycle and overcomes the valuable design and compelling product paradox. It equips teams to address user and system needs, enabling the delivery of dependable, premier products.

How Rapid Prototyping Helps Overcome Design Flaws

Rapid prototyping effectively resolves design errors since it allows for multiple rounds of testing and modifications during the early stages of product development. Building prototypes helps us pinpoint potential problems, from user interface issues to structural issues and even mismatched specifications, all before mass production. This process allows for fast feedback and adjustments, ensuring that user needs and technical restrictions are met in the best way possible.

Some vital technical parameters within its scope of work are:

Material Properties – Strength, flexibility, or durability assessment is achieved with proper testing materials that closely resemble the final product.

Resolution and Precision – Intricate details are captured with high-resolution prototypes, further exposing dimensions and alignment flaws.

Functional testing – Identifying operational defects and validating performance is done through real-world use simulations.

Optimized designs achieved through rapid prototyping shorten development time, lower costs, and meet functional and aesthetic standards.

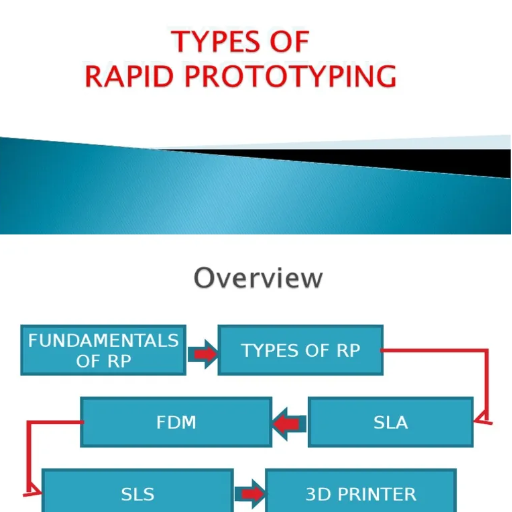

What Are the Different Types of Rapid Prototyping?

Several options exist for choosing rapid prototyping methods, each applicable to specific design requirements and testing objectives:

3D Printing/Additive Manufacturing – Relies on the sequential layering of components, such as metal, plastic, or resin, to create a high-accuracy and flexibility prototype.

CNC Machining – A form of subtractive manufacturing that chips a prototype from a solid material capable of producing highly accurate and substantial parts.

Injection Molding builds a prototype with parts molded into specific shapes, helping to achieve a prototype design that can be mass-produced.

Stereolithography (SLA) – Makes use of laser beams focused on a pool of liquid resin capable of curing and producing highly intricate prototype parts.

Selective Laser Sintering (SLS) involves Fusing powdered materials with a laser and producing robust parts requiring precision.

Every method has its own set of goals, which help engineers and designers develop their best designs faster.

An Overview of Additive Manufacturing and Its Benefits

Additive Manufacturing, more popularly known as 3D printing, has revolutionized modern production by allowing unprecedented flexibility and efficiency. Below are details of the significant advantages and their technical parameters:

Freedom of Design

Enables the creation of complex features without traditional manufacturing boundaries.

Technical Parameter: According to the method used, the minimum feature size achievable is between 0.1 mm and 0.25 mm (SLA yields finer features).

Material Efficiency

Constructs components in layers, leading to less unused materials.

Technical Parameter: Can reach more significant than 90 percent material utilization rates, lessening scrap significantly.

Rapid Prototyping

Delivers models in a matter of hours, speeding up design-to-production timelines.

Technical Parameter: Depending on the technology used (SLA, FDM), the printing speed ranges from 10 to 50mm/hour.

Customization

Facilitates personalized production, proper in healthcare (prosthetics) and consumer goods.

Technical Parameter: Biocompatible resins and reinforced polymers are some adaptable material options.

Cost Efficiency for Low Volumes

Small-batch production no longer requires costly tooling.

Technical Parameter: The average cost per part decreases significantly compared to traditional methods for low-volume runs.

Enhanced Functional Prototypes

Models designed to withstand mechanical testing and practical application are durable.

Technical Parameter: Parts made of nylon with SLS exceeding 48 MPa in tensile strength, ensuring durable use.

As mentioned earlier, understanding the aspects connected to the advantages allows Additive Manufacturing to specialists because of its flexibility and eco-friendly nature.

Understanding CNC Machining and Subtractive Manufacturing

CNC Machining is subtractive manufacturing that reshapes materials like metals or plastics into desired parts through various processes, including grinding, cutting, and drilling. It is distinct from additive manufacturing in that a block or slab of material serves as the starting point rather than being built up layer by layer. CNC machining is a highly advanced technology widely employed in industries requiring high precision and efficiency.

CNC machining offers many benefits, including high compatibility for large-scale production and precision manufacturing with tolerances up to 0.005 mm and the ability to work with diverse materials. It is especially effective when working with minute details on complex parts needing sharp edges.

Technical Parameters and Materials

Tolerances and Accuracy

Part geometry and the raw material can affect a product’s precision tolerance. For average CNC users, tolerances are between 0.01 mm and 0.1 mm, while high-quality machines can reach 0.005 mm.

Surface finishes commonly range from Ra 1.6 µm to Ra 3.2 µm, but additional polishing can help achieve more excellent finishes up to Ra 0.8 µm.

Material Compatibility

Aluminum, steel, titanium, brass, and certain plastics, such as nylon, ABS, and polycarbonate, are all compatible with CNC machining.

After a threshold, certain metals like stainless steel and titanium lower the machining speed considerably to avoid tool wear.

Types of Machining

The most common type of machining is the 3-axis CNC Machine, which operates in the X, Y, Z, and horizontal axes.

5-Axis CNC Machines can rotate in five axes simultaneously, facilitating complex designs such as aerospace components and medical prosthetic devices fabrication.

Principles of Subtractive Manufacturing

Subtractive manufacturing includes various processes, such as CNC machining, laser cutting, and waterjet cutting. The primary characteristic of all these processes is material removal to achieve the final product. These processes are efficient for durable and precise components, but they have an adverse material balance compared to additive manufacturing.

Considering the most important parameters, CNC machining and subtractive manufacturing remain instrumental in the aerospace and automotive industry and the production of industrial equipment. Time, cost, and resource efficiency must be considered. Precision and reliability ensure the processes remain relevant in modern manufacturing.

Choosing the Right Prototyping Method for Your Project

When selecting an appropriate prototyping method for my project, I always consider the objectives, budget constraints, and the level of sophistication the design demands. Additive manufacturing procedures such as 3D printing best fit projects with aggressive schedules, complicated shapes, and minimal material wastage. CNC machining is more appropriate for high-precision parts made of rigid materials (primarily metals) with stringent dimensional accuracy and tolerances.

Some key technical parameters I consider include:

There is no material match (PLA, ABS, or resin for 3D printing vs. aluminum, steel, or titanium for CNC machining).

The surface finish standard is low (a smoother finish is achieved by CNC or after 3D printing).

Production time none (fast production by 3D printers as opposed to slower by CNC)

Dimensional tolerances (For example, ±0.005 inch for CNC machining or ~±0.1 inch for simple 3D printing)

I thoroughly consider all these aspects and ensure the approach meets the project’s goals while optimizing resources and results.

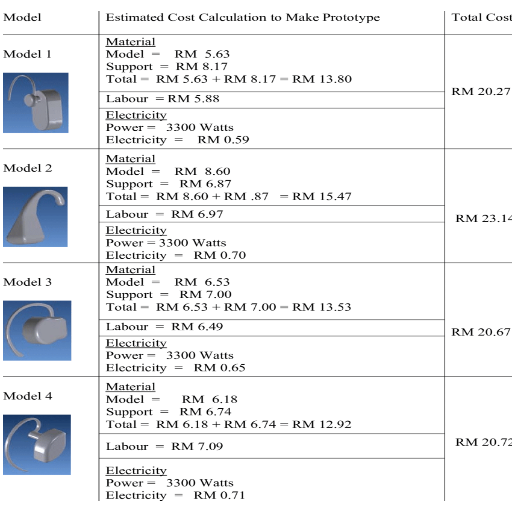

How to Calculate the Cost of Rapid Prototyping?

To determine the price of rapid prototyping, be sure to take the following elements into account:

Material Costs—Their estimate must include the necessary items for the prototype and any waste or supportive structures. For 3D printing, this could involve calculating filament or resin expenses, while CNC-machined materials may include metals and plastics, too.

Machine Operation Time- Determining the time the machine requires to develop the prototype. The longer the time of production, the higher the costs incurred through the use of the machine.

Labor Costs include all expenses related to machine preparatory work, maneuvering the item, and post-machining actions such as painting or sanding the object.

The complexity of design—Intricate designs require more advanced setup, specialized tools, and prolonged production time, which incurs higher charges.

Post-Processing Requirements- Incorporate all final additions like assembly, polishing, painting, or any other constituent that culminates in a finished part.

Using the above primary pointers, you can arrive at the estimated price of rapid prototyping without compromising quality or cost.

Factors Affecting the Prototype Cost

Factors associated with the cost of a prototype will be analyzed in the following sections:

Material Costs

Key Parameters include the type of material (plastic, metal, and/or resin), quantity, and quality.

Impact: The expenses for specialty-grade materials, such as carbon fiber, and higher-tier materials are exceedingly costly.

Labor Costs

Key Parameters: Manual labor hours (simple vs. complex: like assembly required, post-processing), precision level (basic naive hands-on level to skilled paintwork).

Impact: Skilled labor, such as the intricate sanding and painting of surfaces, incurs higher labor costs.

Complexity of Design

Key Parameters: Number of parts, geometry intricateness, and tolerance levels.

Impact: Advanced or complex designs may need advanced machining and be produced slowly, which directly utilizes cost.

Post Processing Requirements

Key Parameters: Type of finish required (e.g., polishing, painting), detail, and surface roughness values (in microns).

Impact: Processes involving parts polishing for smooth or precision-fit parts assembly incur additional time and material costs.

Understanding the parameters makes it possible to forecast and control costs associated with prototype production.

Estimating the Overall Cost for Your Product Prototype

To address questions about estimating the cost of your product prototype, it is essential to consider a set of connected factors. Research has emphasized the following issues:

Selection of Materials

Technical Parameters

Material form: metals, plastics, composites, etc.

Strength, flexibility, and heat resistance.

Impact

Selected materials may include titanium or carbon fiber, which could significantly increase costs. However, more affordable options like ABS plastic or aluminum could be used. Make sure the selected material is consistent with the prototype’s needs and environment.

Methods of Manufacturing

Technical Parameters

Method: 3D printing, CNC machining, injection molding, casting.

Tolerances achievable (CNC: ± 0.01mm, 3D printing: ± 0.1mm).

Impact

Different manufacturing methods will have different costs depending on the level of precision, part volume, and complexity. Currently, 3D printing is a favorable and cost-efficient method for producing low-volume prototypes, while injection molding is widely recognized for being more cost-efficient for mass production.

Design of Prototypes

Technical Parameters

The total number of components

The level of precision that is required and the ease of assembly

The ability of multi-axis machining to make intricate geometries.

Impact

Strategies that can reduce cost, like minimizing material waste and reducing manufacturing lead times, are deeply rooted in simplified design. More complex designs that require advanced techniques, such as 5-axis CNC, will significantly increase expenses.

Post Processing

Technical Parameters

Finishing type: polishing, painting, anodizing, etc.

Surface roughness (Ra 0.8μm for high-quality finishes.)

Processes that achieve functional or aesthetic finishes may significantly increase the overall cost. Additional inspection stages may also be required for precision parts.

Prototyping is an iterative process. When integrated within a more extensive product development paradigm, estimating the expected expenses transforms into a systematic balancing act of functionality and costs. Experienced manufacturers and cost-estimating software further guarantee the efficiency of the provided estimating tools.

Ways to Achieve Cost-Effective Prototype Manufacturing

To manufacture a prototype, I seek a practical design and production approach. First, I reduce the design complexity by removing unnecessary components, lowering the required material, and reducing production time while increasing the components’ manufacturability. In this context, the associated acceptable tolerances should be defined, for example, +/—0.1mm non-critical dimensions. For 3D printing, the layer thickness can be set to 0.2mm for standard precision.

Another approach to cost control I employ is selecting materials with reasonable and appropriate performance levels. For example, I would use ABS plastic for prototypes instead of higher-cost engineering-grade plastics or composites. Moreover, the material must possess the proper strength and thermal resistance to accomplish the project objectives.

Lastly, I focus on the prototype’s primary purpose: the processes employed to produce it. 3D printers and CNC machining are highly suited to low-volume production, as are rapid tooling and modular fixtures, which lower costs. Early collaboration with manufacturers and the application of design-for-manufacturing techniques meet the cost and efficiency objectives.

What Are the Best Rapid Prototyping Tools and Services Available?

Various 3D printing services and tools can assist rapid prototyping and cater to multiple project needs. Hardware options include printers from Ultimaker, Formlabs, and Prusa, each providing quality outputs with different levels of precision and materials. For 3D model creation, robust applications such as Autodesk Fusion 360, SolidWorks, and TinkerCAD efficiently complete these processes.

In terms of service, Shapeways, Protolabs, and Hubs offer on-demand manufacturing for 3D printing, CNC machining, and injection molding. These all-in-one solutions guarantee timely and quality results, greatly aiding prototyping practitioners of all skill levels.

Essential CAD Software for Product Design

The choice of CAD (Computer-Aided Design) software tools directly influences product design accuracy and affects functionality and productivity. This makes it necessary for companies to choose appropriate software that can help achieve efficient product design. Below is a selection of CAD tools that are well-known in the market due to the advanced features and flexibility they offer:

SolidWorks

Specialization: 3D CAD modeling and mechanical design.

Key Features:

Heavily loaded library of simulation tools for structural analysis, flow simulation, and motion analysis.

Ability to execute parametric designs that maintain relationships between features.

User-friendly graphic interface with real-time rendering.

Technical Specifications:

Model accuracy of between ±0.01 mm.

For collaboration, file import/export options include DWG, DXF, STEP, and IGES.

AutoCAD

Specialization: Versatile software for 2D drafting and 3D modeling.

Key Features:

Drafting tools for floor plans and electrical and mechanical designs.

Real-time collaboration using cloud technology.

APIs such as AutoLISP allow for workflow customization.

Technical Specifications:

2D accuracy of sub-millimeters.

Over 60 file formats, including DGN, STL, and OBJ, are supported.

Fusion 360

Specialization: Combination of design, simulation, and manufacturing tools in one platform.

Key Features:

CNC programming through CAD/CAM integrated functionality.

Version control allows collaborative design changes in real-time.

Stress analysis and thermal conductivity testing simulation features.

Technical Specifications:

Design tolerances of about ±0.001 mm are supported.

Modular assembly modeling with multi-body dynamics simulation capabilities.

These CAD programs are designed to increase productivity, accuracy, and the level of customization in design. They are necessary for anyone who deals with sophisticated product development issues. The selection of software should consider the required project parameters, such as its modular complexity, available file types, and subsequent manufacturing processes.

How to Select the Right Rapid Prototyping Services for Your Needs

When selecting rapid prototyping services, I look for a balance of turnaround time, precision, and material suitability. I initially consider the prototyping process undertaken, such as 3D printing (SLA, SLS, or FDM), CNC machining, and injection molding, or what other sorts of detail and functionality are expected of the final products. For example, SLA is precise with complex designs, while CNC machining is good at producing durable functional prototypes.

Afterward, I looked into other technical details, such as layer resolution, which for SLA ranges from 25 to 100 microns; tolerances, which for most methods are +/—0.05 mm; and the material’s structural performance, with reinforced plastics having >50 MPa of tensile strength. It is also essential to know what lead times some of the services offer—some promise a 24-72-hour turnaround time, which is helpful when time constraints are tight.

To complete the assessment, I will investigate how the provider manages my particular file types (STL, OBJ, STEP) and their communication or feedback practices during the production phase. By attempting to match the service characteristics with my project’s complexity, budget, and intended use, I will ensure that the rapid prototyping service caters to my specific requirements.

References

Prototype

3D printing

Rapid prototyping

Leading CNC Metal Machining Provider in China

Frequently Asked Questions (FAQ)

Q: What is rapid prototyping, and how does it affect production costs?

A: Rapid prototyping is a manufacturing technique that allows designers and engineers to create physical prototypes of their designs quickly. It significantly reduces production costs by enabling faster iterations and modifications during the design process. Rapid prototyping allows for early detection of flaws and improvements, ultimately leading to a more cost-effective final product.

Q: How much does a prototype cost when using rapid prototyping?

A: The cost of prototyping using rapid techniques can vary widely depending on complexity, size, materials, and quantity. It can range from a few hundred to several thousand dollars on average. However, due to its efficiency and reduced time to market, rapid prototyping often results in overall cost savings compared to traditional methods.

Q: What are the benefits of rapid prototyping for product designers?

A: Rapid prototyping offers numerous benefits for product designers, including faster design iterations, reduced development time, improved communication with stakeholders, early detection of design flaws, and the ability to test multiple design variations quickly. It also allows for creating functional prototypes and proof of concept models, which can be crucial for securing funding or client approval.

Q: How does 3D printing contribute to rapid prototyping?

A: 3D printing is a key technology in rapid prototyping, offering a quick and cost-effective way to produce physical models. It allows for creating complex geometries that might be difficult or impossible with traditional manufacturing methods. Rapid prototyping with 3D printing enables designers to iterate on their designs quickly, test form and fit, and even create functional prototypes for testing.

Q: What factors affect the price of rapid prototyping?

A: Several factors can affect the price of rapid prototyping, including the size and complexity of the model, the materials used, the chosen rapid prototyping method (e.g., 3D printing, CNC machining, or rapid injection molding), the required finish quality, and the number of prototypes needed. Additionally, the expertise of the rapid prototyping company and the turnaround time can also impact the overall cost.

Q: How does rapid prototyping compare to traditional manufacturing processes?

A: Rapid prototyping offers several advantages over traditional manufacturing processes, especially in the early stages of product development. It allows for faster iterations, reduced tooling costs, and the ability to create complex geometries. However, traditional manufacturing may be more cost-effective for large-scale production. The choice between rapid prototyping and traditional manufacturing depends on production volume, complexity, and time constraints.

Q: What are some examples of rapid prototyping techniques?

A: Various rapid prototyping techniques are available, including 3D printing (such as FDM, SLA, and SLS), CNC machining, rapid injection molding, and vacuum casting. Each method has its strengths and is suitable for different applications. For example, 3D printing is excellent for creating complex geometries, while CNC machining is ideal for producing high-precision metal parts.

Q: How can rapid prototyping help reduce overall product development costs?

A: Rapid prototyping can significantly reduce overall product development costs by allowing for early detection and correction of design flaws, reducing the need for expensive tooling changes later in the process. It also enables faster iterations and reduces time-to-market, which can result in substantial cost savings. Additionally, rapid prototyping can help minimize material waste and allow for more efficient use of resources throughout the development process.
