Titanium Grade 1
Material Notes: Titanium Grade 1 is a corrosion-resistant high alloyed titanium material which contains at least 99.1% titanium. It is light weight, has high durability, and can withstand harsh conditions which make it suited for marine, chemical processing, aerospace, and automotive industries. Grade 1 titanium is appealing due to its outstanding strength, formability, and weldability. It is a reliable material for a wide variety of applications.
Applications: Titanium Grade 1 is a pure form of titanium that offers exceptional protection against corrosion. It is also very attractive due to its strength and dependability in harsh environments. For these reasons, it’s widely used in the Marine and Chemical industries for heat exchangers, storage tanks, and even for cathodic protection systems where corrosion mitigation is important. Additionally, the metal can easily be welded and is highly ductile, which allows for proper industrial fabrication.
Specifications for Titanium Grade 1
The given table offers a summary of the characteristics of the material mentioned above.
| Property Type | Property | Metric Value | English Value | Comments |
|---|---|---|---|---|
| Physical Properties | Density | 4.50 g/cc | 0.163 lb/in³ | |
| a Lattice Constant | 2.95 Å | @25°C, alpha phase | ||
| 3.29 Å | @900°C, beta phase | |||
| c Lattice Constant | 4.683 Ã… | c/a = 1.587 | ||
| Chemical Properties | Thermal Neutron Cross Section | 5.6 barns/atom | 5.6 barns/atom | Average for naturally occurring Ti |
| Mechanical Properties | Hardness, Brinell | 120 | 120 | Annealed |
| Hardness, Knoop | 132 | 132 | Estimated from Brinell | |
| Hardness, Rockwell B | 70 | 70 | Annealed | |
| Hardness, Vickers | 122 | 122 | Estimated from Brinell | |
| Tensile Strength | 124 - 138 MPa | 18000 - 20000 psi | @427°C | |
| 152 - 179 MPa | 22000 - 26000 psi | @316°C | ||
| 193 - 207 MPa | 28000 - 30000 psi | @204°C | ||
| Tensile Strength, Ultimate | 240 MPa | 34800 psi | ||
| Tensile Strength, Yield | 170 - 310 MPa | 24700 - 45000 psi | ||
| Elongation at Break | 0.24 | 0.24 | ||
| Reduction of Area | 0.35 | 0.35 | ||
| Tensile Modulus | 103 GPa | 14900 ksi | ||
| Compressive Modulus | 110 GPa | 16000 ksi | ||
| Poisson's Ratio | 0.37 | 0.37 | ||
| Shear Modulus | 45.0 GPa | 6530 ksi | ||
| Charpy Impact | 310 J | 229 ft-lb | V-notch | |
| Impact Test | 136 J | 100 ft-lb | Impact Strength | |
| Coefficient of Friction, Dynamic | 0.68 | 0.68 | Ti sliding on Ti; 300 m/min | |
| Electrical Properties | Electrical Resistivity | 0.0000420 ohm-cm | 0.0000420 ohm-cm | |
| Magnetic Permeability | 1.00005 | 1.00005 | @1.6 kA/m | |
| Magnetic Susceptibility | 3.98E-08 | 3.98E-08 | 1/kg; Paramagnetic | |
| Thermal Properties | Heat of Fusion | 325 J/g | 140 BTU/lb | High Purity Ti. |
| CTE, linear | 8.35 µm/m-°C | 4.64 µin/in-°F | @15°C | |
| Specific Heat Capacity | 0.520 J/g-°C | 0.124 BTU/lb-°F | ||
| Thermal Conductivity | 16.0 W/m-K | 111 BTU-in/hr-ft²-°F | Annealed | |
| Melting Point | <= 1670 °C | <= 3040 °F | ||
| Beta Transus | 882 °C | 1620 °F | ||
| Descriptive Properties | Alpha Phase Crystal Structure | cph, below 882°C | ||
| Beta Phase Crystal Structure | bcc, above 882°C |
View our latest news
The importance of plastic machining in industries that require precision-engineered components cannot be overemphasized; it is among the most versatile materials for such applications. Both plastics have similar features;...
The CNC milling machine is an advanced manufacturing method that offers unique accuracy, productivity, and flexibility in making complicated parts and elements. Nevertheless, what is a CNC mill? Furthermore,...
Modern manufacturing has been changed by CNC (Computer Numerical Control) machines that give unmatched efficiency, precision, and flexibility. Experts in the field or beginners in automated machining need to...
In the shaping and fabrication of metallic materials, there is a need to differentiate between metal cutting processes and machining processes for both industry professionals and amateurs. These two...

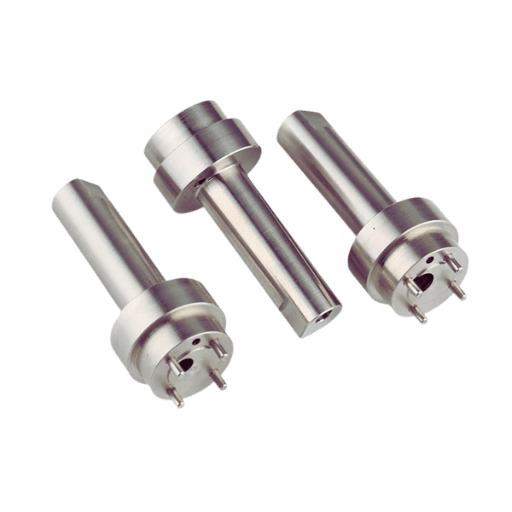

Get Titanium Grade 1 CNC machining parts from Hopeful
