Aluminum 7050-T7451 (7050-T73651)
Material Notes: 7050 alloy exhibits excellent strength characteristics and is highly resistant to exfoliation corrosion and stress corrosion cracking. Due to its considerable superior fracture toughness and fatigue resistance, this material is suitable for aircraft structures.
Composition Notes: Remember that the Aluminum Association provides composition information only for reference and should not be used for design purposes.
Specifications for Aluminum 7050-T7451 (7050-T73651)
This table provides a summary of material properties in terms of almost all of its elements concerning the physical, mechanical, electrical, thermal, processing, and component properties.
|  | |||
|---|---|---|---|
| Property | Metric | English | Comments |
| Density | 2.83 g/cc | 0.102 lb/in³ | AA; Typical |
| Hardness, Brinell | 140 | 140 | 500 kg load with 10 mm ball. Calculated value. |
| Hardness, Knoop | 177 | 177 | Converted from Brinell Hardness Value |
| Hardness, Rockwell A | 51.6 | 51.6 | Converted from Brinell Hardness Value |
| Hardness, Rockwell B | 84 | 84 | Converted from Brinell Hardness Value |
| Hardness, Vickers | 162 | 162 | Converted from Brinell Hardness Value |
| Tensile Strength, Ultimate | 524 MPa | 76000 psi | AA; Typical |
| Tensile Strength, Yield | 469 MPa | 68000 psi | AA; Typical |
| Elongation at Break | 11% | 11% | @Diameter 12.7 mm / 0.500 in; AA; Typical |
| Modulus of Elasticity | 71.7 GPa | 10400 ksi | AA; Typical; Average of tension and compression. |
| Poissons Ratio | 0.33 | 0.33 | |
| Fracture Toughness | >= 22.0 to 35.2 MPa-m½ | >= 20.0 to 32.0 ksi-in½ | Various directions (S-L, T-L, L-T) |
| Shear Modulus | 26.9 GPa | 3900 ksi | |
| Shear Strength | 303 MPa | 44000 psi | AA; Typical |
| Electrical Resistivity | 0.00000430 ohm-cm | 0.00000430 ohm-cm | |
| CTE, linear | 21.7 to 25.4 µm/m-°C | 12.1 to 14.1 µin/in-°F | Various temperature ranges |
| Specific Heat Capacity | 0.860 J/g-°C | 0.206 BTU/lb-°F | |
| Thermal Conductivity | 157 W/m-K | 1090 BTU-in/hr-ft²-°F | |
| Melting Point | 488 - 629.4 °C | 910 - 1165 °F | AA; Typical range for wrought products >= 1/4 in. thickness |
| Solidus | 488 °C | 910 °F | AA; Typical |
| Liquidus | 629.4 °C | 1165 °F | AA; Typical |
| Annealing Temperature | 413 °C | 775 °F | |
| Solution Temperature | 477 °C | 890 °F | |
| Aging Temperature | 121 - 177 °C | 250 - 350 °F | |
| Aluminum, Al | 87.3 - 90.3 % | 87.3 - 90.3 % | As remainder |
| Chromium, Cr | <= 0.04 % | <= 0.04 % | |
| Copper, Cu | 2.0 - 2.6 % | 2.0 - 2.6 % | |
| Iron, Fe | <= 0.15 % | <= 0.15 % | |
| Magnesium, Mg | |||
| Manganese, Mn | <= 0.10 % | <= 0.10 % | |
| Other, each | <= 0.05 % | <= 0.05 % | |
| Other, total | <= 0.15 % | <= 0.15 % | |
| Silicon, Si | <= 0.12 % | <= 0.12 % | |
| Titanium, Ti | <= 0.06 % | <= 0.06 % | |
| Zinc, Zn | 5.7 - 6.7 % | 5.7 - 6.7 % | |
| Zirconium, Zr | 0.08 - 0.15 % | 0.08 - 0.15 % |
View our latest news
The importance of plastic machining in industries that require precision-engineered components cannot be overemphasized; it is among the most versatile materials for such applications. Both plastics have similar features;...
The CNC milling machine is an advanced manufacturing method that offers unique accuracy, productivity, and flexibility in making complicated parts and elements. Nevertheless, what is a CNC mill? Furthermore,...
Modern manufacturing has been changed by CNC (Computer Numerical Control) machines that give unmatched efficiency, precision, and flexibility. Experts in the field or beginners in automated machining need to...
In the shaping and fabrication of metallic materials, there is a need to differentiate between metal cutting processes and machining processes for both industry professionals and amateurs. These two...

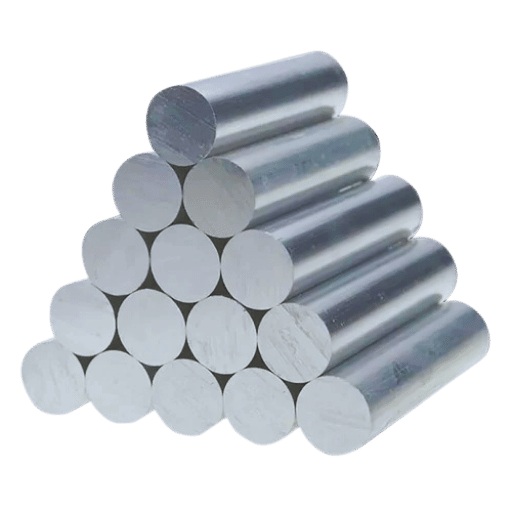

Get 7050 aluminum CNC machining parts from Hopeful
