Aluminum 6082-T6
Material Notes: Aluminum 6082 is a plate-type alloy. Due to its corrosion resistance, it is particularly preferred and well-recognized for machining and structural applications. 6082 is indisputably the strongest alloy in the 6000 series and is regarded as the most popular among all structural alloys.
Composition Notes: The Aluminum Association’s provided composition details are purely for informational reasons and must not be relied upon for design work.
Specifications for Aluminum 6082-T6
| Property | Metric | English | Comments |
|---|---|---|---|
| Density | 2.70 g/cc | 0.0975 lb/in³ | AA; Typical |
| Hardness, Vickers | 95 | 95 | |
| Tensile Strength, Ultimate | 290 MPa | 42100 psi | Wall thickness 5 mm |
| Tensile Strength, Yield | 250 MPa | 36300 psi | Wall thickness 5 mm |
| Elongation at Break | 10% | 10% | |
| Thermal Conductivity | 170 W/m-K | 1180 BTU-in/hr-ft²-°F | |
| Aluminum, Al | 95.2 - 98.3 % | 95.2 - 98.3 % | As remainder |
| Chromium, Cr | <= 0.25 % | <= 0.25 % | |
| Copper, Cu | <= 0.10 % | <= 0.10 % | |
| Iron, Fe | <= 0.50 % | <= 0.50 % | |
| Magnesium, Mg | 0.60 - 1.2 % | 0.60 - 1.2 % | |
| Manganese, Mn | 0.40 - 1.0 % | 0.40 - 1.0 % | |
| Other, each | <= 0.05 % | <= 0.05 % | |
| Other, total | <= 0.15 % | <= 0.15 % | |
| Silicon, Si | 0.70 - 1.3 % | 0.70 - 1.3 % | |
| Titanium, Ti | <= 0.10 % | <= 0.10 % | |
| Zinc, Zn | <= 0.20 % | <= 0.20 % |
View our latest news
The importance of plastic machining in industries that require precision-engineered components cannot be overemphasized; it is among the most versatile materials for such applications. Both plastics have similar features;...
The CNC milling machine is an advanced manufacturing method that offers unique accuracy, productivity, and flexibility in making complicated parts and elements. Nevertheless, what is a CNC mill? Furthermore,...
Modern manufacturing has been changed by CNC (Computer Numerical Control) machines that give unmatched efficiency, precision, and flexibility. Experts in the field or beginners in automated machining need to...
In the shaping and fabrication of metallic materials, there is a need to differentiate between metal cutting processes and machining processes for both industry professionals and amateurs. These two...

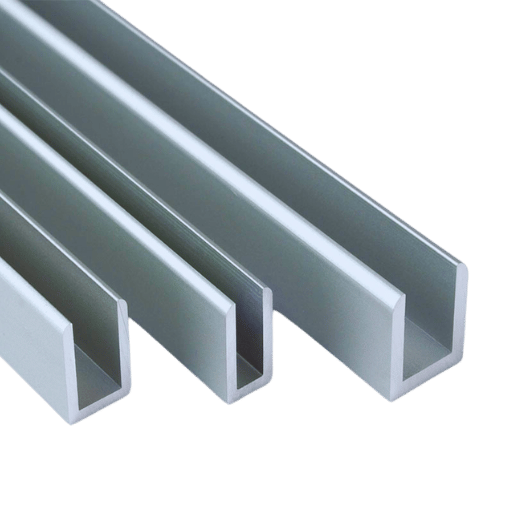

Get 6082 aluminum CNC machining parts from Hopeful
